TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

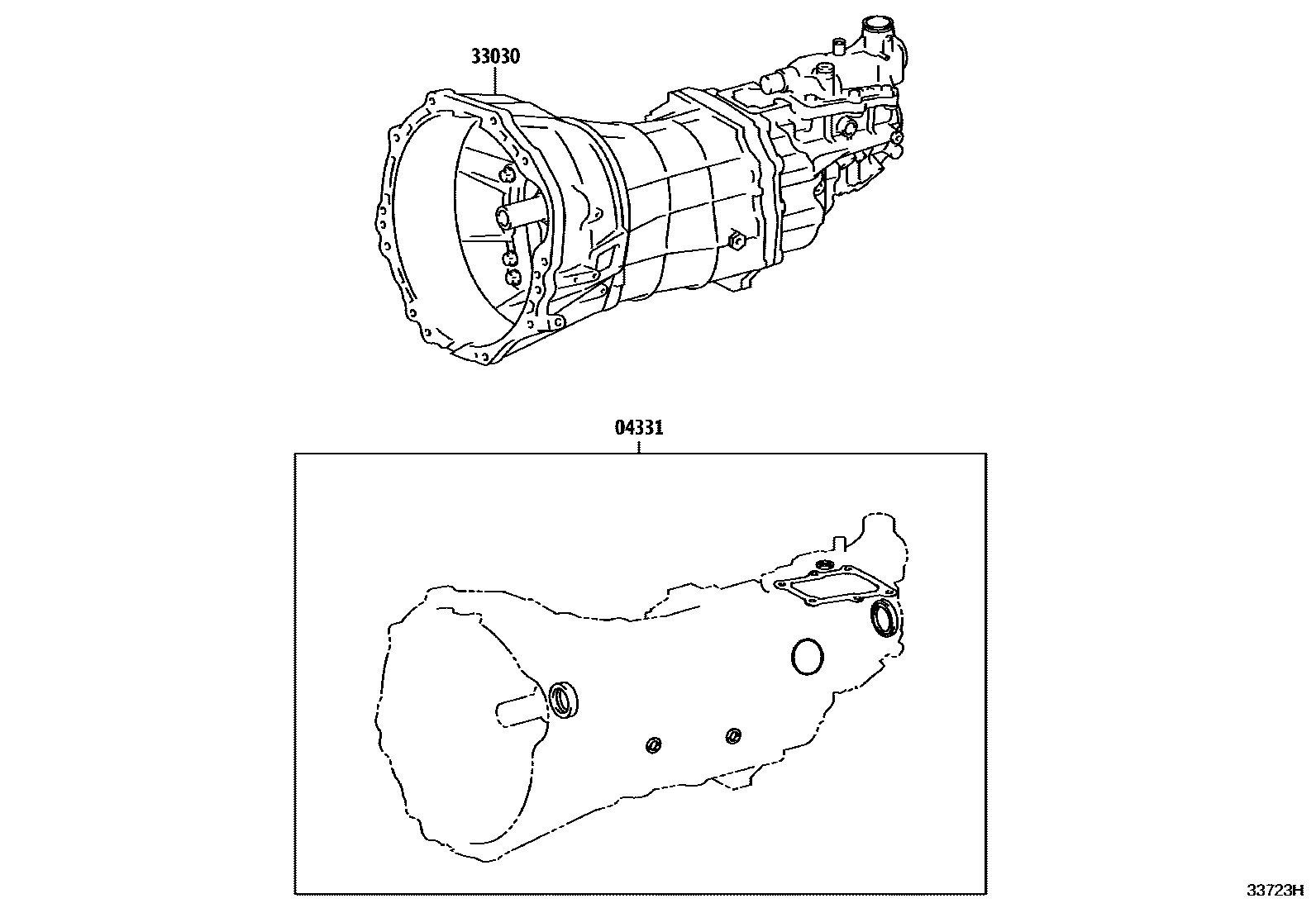

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-0K541i202312-202407

TYPE B:REFER ILLUST.

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0KC82i202409

R151,TYPE B:REFER ILLUST.

main33030-0KD15i202312

R151,TYPE B:REFER ILLUST.

main33030-0KG40i202409

R151,TYPE B:REFER ILLUST.

main33030-0KG70i202312-202407

R151,TYPE B:REFER ILLUST.

2 parts on this diagram · 3 diagrams in section
