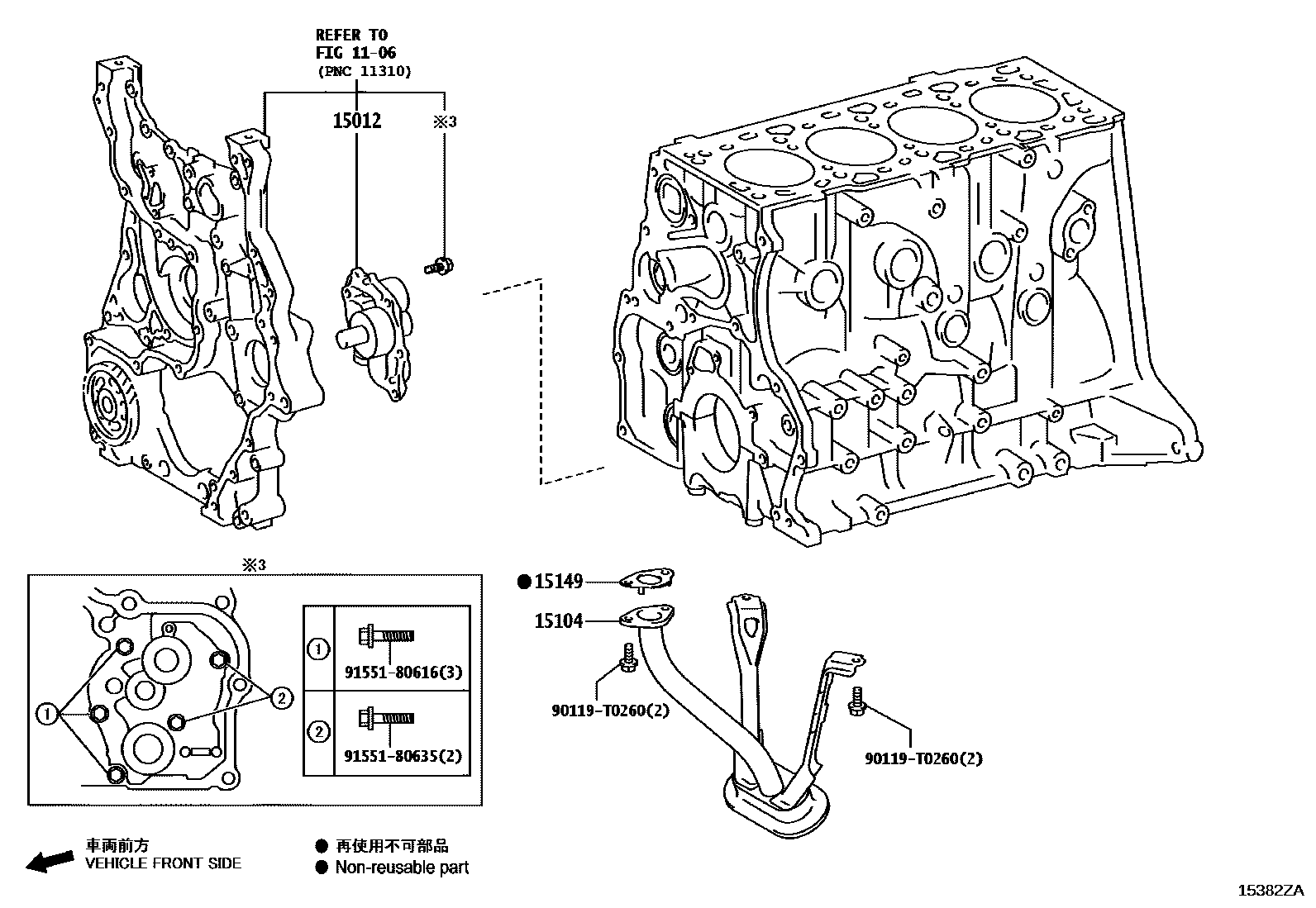

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15012COVER SUB-ASSY, OIL PUMP

main15012-0E010i2GD..GUN12#..PHL202312-202407

15104STRAINER SUB-ASSY, OIL

main15104-08020i2GD..GUN11#,12#..IDN,LA,THAI202401-202506

main15104-0C050i1TR..TGN110..IDN202409

main15104-0E040i2GD..GUN110,12#202312-202401

15149GASKET, OIL STRAINER FLANGE

main15149-0E010i2GD..GUN110,12#..LA,PHL,THAI202312-202401

90119T0260

main90119-T0260

9155180616

main91551-80616

9155180635

main91551-80635

7 parts on this diagram · 3 diagrams in section
