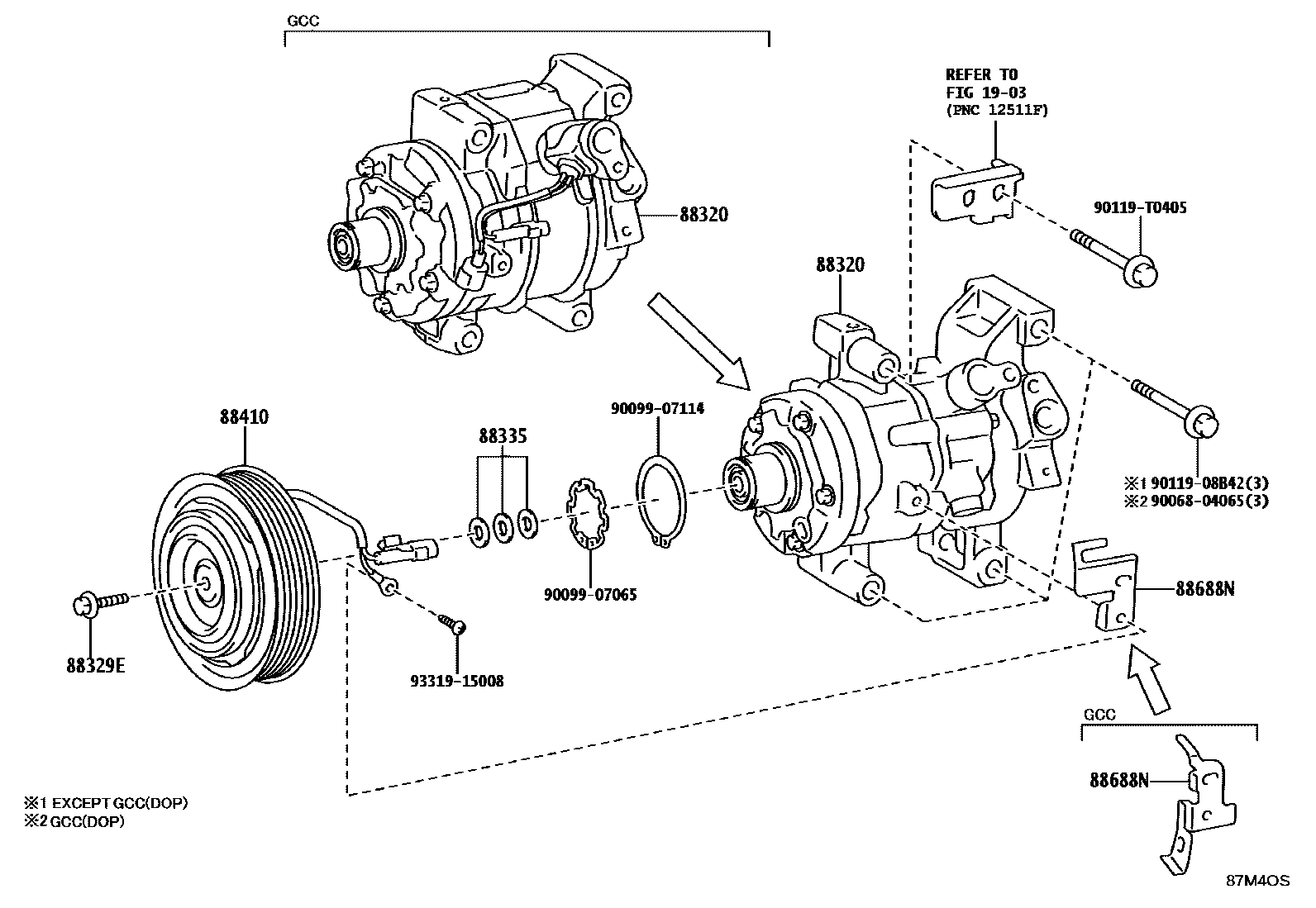

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1903ALTERNATOR

→ Go to FIG 19-03

88320COMPRESSOR ASSY, COOLER

main88320-0K520iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main88320-0K530iGUN122,125,126..GCC202408

main88320-0K550iTGN12#..GCC202408

main88320-0K590iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202411

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K760iGGN125..GCC202408

88329EBOLT, COMPRESSOR, NO.1

main90099-04349iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

88335GASKET KIT, OVERHAUL

main88335-14020iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

88410CLUTCH ASSY, MAGNET

main88410-0K580iTGN121..5F..ARL202408-202411

main88410-0K600iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main88410-0K621iGGN125..LA202411

main88410-0K631iGGN125..GCC202408

main88410-0K690iTGN12#..GCC202408

main88410-0K760iGUN125,126,13#..AGTP; GUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202411

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K770iTGN126,136..AGTP; TGN126..AGTP..(L,S)202411

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88688NBRACKET, COOLER

main88688-0K280iTGN121..6FC..ARL;TGN12#,136..BZAG,GCC,GEN,LA,SA202408

main88849-0K010iGGN125..LA; GUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202411

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.1:REFER ILLUST.

main88849-0K020iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

NO.2:REFER ILLUST.

main88849-0K030iGGN125..GCC; GUN122,125,126..GCC202408

NO.1:REFER ILLUST.

9006804065

main90068-04065

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

90119T0405

main90119-T0405

9331915008

main93319-15008

12 parts on this diagram · 7 diagrams in section
