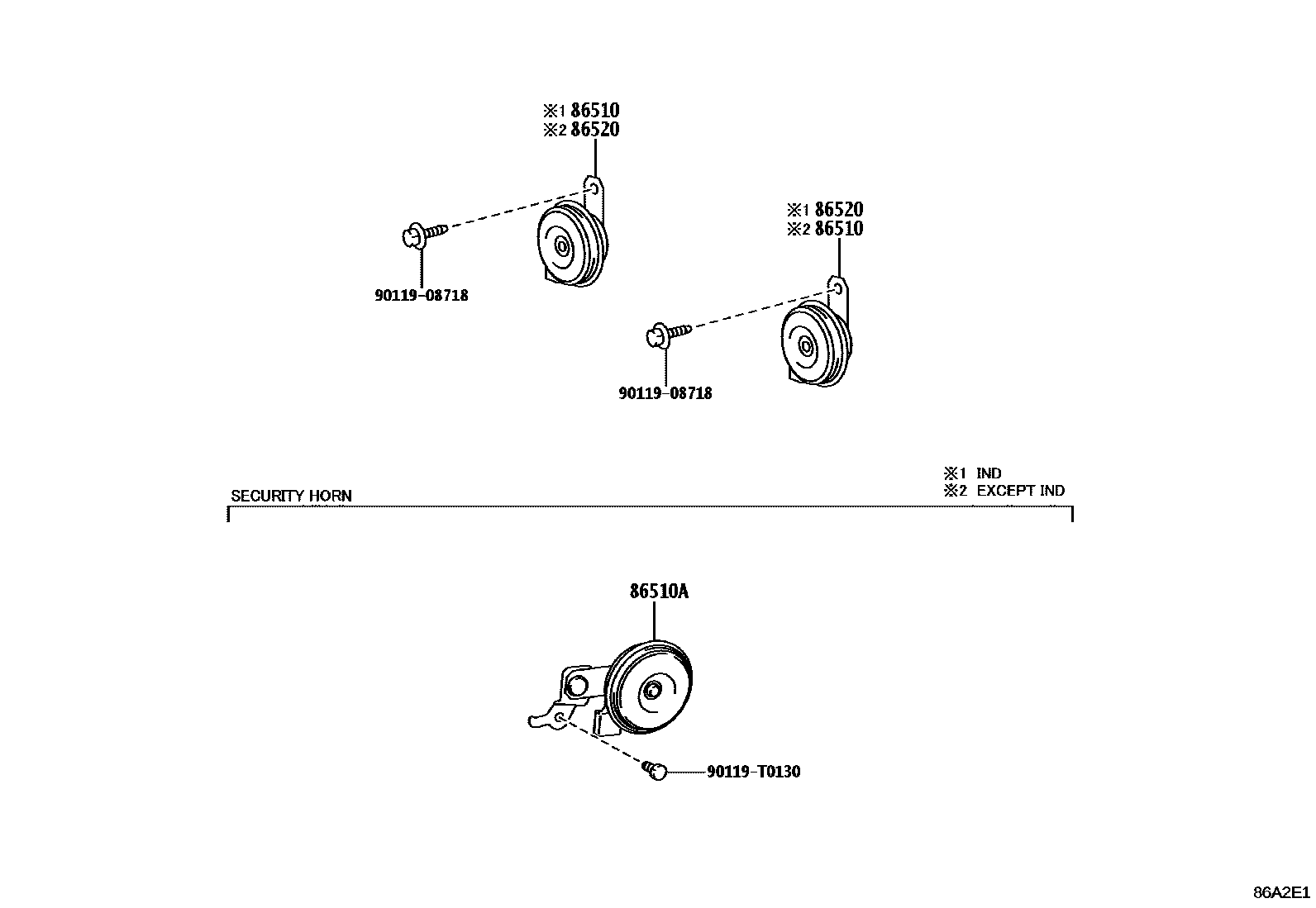

HORN
86510HORN ASSY, HIGH PITCHED
main86500-0K120iGUN126..6F..L..BZAG;GUN126..6FC..(L,S)..BZAG; GUN126..6FC..H..BZAG; GUN126..6FC..S..BZAG202411
ARGENTINA SPEC,W(INMETRO MARK); BRAZIL SPEC,W(INMETRO MARK); W(INMETRO MARK)
main86510-0K010iTGN126..H..GCC;GUN125..(H,S)..IDN;GUN126..H..MHV..IV3;GUN126..H..ARL..CBU;GUN122,125,TGN121,126..GEN,LA,TH;GUN122,125,136,TGN121..H..(ARL,GCC,LA);GGN125,GUN120,121,126,135,TGN136..GCC,GEN,KEN,LA,MMR,PH,TH,TWN202408
EGYPT SPEC
86510AHORN ASSY, SECURITY
main86560-0K020iGUN125..LHD..S..GEN; GUN135..ARL;GUN126..CAMP;GUN126..THP..L;GUN126..6F..S..BZAG;TGN126..5F..(H,L)..LA;GUN126..RHD..THP..6F..H;GUN126..H..MHV..(ARL,LA);GUN126,136..6F..H..(LA,PH);GUN135..(H,S)..(BZAG,PH,TH,VN);GGN125,GUN136,TGN136..(5F,6FC)..(ARL,GEN,LA);GUN125,126,TGN121..(6F,6FC)..(L,S)..(ARL,TH,VN);GUN126..6FC..H..DCRL..(ARL,LA,MMR,PH,TH,TWN,VN)..CBU; GUN135..GEN;TGN126..S..LA;TGN126..L..GEN;GUN126..AGTP..6F..S..LA;GUN125..RHD..(H,S)..GEN;GUN125..RHD..6F..L..GEN;GUN125,135..AGTP..S..LA;GUN125,126..LHD..6F..H..GEN;GUN122,126..THP..(5F,6FC)..(H,S)..GEN; TGN126..H..GEN202408
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN); ASEAN GENERAL SPEC; AZERBAIJAN SPEC; CAMBODIA SPEC; OCEANIA GENERAL SPEC
main86560-0K080iGUN125,TGN126..LHD..S..GEN; GUN125..LHD..S..GEN; GUN126..6F..L..BZAG;GUN126..6FC..(L,S)..BZAG;GUN125,TGN126..LHD..S..GEN; TGN126..H..GEN202408
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ASEAN GENERAL SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); AZERBAIJAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); CAMBODIA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); OCEANIA GENERAL SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
86520HORN ASSY, LOW PITCHED
main86500-0K130iGUN126..6F..L..BZAG;GUN126..6FC..(L,S)..BZAG; GUN126..6FC..H..BZAG; GUN126..6FC..S..BZAG202411
ARGENTINA SPEC,W(INMETRO MARK); BRAZIL SPEC,W(INMETRO MARK); W(INMETRO MARK)
main86520-0K010iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..ARL;GUN136,TGN121..GCC,GEN,LA;GUN126..(ARL,GCC,GEN,GHA,KEN,LA,MMR,PH,TH,TWN)..CBU;GGN125,GUN120,121,122,125,135,TGN120,126,136..ARL,GCC,GEN,GHA,IDN,KEN,LA,PH,TH202408
main86520-0K050iTGN136..BZAG;TGN136..S..SA;GGN125,GUN122,125,126,13#,LAN125,TGN121,126..BZAG,SA202411
main86520-42130iTGN126..H..GCC;GUN125..6F..(H,L)..GCC;GUN122,TGN121..5F..S..GCC..CBU; TGN136..L..SA;GUN125,126,135..VN202408
EGYPT SPEC
9011908718
main90119-08718
90119T0130
main90119-T0130
5 parts on this diagram · 1 diagram in section
