NAVIGATION & FRONT MONITOR DISPLAY
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86140ARECEIVER ASSY, RADIO & DISPLAY
DENSO TEN
main86140-0KN81supersedes 86140-0KP74iGUN125..LHD..H..GEN; GUN125..LHD..S..GEN; GUN126..6FC..PH; GUN126..LHD..6FC..H..GEN; GUN126..LHD..THP..6FC..H..GEN; GUN126..PH;GUN135..6FC..H..PH; GUN135..GEN,PH;GUN126..LHD..H..(GEN,MMR,PH); GUN135..S..PH;GUN126..LHD..6FC..H..GEN; TGN126..H..GEN202408-202501
PANASONIC; PANASONIC,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&AUDIO-*DA(8INCH) & *BT; PANASONIC,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&AUDIO-*DA(8INCH) & *BT; PANASONIC,ASIA COLD COUNTRY SPEC; PANASONIC,ASIA COLD COUNTRY SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); PANASONIC,AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&SPEAKER-9SPEAKER & JBL&BACK MONITOR-WITH(*PVM); PANASONIC,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED)&AUDIO-*DA(8INCH) & *BT; PANASONIC,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED)&AUDIO-*DA(8INCH) & *BT; PANASONIC,GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT(LEATHER)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); PANASONIC,MLM ADVENTURE PACKAGE&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); PANASONIC,MLM ADVENTURE WIDE TREAD&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); PANASONIC,OCEANIA GENERAL SPEC&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); PANASONIC,OCEANIA GENERAL SPEC&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&SPEAKER-9SPEAKER & JBL&BACK MONITOR-WITH(*PVM)
main86140-0KP00iGUN125,135..(L,S)..TH; GUN125,135..(L,S)..TH;GUN126..RHD..6FC..H..GEN; GUN126,135..H..TH202408
PANASONIC; PANASONIC,AUDIO-*DA(8INCH) & *BT; PANASONIC,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
PIONEER; PIONEER,AUDIO-*DA(8INCH) & *BT
main86140-0KQ00supersedes 86140-0KZ32iGGN125,GUN126,136..RHD..H..SA; GUN125,135,TGN136..RHD..S..SA202411
DENSO TEN; DENSO TEN,AUDIO-*DA(8INCH) & *BT & DAB
main86140-0KQ50iGGN125,GUN122..H..GCC; GUN125..6FC..H..GCC; GUN126..6FC..GCC; TGN121..5F..H;TGN126..H..GCC202408
PIONEER; PIONEER,AUDIO-AVN(8INCH) & *BT; PIONEER,AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH; PIONEER,GCC SPEC EURO4 2018MY&AUDIO-AVN(8INCH) & *BT; PIONEER,GCC SPEC EURO4 2018MY&AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH; PIONEER,GCC SPEC EURO4 2022MY&AUDIO-AVN(8INCH) & *BT; PIONEER,GCC SPEC EURO4 2022MY&AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH
PIONEER; PIONEER,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
DENSO TEN
main86140-0KY04iGUN125..LHD..L..GEN; GUN125..LHD..S..GEN; GUN125..LHD..S..GEN;GUN135,TGN136..L..SA;GUN125..RHD..L..(KEN,SA);GUN126,LAN125,TGN126..(L,S)..SA;GUN125,126..LHD..(H,S)..(GHA,SA);GUN125,TGN121..(GHAP,THP)..L..(GHA,SA); GUN126..S..SA;GUN125..L..GHA;GUN125..RHD..L..SA;GUN125..LHD..S..GEN; TGN120;TGN121..5F..S;TGN126..H..GCC;TGN121..6FC..GCC;GUN125..6F..H..GCC; TGN120;TGN126..H..GCC;GUN122..S..GCC..CBU;GUN125,TGN121..(6F,6FC)..H..GCC202408
DENSO TEN; DENSO TEN,AFRICA SPEC&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER); DENSO TEN,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER); DENSO TEN,AUDIO-WITHOUT & WITH(AUDIO LESS COVER); DENSO TEN,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED)&AUDIO-WITHOUT & WITH(AUDIOLESS COVER); DENSO TEN,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER); DENSO TEN,MOROCCO SPEC&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,MOROCCO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER); DENSO TEN,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER); DENSO TEN,SUDAN SPEC&AUDIO-*DA(FOR EMERGING MARKET)
main86140-0KY12iGUN125..LHD..H..GEN;GUN126..LHD..S..GEN; GUN125..LHD..S..GEN; GUN126..LHD..THP..H..GEN202408
DENSO TEN; DENSO TEN,OCEANIA GENERAL SPEC; DENSO TEN,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&AUDIO-*DA(8INCH) & *BT; DENSO TEN,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&AUDIO-*DA(8INCH) & *BT
main86140-0KZ22iGUN122,TGN121..LHD..L..GEN; GUN122..RHD..GEN; GUN125,126..RHD..S..GEN;GUN126..RHD..6FC..H..GEN; GUN125..RHD..6F..L..GEN; GUN126..THP..6F..S..LA;GUN126..THP..H..DCRL..LA;GUN125,135,TGN126..THP..S..LA; GUN126..THP..6FC..S..LA202408
DENSO TEN; DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&STEERINGSWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,CENTRAL AND SOUTH AMERICA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
main86140-0KZ92iGUN125..6FC..S..GEN; GUN126..RHD..6FC..H..GEN; GUN136..6FC..S;GUN125..RHD..H..GEN;GUN125,126,135,TGN121..(6F,6FC)..(L,S)..ARL202408
DENSO TEN; DENSO TEN,AUDIO-*DA(8INCH) & *BT; DENSO TEN,OCEANIA GENERAL SPEC&AUDIO-*DA(8INCH) & *BT; DENSO TEN,OCEANIA(EURO 5 REGULATION)&AUDIO-*DA(8INCH) & *BT
main86140-F0133supersedes 86140-0KZ03iGUN126..MHV..LA; GUN126..THP..6FC..H..DCRL..LA; GUN126..THP..L; TGN136..GEN202408
DENSO TEN; DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; DENSO TEN,BACK MONITOR-WITH; DENSO TEN,MEXICO SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; DENSO TEN,MEXICO SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
main86140-F0304iGUN122,125..RHD..MTM..L..GEN; GUN125,126..RHD..S..GEN;GUN126..RHD..6FC..H..GEN; GUN125..RHD..6F..L..GEN; GUN126..RHD..6F..H..GEN; GUN126..RHD..6F..H..GEN;GUN120,121,122,125,135..(L,S)..TH202408
DENSO TEN; DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,AUDIO-WITHOUT & WITH(AUDIO LESS COVER); DENSO TEN,BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
main86140-F0312iGUN122..IV3;GUN125..S..GCC;TGN126..6FC..L; GUN122..IV3;TGN126..6FC..L; GUN122..L..GCC; GUN126..GCC; TGN126..5F..GCC;GUN125..(H,L)..GCC;GUN122..S..GCC..CBU;GGN125,TGN120,121..GCC;TGN126..6FC..(H,S)..GCC202408
DENSO TEN; DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,AUDIO-WITHOUT & WITH(AUDIO LESS COVER); DENSO TEN,GCC SPEC EURO4 2018MY&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,GCC SPEC EURO4 2022MY&AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN
main86140-0KN63iGUN125..6F..L..GCC; GUN125..H..GCC; GUN125..H..SA;GUN125..LHD..THP..S..(GEN,SA); TGN120;TGN121..6FC..H;TGN126..H..GCC;GUN122..S..GCC..CBU202408
DENSO TEN,AUDIO-*DA(8INCH) & *BT; DENSO TEN,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH; DENSO TEN,SUDAN SPEC&AUDIO-*DA(8INCH) & *BT; DENSO TEN,SUDAN SPEC&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
main86140-0KP11iGGN125,TGN120..GCC;TGN121,126..H..GCC;GUN125..6F..L..GCC;GUN122..S..GCC..CBU; GUN125..H..GCC; GUN126..GCC202408
DENSO TEN,AUDIO-*DA(8INCH) & *BT; DENSO TEN,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH; DENSO TEN,GCC SPEC EURO4 2018MY&AUDIO-*DA(8INCH) & *BT; DENSO TEN,GCC SPEC EURO4 2018MY&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH; DENSO TEN,GCC SPEC EURO4 2022MY&AUDIO-*DA(8INCH) & *BT; DENSO TEN,GCC SPEC EURO4 2022MY&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
DENSO TEN,AUDIO-*DA(8INCH) & *BT; DENSO TEN,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH; DENSO TEN,NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&AUDIO-*DA(8INCH) & *BT
main86140-0KP50iGUN126,136..H..BZAG; GUN126..6FC..H..BZAG; GUN126..6FC..S..BZAG; GUN126..AGTP..6FC..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA; GUN126..H..BZAG;TGN126..AGTP..H;GUN125,135..BZAG;GUN126..6F..S..BZAG;GUN126..AGTP..6F..H..LA;GGN125,GUN136,TGN136..AGTP..(H,L)202411
PIONEER; PIONEER,ARGENTINA SPEC; PIONEER,AUDIO-*DA(8INCH) & *BT; PIONEER,AUDIO-AUDIO (IN LINE ACCESSORY); PIONEER,BRAZIL SPEC&AUDIO-AUDIO (IN LINE ACCESSORY); PIONEER,BRAZIL SPEC&SPEAKER-9SPEAKER & JBL&AUDIO-AUDIO (IN LINE ACCESSORY); PIONEER,SPEAKER-9SPEAKER & JBL&AUDIO-AUDIO (IN LINE ACCESSORY)
PIONEER,CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT
DENSO TEN,SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; DENSO TEN,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
PIONEER; PIONEER,MLM ADVENTURE PACKAGE&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); PIONEER,MLM ADVENTURE PACKAGE&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&SPEAKER-9SPEAKER & JBL&BACK MONITOR-WITH(*PVM)
PIONEER,AUDIO-AVN(8INCH) & *BT & DAB; PIONEER,AUDIO-AVN(8INCH) & *BT & DAB&BACK MONITOR-WITH; PIONEER,SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB
PIONEER,AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL
PIONEER,AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL; PIONEER,SPEAKER-9SPEAKER & JBL
DENSO TEN,SPEAKER-9SPEAKER & JBL
PIONEER,SPEAKER-9SPEAKER & JBL
PIONEER,SPEAKER-9SPEAKER & JBL
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; DENSO TEN,CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
main86140-0KV63iGUN125,135..(L,S)..TH;GUN126..RHD..6F..H..GEN; GUN125..6FC..S..GEN;GUN126..RHD..6FC..H..GEN202408
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; DENSO TEN,BACK MONITOR-WITH
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; DENSO TEN,GCC SPEC EURO4 2018MY&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; DENSO TEN,GCC SPEC EURO4 2022MY&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
main86140-0KW90iGUN126..6F..L..BZAG;GUN126..6FC..(L,S)..BZAG; GUN126..6FC..H..BZAG; GUN126..6FC..S..BZAG202411
PIONEER; PIONEER,ARGENTINA SPEC&AUDIO-AUDIO (IN LINE ACCESSORY); PIONEER,AUDIO-AUDIO (IN LINE ACCESSORY); PIONEER,BRAZIL SPEC
PIONEER,BRAZIL SPEC&SPEAKER-9SPEAKER & JBL
DENSO TEN; DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,MEXICO SPEC&AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN; DENSO TEN,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
DENSO TEN,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED); DENSO TEN,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED); DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET); DENSO TEN,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED); DENSO TEN,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED); DENSO TEN,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED); DENSO TEN,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED); DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
DENSO TEN,EXPORT FROM SA&SPEAKER-9SPEAKER & JBL
DENSO TEN,OCEANIA GENERAL SPEC&SPEAKER-9SPEAKER & JBL
PANASONIC,SPEAKER-9SPEAKER & JBL
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
main86140-F0332iGUN122..L..GCC; GUN125..6F..L..GCC; GUN125..6FC..S..GCC; GUN126..GCC; TGN121..6FC..S;GGN125,TGN126..GCC;GUN125,TGN121..MTM..L..GCC; TGN121..S;TGN121..5F..H;TGN126..5F..GCC;GGN125,GUN125,TGN126..(6F,6FC)..H..GCC202408
DENSO TEN; DENSO TEN,SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; DENSO TEN,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&AUDIO-*DA(FOR EMERGING MARKET) & DAB; DENSO TEN,SAUDI ARABIA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOREMERGING MARKET) & DAB; DENSO TEN,UAE SPEC; DENSO TEN,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
DENSO TEN,BACK MONITOR-WITH; DENSO TEN,SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB&BACK MONITOR-WITH; DENSO TEN,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB&BACK MONITOR-WITH
HANGSHENG,AUDIO-10.25INCH *DA; HANGSHENG,AUDIO-10.25INCH *DA&BACK MONITOR-WITH
main86140-YY330iGUN126..AGTP..6FC;GUN126..6F..L..BZAG;TGN126..AGTP..(H,S);GUN126..AGTP..6F..(H,S);GGN125,GUN125,13#,TGN136..AGTP202411
HARMAN,AUDIO-AUDIO (IN LINE ACCESSORY)
HARMAN,SPEAKER-9SPEAKER & JBL&AUDIO-AUDIO (IN LINE ACCESSORY)
HARMAN,GR SPORT WIDE TREAD&AUDIO-AUDIO (IN LINE ACCESSORY)
HARMAN,GR SPORT WIDE TREAD&SPEAKER-9SPEAKER & JBL&AUDIO-AUDIO (IN LINE ACCESSORY)
PANASONIC,GR SPORT WIDE TREAD&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM)
PANASONIC,AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
main86140-YY580iGUN126..PH,VN;GUN135..6FC..H..PH; GUN126..PH;GUN135..6FC..H..PH; GUN135..S..PH;GUN126..LHD..6FC..H..GEN202408
PANASONIC,AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); PANASONIC,MLM ADVENTURE PACKAGE&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); PANASONIC,MLM ADVENTURE WIDE TREAD&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM)
PANASONIC,AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&SPEAKER-9SPEAKER & JBL&BACK MONITOR-WITH(*PVM); PANASONIC,MLM ADVENTURE PACKAGE&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&SPEAKER-9SPEAKER & JBL&BACK MONITOR-WITH(*PVM)
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main90011-25321×2iGUN125..LHD..H..GEN; GUN125..LHD..S..GEN; GUN126..6FC..PH; GUN126..LHD..6FC..H..GEN; GUN126..LHD..THP..6FC..H..GEN; GUN126..PH;GUN135..6FC..H..PH; GUN135..GEN,PH;GUN126..LHD..H..(GEN,MMR,PH); GUN135..S..PH;GUN126..LHD..6FC..H..GEN; TGN126..H..GEN202408-202502
ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&AUDIO-*DA(8INCH) & *BT; ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&AUDIO-*DA(8INCH) & *BT; ASIA COLD COUNTRY SPEC; ASIA COLD COUNTRY SPEC&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&SPEAKER-9SPEAKER & JBL&BACK MONITOR-WITH(*PVM); CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED)&AUDIO-*DA(8INCH) & *BT; CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED)&AUDIO-*DA(8INCH) & *BT; GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT(LEATHER)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); MLM ADVENTURE PACKAGE&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); MLM ADVENTURE WIDE TREAD&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); OCEANIA GENERAL SPEC&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&BACK MONITOR-WITH(*PVM); OCEANIA GENERAL SPEC&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)&SPEAKER-9SPEAKER & JBL&BACK MONITOR-WITH(*PVM)
main90011-25325iGUN125,135..S..TH; GUN126,TGN136..THP..(HTWC,MHV)..(GEN,LA); GUN126..THP..6FC..H..DCRL..LA; GUN126..THP..L;GUN120,121,122,125,135..(L,S)..TH; GUN126..THP..L;GUN125,135..(L,S)..TH202408
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM); MEXICO SPEC&AUDIO-*DA(FOR EMERGING MARKET); MEXICO SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; MEXICO SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
main90011-25333×2iGUN126,136..H..BZAG; GUN126..6FC..H..BZAG; GUN126..6FC..S..BZAG; GUN126..AGTP..6FC..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA; TGN126..AGTP..H;GUN125,126,135..BZAG;GUN126..AGTP..6F..H..LA;GGN125,GUN136,TGN136..AGTP..(H,L)202411
ARGENTINA SPEC&AUDIO-AUDIO (IN LINE ACCESSORY); AUDIO-*DA(8INCH) & *BT; AUDIO-AUDIO (IN LINE ACCESSORY); BRAZIL SPEC&AUDIO-AUDIO (IN LINE ACCESSORY); BRAZIL SPEC&SPEAKER-9SPEAKER & JBL&AUDIO-AUDIO (IN LINE ACCESSORY); SPEAKER-9SPEAKER & JBL&AUDIO-AUDIO (IN LINE ACCESSORY)
86271DISC, DISC PLAYER
main86807-11038iGGN125,GUN122..H..GCC; GGN125..GCC; GUN126..6FC..DCRL..GCC; GUN126..6FC..GCC; TGN121..5F..H;GUN125,TGN126..(5F,6FC)..H..GCC202408
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(FOR EMERGING MARKET); AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT & DAB; GCC SPEC EURO4 2018MY&AUDIO-AVN(8INCH) & *BT; GCC SPEC EURO4 2022MY&AUDIO-AVN(8INCH) & *BT; SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
86730AMICROPHONE ASSY, TELEPHONE
main86730-60050iGUN122..S..GCC..CBU;GUN125,TGN120..MTM..L..GCC;GUN125..LHD..THP..S..(GEN,SA);GUN125,126,TGN121,126..LHD..H..(GCC,SA); GUN125..BZAG;TGN126..(H,S)..GEN;GUN125..LHD..H..GEN;GUN126..AGTP..6F..H..LA;GGN125,GUN122,136..LHD..H;GUN135,TGN136..BZAG,GEN,PH;GUN126,TGN126..H..(HTWC,MHV)..LA;GUN126..LHD..(BZAG,GEN,MMR,PH,VN); GUN125..LHD..L..GEN; GUN126..6F..PH;GUN135..6FC..PH;GUN135..6F..S..PH;GUN126..LHD..6FC..H..(GEN,PH,VN); GUN126..6FC..DCRL..GCC; GUN126..AGTP..6FC..LA;GUN126..THP..H..DCRL..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA; GUN126..THP..L;GUN126..THP..6FC..H..DCRL..LA; TGN121..5F..H;GUN125,126,TGN126..(5F,6FC)..H..GCC; TGN126..5F..H..GCC202408
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(FOR EMERGING MARKET); AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); AUDIO-AM/FM & CD & *BT & RDS; AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT & DAB
main86730-71050iGUN125,126..RHD..S..GEN;GUN126..RHD..6FC..H..GEN;GUN122,125..RHD..MTM..L..GEN; GUN126,135..H..TH; GUN126..RHD..6F..H..GEN;GUN12#,135,TGN136..RHD..(L,S)..(KEN,SA,TH); GUN126..RHD..6F..H..GEN;GUN125,126,135,TGN136..RHD..(L,S)..SA202408
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-10.25INCH *DA; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86730-71060iGUN122..IV3;GUN125..L..GHA;TGN126..6FC..L;GUN126..6F..GCC;GUN125..LHD..S..GEN; TGN121..5F..H;TGN126..5F..GCC;TGN121..(L,S)..GCC;GGN125,GUN125..H..GCC;GUN122,125..MTM..L..GCC;TGN126..6FC..(H,S)..GCC; TGN121..GCC,GEN;TGN126..5F..GCC;GUN125..LHD..L..GEN;TGN126..6FC..H..GCC;GUN126..THP..6F..S..LA;GUN125,135..THP..S..LA;GUN126..THP..H..DCRL..LA;TGN126..THP..S..(GCC,LA);GUN125,TGN121..LHD..SAP..L;GGN125,GUN125,TGN120..(H,L)..GCC;GUN122..LHD..(L,S)..(GCC,GEN,SA)..CBU; TGN126..SA;GUN122..IV3;GUN125..H..SA;TGN126..6FC..L;GUN126,135..LHD..(GCC,GHA,SA);GUN125..LHD..S..(GCC,GEN,GHA,SA);GUN125,TGN121..(GHAP,THP)..L..(GHA,SA);GUN126,LAN125,TGN136..LHD..(SAP,THP)..(5F,6FC)..(L,S)..(LA,SA)202408
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-*DA(FOR EMERGING MARKET) & DAB; AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
main86808-0K051iGUN120,121,122,125,135..(L,S)..TH; GUN122..IV3;TGN126..6FC..L;GUN125..LHD..S..GEN;GUN126..RHD..6F..H..GEN; GUN122..S..GCC..CBU;GUN125..6FC..S..GEN;GUN126..RHD..6FC..H..GEN;GUN125,TGN121,126..H..GCC;GUN125,TGN120..MTM..L..GCC; GUN125..6FC..S..GEN;GUN126..RHD..6FC..H..GEN; GUN126..6FC..PH; GUN126..PH,VN;GUN135..6FC..H..PH; GUN126..PH;GUN135..6FC..H..PH; GUN126..THP..H..DCRL..LA; GUN135..S..PH;GUN126..LHD..THP..6FC..H..GEN; TGN121..5F..H;GUN125,TGN126..(5F,6FC)..H..GCC; TGN121..6FC..S;TGN126..5F..GCC;TGN126..6FC..(H,S)..GCC;GUN125,TGN121..MTM..L..GCC; TGN121..S;TGN121..5F..H;TGN126..5F..GCC;GUN122,125..MTM..L..GCC;GUN125,TGN126..(6F,6FC)..H..GCC; TGN126..5F..GCC;GUN125..(H,L)..GCC;GUN125..LHD..L..GEN;GUN126..RHD..S..GEN;TGN120,121..GCC,GEN;TGN126..6FC..H..GCC;TGN126..THP..S..(GCC,LA);GUN126..RHD..6FC..H..GEN;GUN126..THP..H..DCRL..LA;GUN125..RHD..6F..(L,S)..GEN;GUN125..THP..6FC..S..(GEN,LA);GUN122..(L,S)..(GCC,GEN)..CBU;GUN125,126,135..THP..6F..S..LA; TGN126..5F..H..GCC; TGN126..6FC..L;GUN122,126..MTM..IV3;GUN126..MHV..(ARL,GCC);GUN126..LHD..THP..6FC..S;GUN125,TGN121..THP..L..SA;GUN125..THP..S..(GCC,SA,TH);GUN125,126..LHD..6F..S..GEN;GUN126..LHD..THP..6FC..H..GEN;GUN136,TGN126..THP..(5F,6FC)..(ARL,SA);GUN122,126..MTM..H..(ARL,GCC,GEN,PH,TH);GUN125,136,TGN126..THP..MTM..H..(GEN,LA);GUN126..6FC..H..DCRL..(ARL,GCC,PH,TH,VN)..CBU;GGN125,GUN120,121,122,135..(6F,6FC)..(GCC,GEN,PH,TH); TGN126..H..GEN202408
ASIA COLD COUNTRY SPEC&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(FOR EMERGING MARKET); AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); AUDIO-AVN(8INCH) & *BT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER); CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT; GR SPORT WIDE TREAD&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); MLM ADVENTURE PACKAGE&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); MLM ADVENTURE WIDE TREAD&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
main86808-0K181iGUN126..AGTP..6FC..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA; TGN126..AGTP..H;GUN125,126,135..BZAG;GUN126..AGTP..6F..H..LA;GGN125,GUN136,TGN136..AGTP..(H,L)202411
AUDIO-*DA(8INCH) & *BT; AUDIO-AUDIO (IN LINE ACCESSORY)
main86808-0K231iGUN125..L..GHA;GUN125..RHD..(KEN,SA);GUN125..LHD..(GHAP,SAP)..(H,S);GGN125,GUN126,13#,LAN125,TGN126,136..CAMP,GHAP,INDP,KENP,MMRP,SAP; GUN126..CAMP202409
AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
main86808-0K280supersedes 86808-0K051iGUN126,136..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL; TGN121..5F..ARL;GUN126..H..DCRL..IV3202408-202411
DATA COMMUNICATION MODULE-WITH(AU-DCM)
main86808-0K350iGUN126..S..DCRL..ARL..CBU;GUN126..6FC..S..DCRL..IV3;GUN125,135,TGN121..(6F,6FC)..ARL; GUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408
DATA COMMUNICATION MODULE-WITH(AU-DCM)
DATA COMMUNICATION MODULE-WITH(G-DCM)
86841COMPUTER, NAVIGATION
main86840-0K184iGGN125; GGN125,GUN122..H; GUN126..6FC..DCRL..GCC; GUN126..6FC..GCC; TGN121..5F..H;GUN125,TGN126..(5F,6FC)..H..GCC202408-202409
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(FOR EMERGING MARKET); AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT & DAB; GCC SPEC EURO4 2018MY&AUDIO-AVN(8INCH) & *BT; GCC SPEC EURO4 2022MY&AUDIO-AVN(8INCH) & *BT; SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
main86840-0K185iGGN125,GUN122..H..GCC; GGN125..GCC; GUN126..6FC..DCRL..GCC; GUN126..6FC..GCC; TGN121..5F..H;GUN125,TGN126..(5F,6FC)..H..GCC202409
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(FOR EMERGING MARKET); AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT & DAB; GCC SPEC EURO4 2018MY&AUDIO-AVN(8INCH) & *BT; GCC SPEC EURO4 2022MY&AUDIO-AVN(8INCH) & *BT; SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main86840-0K195iGUN126..H..MHV..IV3;GUN126,136..H..ARL..CBU; GUN136..6FC..S;GUN126..S..MHV..IV3202410
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
86842WIRE, NAVIGATION, NO.1
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
86848ACARD, SERIAL NUMBER MAP UPDATE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main86848-33060iGGN125,GUN122..H..GCC; GGN125..GCC; GUN126..6FC..DCRL..GCC; GUN126..6FC..GCC; TGN121..5F..H;GUN125,TGN126..(5F,6FC)..H..GCC202408
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(FOR EMERGING MARKET); AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT & DAB; GCC SPEC EURO4 2018MY&AUDIO-AVN(8INCH) & *BT; GCC SPEC EURO4 2022MY&AUDIO-AVN(8INCH) & *BT; SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
86860ANTENNA ASSY, NAVIGATION
main86860-0K040iGUN120,121,122,125,135..(L,S)..TH; GUN122..IV3;GUN125..L..GHA;TGN126..6FC..L;GUN125..LHD..S..GEN;GUN126..RHD..6F..H..GEN;GUN125,126,135,TGN136..RHD..(L,S)..SA; GUN122..S..GCC..CBU;GUN125..6FC..S..GEN;GUN126..RHD..6FC..H..GEN;GUN125,TGN121,126..H..GCC;GUN125,TGN120..MTM..L..GCC; GUN125..6FC..S..GEN;GUN126..RHD..6FC..H..GEN; GUN126..6FC..PH; GUN126..AGTP..6FC..LA;GUN126..THP..H..DCRL..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA; GUN126..PH,VN;GUN135..6FC..H..PH; GUN126..PH;GUN135..6FC..H..PH; GUN135..S..PH;GUN126..LHD..6FC..H..GEN; TGN121..5F..H;GUN125,TGN126..(5F,6FC)..H..GCC; TGN121..6FC..S;TGN126..5F..GCC;TGN126..6FC..(H,S)..GCC;GUN125,TGN121..MTM..L..GCC; TGN121..GCC,GEN;TGN126..5F..GCC;GUN125..(H,L)..GCC;GUN125..LHD..L..GEN;GUN126..RHD..S..GEN;TGN126..6FC..H..GCC;TGN126..THP..S..(GCC,LA);GUN126..THP..H..DCRL..LA;GUN126..RHD..6FC..H..GEN;GUN125,TGN121..LHD..SAP..L;GUN125..RHD..6F..(L,S)..GEN;GUN125..THP..6FC..S..(GEN,LA);GUN125,126,135..THP..6F..S..LA;GUN122,TGN120..(L,S)..(GCC,GEN,SA)..CBU; TGN121..S;TGN121..5F..H;TGN126..5F..GCC;GUN122,125..MTM..L..GCC;GUN125,TGN126..(6F,6FC)..H..GCC; TGN126..5F..H..GCC; TGN126..H..GEN; TGN126..H..LA;TGN126..6FC..L;GUN126..MHV..ARL;GUN122,136..MTM..H;GUN125..H..(GEN,SA);GUN122,126..MTM..IV3;GUN126..AGTP..6F..H..LA;GUN126..LHD..6F..S..GEN;GUN126..LHD..6FC..H..GEN;GUN126..LHD..THP..6FC..S;GUN125..RHD..(KEN,SA,TH);GGN125,GUN120,121,LAN125;GUN126..6F..S..(BZAG,IND,SA);GUN126..6FC..H..DCRL..ARL..CBU;GUN125..LHD..S..(GCC,GEN,GHA,SA);GUN136,TGN126..(5F,6FC)..(ARL,BZAG,SA);GUN122,135..(6F,6FC)..(BZAG,GEN,PH,SA,TH);GUN125,TGN121..(AGTP,GHAP,THP)..L..(BZAG,GHA,SA);GUN126..6F..(H,L)..(ARL,BZAG,GCC,GEN,IND,KEN,PH,SA,TH);GUN126,TGN136..(5F,6FC)..(BZAG,GCC,GHA,IND,KEN,MMR,PH,SA,TH,VN)202408
ASIA COLD COUNTRY SPEC&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(FOR EMERGING MARKET); AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); AUDIO-AVN(8INCH) & *BT; AUDIO-WITHOUT & WITH(AUDIO LESS COVER); CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT; GR SPORT WIDE TREAD&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); MLM ADVENTURE PACKAGE&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); MLM ADVENTURE WIDE TREAD&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB; SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB; UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
main86880-0K070iGUN126..S..DCRL..ARL..CBU;GUN126..6FC..S..DCRL..IV3;GUN125,135,TGN121..(6F,6FC)..ARL; GUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3202408
DATA COMMUNICATION MODULE-WITH(AU-DCM)
DATA COMMUNICATION MODULE-WITH (L-DCM(ACCESSORY))
90153T0001
main90153-T0001
90167T0012
main90167-T0012

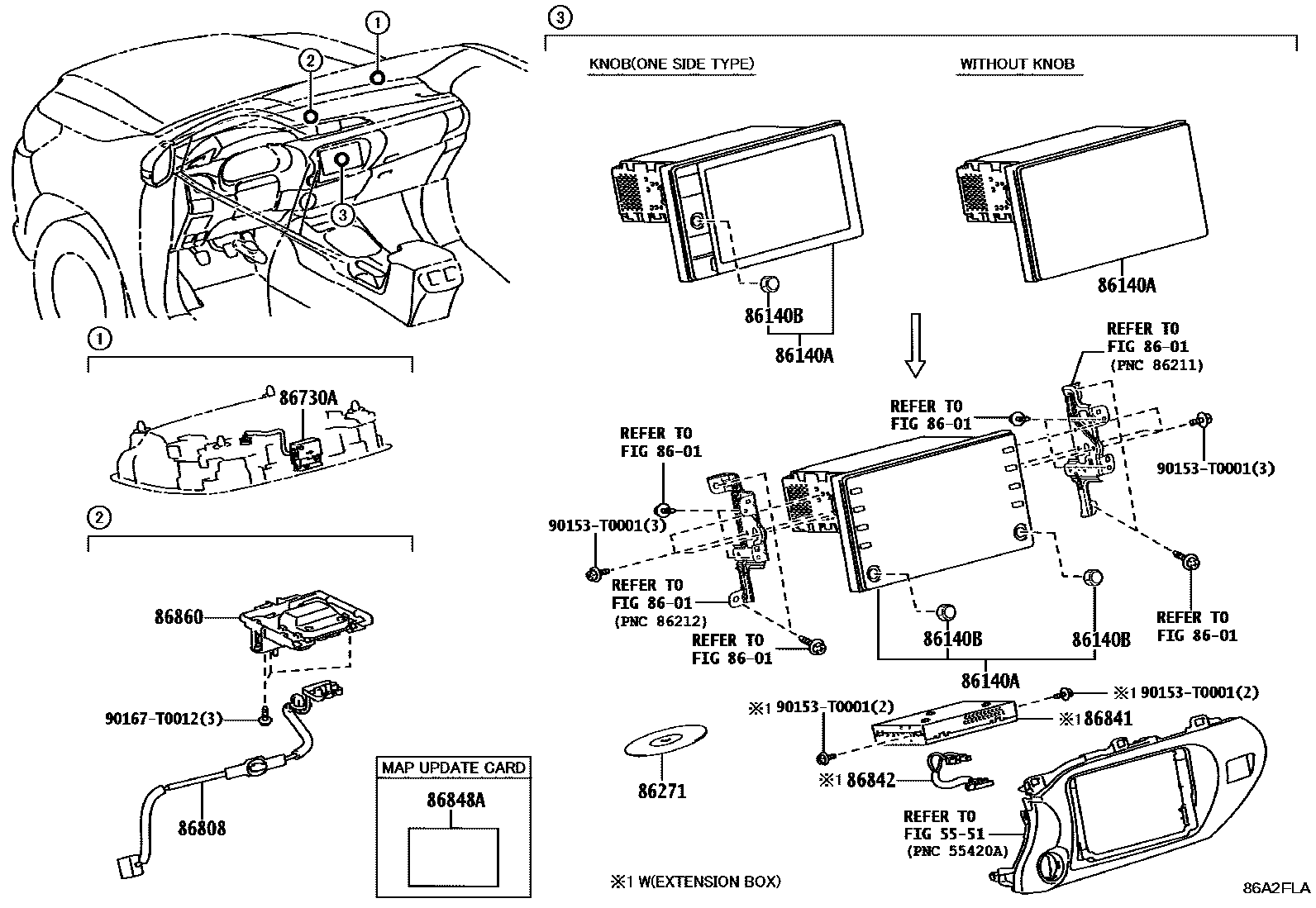

13 parts on this diagram · 1 diagram in section
