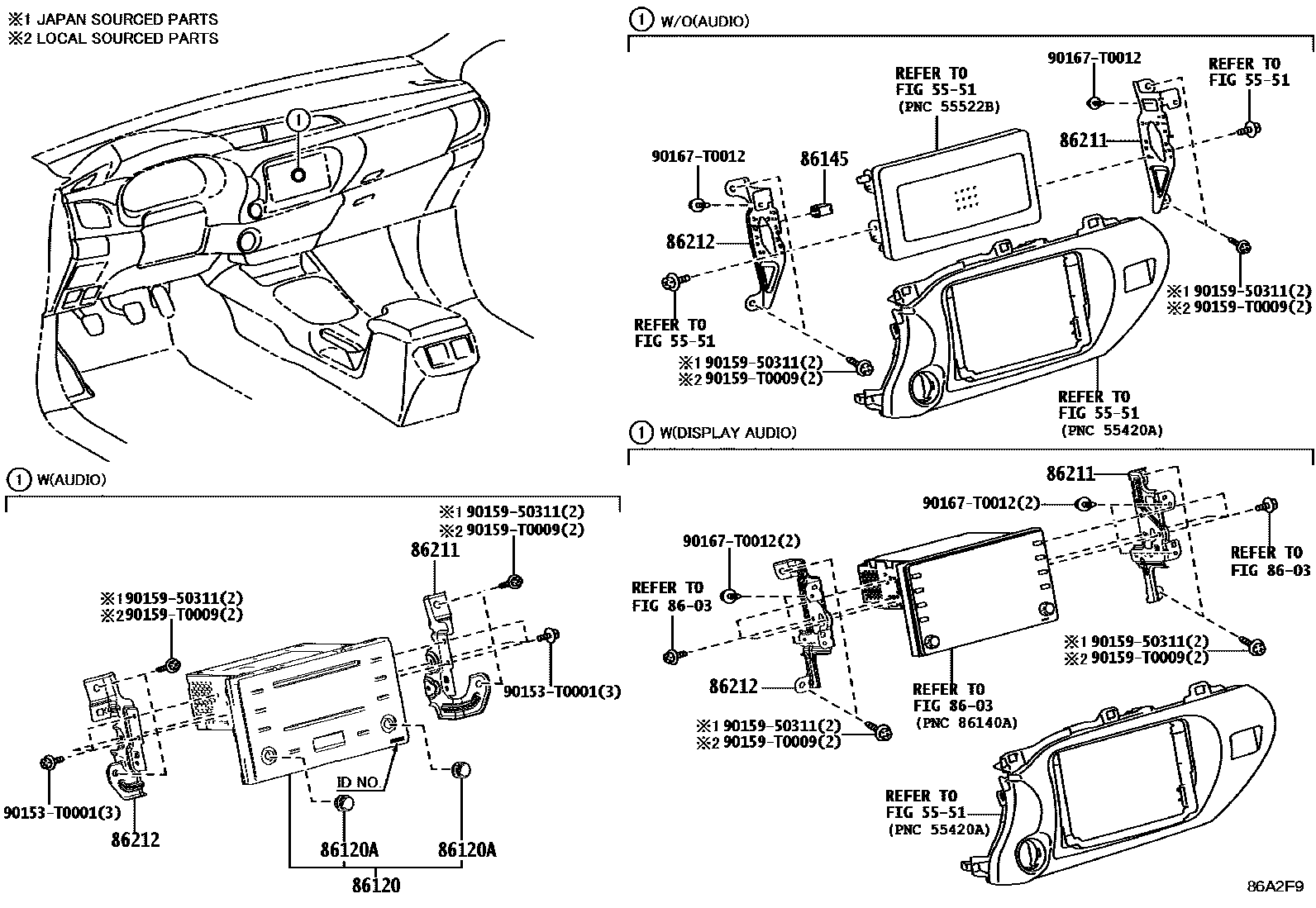

RADIO RECEIVER & AMPLIFIER & CONDENSER
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
8603NAVIGATION & FRONT MONITOR DISPLAY
86120RECEIVER ASSY, RADIO
DENSO TEN,ID=100892; DENSO TEN,ID=100892,ASIA COLD COUNTRY SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM & CD & *BT & RDS&SPEAKER-4SPEAKER
86120AKNOB, RADIO RECEIVER SWITCH
ASIA COLD COUNTRY SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM & CD &*BT & RDS&SPEAKER-4SPEAKER
86145CONNECTOR, ANTENNA MALE
main86145-52010iGUN122..IV3;GUN125..L..GHA;TGN126..6FC..L;GUN126..6F..GCC;GUN125..LHD..S..GEN;GUN126..RHD..6F..H..GEN;GUN125,126,135,TGN136..RHD..(L,S)..SA; GUN125..H..GCC;TGN126..L..GEN;TGN121..GCC,GEN;TGN126..(H,S)..GCC;GUN125..L..(GCC,GEN);GUN126..AGTP..6FC..LA;GUN122..5F..(L,S)..CBU;GUN125,126..RHD..S..GEN;GUN125..IDN,LA,MA,PH,VN;GUN125,TGN121..LHD..SAP..L;GUN135,TGN120,136..GCC,LA,VN;GUN126..RHD..6FC..H..(GEN,MA);GUN126..THP..H..DCRL..(LA,TWN);GUN126,TGN126..MTM..(L,S)..(GCC,LA)202408
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
86211BRACKET, RADIO, NO.1
main86211-KK050iGUN122..IV3;GUN125..L..GHA;TGN126..6FC..L;GUN126..6F..GCC;GUN125..LHD..S..GEN;GUN126..RHD..6F..H..GEN;GUN125,126,135,TGN136..RHD..(L,S)..SA; GUN125..H..GCC;TGN126..L..GEN;TGN121..GCC,GEN;TGN126..(H,S)..GCC;GUN125..L..(GCC,GEN);GUN126..AGTP..6FC..LA;GUN122..5F..(L,S)..CBU;GUN125,126..RHD..S..GEN;GUN125..IDN,LA,MA,PH,VN;GUN125,TGN121..LHD..SAP..L;GUN135,TGN120,136..GCC,LA,VN;GUN126..RHD..6FC..H..(GEN,MA);GUN126..THP..H..DCRL..(LA,TWN);GUN126,TGN126..MTM..(L,S)..(GCC,LA)202408
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86211-KK100iGUN122..IV3;GUN125..H..SA;TGN126..L..SA;TGN126..6FC..L;GUN126..MHV..LA;GUN126..6F..S..SA;TGN126..S..(GEN,SA);GUN126..RHD..6F..H..GEN;GUN126..LHD..(GCC,GHA,SA);GUN122,125..RHD..(KEN,SA,TH);GUN125..LHD..S..(GCC,GEN,GHA,SA);GUN126..(SAP,THP)..6FC..S..(LA,SA);GUN125,TGN121..(GHAP,THP)..L..(GHA,SA);GUN120,121,135,LAN125,TGN136..(L,S)..(GEN,SA,TH); GUN125..LHD..L..GEN; GUN126..6F..PH;GUN135..6F..S..PH;GUN135..6FC..(PH,VN);GUN126..LHD..6FC..H..(GEN,PH,VN); GUN126..THP..L;GUN126..THP..6FC..H..DCRL..LA; TGN121..5F..H;TGN126..5F..GCC;TGN121..(L,S)..GCC;GGN125,GUN125..H..GCC;GUN122,125..MTM..L..GCC;TGN126..6FC..(H,S)..GCC; TGN121..GCC,GEN;TGN126..5F..GCC;GUN125..LHD..L..GEN;GUN126..RHD..S..GEN;TGN126..6FC..H..GCC;TGN126..THP..S..(GCC,LA);GUN126..THP..H..DCRL..LA;GUN126..RHD..6FC..H..GEN;GUN125,TGN121..LHD..SAP..L;GUN125..RHD..6F..(L,S)..GEN;GUN125..THP..6FC..S..(GEN,LA);GUN125,126,135..THP..6F..S..LA;GGN125,GUN125,TGN120..(H,L)..GCC;GUN122..(L,S)..(GCC,GEN,SA)..CBU202408
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-*DA(FOR EMERGING MARKET) & DAB; AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); AUDIO-AM/FM & CD & *BT & RDS
main86211-KK130iGUN125..6FC..S..GEN;GUN126..AGTP..6FC..LA;GUN126..RHD..6FC..H..GEN;GUN126..THP..H..DCRL..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA; GUN126..6FC..DCRL..GCC; GUN135..(L,S)..TH;GUN125..6FC..S..GEN;GUN125..LHD..S..GEN;GUN126..RHD..H..GEN;GUN122..S..GCC..CBU;GUN125..THP..S..(SA,TH);GUN125,TGN120..MTM..L..GCC;GUN125,126,TGN121,126..LHD..H..(GCC,SA); GUN136..6FC;GUN136..6F..H;GUN126..H..BZAG;GUN126..H..MHV..IV3;GUN126..AGTP..6F..H..LA;GUN135..ARL,BZAG,GEN,PH;GUN125,TGN126..H..(GEN,LA);GUN126..LHD..(GEN,MMR,PH,VN);GGN125,GUN122,135..H..(GCC,LA,SA,TH);GUN125,126,TGN136..(L,S)..(ARL,BZAG,IND);GUN126,TGN121..RHD..(6F,6FC)..(H,L)..(ARL,IND,KEN,SA,TH)..CBU; TGN121..5F..H;GUN125,126,TGN126..(5F,6FC)..H..GCC; TGN126..5F..H..GCC;GUN125,135,TGN136..RHD..S..SA202408
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-10.25INCH *DA
86212BRACKET, RADIO, NO.2
main86212-KK050iGUN122..IV3;GUN125..L..GHA;TGN126..6FC..L;GUN126..6F..GCC;GUN125..LHD..S..GEN;GUN126..RHD..6F..H..GEN;GUN125,126,135,TGN136..RHD..(L,S)..SA; GUN125..H..GCC;TGN126..L..GEN;TGN121..GCC,GEN;TGN126..(H,S)..GCC;GUN125..L..(GCC,GEN);GUN126..AGTP..6FC..LA;GUN122..5F..(L,S)..CBU;GUN125,126..RHD..S..GEN;GUN125..IDN,LA,MA,PH,VN;GUN125,TGN121..LHD..SAP..L;GUN135,TGN120,136..GCC,LA,VN;GUN126..RHD..6FC..H..(GEN,MA);GUN126..THP..H..DCRL..(LA,TWN);GUN126,TGN126..MTM..(L,S)..(GCC,LA)202408
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86212-KK100iGUN122..IV3;GUN125..H..SA;TGN126..L..SA;TGN126..6FC..L;GUN126..MHV..LA;GUN126..6F..S..SA;TGN126..S..(GEN,SA);GUN126..RHD..6F..H..GEN;GUN126..LHD..(GCC,GHA,SA);GUN122,125..RHD..(KEN,SA,TH);GUN125..LHD..S..(GCC,GEN,GHA,SA);GUN126..(SAP,THP)..6FC..S..(LA,SA);GUN125,TGN121..(GHAP,THP)..L..(GHA,SA);GUN120,121,135,LAN125,TGN136..(L,S)..(GEN,SA,TH); GUN125..LHD..L..GEN; GUN126..6F..PH;GUN135..6F..S..PH;GUN135..6FC..(PH,VN);GUN126..LHD..6FC..H..(GEN,PH,VN); GUN126..THP..L;GUN126..THP..6FC..H..DCRL..LA; TGN121..5F..H;TGN126..5F..GCC;TGN121..(L,S)..GCC;GGN125,GUN125..H..GCC;GUN122,125..MTM..L..GCC;TGN126..6FC..(H,S)..GCC; TGN121..GCC,GEN;TGN126..5F..GCC;GUN125..LHD..L..GEN;GUN126..RHD..S..GEN;TGN126..6FC..H..GCC;TGN126..THP..S..(GCC,LA);GUN126..THP..H..DCRL..LA;GUN126..RHD..6FC..H..GEN;GUN125,TGN121..LHD..SAP..L;GUN125..RHD..6F..(L,S)..GEN;GUN125..THP..6FC..S..(GEN,LA);GUN125,126,135..THP..6F..S..LA;GGN125,GUN125,TGN120..(H,L)..GCC;GUN122..(L,S)..(GCC,GEN,SA)..CBU202408
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-*DA(FOR EMERGING MARKET) & DAB; AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); AUDIO-AM/FM & CD & *BT & RDS
main86212-KK130iGUN125..6FC..S..GEN;GUN126..AGTP..6FC..LA;GUN126..RHD..6FC..H..GEN;GUN126..THP..H..DCRL..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA; GUN126..6FC..DCRL..GCC; GUN135..(L,S)..TH;GUN125..6FC..S..GEN;GUN125..LHD..S..GEN;GUN126..RHD..H..GEN;GUN122..S..GCC..CBU;GUN125..THP..S..(SA,TH);GUN125,TGN120..MTM..L..GCC;GUN125,126,TGN121,126..LHD..H..(GCC,SA); GUN136..6FC;GUN136..6F..H;GUN126..H..BZAG;GUN126..H..MHV..IV3;GUN126..AGTP..6F..H..LA;GUN135..ARL,BZAG,GEN,PH;GUN125,TGN126..H..(GEN,LA);GUN126..LHD..(GEN,MMR,PH,VN);GGN125,GUN122,135..H..(GCC,LA,SA,TH);GUN125,126,TGN136..(L,S)..(ARL,BZAG,IND);GUN126,TGN121..RHD..(6F,6FC)..(H,L)..(ARL,IND,KEN,SA,TH)..CBU; TGN121..5F..H;GUN125,126,TGN126..(5F,6FC)..H..GCC; TGN126..5F..H..GCC;GUN125,135,TGN136..RHD..S..SA202408
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT; AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-10.25INCH *DA
90153T0001
main90153-T0001
9015950311
main90159-50311
90159T0009
main90159-T0009
90167T0012
main90167-T0012
11 parts on this diagram · 2 diagrams in section
