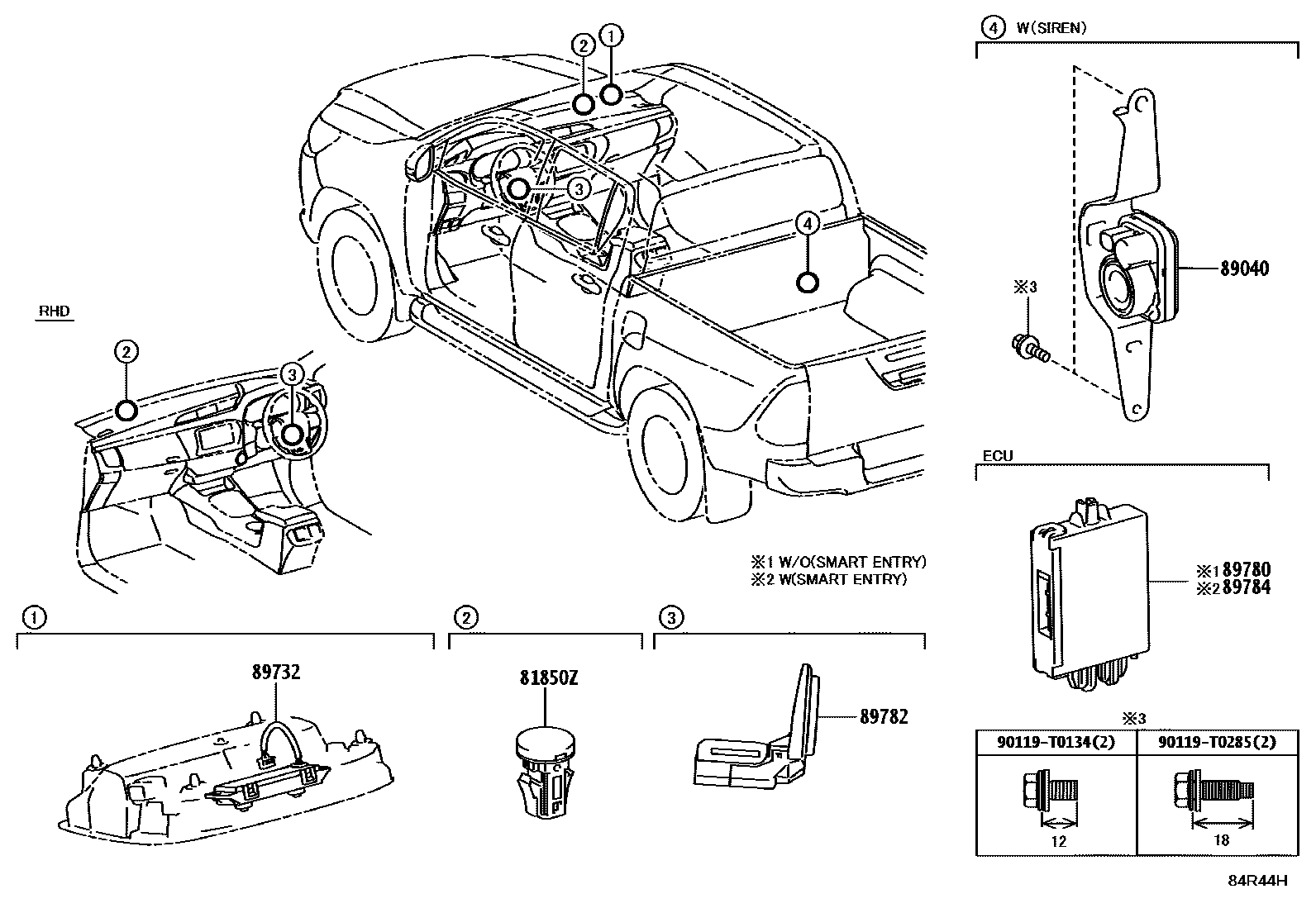

ANTI-THEFT DEVICE
81850ZLAMP ASSY, THEFT WARNING INDICATOR
89040SIREN ASSY, THEFT WARNING
main89040-0K020iGUN125..L..GHA;GUN126..H..BZAG;TGN121,126..THP..SA;GUN135,TGN126..SAP..S;GUN126,TGN136..GHA,KEN,MA,SA;GGN125,GUN125,136,LAN125..(H,S)..(BZAG,GHA,KEN,MA,SA)202409
89732SENSOR, THEFT WARNING RADAR
main89732-71020iGUN125..H..SA;GUN126..H..BZAG;GUN126..GHA,KEN,MA,SA;GUN125,135..RHD..(H,S)..(KEN,MA,SA);GGN125,GUN136,TGN136..(H,S)..(BZAG,SA)202409
89780COMPUTER ASSY, TRANSPONDER KEY
89782COIL, TRANSPONDER KEY
main89782-0K110iTGN121,126..L..GCC;GUN122,135..LHD..THP..L..(GCC,GEN,LA,PH);GUN125..(KENP,THP)..6F..L..(GCC,IDN,KEN,LA,PH,SA)202408
main89782-0K120iGUN126..S..SA; GUN135..S..SA;GUN125..RHD..6F..S..SA; TGN126..SAP..L;GUN122,125,135,LAN125,TGN121..(AGTP,SAP)..L..(LA,SA)202411
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITHOUT; EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITHOUT
main89782-0K130iGUN122..RHD..L;TGN126..5F..H..GCC;GUN125..THP..(H,S)..(IDN,SA);TGN126..6FC..(H,S)..(GCC,GEN);GUN125,135..THP..6F..S..(GCC,LA);GUN125,126..THP..H..DCRL..(GCC,LA);TGN121,126..THP..(L,S)..(GEN,LA,SA);GUN125..6F..(L,S)..(ARL,GEN,MA,TH,VN);GUN125,136..(KENP,MAP,THP)..6FC..(L,S);GUN135,TGN121..(6F,6FC)..(L,S)..(ARL,PH,TH,VN);GUN122,136,TGN121..THP..(H,S)..(GCC,GEN,LA,TH);GUN120,121,126,TGN120,136..THP..(L,S)..(DCRL,HTWC); GUN125..RHD..H..GEN;GUN126..LHD..THP..6FC..H..GEN; GUN126..CAMP;TGN126..L..GCC;GUN125..LHD..H..GEN;GUN125,TGN121..THP..MTM..L..(GCC,LA);GUN122,135..LHD..THP..L..(GCC,GEN,LA)202408
WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY
main89782-0K150iGUN122,125,LAN125,TGN121,126..LHD..SAP..L; GUN125,135..AGTP..L..LA; GUN125..RHD..L..SA;GUN126,136..H..BZAG; TGN136..AGTP,SAP;GUN136..AGTP..LA;TGN126..SAP..5F..S;TGN126..AGTP..(L,S);GUN126..(L,S)..BZAG;GUN136..6FC..DCRL..SA;GUN125,135..L..(BZAG,GHA);GUN125,135,LAN125..(AGTP,GHAP,SAP)..(H,S);GUN126,TGN126..(AGTP,GHAP,SAP)..(6F,6FC)..(DCRL,HTWC)..(GHA,LA,SA)202411
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN); WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
89784COMPUTER, IMMOBILIZER CODE
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
90119T0134
main90119-T0134
90119T0285
main90119-T0285
8 parts on this diagram · 1 diagram in section
