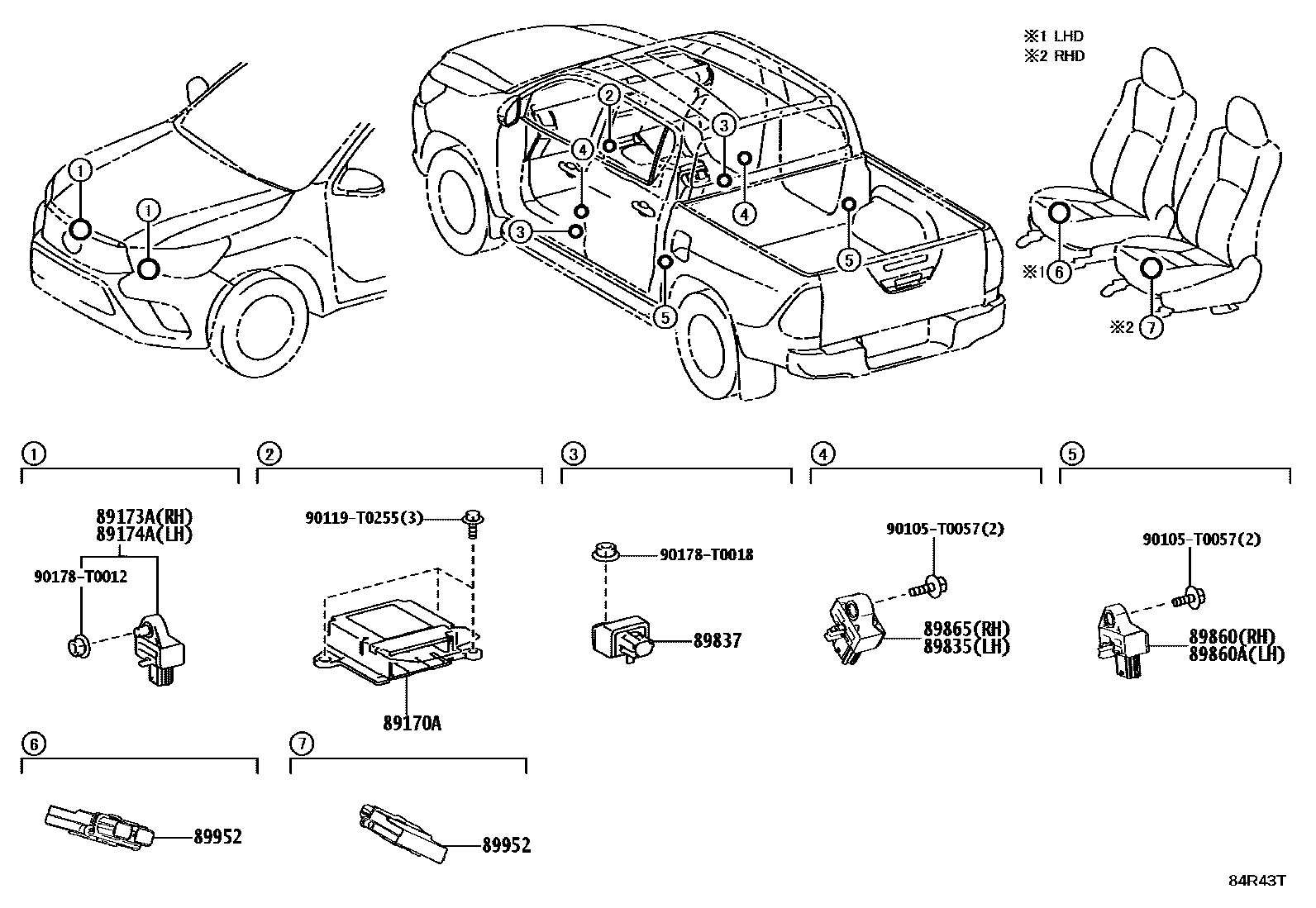

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-0K400iGUN125..6F..L..(GEN,GHA,KEN,SA); GUN125..6FC..L..GEN; TGN126..H..GEN; TGN126..L..GEN;LAN125,TGN126,136..LHD..SA202408
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT; VSC-WITHOUT; VSC-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
ASEAN GENERAL SPEC&VSC-WITHOUT; VSC-WITHOUT
main89170-0KB50supersedes 89170-0KB30iGUN125..6FC..S..GEN; GUN125..LHD..S..GEN; GUN125..LHD..S..GEN;GUN125..RHD..6F..L..GEN; GUN135..H..PH;GUN126..6F..PH; GUN135..L..TH; GUN135..L..VN;GUN126..RHD..6F..S..GEN;GUN125,135..S..(IDN,MA,PH,TH);GUN125,126..RHD..6FC..(H,L)..GEN202408
ASEAN GENERAL SPEC; BRUNEI SPEC&REAR HEADREST-WITH(RH/LH/CENTER); CAMBODIA SPEC; SRS AIR BAG-WITH(*DRP); VSC-WITH(*HSAC & *TSC)
main89170-0KB80supersedes 89170-0KB60iGUN125..6FC..S..GEN; GUN125..LHD..S..GEN; GUN125..LHD..S..GEN;GUN125..RHD..6F..L..GEN; GUN125..RHD..S..GEN;GUN125..RHD..6F..L..GEN;GUN126..RHD..6FC..S..GEN; GUN135..H..(PH,TH);GUN126..LHD..H..GEN;GUN125..THP..6F..S..(LA,VN);GUN135..THP..(H,S)..(GEN,LA,VN);GUN125,13#..(MAP,THP)..(H,L)..(LA,MA);GUN125,TGN126..THP..(5F,6FC)..(IDN,LA);GUN126..(MAP,MMRP,THP)..DCRL..(LA,MA,MMR,PH,TH,VN); GUN135..L..VN;GUN125..S..IDN;GUN126..RHD..6F..S..GEN;GUN125,126..RHD..6FC..(H,L)..GEN; TGN136..GEN202408
ASEAN GENERAL SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); BRUNEI SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CAMBODIA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KF60iGUN125,126..RHD..6FC..(H,L)..GEN; GUN125..6F..L..GCC;GUN126..LHD..S..GEN; GUN125..6FC..L..GEN; GUN126..RHD..6FC..H..GEN; GUN135..S..SA;GUN125..6F..(H,S)..GCC;GUN126..RHD..6F..H..GEN;GUN126..RHD..6FC..S..GEN;GUN125..RHD..6F..(GEN,KEN,SA);GUN125..LHD..(L,S)..(GEN,GHA,SA);GGN125,GUN125..6FC..(H,S)..(GCC,GEN);GUN126,TGN126..(H,S)..(DCRL,HTWC)..GCC; TGN126..H..GEN202408
DATA COMMUNICATION MODULE-WITHOUT; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION); OCEANIA GENERAL SPEC; OCEANIA(EURO 5 REGULATION); SRS AIR BAG-WITH(*DRP)
main89170-0KF70supersedes 89170-0K420iGUN125,126..RHD..6FC..(H,L)..GEN; GUN125..6FC..L..GEN; GUN126..LHD..S..GEN;GUN125..LHD..H..(GEN,SA);GUN126,136..DCRL..(GHA,KEN,SA);GGN125,GUN125..RHD..6FC..(KEN,SA); GUN126..LHD..THP..H..GEN; GUN126..RHD..6FC..H..GEN; GUN135..S..SA;GUN125..6F..L..GEN;GUN125..LHD..S..GEN;GUN126..RHD..6F..H..GEN;GUN125,126..RHD..6FC..S..GEN;GUN125..RHD..6F..(H,S)..(GEN,SA); TGN126..H..GEN202408
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); OCEANIA GENERAL SPEC; OCEANIA GENERAL SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); OCEANIA(EURO 5 REGULATION)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)&DATA COMMUNICATION MODULE-WITHOUT
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
EXPORT FROM SA&VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG); NIGERIA SPEC&VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG); SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG); SUB-SAHARAN AFRICA SPEC(EURO 2)&VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIRBAG)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
VSC-WITH(*HSAC & *TSC)
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB); VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main89170-0K510iGUN125..6F..L..GEN; GUN125..6FC..L..GEN; GUN125..RHD..6F..L..GEN; TGN126..H..GEN202408
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE &CURTAIN); VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)&DATA COMMUNICATION MODULE-WITHOUT
VSC-WITHOUT
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASEAN GENERAL SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB); VSC-WITHOUT; VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main89170-0KB60iGUN125..6FC..L..GEN; GUN125..RHD..6F..L..GEN; GUN125..S..IDN;GUN125..6FC..L..GEN; TGN136..GEN202408
ASEAN GENERAL SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); ASEAN GENERAL SPEC&VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED))& WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED))& WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89173ASENSOR, AIRBAG, FRONT RH
main89173-09B20iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
89174ASENSOR, AIRBAG, FRONT LH
89835SENSOR, DOOR SIDE AIRBAG, LH
89837SENSOR, FRONT FLOOR SIDE AIRBAG
89860SENSOR ASSY, SIDE AIRBAG, RH
main89831-0K050iGUN126..RHD..GEN;GUN125..LHD..S..GEN;GUN125,TGN126..6FC..GEN;GUN125,135..6F..L..(GEN,VN);GUN122,135,TGN136..RHD..(GEN,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,SA); GUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN; GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN125..6F..ARL;GUN126..LHD..GEN;GUN126..MHV..GCC;GUN126..H..MHV..IV3;GUN125..LHD..H..GEN;GUN125,TGN126..BZAG,LA,VN;GUN135..6F..(BZAG,GEN,LA);GUN122,TGN121..LHD..L..GEN;GGN125,GUN125,135..H..(LA,MA,PH,SA,TH);GUN125,TGN121..RHD..6FC..(ARL,IDN,KEN,SA);GUN135,TGN136..(5F,6FC)..(ARL,BZAG,GEN,LA,VN);GUN126..(ARL,BZAG,GHA,KEN,LA,MA,MMR,PH,SA,TH,TWN,VN)..CBU202408
SRS AIR BAG-WITH(*DRP); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89860ASENSOR ASSY, SIDE AIRBAG, LH
main89831-0K050iGUN126..RHD..GEN;GUN125..LHD..S..GEN;GUN125,TGN126..6FC..GEN;GUN125,135..6F..L..(GEN,VN);GUN122,135,TGN136..RHD..(GEN,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,SA); GUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN; GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN125..6F..ARL;GUN126..LHD..GEN;GUN126..MHV..GCC;GUN126..H..MHV..IV3;GUN125..LHD..H..GEN;GUN125,TGN126..BZAG,LA,VN;GUN135..6F..(BZAG,GEN,LA);GUN122,TGN121..LHD..L..GEN;GGN125,GUN125,135..H..(LA,MA,PH,SA,TH);GUN125,TGN121..RHD..6FC..(ARL,IDN,KEN,SA);GUN135,TGN136..(5F,6FC)..(ARL,BZAG,GEN,LA,VN);GUN126..(ARL,BZAG,GHA,KEN,LA,MA,MMR,PH,SA,TH,TWN,VN)..CBU202408
SRS AIR BAG-WITH(*DRP); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89865SENSOR, DOOR SIDE AIRBAG, RH
89952COMPUTER, OCCUPANT DETECTION
90105T0057
main90105-T0057
90119T0255
main90119-T0255
90178T0012
main90178-T0012
90178T0018
main90178-T0018
13 parts on this diagram · 1 diagram in section
