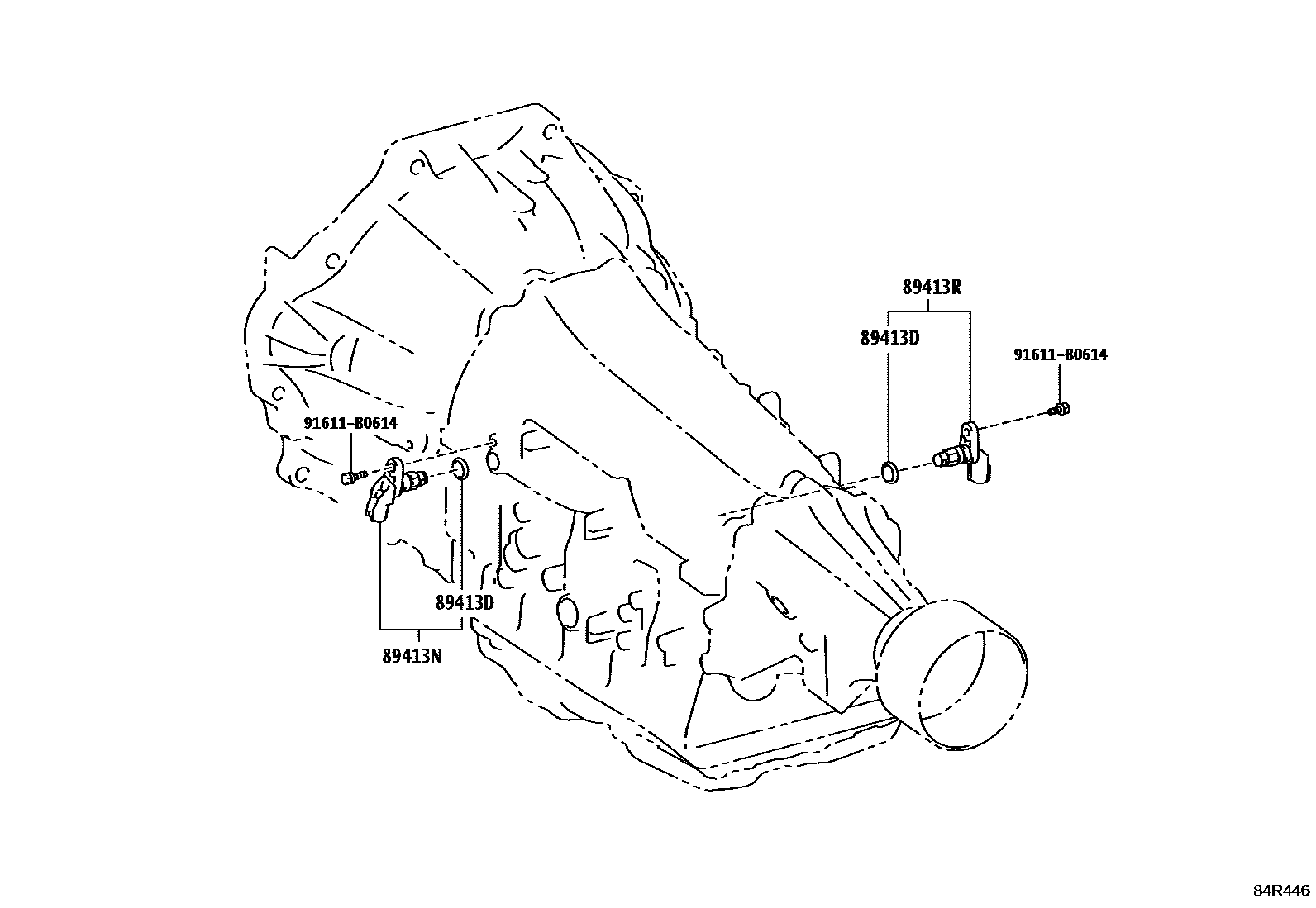

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)
main90301-11008iGUN126..6F..PH;GUN126..6F..S..ARL; GUN126..6FC..CBU;GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN120,121,125,13#,TGN121,126..6FC; GUN126..S..IND;GUN126,136..6F..H..(ARL,BZAG,GCC,GEN,IND,KEN,SA,TH)202408
VSC-WITH(*HSAC & *TSC & *DAC & LSD)
89413NSENSOR, TRANSMISSION REVOLUTION, (NT)
main89413-12020iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN120,121,125,13#,TGN121,126..6FC;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..6FC..CBU202408
89413RSENSOR, TRANSMISSION REVOLUTION (SP2)
main89413-12020iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN120,121,125,13#,TGN121,126..6FC;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..6FC..CBU202408
91611B0614
main91611-B0614
4 parts on this diagram · 2 diagrams in section
