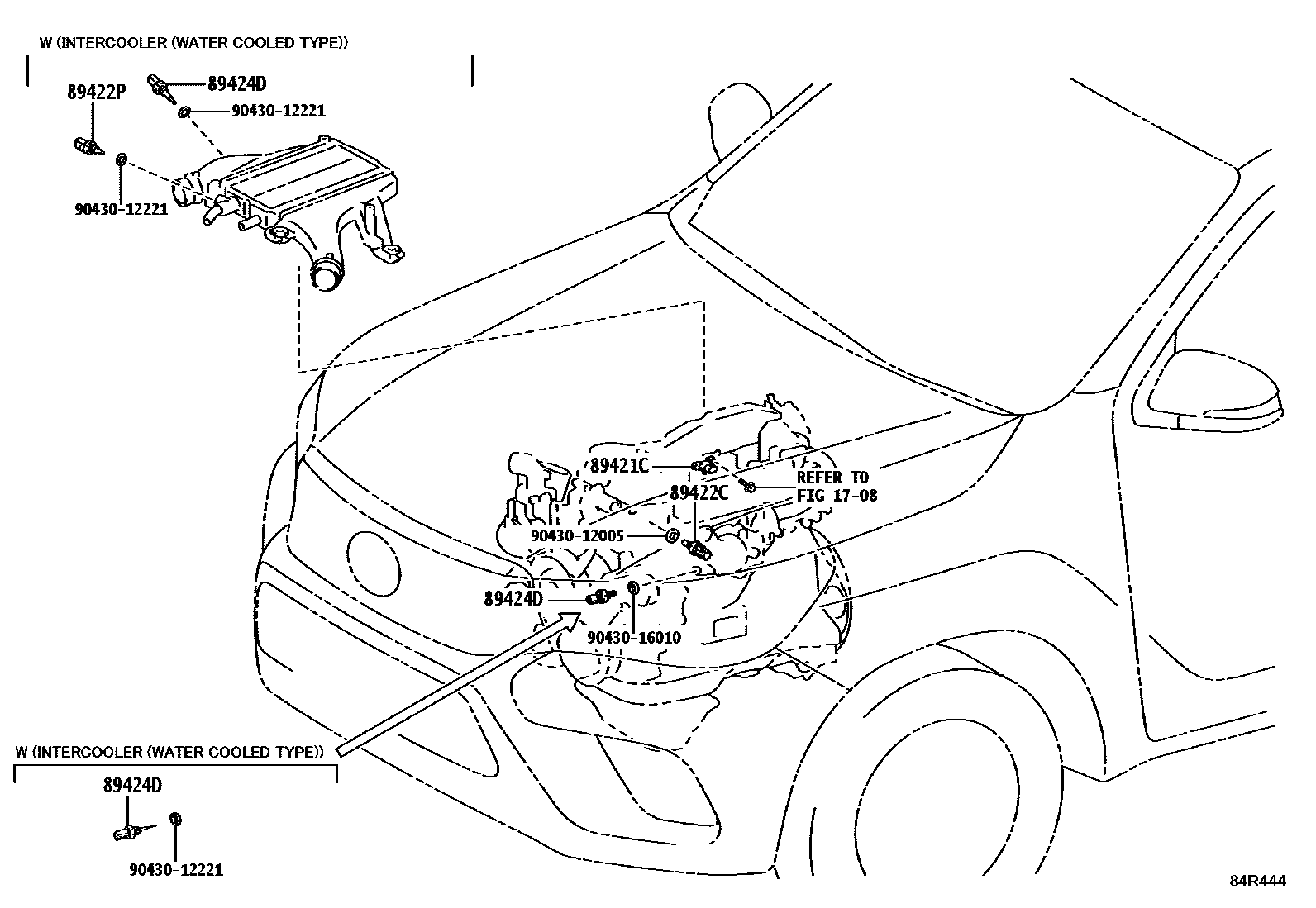

ELECTRONIC CONTROLED DIESEL (ECD)
1708VACUUM PIPING
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
main89422-33030iGUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN120,121,122,125,135,LAN125202408
89422PSENSOR, WATER TEMPERATURE
main89422-33030iGUN125..AGTP..S;GUN125..RHD..L..GEN;GUN126..AGTP..6FC..H..LA; GUN126..RHD..6F..H..GEN; GUN126..TWN202408
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS); BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)&VSC-WITH(*HSAC & *TSC); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
89424DSENSOR, INLET AIR TEMPERATURE
main89424-60010iGUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN120,121,122,125,135;GUN126..(ARL,BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,SA,TH,VN)..CBU202408
main89424-60020iGUN125..6FC..L..GEN; GUN125..AGTP..S;GUN125..RHD..L..GEN;GUN126..RHD..6F..H..GEN;GUN126..AGTP..6FC..H..LA; GUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN202408
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),INTERCOOLER SIDE; INTERCOOLER SIDE
9043012005
main90430-12005
9043012221
main90430-12221
9043016010
main90430-16010
8 parts on this diagram · 4 diagrams in section
