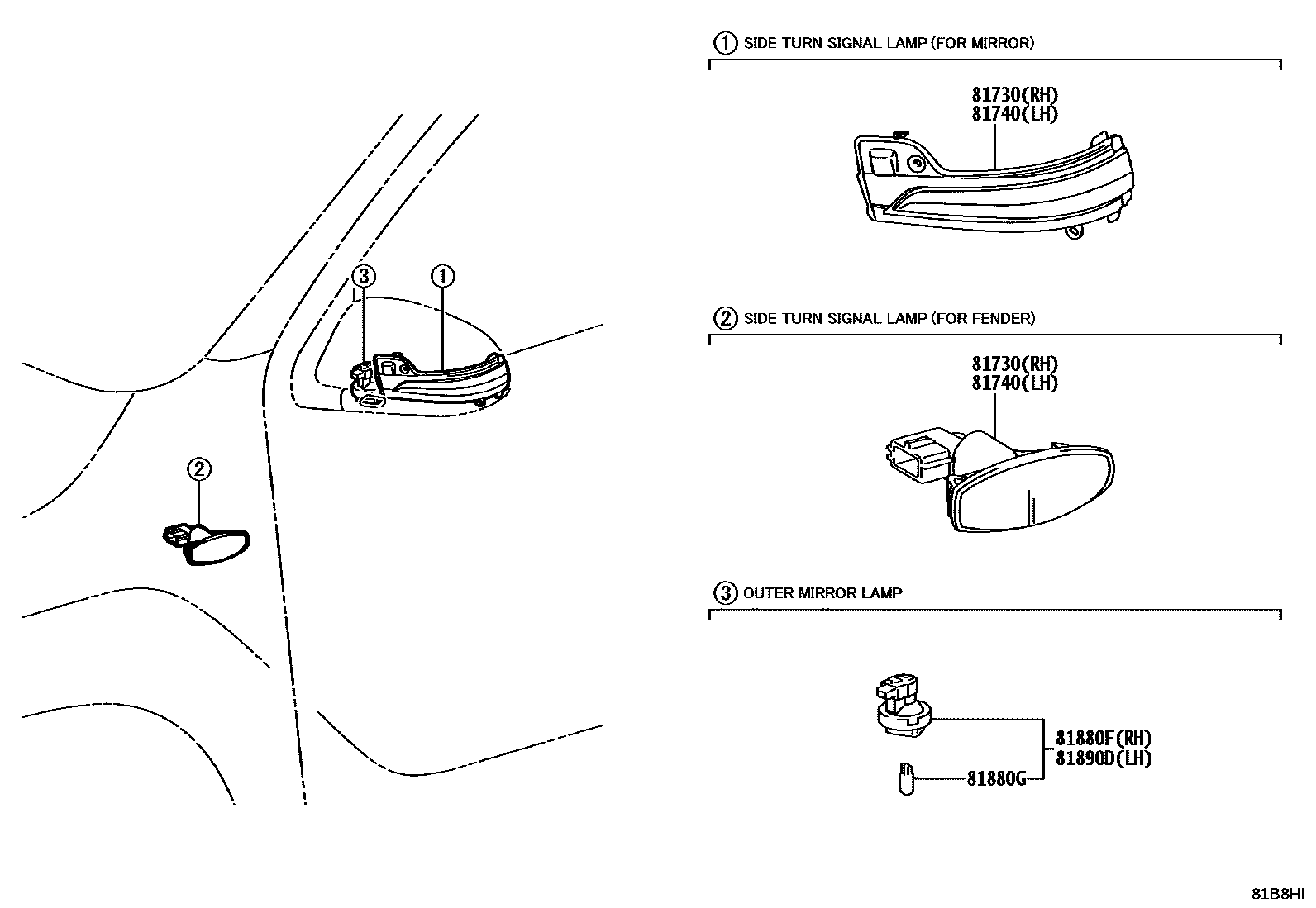

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
81730LAMP ASSY, SIDE TURN SIGNAL, RH
main81730-0K020iGUN120,122..S..TH;GUN125,135..L..LA; GUN121..6F; GUN121..6FC; GUN122..TH;GUN120,121..6FC;GUN125,135..L..LA;GUN125,LAN125..LHD..SAP..MTM..S; GUN125,135..L..LA;GUN135..6F..S..SA; GUN125,TGN126..LHD..L..GEN; GUN126..S..IV3;TGN121,126..H,S;GUN125..LHD..6F..H;GUN126..H..MHV..IV3;GUN125..RHD..(MAP,THP)..6F;TGN126..(AGTP,THP)..L..(LA,SA);GGN125,GUN125,13#,TGN120..5F,6FC;GUN135,TGN121..MTM..(BZAG,GEN,PH,TH,VN);GUN125,TGN136..(AGTP,THP)..MTM..L..(BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GUN122,136,TGN136..MTM..(H,S)..(BZAG,GCC,GEN,LA,SA);GUN125,135..LHD..(AGTP,GHAP,THP)..6F..S..(GCC,GEN,GHA,LA,SA,VN); GUN135..6F..S..SA;GUN125,TGN126..LHD..L..GEN; TGN126..L..GCC;GUN122,125,TGN121..MTM..L..GCC; TGN136..GEN202408
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/65R16C ALUMINUM&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)& W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE&FRONTBUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) &W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR)& W(*SITL) & W(LOGO LAMP); TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
81740LAMP ASSY, SIDE TURN SIGNAL, LH
main81730-0D121iGUN122..RHD;TGN126..SAP..L;TGN121..6FC..ARL;GUN120,121,LAN125;TGN121..L..(GCC,SA);TGN126..L..(GCC,GEN);GUN122,TGN136..LHD..(SAP,THP)..L;GUN125,135..(KENP,SAP)..6F..(L,S);GUN125,135..LHD..(GHAP,THP)..6F..L..(GCC,GEN,GHA,LA,PH); TGN126..THP..L..LA202408
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
81880FLAMP ASSY, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA); OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
81880GBULB, OUTER MIRROR LAMP ASSY
12V 5W,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA); 12V 5W,OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
81890DLAMP ASSY, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA); OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
5 parts on this diagram · 1 diagram in section
