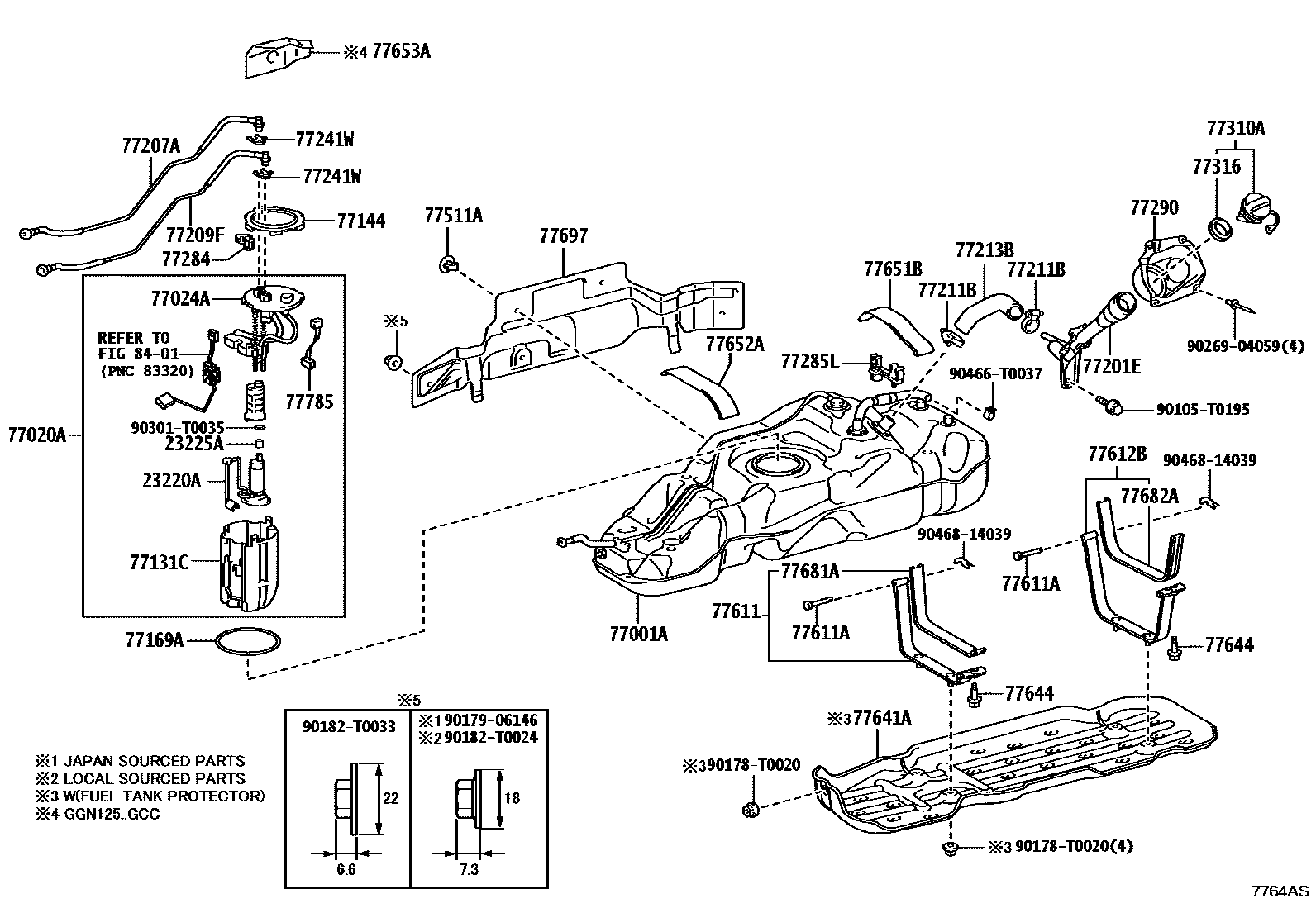

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
77001ATANK SUB-ASSY, FUEL
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
main77024-0K190iGUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN120,121,122,125,135,LAN125202408
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
main77144-0K040iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
main77201-KK060iTGN121..6FC..ARL;TGN126..(SAP,THP)..(GCC,LA,SA);GGN125,TGN120,121,136..GCC,GEN,SA202408
ASIA COLD COUNTRY SPEC; AZERBAIJAN SPEC
77207ATUBE SUB-ASSY, FUEL RETURN
main77204-0K240iGUN125,135..S..LA;GUN126..6F..S..LA;GUN135..THP..L..LA;GUN126..THP..H..DCRL..LA;GUN125,126..AGTP..(H,L)..LA; GUN125..AGTP..S;GUN125..RHD..L..GEN;GUN126..AGTP..6FC..H..LA; GUN126,136..MHV;GUN126..IND,TWN;GUN126..6F..L..BZAG;GUN135..AGTP..L..LA;GUN126..6FC..(L,S)..BZAG; GUN126..RHD..6F..H..GEN202408
BHUTAN SPEC; EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
77209FTUBE SUB-ASSY, FUEL TANK MAIN
main77209-0K300iGUN125,135..S..LA;GUN126..6F..S..LA;GUN135..THP..L..LA;GUN126..THP..H..DCRL..LA;GUN125,126..AGTP..(H,L)..LA; GUN125..AGTP..S;GUN125..RHD..L..GEN;GUN126..AGTP..6FC..H..LA; GUN126,136..MHV;GUN126..IND,TWN;GUN126..6F..L..BZAG;GUN135..AGTP..L..LA;GUN126..6FC..(L,S)..BZAG; GUN126..RHD..6F..H..GEN202408
BHUTAN SPEC; EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
77211BCLAMP (FOR FUEL FILLER PIPE)
main90460-46005×2iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
77213BHOSE, FUEL TANK TO FILLER PIPE
main77213-KK010iGUN125..LHD..(H,L)..GEN; GUN125..LHD..S..GEN; TGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
ASIA COLD COUNTRY SPEC; AZERBAIJAN SPEC
77241WCLIP, TUBE JOINT
main77241-0K010×2iGUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN120,121,122,125,135,LAN125; TGN121..6FC..ARL;GGN125,TGN12#,136..BZAG,GCC,GEN,LA,SA202408
77284CLAMP, FUEL TUBE
main77289-0K050iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
77285LCLAMP, FUEL TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
main77290-0K070iGUN125,135,LAN125..SAP..MTM..S; GUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
main77290-0K080iGUN125..L..GHA;TGN126,136..SAP..L;GUN122,125,135,LAN125,TGN121..(KENP,SAP)..MTM..(L,S); TGN136..S..SA202411
TIRE & DISC WHEEL-225/70R17C STEEL
main77290-0K090iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GGN125,GUN126,136..AGTP;GUN125,135,TGN126,136..AGTP..(H,S)..LA202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-225/70R17C STEEL
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77511ABRACKET, FUEL TANK
77611BAND, FUEL TANK
(J); ASIA COLD COUNTRY SPEC,(J); AZERBAIJAN SPEC,(J)
main77601-KK050iGUN126..CBU;GUN136..6F..H;GUN126..S..IV3;GUN122,TGN121..GCC;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN120,136;GUN136,TGN126..(5F,6FC)..(ARL,BZAG,GCC,LA,SA)202408
(L); ASIA COLD COUNTRY SPEC,(L); AZERBAIJAN SPEC,(L)
77611APIN (FOR FUEL TANK BAND)
77612BBAND, FUEL TANK, NO.2
(J); ASIA COLD COUNTRY SPEC,(J); AZERBAIJAN SPEC,(J)
(L); ASIA COLD COUNTRY SPEC,(L); AZERBAIJAN SPEC,(L)
77641APROTECTOR, FUEL TANK, NO.1
77644BOLT, FUEL TANK
main77644-35030×2iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
77651BCUSHION, FUEL TANK
main77651-0K080iGUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN120,121,122,125,135..MAP,THP;GUN126..(CAMP,INDP,MAP,MMRP,THP)..CBU202408
77652ACUSHION, FUEL TANK, NO.2
main77652-0K140iGUN122,125;GUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;TGN121,126,136..AGTP,SAP;GGN125,GUN120,121,135,LAN125..ARL,BZAG,GEN,LA,PH,SA,TH,VN202408
77653ACUSHION, FUEL TANK, NO.3
77681ASEAT, FUEL TANK BAND
(J); ASIA COLD COUNTRY SPEC,(J); AZERBAIJAN SPEC,(J)
(L); ASIA COLD COUNTRY SPEC,(L); AZERBAIJAN SPEC,(L)
77682ASEAT, FUEL TANK BAND, NO.2
(J); ASIA COLD COUNTRY SPEC,(J); AZERBAIJAN SPEC,(J)
(L); ASIA COLD COUNTRY SPEC,(L); AZERBAIJAN SPEC,(L)
77697INSULATOR, FUEL TANK HEAT, NO.1
main77697-0K140iGUN125..RHD..L..GEN; GUN126..IND,TWN;GUN126..THP..MHV; GUN126..RHD..6F..H..GEN; GUN135..THP..LA;GUN125..THP..S..LA;GUN126..THP..6F..S..LA;GUN126..THP..H..DCRL..LA202408
BHUTAN SPEC; EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
main77697-0K150iGUN125..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA;GUN126,135..AGTP..6F..S..LA; GUN125..AGTP..LA;GUN126..AGTP..(H,L)..LA;GUN126,135..AGTP..6F..S..LA; GUN125..AGTP..S;GUN126..AGTP..6FC..H..LA; GUN126,136..MHV..SA; GUN126..6F..L..BZAG;GUN135..AGTP..L..LA;GUN126..6FC..(L,S)..BZAG; GUN126..6FC..H..BZAG202411
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-L8
main77697-0K250iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..(GHAP,KENP,SAP)..(DCRL,DEFI,HTWC); GUN126..6F..L..BZAG;GUN126..6FC..(L,S)..BZAG; GUN135..AGTP..L..LA; GUN135..AGTP..L..LA;GUN126..6FC..S..BZAG; GUN135..BZAG;GUN126..AGTP..H;GUN126..6F..S..BZAG;GUN135..AGTP..S..LA;GUN126..AGTP..(L,S)..LA;GGN125,GUN125,136,TGN126,136..AGTP202411
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-TIER 2.5; EXHAUST EMISSION CONTROL-WITHOUT
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
90105T0195
main90105-T0195
90178T0020
main90178-T0020
9017906146
main90179-06146
90182T0024
main90182-T0024
90182T0033
main90182-T0033
9026904059
main90269-04059
90301T0035
main90301-T0035
90466T0037
main90466-T0037
9046814039
main90468-14039
42 parts on this diagram · 8 diagrams in section
