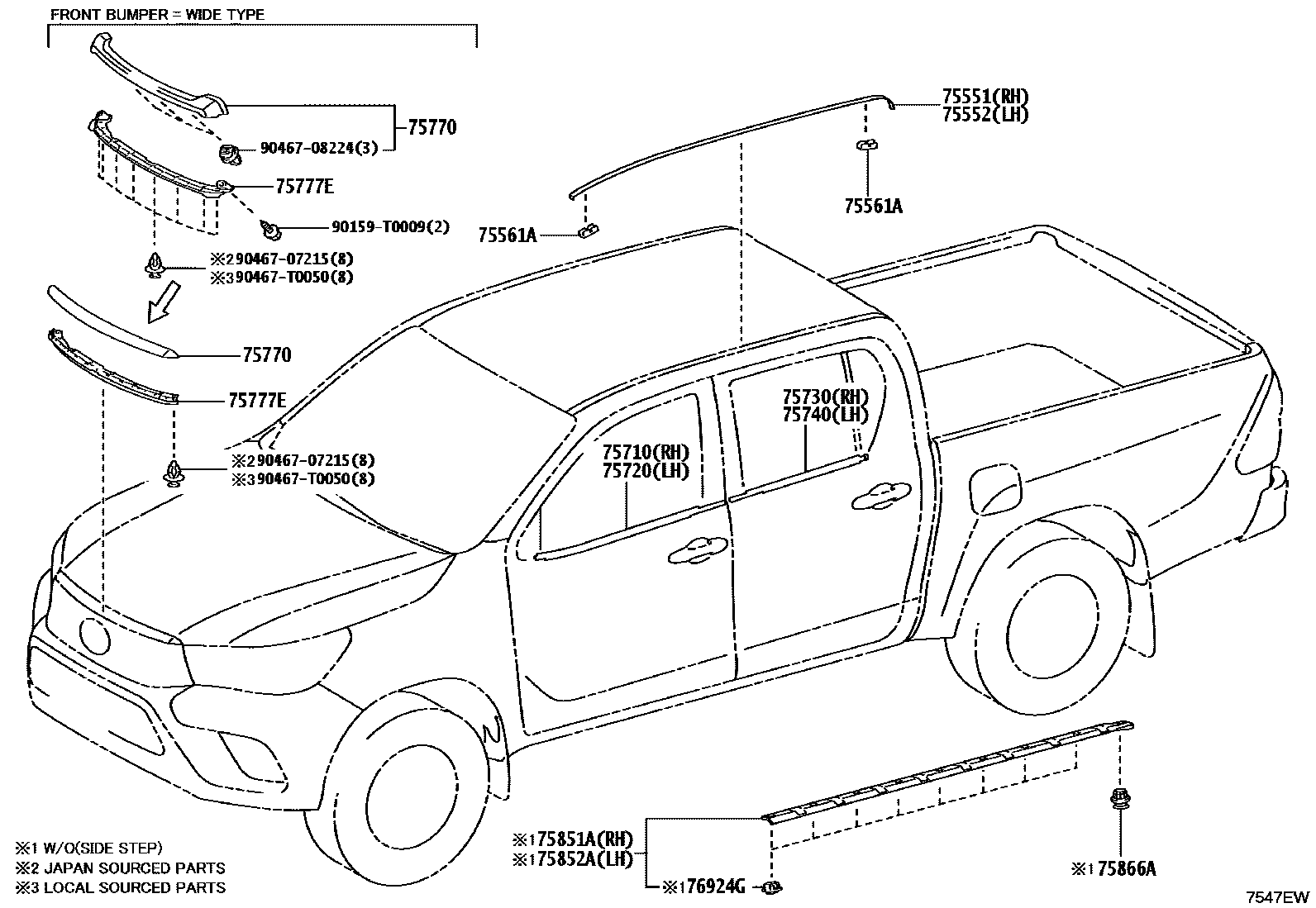

MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-0K160iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136..AGTP,GHAP,KENP,SAP,THP202408
NO PAINT REQ.
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
(J)
75710MOULDING ASSY, FRONT DOOR BELT, RH
PLANT TMT
PLANT TKM
75720MOULDING ASSY, FRONT DOOR BELT, LH
PLANT TMT
PLANT TKM
75730MOULDING ASSY, REAR DOOR BELT, RH
main68180-0K010iGUN126..CAMP;GUN126..S..IV3;GUN125,135..L,S;GUN126..H..MHV..IV3;GUN125..LHD..H..GEN;GUN136..6F..(LA,SA);GUN136,TGN121..RHD..6FC;GUN125..H..(GCC,IDN,SA);GUN126..(L,S)..(BZAG,GEN);GUN126..(ARL,GCC,GHA,KEN,LA,SA,TWN)..CBU;GGN125,GUN120,121,122,LAN125,TGN12#,136..BZAG,GCC,GEN,LA,PH,SA,TH; GUN135..6FC..H;GUN126..6FC..TH;GUN135..LHD..6F..H;GUN125..RHD..H..GEN;GUN126,136..(AGTP,MAP,MMRP,THP)..H..(BZAG,GEN,MA,MMR,PH,VN)202408
DOOR BELT MOULDING-WITH(BLACK)
75740MOULDING ASSY, REAR DOOR BELT, LH
main68230-0K120iGUN125..RHD..H..(GEN,MA);GUN126,13#..(AGTP,MAP,MMRP,THP)..H..(BZAG,GEN,MA,MMR,PH,TH,VN)202408
75770MOULDING ASSY, HOOD, FRONT
main75770-0K311iGUN120,122..TH;GUN125..RHD..6F..L..GEN; TGN121..GEN; TGN126..L..LA;GUN126..THP..L; TGN136..GEN; TGN136..GEN;TGN120,121..GCC;GUN122..5F..(H,S);GUN122,125,TGN126..L..GCC202408-202501
PLATED; PLATED,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE; PLATED,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE; PLATED,RADIATOR GRILLE-CHROME PLATED; PLATED,RADIATOR GRILLE-PAINTING; PLATED,REAR BUMPER-STEP TYPE(PLATED)
main75770-0K341iGUN120,122..L..TH; GUN120,122..S..TH; GUN121..6F; GUN121..6FC; GUN125,TGN126..LHD..L..GEN; GUN125..LHD..L..GEN; TGN121..6FC..ARL;GUN120,121,122..RHD;GUN125,TGN126..THP..MTM..L..(GEN,LA,PH);GUN122,126,135,TGN121..LHD..THP..L..(GEN,LA,PH,SA)202408-202501
NO PAINT REQ.; NO PAINT REQ.,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDEREAR VIEW MIRROR-*273(BLACK) & W(*SITL); NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); NO PAINT REQ.,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & BLACK(MLM); NO PAINT REQ.,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM); NO PAINT REQ.,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & BLACK(MLM); NO PAINT REQ.,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
PLATED; PLATED,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR; PLATED,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED; PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLORMOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM); PLATED,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED
main75770-0K380iGUN120,122..TH; GUN125,135,TGN126..(AGTP,THP)..L..(ARL,BZAG,IDN,SA); GUN125,135..L..(ARL,IDN); GUN125,TGN126..LHD..L..GEN; GUN125..LHD..L..GEN; GUN125..RHD..6F..L..GEN; GUN126..6FC..H..ARL..CBU; GUN135..L..LA;GUN125..AGTP..L..LA;GUN125..RHD..6F..L..GEN; GUN135..L..LA;GUN126..THP..L;GUN125..AGTP..L..LA;GUN125..RHD..6F..L..GEN202408-202501
NO PAINT REQ.; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,RUGGED X PACKAGE; NO PAINT REQ.,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-265/60R18 ALUMINUM; NO PAINT REQ.,TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main75770-0K390iGUN126..LHD..S..GEN; GUN126..S..ARL;GUN136..6FC..S;GUN125,135,TGN126..LHD..S..(GEN,VN); GUN126..THP..L; GUN135..S..PH; GUN136..6FC..S;GUN126..RHD..THP..S;GUN125..6FC..L..GEN;GUN135..(L,S)..(PH,VN);GUN126,135..THP..S..LA;GUN125,TGN126..(MAP,THP)..S..(GEN,LA,MA,SA,VN); TGN136..GEN202408-202501
NO PAINT REQ.; NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,RADIATOR GRILLE-PAINTING; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-PAINTING; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE; NO PAINT REQ.,WHEEL ARCH-WIDE TYPE(MLM)&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
main75770-0K401iGUN122,125,135,LAN125,TGN121,126,136..(GHAP,KENP,SAP)..L; GUN125,135..RHD..6F..S..SA; TGN136..S..SA202411
NO PAINT REQ.; NO PAINT REQ.,RADIATOR GRILLE-MATERIAL COLOR; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&REARBUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED&REAR BUMPER-WITH(*RUPD(PAINTED))
PLATED
main75770-0K460iGUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA; GUN125,LAN125..LHD..SAP..MTM..S; GUN125..H..SA; GUN126..S..SA;GUN125..S..(GHA,KEN);GUN125,TGN126..LHD..SAP..(5F,6FC)..S202411
NO PAINT REQ.; NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,RADIATOR GRILLE-PAINTING; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-PAINTING; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-PAINTING
main75770-0K470iGGN125,GUN126,136..H..SA; GUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA; GUN125,135..RHD..6FC..SA;GUN125,126..H..(GHA,KEN,SA);GGN125,GUN136,TGN136..RHD..SA; GUN126,136..RHD..6FC..H..SA; GUN126..6FC..H..DCRL..SA; GUN126..RHD..6FC..H..DCRL..SA; LAN125..S202411
PLATED; PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); PLATED,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; PLATED,MLM Z-PLUS PACKAGE; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&RADIATOR GRILLE-CHROME PLATED; PLATED,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); PLATED,TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-CHROME PLATED
NO PAINT REQ.
main75770-0K510iGGN125,GUN126,136,TGN126..AGTP..H; GUN126..6FC..H..BZAG; GUN126..AGTP..6FC..H..LA202411
PLATED; PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&AUDIO-*DA(8INCH) & *BT; PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&AUDIO-AUDIO (IN LINE ACCESSORY)
PLATED; PLATED,MLM Z-PLUS PACKAGE
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-MATERIAL COLOR; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-MATERIAL COLOR
main75770-YP030iGGN125,GUN135..LHD..THP..H;GUN125,126..THP..6F..H..(ARL,GEN,LA,PH);GUN126..(CAMP,MAP,MMRP,THP)..6FC..H..(GEN,LA,MA,MMR,TWN,VN); GUN125,126,135..TH; GUN126..6F..H..ARL; GUN126..6F..PH;GUN135..6FC..H..PH; GUN126..6FC..H..ARL..CBU; GUN135..S..PH; GUN136..H..ARL; GUN136..H..ARL;GUN125,126..6F..H..GCC;GUN126..6FC..DCRL..(GCC,PH); GUN136..H..ARL;GUN126..6FC..PH202408-202501
NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,MLM ADVENTURE PACKAGE; NO PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; NO PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; NO PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,MLM ADVENTURE WIDE TREAD; NO PAINT REQ.,MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER),ALUMINUM&FRONT BUMPER-PAINTED(MLM); NO PAINT REQ.,MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; NO PAINT REQ.,MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONTBUMPER-PAINTED(MLM); NO PAINT REQ.,WHEEL ARCH-WIDE TYPE(MLM)&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
NO PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL),GRAY/EMOTIONAL RED 2,3U5
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL),PLATINUM WHITE PEARL MC.,089
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL),BLACK,218
main75770-YP070iGUN126..6FC..DCRL..(GCC,PH); GUN126..6FC..H..DCRL..ARL..CBU; GUN126..6FC..TH; GUN126..VN;GGN125..GCC202408-202501
NO PAINT REQ.,GR SPORT WIDE TREAD; NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)
NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&AUDIO-*DA(8INCH) & *BT; NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&AUDIO-AUDIO (IN LINE ACCESSORY)
PAINT REQ.,GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
75777EPAD, HOOD FRONT MOULDING
main53393-0K020iGUN125,135..RHD..6F..S..SA; GUN125..L..GHA;TGN126,136..SAP..L;GUN122,125,135,LAN125,TGN121..(KENP,SAP)..MTM..(L,S); TGN136..S..SA202411
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&REAR BUMPER-WITH(*RUPD(PAINTED)); TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-PAINTED&REAR BUMPER-WITH(*RUPD(PAINTED)); TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&RADIATOR GRILLE-MATERIAL COLOR & PAINTED(MLM)
main53393-0K051iGUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA; GUN125,LAN125..LHD..SAP..MTM..S; GUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S); GUN126,136..RHD..6FC..H..SA; LAN125..S202411
MLM Z-PLUS PACKAGE; MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-MATERIAL COLOR; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-PAINTING; TIRE & DISC WHEEL-265/65R17 ALUMINUM&RADIATOR GRILLE-CHROME PLATED; TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-MATERIAL COLOR; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-PAINTING; TIRE & DISC WHEEL-265/65R17 STEEL&RADIATOR GRILLE-CHROME PLATED
75851AMOULDING, ROCKER PANEL, FRONT RH
main75851-0K060iGUN126..RHD..H..SA;GUN125,136..RHD..(H,S)..SA; TGN136..S..SA;GUN126..LHD..SA;GUN125..LHD..SAP..S;GUN125..(GHAP,KENP,SAP)..(H,L);GUN122,126,135,LAN125,TGN121,126..SAP..(L,S)202411
STEP & STEP COVER-WITHOUT
main75851-0K070iGUN126..AGTP..L..LA;GUN126..AGTP..6FC..H..LA;GUN126,TGN136..(L,S)..BZAG;GUN125,135,TGN126..AGTP..(6F,6FC); TGN126..AGTP..(L,S);GUN126,TGN136..AGTP..S..LA202411
STEP & STEP COVER-WITHOUT
75852AMOULDING, ROCKER PANEL, FRONT LH
main75852-0K010iGUN125..IV3;TGN121..6FC..ARL;GUN126..THP..S..LA;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TGN126..THP..L..(LA,SA);TGN126..THP..S..(GEN,LA);GUN120,121,122,TGN120,121..THP..(GCC,GEN,PH,SA,TH); GUN126..6FC..H..DCRL..ARL..CBU; GUN126..H..MHV..ARL..CBU; GUN126..THP..L;GUN135..THP..(ARL,LA);GUN126..THP..6FC..H..LA;GUN126..RHD..6FC..S..GEN;GUN125..THP..6FC..(ARL,LA)..CBU;GUN126,135..6F..S..(ARL,PH)..CBU;GUN125..LHD..THP..6F..S..(GEN,LA);GUN125..LHD..THP..(H,L)..(GCC,GEN,LA);GUN126,TGN126..(H,L)..(HTWC,MHV)..(GCC,GEN)202408
GR SPORT WIDE TREAD&STEP & STEP COVER-WITHOUT; RUGGED X PACKAGE; RUGGED X PACKAGE&STEP & STEP COVER-WITHOUT; STEP & STEP COVER-WITHOUT
main75852-0K060iGUN126..RHD..H..SA;GUN125,136..RHD..(H,S)..SA; TGN136..S..SA;GUN126..LHD..SA;GUN125..LHD..SAP..S;GUN125..(GHAP,KENP,SAP)..(H,L);GUN122,126,135,LAN125,TGN121,126..SAP..(L,S)202411
STEP & STEP COVER-WITHOUT
main75852-0K070iGUN126..AGTP..L..LA;GUN126..AGTP..6FC..H..LA;GUN126,TGN136..(L,S)..BZAG;GUN125,135,TGN126..AGTP..(6F,6FC); TGN126..AGTP..(L,S);GUN126,TGN136..AGTP..S..LA202411
STEP & STEP COVER-WITHOUT
75866ARETAINER, ROCKER PANEL MOULDING
76924GRETAINER, ROCKER PANEL MOULDING
main76924-0K010×16iGUN125..IV3;TGN121..6FC..ARL;GUN125..RHD..S..GEN;TGN126..S..(GEN,LA);GUN126,TGN136..S..LA;GUN126..RHD..6F..S..GEN;GUN125..RHD..THP..6F..L;GUN125..THP..L..(PH,SA);TGN126..(AGTP,THP)..L..(LA,SA);GUN120,121,122,TGN120,121..THP..(GCC,GEN,PH,SA,TH); GUN126..6FC..H..DCRL..ARL..CBU; GUN126..H..MHV..ARL..CBU; GUN126..L..LA;GUN135..6F..S..PH;GUN126..6FC..H..LA;GUN135..ARL,BZAG,LA;GUN126..RHD..6FC..S..GEN;GUN126..6FC..(L,S)..BZAG;GUN125,TGN136..MTM..BZAG;GUN125..LHD..6F..S..(GEN,LA);GUN125..LHD..(H,L)..(GCC,GEN,LA);GUN126..6F..(L,S)..(ARL,BZAG)..CBU;GUN125,TGN126..6FC..(ARL,BZAG,LA)..CBU;GUN126,TGN126..(H,L)..(HTWC,MHV)..(GCC,GEN)202408
GR SPORT WIDE TREAD&STEP & STEP COVER-WITHOUT; RUGGED X PACKAGE; RUGGED X PACKAGE&STEP & STEP COVER-WITHOUT; STEP & STEP COVER-WITHOUT
main76924-0K020×16iGUN126..RHD..H..SA;GUN125,136..RHD..(H,S)..SA; TGN136..S..SA;GUN126..LHD..SA;GUN125..LHD..SAP..S;GUN125..(GHAP,KENP,SAP)..(H,L);GUN122,126,135,LAN125,TGN121,126..SAP..(L,S)202411
STEP & STEP COVER-WITHOUT
90159T0009
main90159-T0009
9046707215
main90467-07215
9046708224
main90467-08224
90467T0050
main90467-T0050
17 parts on this diagram · 2 diagrams in section
