SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-KK010-B0iGUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN135..6FC..H;GUN136..RHD..H;GGN125,GUN121..RHD..6FC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..(BZAG,TH);GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,SAP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,SA,TWN,VN)..CBU; GUN136..6FC..S;TGN126..GEN,LA,SA;GUN125..(L,S)..GEN;GUN126..H..MHV..IV3;GUN126..6FC..(GHA,KEN);GUN126..AGTP..6F..H..LA;GGN125,GUN120,136..BZAG,LA,TH;GUN126,135..6F..H..(BZAG,KEN,TH);GUN126,135..(AGTP,SAP,THP)..(L,S);GUN121,122,LAN125,TGN121,136..MTM..(BZAG,GEN,LA,PH,SA,TH);GUN125,TGN121..(6F,6FC)..(ARL,BZAG,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN)202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20; LT.GRAY,TRIM20,3#
main73023-KK010-C0iGGN125..GCC;GUN126..6FC..H..DCRL..(ARL,GCC,PH,SA,TH,VN)..CBU; GUN121..6FC;GUN126..AGTP..6FC..H; GUN135..6FC..H;GUN136..RHD..H;GUN125,135..6F..H..(GCC,GEN,PH);GUN126..(SAP,THP)..6F..H..(ARL,GCC,GEN,LA,PH,SA);GUN126..(CAMP,MMRP,THP)..6FC..H..DCRL..(GEN,LA,MMR,TWN);GGN125,GUN126..(SAP,THP)..H..(HTWC,MHV)..(ARL,LA,SA)..CBU202408
BLACK,TRIM21; BLACK,TRIM21,25; BLACK,TRIM23
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73023-KK010-B0iGUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN135..6FC..H;GUN136..RHD..H;GGN125,GUN121..RHD..6FC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..(BZAG,TH);GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,SAP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,SA,TWN,VN)..CBU; GUN136..6FC..S;TGN126..GEN,LA,SA;GUN125..(L,S)..GEN;GUN126..H..MHV..IV3;GUN126..6FC..(GHA,KEN);GUN126..AGTP..6F..H..LA;GGN125,GUN120,136..BZAG,LA,TH;GUN126,135..6F..H..(BZAG,KEN,TH);GUN126,135..(AGTP,SAP,THP)..(L,S);GUN121,122,LAN125,TGN121,136..MTM..(BZAG,GEN,LA,PH,SA,TH);GUN125,TGN121..(6F,6FC)..(ARL,BZAG,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN)202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20; LT.GRAY,TRIM20,3#
main73023-KK010-C0iGGN125..GCC;GUN126..6FC..H..DCRL..(ARL,GCC,PH,SA,TH,VN)..CBU; GUN121..6FC;GUN126..AGTP..6FC..H; GUN135..6FC..H;GUN136..RHD..H;GUN125,135..6F..H..(GCC,GEN,PH);GUN126..(SAP,THP)..6F..H..(ARL,GCC,GEN,LA,PH,SA);GUN126..(CAMP,MMRP,THP)..6FC..H..DCRL..(GEN,LA,MMR,TWN);GGN125,GUN126..(SAP,THP)..H..(HTWC,MHV)..(ARL,LA,SA)..CBU202408
BLACK,TRIM21; BLACK,TRIM21,25; BLACK,TRIM23
73119PLATE, SEAT BELT WEBBING CLIP
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73135-KK010-B0iGUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN135..6FC..H;GUN136..RHD..H;GGN125,GUN121..RHD..6FC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..(BZAG,TH);GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,SAP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,SA,TWN,VN)..CBU; GUN136..6FC..S;TGN126..GEN,LA,SA;GUN125..(L,S)..GEN;GUN126..H..MHV..IV3;GUN126..6FC..(GHA,KEN);GUN126..AGTP..6F..H..LA;GGN125,GUN120,136..BZAG,LA,TH;GUN126,135..6F..H..(BZAG,KEN,TH);GUN126,135..(AGTP,SAP,THP)..(L,S);GUN121,122,LAN125,TGN121,136..MTM..(BZAG,GEN,LA,PH,SA,TH);GUN125,TGN121..(6F,6FC)..(ARL,BZAG,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN)202408
LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST.; LT.GRAY,TRIM2#,NO.1:REFER ILLUST.; LT.GRAY,TRIM20,3#,NO.1:REFER ILLUST.; LT.GRAY,TRIM20,NO.1:REFER ILLUST.
main73135-KK010-C0iGGN125..GCC;GUN126..6FC..H..DCRL..(ARL,GCC,PH,SA,TH,VN)..CBU; GUN121..6FC;GUN126..AGTP..6FC..H; GUN135..6FC..H;GUN136..RHD..H;GUN125,135..6F..H..(GCC,GEN,PH);GUN126..(SAP,THP)..6F..H..(ARL,GCC,GEN,LA,PH,SA);GUN126..(CAMP,MMRP,THP)..6FC..H..DCRL..(GEN,LA,MMR,TWN);GGN125,GUN126..(SAP,THP)..H..(HTWC,MHV)..(ARL,LA,SA)..CBU202408
BLACK,TRIM21,25,NO.1:REFER ILLUST.; BLACK,TRIM21,NO.1:REFER ILLUST.; BLACK,TRIM23,NO.1:REFER ILLUST.
main73135-KK020-B0iGUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN135..6FC..H;GUN136..RHD..H;GGN125,GUN121..RHD..6FC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..(BZAG,TH);GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,SAP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,SA,TWN,VN)..CBU; GUN136..6FC..S;TGN126..GEN,LA,SA;GUN125..(L,S)..GEN;GUN126..H..MHV..IV3;GUN126..6FC..(GHA,KEN);GUN126..AGTP..6F..H..LA;GGN125,GUN120,136..BZAG,LA,TH;GUN126,135..6F..H..(BZAG,KEN,TH);GUN126,135..(AGTP,SAP,THP)..(L,S);GUN121,122,LAN125,TGN121,136..MTM..(BZAG,GEN,LA,PH,SA,TH);GUN125,TGN121..(6F,6FC)..(ARL,BZAG,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN)202408
LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST.; LT.GRAY,TRIM2#,NO.2:REFER ILLUST.; LT.GRAY,TRIM20,3#,NO.2:REFER ILLUST.; LT.GRAY,TRIM20,NO.2:REFER ILLUST.
main73135-KK020-C0iGGN125..GCC;GUN126..6FC..H..DCRL..(ARL,GCC,PH,SA,TH,VN)..CBU; GUN121..6FC;GUN126..AGTP..6FC..H; GUN135..6FC..H;GUN136..RHD..H;GUN125,135..6F..H..(GCC,GEN,PH);GUN126..(SAP,THP)..6F..H..(ARL,GCC,GEN,LA,PH,SA);GUN126..(CAMP,MMRP,THP)..6FC..H..DCRL..(GEN,LA,MMR,TWN);GGN125,GUN126..(SAP,THP)..H..(HTWC,MHV)..(ARL,LA,SA)..CBU202408
BLACK,TRIM21,25,NO.2:REFER ILLUST.; BLACK,TRIM21,NO.2:REFER ILLUST.; BLACK,TRIM23,NO.2:REFER ILLUST.
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73135-KK010-B0iGUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN135..6FC..H;GUN136..RHD..H;GGN125,GUN121..RHD..6FC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..(BZAG,TH);GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,SAP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,SA,TWN,VN)..CBU; GUN136..6FC..S;TGN126..GEN,LA,SA;GUN125..(L,S)..GEN;GUN126..H..MHV..IV3;GUN126..6FC..(GHA,KEN);GUN126..AGTP..6F..H..LA;GGN125,GUN120,136..BZAG,LA,TH;GUN126,135..6F..H..(BZAG,KEN,TH);GUN126,135..(AGTP,SAP,THP)..(L,S);GUN121,122,LAN125,TGN121,136..MTM..(BZAG,GEN,LA,PH,SA,TH);GUN125,TGN121..(6F,6FC)..(ARL,BZAG,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN)202408
LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST.; LT.GRAY,TRIM2#,NO.1:REFER ILLUST.; LT.GRAY,TRIM20,3#,NO.1:REFER ILLUST.; LT.GRAY,TRIM20,NO.1:REFER ILLUST.
main73135-KK010-C0iGGN125..GCC;GUN126..6FC..H..DCRL..(ARL,GCC,PH,SA,TH,VN)..CBU; GUN121..6FC;GUN126..AGTP..6FC..H; GUN135..6FC..H;GUN136..RHD..H;GUN125,135..6F..H..(GCC,GEN,PH);GUN126..(SAP,THP)..6F..H..(ARL,GCC,GEN,LA,PH,SA);GUN126..(CAMP,MMRP,THP)..6FC..H..DCRL..(GEN,LA,MMR,TWN);GGN125,GUN126..(SAP,THP)..H..(HTWC,MHV)..(ARL,LA,SA)..CBU202408
BLACK,TRIM21,25,NO.1:REFER ILLUST.; BLACK,TRIM21,NO.1:REFER ILLUST.; BLACK,TRIM23,NO.1:REFER ILLUST.
main73135-KK020-B0iGUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN135..6FC..H;GUN136..RHD..H;GGN125,GUN121..RHD..6FC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..(BZAG,TH);GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,SAP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,SA,TWN,VN)..CBU; GUN136..6FC..S;TGN126..GEN,LA,SA;GUN125..(L,S)..GEN;GUN126..H..MHV..IV3;GUN126..6FC..(GHA,KEN);GUN126..AGTP..6F..H..LA;GGN125,GUN120,136..BZAG,LA,TH;GUN126,135..6F..H..(BZAG,KEN,TH);GUN126,135..(AGTP,SAP,THP)..(L,S);GUN121,122,LAN125,TGN121,136..MTM..(BZAG,GEN,LA,PH,SA,TH);GUN125,TGN121..(6F,6FC)..(ARL,BZAG,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN)202408
LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST.; LT.GRAY,TRIM2#,NO.2:REFER ILLUST.; LT.GRAY,TRIM20,3#,NO.2:REFER ILLUST.; LT.GRAY,TRIM20,NO.2:REFER ILLUST.
main73135-KK020-C0iGGN125..GCC;GUN126..6FC..H..DCRL..(ARL,GCC,PH,SA,TH,VN)..CBU; GUN121..6FC;GUN126..AGTP..6FC..H; GUN135..6FC..H;GUN136..RHD..H;GUN125,135..6F..H..(GCC,GEN,PH);GUN126..(SAP,THP)..6F..H..(ARL,GCC,GEN,LA,PH,SA);GUN126..(CAMP,MMRP,THP)..6FC..H..DCRL..(GEN,LA,MMR,TWN);GGN125,GUN126..(SAP,THP)..H..(HTWC,MHV)..(ARL,LA,SA)..CBU202408
BLACK,TRIM21,25,NO.2:REFER ILLUST.; BLACK,TRIM21,NO.2:REFER ILLUST.; BLACK,TRIM23,NO.2:REFER ILLUST.
73178ACAP, SEAT BELT ANCHOR COVER
main73178-KK010-B0×2iGUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN135..6FC..H;GUN136..RHD..H;GGN125,GUN121..RHD..6FC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..(BZAG,TH);GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,SAP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,SA,TWN,VN)..CBU; GUN136..6FC..S;TGN126..GEN,LA,SA;GUN125..(L,S)..GEN;GUN126..H..MHV..IV3;GUN126..6FC..(GHA,KEN);GUN126..AGTP..6F..H..LA;GGN125,GUN120,136..BZAG,LA,TH;GUN126,135..6F..H..(BZAG,KEN,TH);GUN126,135..(AGTP,SAP,THP)..(L,S);GUN121,122,LAN125,TGN121,136..MTM..(BZAG,GEN,LA,PH,SA,TH);GUN125,TGN121..(6F,6FC)..(ARL,BZAG,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN)202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20; LT.GRAY,TRIM20,3#
main73178-KK010-C0×2iGGN125..GCC;GUN126..6FC..H..DCRL..(ARL,GCC,PH,SA,TH,VN)..CBU; GUN121..6FC;GUN126..AGTP..6FC..H; GUN135..6FC..H;GUN136..RHD..H;GUN125,135..6F..H..(GCC,GEN,PH);GUN126..(SAP,THP)..6F..H..(ARL,GCC,GEN,LA,PH,SA);GUN126..(CAMP,MMRP,THP)..6FC..H..DCRL..(GEN,LA,MMR,TWN);GGN125,GUN126..(SAP,THP)..H..(HTWC,MHV)..(ARL,LA,SA)..CBU202408
BLACK,TRIM21; BLACK,TRIM21,25; BLACK,TRIM23
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-0D051-B2×2iGUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN135..6FC..H;GUN136..RHD..H;GGN125,GUN121..RHD..6FC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..(BZAG,TH);GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,SAP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,SA,TWN,VN)..CBU; GUN136..6FC..S;TGN126..GEN,LA,SA;GUN125..(L,S)..GEN;GUN126..H..MHV..IV3;GUN126..6FC..(GHA,KEN);GUN126..AGTP..6F..H..LA;GGN125,GUN120,136..BZAG,LA,TH;GUN126,135..6F..H..(BZAG,KEN,TH);GUN126,135..(AGTP,SAP,THP)..(L,S);GUN121,122,LAN125,TGN121,136..MTM..(BZAG,GEN,LA,PH,SA,TH);GUN125,TGN121..(6F,6FC)..(ARL,BZAG,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN)202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20; LT.GRAY,TRIM20,3#
main73200-0D051-C0×2iGGN125..GCC;GUN126..6FC..H..DCRL..(ARL,GCC,PH,SA,TH,VN)..CBU; GUN121..6FC;GUN126..AGTP..6FC..H; GUN135..6FC..H;GUN136..RHD..H;GUN125,135..6F..H..(GCC,GEN,PH);GUN126..(SAP,THP)..6F..H..(ARL,GCC,GEN,LA,PH,SA);GUN126..(CAMP,MMRP,THP)..6FC..H..DCRL..(GEN,LA,MMR,TWN);GGN125,GUN126..(SAP,THP)..H..(HTWC,MHV)..(ARL,LA,SA)..CBU202408
BLACK,TRIM21; BLACK,TRIM21,25; BLACK,TRIM23
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-0K840-C0iGUN121,126..6FC..TH;GUN13#..THP..6FC..H;GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,VN)..CBU; GUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN136..6FC..S;GUN125..(L,S)..GEN;GUN121,126..6F..TH;GUN126..H..MHV..IV3;GUN13#..THP..6F..H..(LA,TH);TGN121,126..THP..(GEN,LA,SA);GUN120,122,126,135,TGN136..THP..(L,S)..(ARL,GEN,LA,PH,TH,VN);GUN125,TGN121..(MAP,THP)..(6F,6FC)..(ARL,IDN,LA,MA,PH,SA,TH,VN)202408
BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM2#,3#; BLACK/GRAY,TRIM20; BLACK/GRAY,TRIM20,3#
main73210-0K840-C1iGUN121..6FC; GUN126..6F..GCC;GUN13#..THP..6FC..H;GUN125,135..6F..H..(GCC,GEN,PH);GGN125,GUN126..6FC..(DCRL,HTWC)..(GCC,TH);GUN126..(CAMP,MMRP,THP)..H..(ARL,GEN,LA,MMR,PH,VN)..CBU202408
BLACK/BLACK,TRIM21; BLACK/BLACK,TRIM23
RED/BLACK,TRIM25
main73210-0K861-C0iGGN125,GUN126,136..H..SA; GUN126..S..SA;GUN126..GHA,KEN;GUN122,125,135,LAN125,TGN121,126,136..GHAP,KENP,SAP202411
BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM20
BLACK/BLACK,TRIM21
BLACK/RED,TRIM25
main73210-0K880-C0iGUN126..AGTP..(L,S);GUN126..AGTP..6F..H;GGN125,GUN125,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411
BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM20
BLACK/BLACK,TRIM23
BLACK/LT.GRAY,TRIM20
BLACK/BLACK,TRIM21
73219STOPPER, TONGUE PLATE
BLACK
main73219-33020iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0K550-C0iGUN121,126..6FC..TH;GUN13#..THP..6FC..H;GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,VN)..CBU; GUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN136..6FC..S;GUN125..(L,S)..GEN;GUN121,126..6F..TH;GUN126..H..MHV..IV3;GUN13#..THP..6F..H..(LA,TH);TGN121,126..THP..(GEN,LA,SA);GUN120,122,126,135,TGN136..THP..(L,S)..(ARL,GEN,LA,PH,TH,VN);GUN125,TGN121..(MAP,THP)..(6F,6FC)..(ARL,IDN,LA,MA,PH,SA,TH,VN)202408
BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM2#,3#; BLACK/GRAY,TRIM20; BLACK/GRAY,TRIM20,3#
main73220-0K550-C1iGUN121..6FC; GUN126..6F..GCC;GUN13#..THP..6FC..H;GUN125,135..6F..H..(GCC,GEN,PH);GGN125,GUN126..6FC..(DCRL,HTWC)..(GCC,TH);GUN126..(CAMP,MMRP,THP)..H..(ARL,GEN,LA,MMR,PH,VN)..CBU202408
BLACK/BLACK,TRIM21; BLACK/BLACK,TRIM23
RED/BLACK,TRIM25
main73220-0K571-C0iGGN125,GUN126,136..H..SA; GUN126..S..SA;GUN126..GHA,KEN;GUN122,125,135,LAN125,TGN121,126,136..GHAP,KENP,SAP202411
BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM20
BLACK/BLACK,TRIM21
BLACK/RED,TRIM25
main73220-0K590-C0iGUN126..AGTP..(L,S);GUN126..AGTP..6F..H;GGN125,GUN125,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411
BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM20
BLACK/BLACK,TRIM23
BLACK/LT.GRAY,TRIM20
BLACK/BLACK,TRIM21
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KA50-C0iGUN126,135..THP..LA;GUN125,TGN126..THP..L..LA;GUN125,TGN126..THP..(H,S)..(LA,SA);GUN122,136,TGN121,136..LHD..THP..(H,L)..(GEN,LA); GUN126..MHV..GCC202408
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
main73230-0KA70-C0supersedes 73230-0KB00-C0iGUN125,LAN125,TGN121,126..LHD..SAP..L; GUN125..L..GHA;GUN122,126..LHD..(GHA,SA);GUN125,LAN125,TGN126..LHD..(GHAP,SAP)..(H,S)202411
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#; FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#,3#
main73230-0KB10-C0iGUN125,TGN121..LHD..SAP..L; GUN125..LHD..SAP..L; GUN135,TGN136..L..SA; LAN125,TGN126..SAP..L202411
BLACK,TRIM2#; EXPORT FROM SA&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#; FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#; NIGERIA SPEC&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#; SUB-SAHARAN AFRICA SPEC(EURO 2)&FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#
main73230-0KC10-C0iGUN121..6FC; GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN126..RHD..6FC..H..GEN; GUN126..RHD..6FC..S..GEN; GUN126..S..IV3;GUN126..ARL..CBU;GUN136..6FC..ARL;GUN126..H..MHV..IV3202408
BLACK,TRIM2#; CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#; CENTRAL AND SOUTH AMERICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#; GR SPORT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KC20-C0iGUN125,135..S..TH;GUN126..H..ARL..CBU;GUN126..H..MHV..IV3;GUN126..RHD..6FC..H..GEN;GUN125,136..RHD..H..(ARL,GEN); GUN126..6FC..H..DCRL..ARL..CBU; GUN126..H..ARL..CBU;GUN126..RHD..6FC..H..GEN;GUN125,136..RHD..H..(ARL,GEN); GUN126..RHD..6FC..H..GEN; GUN135..H..TH;GUN126..RHD..6F..H..(GEN,TH);GUN125,126..6FC..H..(IDN,MA,TH)202408
BLACK,TRIM2#; CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KC30-C0iGGN125,GUN136..SA;GUN126..6F..H..(KEN,SA);GUN126..RHD..6FC..H..SA; GUN125,135..RHD..6F..S..SA; GUN126..S..SA;GUN125..RHD..6FC..SA; GUN135..6FC..SA202411
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KF20-C0iGUN122..PH;GUN122..S..GEN;GUN125,126,135,TGN126..LHD..(GEN,MMR,PH,VN); TGN121..5F..H;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC;GGN125,GUN122,126..H..(DCRL,HTWC)..GCC; TGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202408
BLACK,TRIM2#; BLACK,TRIM2#,3#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
BLACK,TRIM2#
main73230-0KG80-C0iGUN125..S..IDN;GUN126..RHD..6F..S..GEN;GUN126..RHD..6FC..H..GEN;GUN125..RHD..(H,S)..(GEN,TH);GUN120,121,122,135..(L,S)..TH; GUN126..RHD..6F..H..GEN; GUN126..RHD..6FC..S..GEN202408
BLACK,TRIM2#; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#; FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-0K860-C0iGUN122,TGN121,136..LHD..THP..L..(GEN,SA);GUN125,126,135,TGN126..THP..(L,S)..(LA,SA); GUN125..6F..L..GCC;GUN122,TGN12#..5F..(L,S)..GCC202408
BLACK,TRIM2#; BLACK,TRIM2#,3#
main73230-0K870-C0iGUN126..L..BZAG;GUN135..AGTP..L;GUN126,135..AGTP..S..LA;GUN125,TGN126,136..AGTP..(L,S)202411
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,3#
main73230-0KA00-C0iGUN126,135..S..BZAG;GUN126..6F..H..BZAG;GUN136,TGN126..AGTP..H;GUN126..AGTP..(H,L)..LA; GUN126..6FC..H..BZAG;GUN125,TGN126..AGTP..MTM..S202411
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KA20-C0iGGN125,GUN126..6FC..(DCRL,HTWC)..(GCC,PH); GUN126,13#,TGN126..LHD..THP..H..(GEN,LA); GUN126,135..LHD..THP..H..(GEN,TWN); GUN126,135..LHD..THP..H..GEN; GUN126..6F..PH;GUN135..6F..GEN;GUN135..LHD..6FC..H;GUN126..LHD..THP..H..(GEN,LA,VN); GUN126..6FC..PH; GUN126..CAMP,MMRP;GUN125..LHD..H..GEN; GUN126..VN202408
BLACK,TRIM2#; GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#; MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main73230-0KA30-C0iGGN125..LA;GUN126..6FC..H..BZAG; GUN126,136..AGTP..H..LA;GUN125,TGN136..AGTP..(5F,6FC)..LA; GUN126..AGTP..6FC..H..LA; GUN136..BZAG;GUN126..6F..H..BZAG202411
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KA70-C0iGGN125,GUN125,126,13#,TGN136..RHD..(H,S)..(KEN,SA); GUN125..RHD..L..(KEN,SA)202411
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main73230-0KG20-C0iGUN126..S..IV3;GUN126..ARL..CBU;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN125,135,TGN121..(6F,6FC)..ARL202408
BLACK,TRIM2#
main73230-0KG90-C0iGUN122..PH;GUN122..S..GEN;TGN126..5F..GEN;GUN125..LHD..L..(GEN,PH); GUN125,135..LHD..6F..S..(GEN,PH); GUN125..6F..S..GCC;GUN125,TGN121,126..6FC..(L,S)..GCC; TGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202408
BLACK,TRIM2#; BLACK,TRIM2#,3#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
main73230-0KJ00-C0supersedes 73230-0KA80-C0iGUN122..RHD..GEN; GUN125..(H,S)..IDN;GUN12#,135..RHD..(6F,6FC)..(GEN,TH)202408
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main73230-0KJ10-C0iGGN125,GUN122,125,126,TGN121,126..H..(DCRL,HTWC)..GCC; GUN122..S..GEN; GUN125..LHD..H..GEN; GUN125..LHD..S..(GEN,VN);GUN126,135,TGN126..LHD..THP..(6F,6FC)..(GEN,PH,VN)202408
BLACK,TRIM2#; BLACK,TRIM2#,3#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#; MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
732140K010PLATE, FRONT SEAT BELT ANCHOR
main73214-0K010
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
90105T0056
main90105-T0056
90105T0064
main90105-T0064
90109T0041
main90109-T0041
90109T0056
main90109-T0056
90178T0017
main90178-T0017

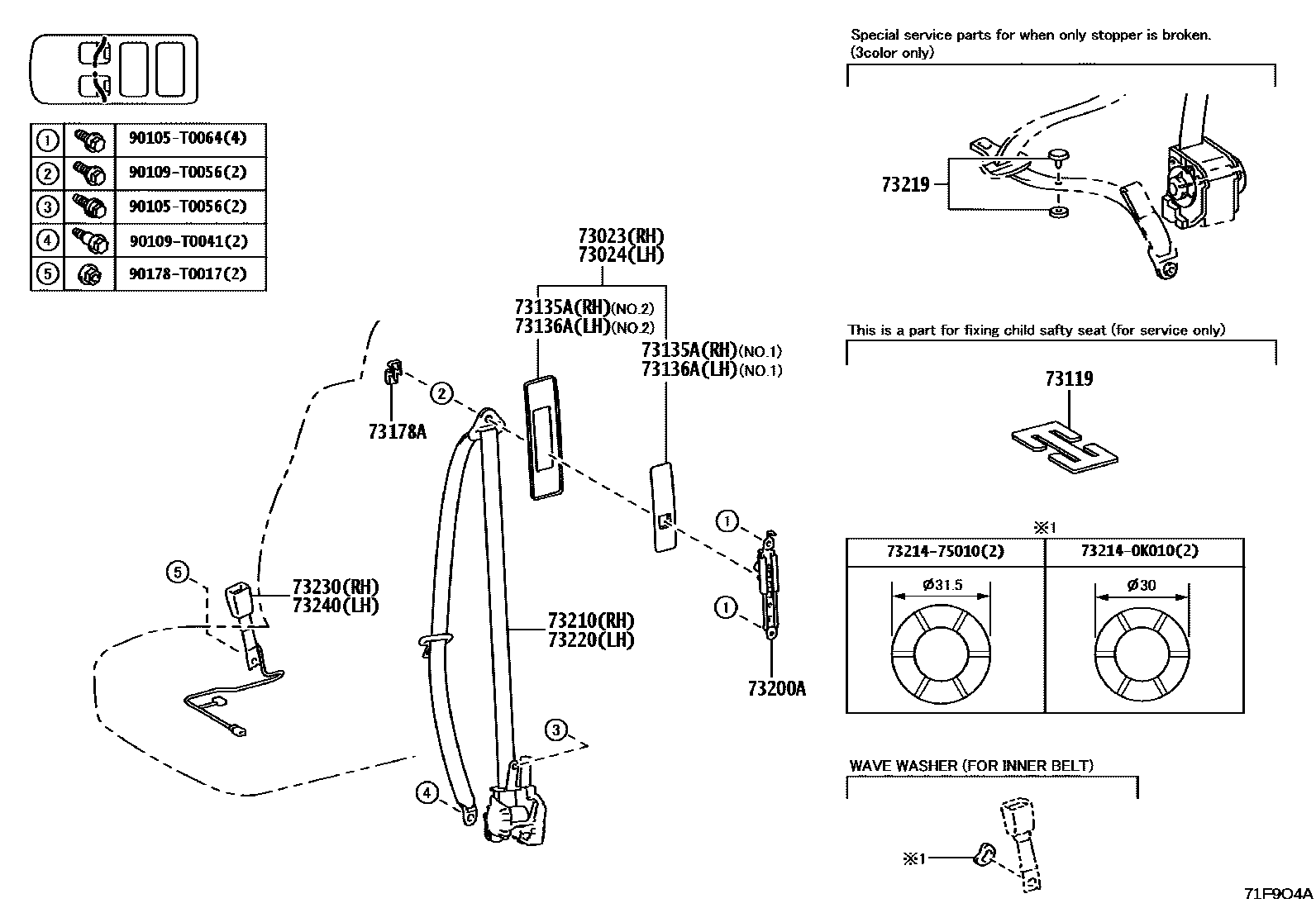

19 parts on this diagram · 5 diagrams in section
