LOCK CYLINDER SET

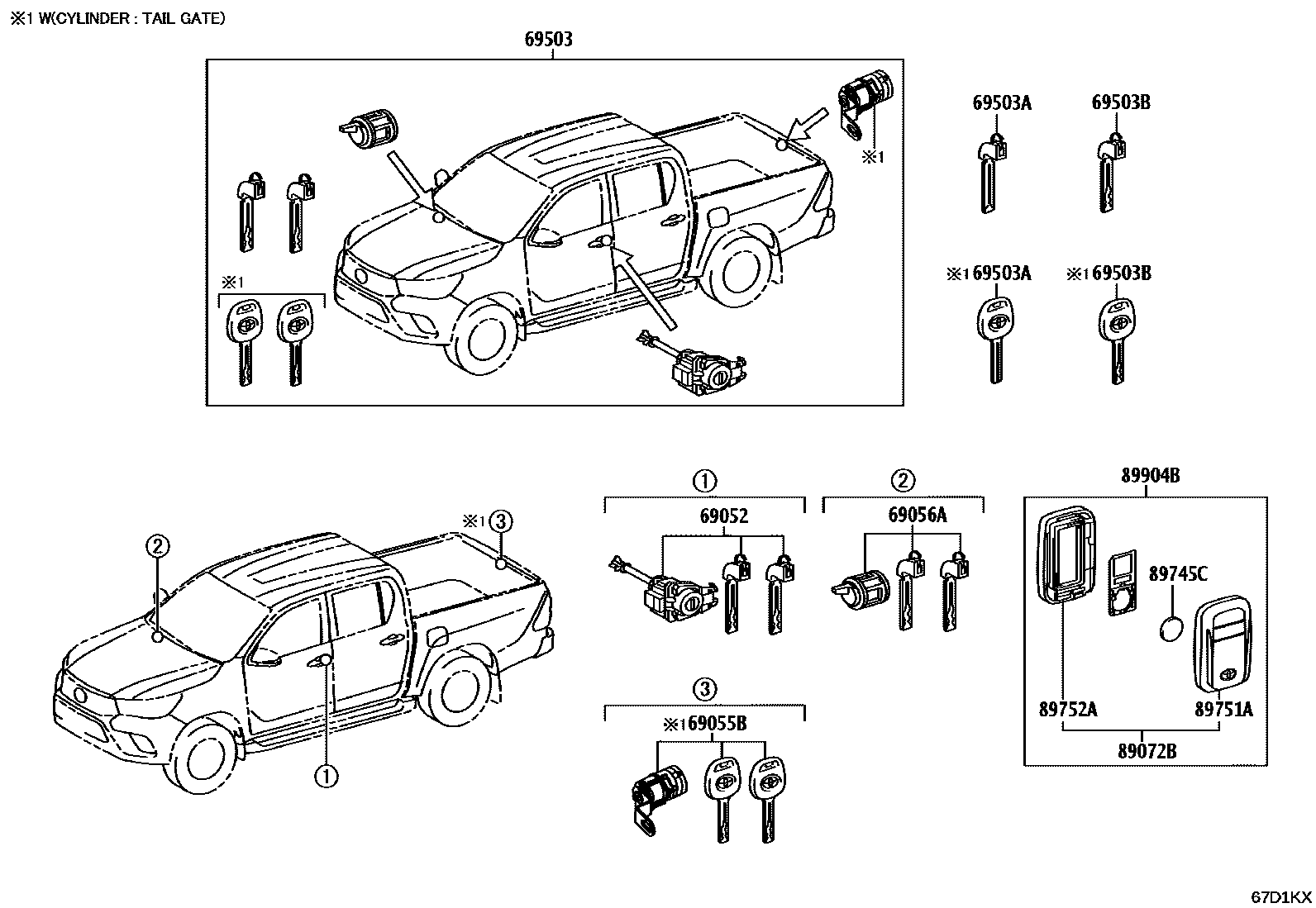

Parts diagram
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-0K050i202408
main69052-0K060i202408
REAR DECK-WITH(SIDE PANEL TOP RAIL)&WIRELESS DOOR LOCK-WITH&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-WITHOUT&KEY PLATE-MASTER KEY(2) & SUB KEY; WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY; WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY
main69052-0K070i202408
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET) & DAB&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR&KEY PLATE-SMART KEY(2) & SUB KEY(2); REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&KEY PLATE-SMART KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX); WIRELESS DOOR LOCK-WITH(*SES)
69055BCYLINDER & KEY SET, BACK DOOR LOCK
main69055-0K060i202408
main69055-0K070i202408
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-FOR MLM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&AUDIO-*DA(FOR EMERGING MARKET) & DAB&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; REAR DECK-A DECK,WITH(ROPE HOOK)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDEONLY&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; TAIL GATE-FOR A DECK(WITH KEY); TAIL GATE-FOR A DECK(WITH KEY)&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY; WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY
main69055-0K080i202408
KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET) & DAB&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR&KEY PLATE-SMART KEY(2) & SUB KEY(2); REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); TAIL GATE-FOR A DECK(WITH KEY); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-0K040i202408
main69056-0K050i202408
REAR DECK-WITH(SIDE PANEL TOP RAIL)&WIRELESS DOOR LOCK-WITH&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-WITHOUT&KEY PLATE-MASTER KEY(2) & SUB KEY; TAIL GATE-FOR A DECK(WITH KEY)&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY; WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY
main69056-0K060i202408
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET) & DAB&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR&KEY PLATE-SMART KEY(2) & SUB KEY(2); REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&KEY PLATE-SMART KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX); WIRELESS DOOR LOCK-WITH(*SES)
69503CYLINDER SET, LOCK
main69005-0KB40i202408
main69005-0KB70i202408
main69005-0KC00i202408
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69005-0KC50i202408
KEY PLATE-SMART KEY(2) & SUB KEY(2); REAR DECK-A DECK,WITH(ROPE HOOK)&TAIL GATE-FOR A DECK(WITH KEY)&BACK DOOR OR TAILGATE OUTSIDE HANDLE-CHROME PLATED; REAR DECK-A DECK,WITH(ROPE HOOK)&TAIL GATE-FOR A DECK(WITH KEY)&BACK DOOR OR TAILGATE OUTSIDE HANDLE-MATERIAL COLOR; TAIL GATE-FOR A DECK(WITH KEY)&KEY PLATE-SMART KEY(2) & SUB KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main69005-0KC70i202408
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&KEY PLATE-SMART KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX); WIRELESS DOOR LOCK-WITH(*SES)
main69005-0KD10i202408
KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET) & DAB&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR&KEY PLATE-SMART KEY(2) & SUB KEY(2); REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69005-0KG20i202409
main69005-0KG40supersedes 89704-0KW60i202411
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89704-0KS20i202408
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-WITHOUT; GCC SPEC EURO4 2018MY&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWERBACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); GCC SPEC EURO4 2022MY&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWERBACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); JORDAN SPEC&MLM ADVENTURE PACKAGE&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&BACK MONITOR-WITH; JORDAN SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&KEY PLATE-SMART KEY(2); JORDAN SPEC&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); JORDAN SPEC&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2); MLM ADVENTURE PACKAGE&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&BACK MONITOR-WITH; REAR DECK-WITH(SIDE PANEL TOP RAIL)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-WITHOUT; REAR DECK-WITH(SIDE PANEL TOP RAIL)&WIRELESS DOOR LOCK-WITH&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-WITHOUT&KEY PLATE-MASTER KEY(2) & SUB KEY; WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&KEY PLATE-SMART KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR&KEY PLATE-SMART KEY(2) & SUB KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2)
main89704-0KV51i202408
main89704-0KV60i202409
main89704-0KV70i202408
WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89704-0KV80i202408
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; GCC SPEC EURO4 2018MY&MLM ADVENTURE PACKAGE&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; GCC SPEC EURO4 2022MY&MLM ADVENTURE PACKAGE&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; MLM ADVENTURE PACKAGE&REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&BACK MONITOR-WITH; TAIL GATE-FOR A DECK(WITH KEY); WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY; WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89704-0KV90i202408
TAIL GATE-FOR A DECK(WITH KEY)&WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY; WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main89704-0KW00i202408
main89704-0KW11i202408
main89704-0KW30i202408
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(PANICBUTTON); ASEAN GENERAL SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-WITHOUT; AZERBAIJAN SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-WITHOUT; CAMBODIA SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&BACK DOOR OR TAIL GATE OUTSIDEHANDLE-WITHOUT; OCEANIA GENERAL SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-WITHOUT; WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX); WIRELESS DOOR LOCK-WITH(*SES)
main89704-0KW50i202408
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(PANICBUTTON); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89704-0KW70i202408
ASEAN GENERAL SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); AZERBAIJAN SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); CAMBODIA SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); MEXICO SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); OCEANIA GENERAL SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89704-0KW80i202411
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&REAR DECK-WITH(SIDE PANEL TOP RAIL)&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-WITHOUT; ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB; EXPORT FROM SA; EXPORT FROM SA&REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; EXPORT FROM SA&REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main89704-0KX50supersedes 89704-0KX30i202408
TAIL GATE-FOR A DECK(WITH KEY)
main89704-F0081i202408
main89704-0KT90i202408
JORDAN SPEC&MLM ADVENTURE PACKAGE&REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&BACK MONITOR-WITH
main89704-0KW40i202411
EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITHOUT&DOOROUTSIDE HANDLE-*MB
main89704-0KW60supersedes 89704-0KW40i202411
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89704-0KX10i202408
MEXICO SPEC
main89704-0KX20i202408
JORDAN SPEC; JORDAN SPEC&WIRELESS DOOR LOCK-WITH
main89704-0KX61i202408
REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR
69503AKEY, BLANK
main69515-0K100i202408
MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH,SMART KEY,INSIDE CUT; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET) & DAB&BACK MONITOR-WITH,SMART KEY,INSIDE CUT; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH,SMART KEY,INSIDECUT; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FORMLM&KEY PLATE-SMART KEY(2) & SUB KEY(2),SMART KEY,INSIDE CUT; MASTER KEY,W(*68),REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES &ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR&KEY PLATE-SMART KEY(2) & SUB KEY(2),SMART KEY,INSIDE CUT; MASTER KEY,W(*68),REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES &ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2),SMART KEY,INSIDE CUT; MASTER KEY,W(*68),SMART KEY,INSIDE CUT; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),SMARTKEY,INSIDE CUT; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&KEY PLATE-SMART KEY(2),SMART KEY,INSIDE CUT; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),SMART KEY,INSIDE CUT; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2),SMART KEY,INSIDE CUT; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),SMARTKEY,INSIDE CUT; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),SMART KEY,INSIDE CUT; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES),SMART KEY,INSIDE CUT
main69515-0K130i202408
MASTER KEY,W(*68),INSIDE CUT TYPE; MASTER KEY,W(*68),KEY PLATE-SMART KEY(2) & SUB KEY(2),INSIDE CUT TYPE; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH,INSIDE CUT TYPE; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET) & DAB&BACK MONITOR-WITH,INSIDE CUTTYPE; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH,INSIDE CUT TYPE; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FORMLM&KEY PLATE-SMART KEY(2) & SUB KEY(2),INSIDE CUT TYPE; MASTER KEY,W(*68),REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDEHANDLE-CHROME PLATED,INSIDE CUT TYPE; MASTER KEY,W(*68),REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDEHANDLE-MATERIAL COLOR,INSIDE CUT TYPE; MASTER KEY,W(*68),REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES &ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR&KEY PLATE-SMART KEY(2) & SUB KEY(2),INSIDE CUT TYPE; MASTER KEY,W(*68),REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES &ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2),INSIDE CUT TYPE; MASTER KEY,W(*68),TAIL GATE-FOR A DECK(WITH KEY),INSIDE CUT TYPE; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),INSIDE CUT TYPE; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),INSIDECUT TYPE
main69515-0K140i202408
MASTER KEY,W(*68),OUTSIDE CUT TYPE
69503BKEY, CUT
main69515-0K070×2i202408-202411
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
main69515-0K120×2i202408
MASTER KEY,W(*68),INSIDE CUT TYPE; MASTER KEY,W(*68),KEY PLATE-SMART KEY(2) & SUB KEY(2),INSIDE CUT TYPE; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH,INSIDE CUT TYPE; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET) & DAB&BACK MONITOR-WITH,INSIDE CUTTYPE; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2)&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH,INSIDE CUT TYPE; MASTER KEY,W(*68),MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FORMLM&KEY PLATE-SMART KEY(2) & SUB KEY(2),INSIDE CUT TYPE; MASTER KEY,W(*68),REAR DECK-A DECK,WITH(ROPE HOOK)&TAIL GATE-FOR A DECK(WITH KEY)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED,INSIDE CUT TYPE; MASTER KEY,W(*68),REAR DECK-A DECK,WITH(ROPE HOOK)&TAIL GATE-FOR A DECK(WITH KEY)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR,INSIDE CUT TYPE; MASTER KEY,W(*68),REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES &ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR&KEY PLATE-SMART KEY(2) & SUB KEY(2),INSIDE CUT TYPE; MASTER KEY,W(*68),REAR DECK-A DECK,WITH(ROPE HOOK)&WIRELESS DOOR LOCK-WITH(*SES &ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&KEY PLATE-SMART KEY(2) & SUB KEY(2),INSIDE CUT TYPE; MASTER KEY,W(*68),TAIL GATE-FOR A DECK(WITH KEY)&KEY PLATE-SMART KEY(2) & SUB KEY(2),INSIDE CUT TYPE; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),INSIDE CUT TYPE; MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),INSIDECUT TYPE
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
main89072-0KA01×2i202412
main89072-0KF10×2i202408
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89072-0KF90×2i202408-202411
main89072-0KG11×2i202408
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX); WIRELESS DOOR LOCK-WITH(*SES)
main89072-0K860×2i202411
EXPORT FROM SA&GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89072-0K871×2i202408
GR SPORT WIDE TREAD&KEY PLATE-SMART KEY(2) & SUB KEY(2); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR
main89072-0K880×2i202408
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
main89072-0KG90×2i202408
MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&KEY PLATE-SMART KEY(2)& SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&WHEEL ARCH-WIDE TYPE(MLM)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE WIDE TREAD&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)&KEY PLATE-SMART KEY(2) & SUB KEY(2)
main89072-0KJ00×2i202408
MEXICO SPEC&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&KEY PLATE-SMART KEY(2)& SUB KEY(2); MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED),ALUMINUM
main89072-0KJ11×2i202408
GCC SPEC EURO4 2018MY&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWERBACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; GCC SPEC EURO4 2022MY&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWERBACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&KEY PLATE-SMART KEY(2)& SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM
89745CBATTERY, TRANSMITTER
main89745-0K010i202408
CR2032; CR2032,GCC SPEC EURO4 2018MY&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; CR2032,GCC SPEC EURO4 2022MY&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; CR2032,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; CR2032,MEXICO SPEC&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); CR2032,MEXICO SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); CR2032,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH; CR2032,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); CR2032,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; CR2032,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; CR2032,MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); CR2032,WIRELESS DOOR LOCK-WITH; CR2032,WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY; CR2032,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); CR2032,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); CR2032,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); CR2032,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAILGATE OUTSIDE HANDLE-MATERIAL COLOR; CR2032,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX); CR2032,WIRELESS DOOR LOCK-WITH(*SES)
89751ACOVER, TRANSMITTER HOUSING
main89751-0K120×2i202408
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX); WIRELESS DOOR LOCK-WITH(*SES)
main89751-0K130×2i202408
MEXICO SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89751-0K350×2i202408
MEXICO SPEC&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&KEY PLATE-SMART KEY(2)& SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&WHEEL ARCH-WIDE TYPE(MLM)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE WIDE TREAD&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)&KEY PLATE-SMART KEY(2) & SUB KEY(2); RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED),ALUMINUM
main89751-0K370×2i202409
MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-FOR MLM
89752ACASE, TRANSMITTER HOUSING
main89752-0K451×2i202412
main89752-0K770×2i202408
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89752-0K780×2i202408-202411
main89752-0K811×2i202408
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX); WIRELESS DOOR LOCK-WITH(*SES)
main89752-0K830×2i202408
MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&KEY PLATE-SMART KEY(2)& SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&WHEEL ARCH-WIDE TYPE(MLM)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE WIDE TREAD&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)&KEY PLATE-SMART KEY(2) & SUB KEY(2)
main89752-0K831×2i202408
GCC SPEC EURO4 2018MY&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWERBACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; GCC SPEC EURO4 2022MY&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWERBACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&KEY PLATE-SMART KEY(2)& SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM
main89752-0K850×2i202408
MEXICO SPEC&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&KEY PLATE-SMART KEY(2)& SUB KEY(2); MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED),ALUMINUM
main89752-0K860×2i202408
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
main89752-0K870×2i202411
EXPORT FROM SA&GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89752-0K871×2i202409
GR SPORT
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
main89904-0K871×2i202412
main89904-0KK80×2i202408
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89904-0KL20×2i202408
MEXICO SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89904-0KL21×2i202408-202411
main89904-0KM41×2i202408
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR; WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX); WIRELESS DOOR LOCK-WITH(*SES)
main89904-0K830×2i202411
EXPORT FROM SA&GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89904-0K831×2i202411
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89904-0K841×2i202408
GR SPORT WIDE TREAD&KEY PLATE-SMART KEY(2) & SUB KEY(2); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR
main89904-0K850×2i202411
BRAZIL SPEC&GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); CHILE SPEC&GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89904-0K851×2i202408
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
main89904-0KK81×2i202411
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89904-0KN30×2i202408
MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&KEY PLATE-SMART KEY(2)& SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&WHEEL ARCH-WIDE TYPE(MLM)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE WIDE TREAD&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)&KEY PLATE-SMART KEY(2) & SUB KEY(2)
main89904-0KN31×2i202411
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89904-0KN40×2i202408
MEXICO SPEC&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&KEY PLATE-SMART KEY(2)& SUB KEY(2)
main89904-0KN41×2i202408
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED),ALUMINUM
main89904-0KN51×2i202408
GCC SPEC EURO4 2018MY&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWERBACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; GCC SPEC EURO4 2022MY&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWERBACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&KEY PLATE-SMART KEY(2)& SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&KEY PLATE-SMART KEY(2) & SUB KEY(2); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM

11 parts on this diagram · 6 diagrams in section
