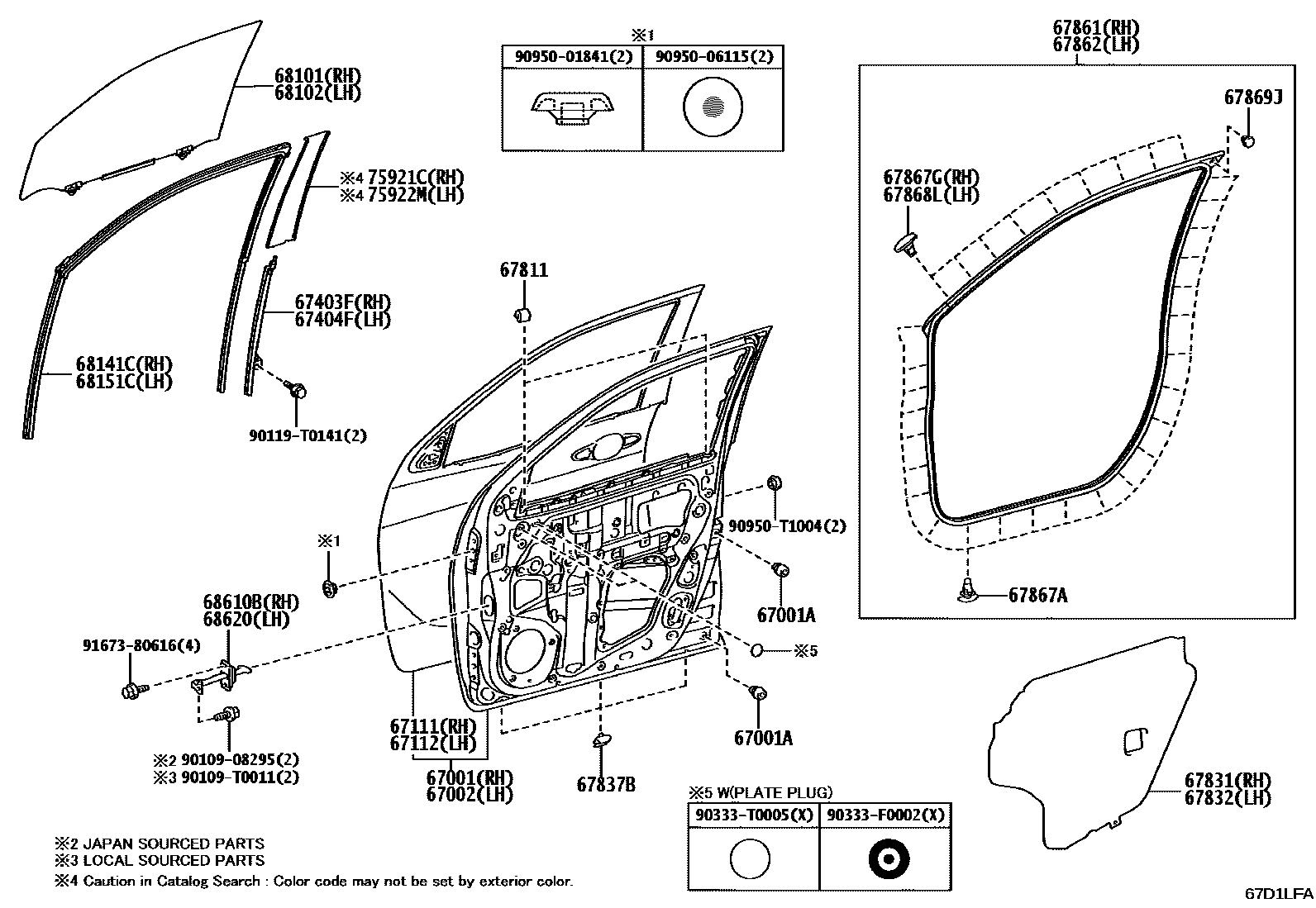

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM,W(POWER WINDOW) 0003 1DOOR TRIM,W/O(POWER WINDOW)

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×4iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK010iGUN126..IND202412

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K080iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main67403-0K100iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K080iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main67404-0K100iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

67811PAD, FRONT DOOR SILENCER

main69759-0K030×4iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main69759-0K060×4iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K120iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408

main67831-0K150iGUN126..IND202412

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K120iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main67832-0K150iGUN126..IND202412

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K093×6iGUN126..IND202412

main67837-0K103×6iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

main67837-0K121×6iGUN126..S..IV3;GUN136..LHD..6F;TGN121..LHD..THP;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG);GUN126..(AGTP,CAMP,MMRP,THP)..CBU;GGN125,GUN120,121,122,125,135,TGN120,126,136..AGTP,THP202408

EXCEPT PLANT TMT

main67837-0K211×6iGUN125,126..MA202409

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K121iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main67861-0K151iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

main67861-0K162iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main67861-0K201iGUN126..IND202412

main67861-0K241iGUN125,126..MA202409

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K121iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main67862-0K151iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

main67862-0K162iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main67862-0K201iGUN126..IND202412

main67862-0K241iGUN125,126..MA202409

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×48iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52040×9iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010×9iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-0K010iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main9004A-46317×2iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..ARL;GUN136,TGN121..LHD..THP;GUN126..(CAMP,MMRP,THP)..CBU;GGN125,GUN120,121,122,125,135,TGN120,126,136..THP202408

main90467-06084×2iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,MAP,SAP202409

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K192iGUN125..VN;TGN121..LHD..THP;GUN135..6FC..(ARL,VN);GUN120,121,122,TGN120,136..THP..(L,S);GUN135,TGN126..THP..L..(GCC,GEN,LA,SA,TH);GUN125,126,TGN121..THP..(6F,6FC)..L..(ARL,GCC,GEN,IDN,LA,SA)202408

main68101-0K200iGUN122,125,135,LAN125,TGN121,126,136..(GHAP,KENP,SAP)..L202411

main68101-0K210iGUN125,126,135,TGN126,136..AGTP..L202411

main68101-0K272iGUN126..MHV..GCC; GUN126..S..IV3;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN125,135..L..(PH,VN);GGN125,GUN125,13#,TGN126..THP..(H,S)..(GCC,GEN,IDN,LA,PH,SA,TH);GUN126..(CAMP,MMRP,THP)..(H,S)..(ARL,GEN,LA,MMR,PH,TH,TWN,VN)..CBU202408

BACK GLASS-SLIDING TYPE(GREEN)

main68101-0K280iGGN125,GUN125,126,13#,LAN125,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411

main68101-0K290iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)202411

main68101-0K330iGUN125,126..MA202409

main68101-0K380iGGN125,GUN125,TGN126..H..GCC; GUN126..GCC202408

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68101-0K390iGUN122..H; TGN121..H202408

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68101-0K400iGUN126..IND202412

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K192iTGN121..5F..ARL202408-202411

main68102-0K200iGUN122,125,135,LAN125,TGN121,126,136..(GHAP,KENP,SAP)..L202411

main68102-0K210iGUN125,126,135,TGN126,136..AGTP..L202411

main68102-0K272iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main68102-0K280iGGN125,GUN125,126,13#,LAN125,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411

main68102-0K290iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)202411

main68102-0K330iGUN125,126..MA202409

main68102-0K370iGGN125,GUN125,TGN126..H..GCC; GUN126..GCC202408

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68102-0K380iGUN122..H; TGN121..H202408

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68102-0K390iGUN126..IND202412

68141CRUN, FRONT DOOR GLASS, RH

main68141-0K070iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main68141-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

main68141-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main68141-0K140iGUN126..IND202412

main68141-0K150iGUN125,126..MA202409

68151CRUN, FRONT DOOR GLASS, LH

main68151-0K070iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main68151-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202411

main68151-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main68151-0K140iGUN126..IND202412

main68151-0K150iGUN125,126..MA202409

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K091iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main68610-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main68610-0K110iGUN126..IND202412

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K091iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main68610-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main68610-0K110iGUN126..IND202412

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0K030iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main75921-0K040iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)..LA; GUN126,13#..(H,S)..BZAG202411

PLANT TASA

main75921-0K090iGUN125,126,135,LAN125,TGN126,136..SAP..S; GUN125..S..(GHA,KEN);GGN125,GUN125,126,136..H..(GHA,KEN,SA)202411

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0K030iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main75922-0K040iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)..LA; GUN126,13#..(H,S)..BZAG202411

PLANT TASA

main75922-0K090iGUN125,126,135,LAN125,TGN126,136..SAP..S; GUN125..S..(GHA,KEN);GGN125,GUN125,126,136..H..(GHA,KEN,SA)202411

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90333F0002

main90333-F0002

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

34 parts on this diagram · 3 diagrams in section
