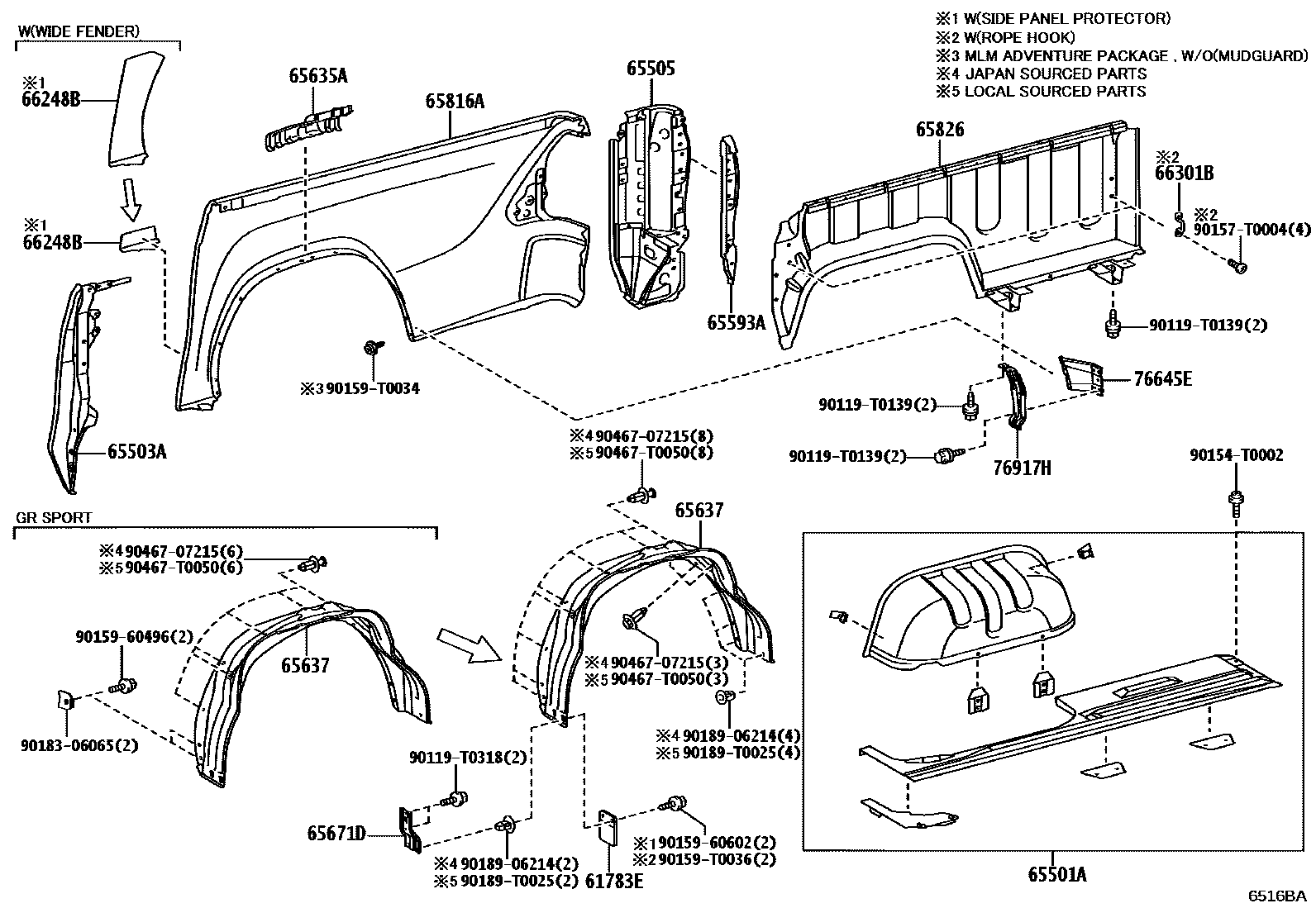

REAR BODY SIDE PANEL
61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1
main61783-0K160×2iGUN136..LHD..6F;TGN121..LHD..THP;GUN136,TGN121..6FC..(ARL,BZAG);GGN125,GUN12#,135,TGN120,126,136..(AGTP,CAMP,INDP,MAP,MMRP,THP)..CBU202408
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH
main65503-KK010iGUN125..6F..H..GCC; GUN125..6FC..H..GCC; GUN125..LHD..H..GEN; GUN126..6F..GCC; GUN126..6FC..DCRL..GCC; TGN121..GEN;GUN125..L..KEN;TGN126..SAP..6FC;GUN126..6F..S..ARL..CBU;GUN125,135,TGN136..RHD..S..SA;GUN126..6FC..S..(ARL,SA)..CBU;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC; TGN136..LHD;GUN122..GEN,PH,SA,TH;GUN125..LHD..SAP..(H,S);GGN125,GUN120,121,LAN125;GUN126..S..(BZAG,GEN,IND,LA);GUN135,TGN126..LHD..SAP..MTM;GUN126,TGN121..MTM..(L,S)..SA;GUN125..L..(BZAG,GEN,IDN,LA,PH,SA);GUN135,TGN126..(AGTP,THP)..(BZAG,GEN,LA,PH,SA,TH,VN);GUN125..(AGTP,GHAP,KENP,MAP,THP)..(H,S)..(GEN,GHA,IDN,KEN,LA,MA,SA,TH,VN);GUN126,136..(H,L)..(ARL,BZAG,GEN,GHA,IND,KEN,LA,MA,MMR,PH,SA,TH,TWN,VN)..CBU202408
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR DECK-ADECK,WITH(ROPE HOOK); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK); REAR DECK-A DECK,WITH(ROPE HOOK); TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(8INCH) &*BT; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
65505POST SUB-ASSY, SIDE PANEL REAR END, RH
main65505-KK010iGUN125..6F..H..GCC; GUN125..6FC..H..GCC; GUN125..LHD..H..GEN; GUN126..6F..GCC; GUN126..6FC..DCRL..GCC; TGN121..GEN;GUN126..S..ARL..CBU;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC; TGN121..THP..SA;GUN126..S..(BZAG,GEN,IND,LA);GGN125,GUN120,121,135,TGN136..BZAG,GCC,GEN,LA,PH,TH,VN;GUN126,136..(H,L)..(ARL,BZAG,GEN,IND,LA,MA,MMR,PH,TH,TWN,VN)..CBU;GUN122,125,TGN126..(AGTP,MAP,THP)..(BZAG,GEN,IDN,LA,MA,PH,SA,TH,VN)202408
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED,EXCEPT PLANT TSAM; EXCEPT PLANT TSAM; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR DECK-ADECK,WITH(ROPE HOOK),EXCEPT PLANT TSAM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK),EXCEPT PLANT TSAM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,EXCEPT PLANT TSAM; REAR DECK-A DECK,WITH(ROPE HOOK),EXCEPT PLANT TSAM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(8INCH) &*BT,EXCEPT PLANT TSAM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET) & DAB,EXCEPT PLANT TSAM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET),EXCEPT PLANT TSAM; TIRE & DISC WHEEL-265/60R18, ALUMINUM,EXCEPT PLANT TSAM
main65505-KK030iGUN125,TGN126..LHD..L..GEN; GUN125..6F..H..GCC; GUN125..LHD..L..GEN; GUN126..6F..GCC; GUN126..6FC..DCRL..GCC; GUN126..GCC;GUN136..6FC..S;TGN121..GCC,GEN;GUN126,TGN121..(6F,6FC)..(L,S)..ARL..CBU;GUN122,125,135,TGN120,126..(ARL,GCC)..CBU; TGN126..(H,L)..GEN;GUN125..LHD..THP..(GEN,SA)202408
EXCEPT PLANT TSAM; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR DECK-ADECK,WITH(ROPE HOOK),EXCEPT PLANT TSAM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK),EXCEPT PLANT TSAM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,EXCEPT PLANT TSAM; REAR DECK-WITH(SIDE PANEL TOP RAIL),EXCEPT PLANT TSAM; TIRE & DISC WHEEL-265/60R18 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL),EXCEPT PLANT TSAM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(8INCH) &*BT,EXCEPT PLANT TSAM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET) & DAB,EXCEPT PLANT TSAM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET),EXCEPT PLANT TSAM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL),EXCEPT PLANT TSAM; TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL),EXCEPT PLANTTSAM
main65505-KK040iGGN125..GCC;GUN135..6F..H..PH;GUN126..LHD..THP..6FC..H..(GEN,TWN,VN); GUN120,122..TH; GUN121..6F; GUN121..6FC; GUN125..6F..L..GEN; GUN125..6FC..H..GCC; GUN125..L..KEN;TGN126..SAP..6FC;GUN126..6F..S..ARL..CBU;GUN125,135,TGN136..RHD..S..SA;GUN126..6FC..S..(ARL,SA)..CBU;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC; GUN126..6F..H..ARL; GUN126..6F..PH;GUN135..6FC..H..PH;GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..ARL..CBU; GUN126..6FC..PH; GUN126..6FC..TH; GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG)..CBU; GUN126..CAMP,MMRP;GUN125,135..H..GEN;GUN126..THP..6FC..H..LA;GUN126..RHD..6FC..H..(GEN,MA);GUN126..THP..6F..H..(ARL,GEN,LA); GUN126..VN;GGN125..GCC; GUN135..H..TH;GUN125,126..TH;GUN135..(L,S)..(PH,TH); GUN135..L..LA;GUN125..AGTP..L..LA;GUN125,TGN136..MTM..L..GEN; GUN135..L..LA;GUN126..THP..L;GUN125..AGTP..L..LA;GUN125,TGN126,136..MTM..L..GEN; GUN135..S..LA;GUN135..L..SA;GGN125,GUN136..H;GUN126..THP..H..LA;TGN126..SAP..5F..S;GUN125..LHD..SAP..S;TGN136..LHD..(LA,SA);GUN126..AGTP..(H,L)..LA;GUN126..S..(BZAG,GEN,LA);GUN135..BZAG,GEN,PH,TH,VN;GUN125..6FC..L..(BZAG,GEN);GUN125,TGN126..MTM..(H,L)..(BZAG,IDN,SA);GUN122,126,LAN125,TGN121..SAP..MTM..(L,S);GUN126..(H,L)..(ARL,BZAG,GEN,GHA,KEN,MA,MMR,PH,SA,TH,TWN,VN)..CBU;GUN125,TGN126..(AGTP,GHAP,KENP,MAP,THP)..(H,S)..(GEN,GHA,IDN,KEN,LA,MA,SA,TH,VN); GUN136..H..ARL202408
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED,PLANT TSAM; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER),PLANT TSAM; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT),PLANT TSAM; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT),PLANT TSAM; GR SPORT WIDE TREAD,PLANT TSAM; GR SPORT,PLANT TSAM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER),PLANT TSAM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,PLANT TSAM; MLM ADVENTURE PACKAGE,PLANT TSAM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM),PLANT TSAM; MLM ADVENTURE WIDE TREAD,PLANT TSAM; MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL),PLANT TSAM; PLANT TSAM; REAR DECK-A DECK,WITH(ROPE HOOK),PLANT TSAM; RUGGED X PACKAGE,PLANT TSAM; TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),PLANT TSAM; TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING),PLANT TSAM; TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),PLANT TSAM; TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING),PLANT TSAM; TIRE & DISC WHEEL-265/60R18 ALUMINUM,PLANT TSAM; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER),PLANT TSAM; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM),PLANT TSAM; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM,PLANT TSAM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER),PLANT TSAM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM),PLANT TSAM; TIRE & DISC WHEEL-265/60R18, ALUMINUM,PLANT TSAM; TIRE & DISC WHEEL-265/65R17 ALUMINUM,PLANT TSAM; TIRE & DISC WHEEL-265/65R17 STEEL,PLANT TSAM
main65505-KK050iGUN125,135..SAP..L;GUN125..LHD..SAP..S;GUN122,126,LAN125,TGN121,126..SAP..MTM..(L,S); GUN125,LAN125..LHD..SAP..MTM..S; GUN125..L..(GHA,KEN);GUN126,TGN126..SAP..6FC..S;GUN125,135,TGN136..RHD..S..SA202411
PLANT TSAM; REAR DECK-WITH(SIDE PANEL TOP RAIL),PLANT TSAM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL),PLANT TSAM; TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL),PLANT TSAM
65593APLATE, SIDE PANEL REAR END POST INSIDE, RH
main65593-KK010iGUN125..6F..H..GCC; GUN125..6FC..H..GCC; GUN125..LHD..H..GEN; GUN126..6F..GCC; GUN126..6FC..DCRL..GCC; TGN121..GEN;GUN125..L..KEN;TGN126..SAP..6FC;GUN126..6F..S..ARL..CBU;GUN125,135,TGN136..RHD..S..SA;GUN126..6FC..S..(ARL,SA)..CBU;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC; TGN136..LHD;GUN122..GEN,PH,SA,TH;GUN125..LHD..SAP..(H,S);GGN125,GUN120,121,LAN125;GUN126..S..(BZAG,GEN,IND,LA);GUN135,TGN126..LHD..SAP..MTM;GUN126,TGN121..MTM..(L,S)..SA;GUN125..L..(BZAG,GEN,IDN,LA,PH,SA);GUN135,TGN126..(AGTP,THP)..(BZAG,GEN,LA,PH,SA,TH,VN);GUN125..(AGTP,GHAP,KENP,MAP,THP)..(H,S)..(GEN,GHA,IDN,KEN,LA,MA,SA,TH,VN);GUN126,136..(H,L)..(ARL,BZAG,GEN,GHA,IND,KEN,LA,MA,MMR,PH,SA,TH,TWN,VN)..CBU202408
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR DECK-ADECK,WITH(ROPE HOOK); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK); REAR DECK-A DECK,WITH(ROPE HOOK); TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(8INCH) &*BT; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
65635APANEL, WHEEL HOUSE, REAR RH
main65635-KK020iGUN120,122..TH; GUN121..6F; GUN121..6FC; GUN125,TGN126..LHD..L..GEN; GUN125..6F..L..GEN; GUN125..LHD..L..GEN; GUN135..6FC;GUN135..S..LA;GUN126..AGTP..L;GUN126..(H,S)..CBU;GUN135..6F..(BZAG,GEN,PH,TH,VN);GUN125,136..6F..H..(BZAG,LA,SA);GUN125..6FC..L..(ARL,BZAG,GEN)..CBU;GUN125..(AGTP,GHAP,MAP,THP)..6F..(H,S);GGN125,GUN125,136,TGN126,136..(5F,6FC)..(H,S);GUN125,TGN126..(AGTP,THP)..MTM..L..(ARL,BZAG,IDN,SA); GUN135..L..LA;GUN125..AGTP..L..LA;GUN125,TGN136..MTM..L..GEN;GUN125,135,LAN125..SAP..MTM..S; GUN135..L..LA;GUN126..THP..L;GUN125..AGTP..L..LA;GUN125,TGN126,136..MTM..L..GEN;GUN125,135,LAN125..SAP..MTM..S202408
GR SPORT; MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); TIRE & DISC WHEEL-265/60R18 ALUMINUM; TIRE & DISC WHEEL-265/60R18 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL); TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL); TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL)
65637LINER, REAR WHEEL HOUSE, RH
main65637-0K080iGUN120,122..TH; GUN121..6F; GUN121..6FC; GUN125..6F..L..GEN; GUN126,135..THP..L..LA;GUN125,TGN126,136..MTM..L..GEN; GUN135..THP..L..LA;GUN125,TGN136..MTM..L..GEN; GUN136..6FC..ARL;GUN13#..THP..(H,S)..LA;GUN125..RHD..6FC..L..CBU;GUN135..ARL,GEN,PH,TH,VN;GUN125,TGN126..THP..MTM..L..(ARL,IDN,SA);GGN125,GUN125,126,TGN126..(CAMP,INDP,MAP,MMRP,THP)..(H,S)..CBU202408
GR SPORT; MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); TIRE & DISC WHEEL-265/60R18 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
main65637-0K090iGUN125..L..GHA;TGN126,136..SAP..L;GUN122,125,135,LAN125,TGN121..(KENP,SAP)..MTM..(L,S); TGN136..S..SA202411
TIRE & DISC WHEEL-225/70R17C STEEL
main65637-0K100iGUN125,135,LAN125..SAP..MTM..S; GUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..(KEN,SA);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-225/70R17C STEEL
main65637-0K130iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GGN125,GUN126,136..AGTP;GUN125,135,TGN126,136..AGTP..(H,S)..LA202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
65671DBRACE, SIDE PANEL SKIRT, FRONT RH
65816APANEL, REAR BODY SIDE, RH
main65816-KK010iTGN121..GEN;GUN125..L..KEN;GUN125,135..RHD..6F..S..SA; TGN136..L;TGN126..SAP..L;GUN135..L..(LA,SA);GUN125..LHD..SAP..6F..(L,S);GUN125..RHD..6F..L..(GEN,SA);GUN125,TGN126..LHD..L..(GEN,LA,PH);GUN120,121,122,LAN125..GEN,PH,SA,TH;GUN126,TGN121..(SAP,THP)..L..(LA,SA)202408
REAR DECK-A DECK,WITH(ROPE HOOK)
main65816-KK020iGUN125,TGN126..LHD..L..GEN; TGN121..GCC,GEN;TGN121..6FC..ARL;GUN122,TGN120..GCC..CBU;GUN125,135..RHD..6F..S..SA;GUN125,TGN126..L..(GCC,GHA,KEN)202408
REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65816-KK030iGGN125..GCC;GUN126..6FC..H..DCRL..(SA,VN); GGN125..GCC;GUN135..6F..H..PH;GUN126..LHD..THP..6FC..H..GEN;GUN126..6FC..H..DCRL..(SA,TWN,VN); GUN120,122..TH; GUN121..6F; GUN121..6FC; GUN125..6F..L..GEN; GUN125..6FC..H..GCC; GUN125..H..GEN;GUN126..CAMP,MMRP;GUN126..MHV..(LA,SA);GGN125,GUN13#..H..(GEN,SA);GUN126..RHD..6FC..H..(GEN,MA);GUN126..THP..6FC..H..DCRL..LA;GUN126..(SAP,THP)..6F..H..(ARL,GEN,LA,SA); GUN125..H..SA;GUN135..S..LA;GGN125,GUN136..H;GUN126..THP..H..LA;GUN125..LHD..6FC..SA;GUN126..AGTP..(H,L)..LA;GUN135..BZAG,GEN,PH,TH,VN;GUN125..6FC..L..(BZAG,GEN);GUN126,TGN126..SAP..MTM..S;GUN126..S..(BZAG,GEN,IND,LA);GUN125,TGN126..(AGTP,THP)..MTM..L..(BZAG,IDN,SA);GUN126..(H,L)..(ARL,BZAG,GEN,GHA,IND,KEN,MA,MMR,PH,SA,TH,TWN,VN)..CBU;GUN125,TGN126,136..(AGTP,GHAP,KENP,MAP,THP)..(H,S)..(GEN,GHA,IDN,KEN,LA,MA,SA,TH,VN); GUN126..6F..H..ARL; GUN126..6F..PH;GUN135..6FC..H..PH;GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..ARL..CBU; GUN126..6FC..PH; GUN126..6FC..TH; GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG)..CBU; GUN135..H..TH;GUN125,126..TH;GUN135..(L,S)..(PH,TH); GUN135..L..LA;GUN125..AGTP..L..LA;GUN125,TGN136..MTM..L..GEN;GUN125,LAN125..LHD..SAP..MTM..S; GUN135..L..LA;GUN126..THP..L;GUN125..AGTP..L..LA;GUN125,TGN126,136..MTM..L..GEN;GUN125,LAN125..LHD..SAP..MTM..S; GUN136..H..ARL; TGN126..SAP..6FC;GUN126..6F..S..ARL..CBU;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC;GUN125,126,135,TGN136..RHD..(5F,6FC)..S..(ARL,SA)..CBU202408
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); GR SPORT; GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT); MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM); MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); REAR DECK-A DECK,WITH(ROPE HOOK); RUGGED X PACKAGE; TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); TIRE & DISC WHEEL-265/60R18 ALUMINUM; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
main65816-KK040iGUN125,TGN126..LHD..L..GEN; GUN125..6F..H..GCC; GUN125..LHD..L..GEN; GUN126..6F..GCC; GUN126..6FC..DCRL..GCC; TGN126..H..GEN;GUN125..THP..L..SA;GUN125..LHD..THP..(H,S)..(GEN,SA); TGN126..SAP..6FC;GUN125,126,TGN126..(H,S)..GCC;GUN125,126..6F..(L,S)..ARL..CBU;GUN125,126,13#,TGN136..RHD..(5F,6FC)..(L,S)..(ARL,SA)..CBU202408
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR DECK-ADECK,WITH(ROPE HOOK); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK); REAR DECK-WITH(SIDE PANEL TOP RAIL); TIRE & DISC WHEEL-265/60R18 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(8INCH) &*BT; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET) & DAB; TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL); TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65816-YP010iGGN125..GCC;GUN126..6F..GCC;GUN135..6F..H..PH;GUN126..LHD..THP..6FC..H..GEN;GUN126..6FC..H..DCRL..(SA,TWN,VN); GGN125..GCC;GUN126..6FC..H..DCRL..(SA,VN); GUN125..6F..H..GCC; GUN125..H..GEN;GUN126..CAMP,MMRP;GUN126..MHV..(LA,SA);GGN125,GUN13#..H..(GEN,SA);GUN126..RHD..6FC..H..(GEN,MA);GUN126..THP..6FC..H..DCRL..LA;GUN126..(SAP,THP)..6F..H..(ARL,GEN,LA,SA); GUN126..6F..H..ARL; GUN126..6F..PH;GUN135..6FC..H..PH;GUN126..6FC..H..ARL..CBU; GUN126..6FC..DCRL..GCC; GUN126..6FC..H..ARL..CBU; GUN126..6FC..PH; GUN126..6FC..TH; GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG)..CBU; GUN135..H..TH;GUN125,126..TH;GUN135..(L,S)..(PH,TH); GUN136..H..ARL202408
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR DECK-ADECK,WITH(ROPE HOOK); MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM); RUGGED X PACKAGE; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(8INCH) &*BT; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
65826PANEL, REAR BODY SIDE, INNER RH
main65826-KK900iGUN125..6F..H..GCC; GUN125..6FC..H..GCC; GUN125..LHD..H..GEN; GUN126..6F..GCC; GUN126..6FC..DCRL..GCC; TGN121..GEN;GUN125..L..KEN;TGN126..SAP..6FC;GUN126..6F..S..ARL..CBU;GUN125,135,TGN136..RHD..S..SA;GUN126..6FC..S..(ARL,SA)..CBU;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC; TGN136..LHD;GUN122..GEN,PH,SA,TH;GUN125..LHD..SAP..(H,S);GGN125,GUN120,121,LAN125;GUN126..S..(BZAG,GEN,IND,LA);GUN135,TGN126..LHD..SAP..MTM;GUN126,TGN121..MTM..(L,S)..SA;GUN125..L..(BZAG,GEN,IDN,LA,PH,SA);GUN135,TGN126..(AGTP,THP)..(BZAG,GEN,LA,PH,SA,TH,VN);GUN125..(AGTP,GHAP,KENP,MAP,THP)..(H,S)..(GEN,GHA,IDN,KEN,LA,MA,SA,TH,VN);GUN126,136..(H,L)..(ARL,BZAG,GEN,GHA,IND,KEN,LA,MA,MMR,PH,SA,TH,TWN,VN)..CBU202408
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR DECK-ADECK,WITH(ROPE HOOK); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK); REAR DECK-A DECK,WITH(ROPE HOOK); TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(8INCH) &*BT; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
66248BPROTECTOR, REAR BODY SIDE PANEL, RH
main58745-0K110iGUN125..L..GHA;GUN135..6F..SA;TGN126..SAP..L;GUN125,LAN125..LHD..SAP..MTM..(L,S); GUN125..LHD..SAP..6F..S;GUN125,TGN126..(GHAP,KENP,SAP)..L;GUN122,135,LAN125,TGN121..SAP..MTM; GUN125..RHD..6F..S..SA; GUN135..6F..S..SA;GUN125,LAN125..LHD..SAP..MTM..S; TGN136..S..SA202411
STEP & STEP COVER-WITH(BLACK); STEP & STEP COVER-WITHOUT; TIRE & DISC WHEEL-225/70R17C STEEL; TIRE & DISC WHEEL-265/65R17 ALUMINUM&STEP & STEP COVER-WITH(BLACK); TIRE & DISC WHEEL-265/65R17 STEEL&STEP & STEP COVER-WITH(BLACK)
main58745-0K130iGUN125,TGN126..H..GCC; GUN125..LHD..H..GEN; GUN125..LHD..L..GEN; GUN125..LHD..S..GEN; TGN126..H..GEN;GUN126..6F..S..ARL..CBU;GUN125,135..6FC..ARL..CBU; TGN126..L..GEN; TGN126..S..GEN;GUN125,TGN126..THP..MTM..L..(ARL,SA); TGN126..S..GEN;TGN126..THP..L..SA202408
ASIA COLD COUNTRY SPEC&STEP & STEP COVER-WITHOUT; ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/60R18 ALUMINUM&STEP & STEP COVER-WITHOUT; ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&STEP & STEP COVER-WITHOUT; ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/65R17 STEEL&STEP & STEP COVER-WITHOUT; AZERBAIJAN SPEC&STEP & STEP COVER-WITHOUT; IRAQ SPEC&STEP & STEP COVER-WITHOUT; STEP & STEP COVER-WITH(BLACK); STEP & STEP COVER-WITHOUT; TIRE & DISC WHEEL-265/65R17 STEEL&STEP & STEP COVER-WITHOUT
main58745-0K050iGUN125..RHD..6F..S..SA; GUN125..RHD..6FC..SA;GUN126,136..RHD..H..SA; GUN126..LHD..SA; GUN135..6F..S..SA;GUN125,LAN125..LHD..SAP..MTM..S; GUN135..6FC..SA;GUN125..LHD..6FC..SA;GUN125,126..LHD..H..SA;GUN126,TGN126,136..SAP..S; TGN136..S..SA202411
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITH(BLACK); STEP & STEP COVER-WITH(BLACK); STEP & STEP COVER-WITHOUT; TIRE & DISC WHEEL-225/70R17C STEEL&STEP & STEP COVER-WITH(BLACK); TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&STEP & STEP COVER-WITHOUT; TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&STEP & STEP COVER-WITHOUT
main58745-YP010iGUN125..6F..H..GCC; GUN125..LHD..H..GEN; GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..DCRL..ARL..CBU; GUN126..H..MHV..ARL..CBU; GUN136..H..ARL202408
ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITHOUT; IRAQ SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITHOUT; MLM ADVENTURE WIDE TREAD; RUGGED X PACKAGE; RUGGED X PACKAGE&STEP & STEP COVER-WITHOUT; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM)
main58745-YP020iGUN126..LHD..SA; GUN126..RHD..6FC..H..DCRL..SA; GUN136..SA;GUN126..MHV..SA;GUN126..6F..H..SA202411
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITHOUT; TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITHOUT
66301BHOOK SUB-ASSY, ROPE
main66312-0K010×4iGUN122..GEN,PH,SA,TH;GUN125..LHD..SAP..(H,S);GUN135,TGN126..LHD..SAP..MTM;GUN126,TGN121..MTM..(L,S)..SA;GGN125,GUN120,121,LAN125..SAP,THP;GUN126..(INDP,THP)..S..(GEN,IND,LA);GUN135,TGN126..THP..(GEN,LA,PH,SA,TH,VN);GUN125,TGN136..(SAP,THP)..L..(GEN,IDN,LA,PH,SA);GUN125..(GHAP,KENP,MAP,THP)..(H,S)..(GEN,GHA,IDN,KEN,LA,MA,SA,TH,VN);GUN126,136..(CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..(H,L)..(ARL,GEN,GHA,IND,KEN,LA,MA,MMR,PH,SA,TH,TWN,VN)..CBU; GUN125..6F..H..GCC; GUN125..6FC..H..GCC; GUN126..6F..GCC; TGN121..GEN;GUN125..L..KEN;TGN126..SAP..6FC;GUN126..6F..S..ARL..CBU;GUN125,135,TGN136..RHD..S..SA;GUN126..6FC..S..(ARL,SA)..CBU;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC; TGN126..(H,L)..GEN;GUN125..LHD..THP..(GEN,SA)202408
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; GCC SPEC EURO4 2018MY&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; GCC SPEC EURO4 2022MY&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(8INCH) & *BT; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET); REAR DECK-A DECK,WITH(ROPE HOOK); REAR DECK-WITH(SIDE PANEL TOP RAIL); SAUDI ARABIA SPEC&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
76645EBRACKET, RR BODY MUDGUARD, RH
76917HMUDGUARD, SIDE, REAR RH
90119T0139
main90119-T0139
90119T0318
main90119-T0318
90154T0002
main90154-T0002
90157T0004
main90157-T0004
9015960496
main90159-60496
9015960602
main90159-60602
90159T0034
main90159-T0034
90159T0036
main90159-T0036
9018306065
main90183-06065
9018906214
main90189-06214
90189T0025
main90189-T0025
9046707215
main90467-07215
90467T0050
main90467-T0050
27 parts on this diagram · 4 diagrams in section
