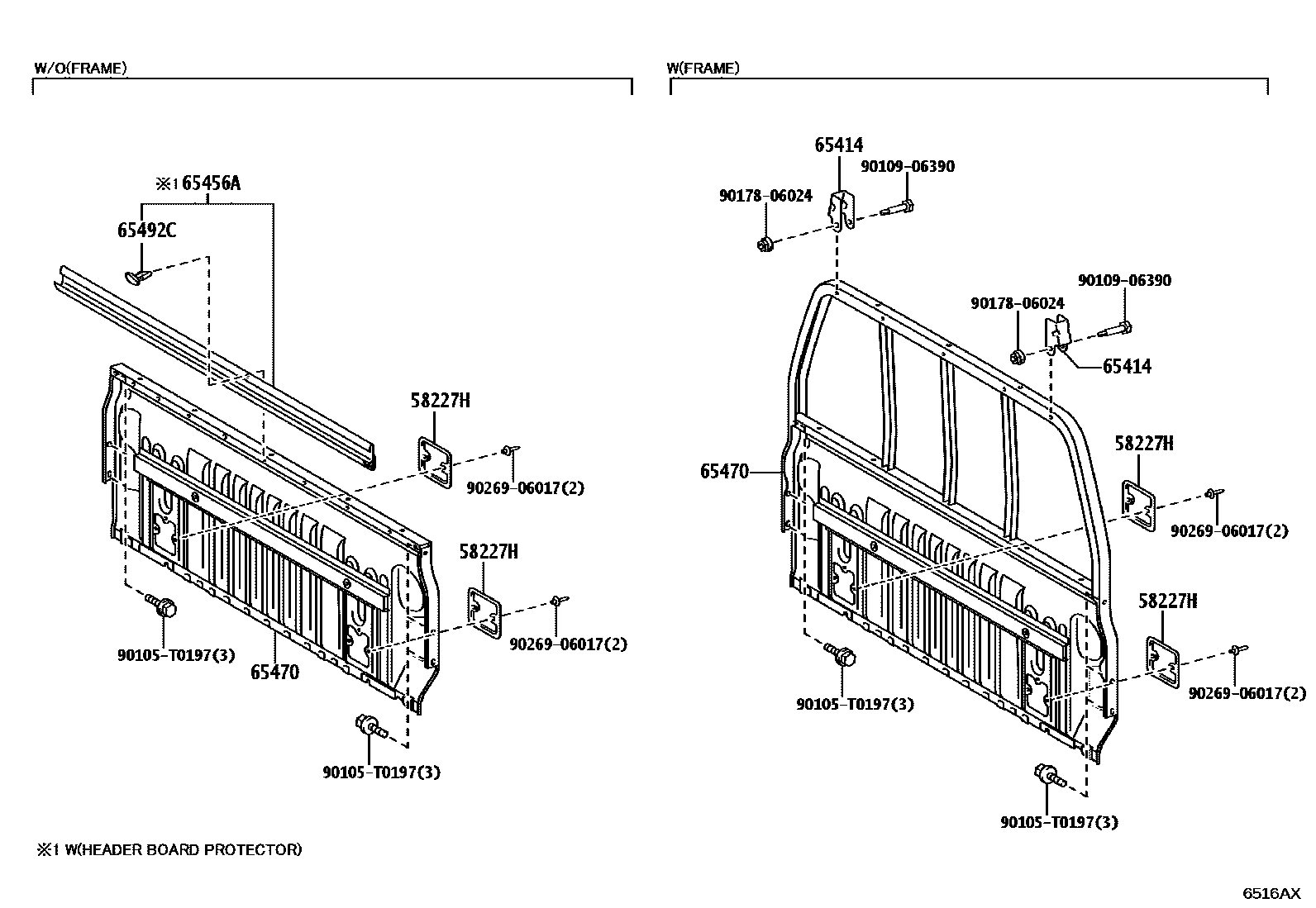

REAR BODY GUARD FRAME & TAIL GATE
58227HCOVER, HEADER PANEL, NO.1
65414STOPPER, GUARD FRAME
main65414-KK010×2iGUN125..6F..ARL;GUN136,TGN121..6FC..(L,S)..ARL;GUN126,TGN126..(GHAP,THP)..(GHA,SA);GUN126,TGN136..LHD..(HTWC,MHV)..(GCC,SA);GUN125,126..(GHAP,THP)..S..(ARL,GHA,IDN,SA)..CBU;GUN125..(GHAP,KENP,THP)..(H,L)..(GHA,IDN,KEN,SA); GUN125..6F..H..GCC; GUN125..6FC..H..GCC; GUN126..6F..GCC; GUN126..S..SA;GUN135..ARL,SA;TGN126..H..GCC;TGN121..GCC,GEN;GUN125..RHD..(GEN,SA);GUN122,135..L..(GEN,LA);GUN126..RHD..6FC..S..GEN;TGN126..(L,S)..(GCC,GEN);GUN126..RHD..H..(GEN,SA);GUN125,TGN121,126..LHD..SAP;GUN125..6FC..(ARL,GCC)..CBU;GUN125..LHD..6F..S..(GCC,GEN);GUN125..LHD..6F..(H,L)..(GCC,GEN,LA);GGN125,GUN122,126,LAN125,TGN120..LHD..(DCRL,DEFI,HTWC)..(GCC,SA)..CBU; TGN121..GEN;GUN125,135..RHD..S..SA;GUN126,TGN126..SAP..6FC..S;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC; TGN126..L..GEN;GUN125..LHD..GEN202408
DECK GUARD FRAME-WITH(STOPPER); DECK GUARD FRAME-WITH(STOPPER)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&DECK GUARD FRAME-WITH(STOPPER); REAR DECK-A DECK,WITH(ROPE HOOK)&DECK GUARD FRAME-WITH(STOPPER); REAR DECK-WITH(SIDE PANEL TOP RAIL)&DECK GUARD FRAME-WITH(STOPPER); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&DECK GUARD FRAME-WITH(STOPPER)&AUDIO-*DA(8INCH) & *BT; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&DECK GUARD FRAME-WITH(STOPPER)&AUDIO-*DA(FOR EMERGING MARKET); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&DECK GUARD FRAME-WITH(STOPPER)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
65456APROTECTOR, HEADER BORD
main65496-0K010iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6F..S..LA;GUN126..AGTP..6FC..H..LA;GUN125,135,TGN136..AGTP..MTM..LA202411
CHILE SPEC
65470BOARD ASSY, HEADER
main65470-KK010iGUN125..6F..H..GCC; GUN125..6FC..H..GCC; GUN126..6F..GCC; TGN121..GEN;GUN126,TGN126..SAP..6FC..S;GUN125,135,TGN136..RHD..S..SA;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC; TGN126..SAP..5F;GUN125..LHD..SAP;GUN136..(SAP,THP)..H;GUN135,TGN121..L..SA;GUN126..THP..6FC..S..(GEN,LA);GUN125..RHD..(H,L)..(GEN,MA,SA);GGN125,GUN120,121,LAN125..SAP,THP;GUN126..H..(ARL,MA,MMR,TWN,VN)..CBU;GUN135,TGN126..THP..(GEN,LA,PH,TH,VN);GUN125..(MAP,THP)..S..(GEN,LA,MA,TH,VN);GUN125,TGN136..LHD..THP..(H,L)..(GEN,LA,PH);GUN122,126..(SAP,THP)..MTM..(GEN,LA,PH,SA,TH);GUN126..(CAMP,SAP,THP)..6FC..H..(GEN,LA,PH,SA,TH)202408-202412
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; REAR DECK-A DECK,WITH(ROPE HOOK); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(8INCH) &*BT; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
main65470-KK020iGUN125..6F..GCC;GUN126..DCRL..GCC;TGN120,121..GCC,GEN;GUN135..RHD..(ARL,SA);GUN125,TGN136..RHD..S..SA;GUN126,TGN126..SAP..6FC..S;GUN122,125,TGN126..(5F,6FC)..(ARL,GCC)..CBU; GUN125..LHD..GEN;TGN126..(H,L)..GEN202408
REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65470-KK030iGUN125..6F..GCC;GUN126..DCRL..GCC;GUN125..RHD..S..SA;TGN120,121..GCC,GEN;GUN135..RHD..(ARL,SA);GUN126,TGN126..SAP..6FC..S;GUN122,125,TGN126..(5F,6FC)..(ARL,GCC)..CBU; GUN136..6FC..S;GUN126..MHV..GCC;GUN125..6F..L..(ARL,GHA,KEN);GUN126,TGN121..(6F,6FC)..(L,S)..ARL..CBU; TGN126..L..GEN;GUN125..LHD..GEN202408
DECK GUARD FRAME-WITH(STOPPER); REAR DECK-WITH(SIDE PANEL TOP RAIL)&DECK GUARD FRAME-WITH(STOPPER)
main65470-KK050iGUN125..6F..H..GCC; GUN125..6FC..H..GCC; GUN125..L..KEN;GUN126..S..ARL..CBU; GUN125..S..GEN;TGN126..5F..GEN;GUN126..RHD..6FC..S..GEN;GUN125,126,TGN121..LHD..SAP;GGN125,LAN125..LHD..(GCC,SA);GUN126,TGN126..SAP..MTM..(L,S);GUN125,126..RHD..(H,L)..(GEN,SA);GUN125..LHD..THP..(H,L)..(GEN,LA);GUN122,135..(SAP,THP)..L..(GEN,LA,SA); GUN126..6F..GCC; TGN121..GEN;GUN125,135..RHD..S..SA;GUN126,TGN126..SAP..6FC..S;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC; TGN136..L..SA;GUN125,126..(H,S)..GHA;GUN125,TGN126..THP..(IDN,SA)202408
DECK GUARD FRAME-WITH(STOPPER); DECK GUARD FRAME-WITH(STOPPER)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&DECK GUARD FRAME-WITH(STOPPER); REAR DECK-A DECK,WITH(ROPE HOOK); REAR DECK-A DECK,WITH(ROPE HOOK)&DECK GUARD FRAME-WITH(STOPPER); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&DECK GUARD FRAME-WITH(STOPPER)&AUDIO-*DA(8INCH) & *BT; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&DECK GUARD FRAME-WITH(STOPPER)&AUDIO-*DA(FOR EMERGING MARKET); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&DECK GUARD FRAME-WITH(STOPPER)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
main65470-KK130iGUN125..6F..H..GCC; GUN125..6FC..H..GCC; GUN126..6F..GCC; TGN121..GEN;GUN126,TGN126..SAP..6FC..S;GUN125,135,TGN136..RHD..S..SA;GUN126,TGN126..(5F,6FC)..H..(DCRL,HTWC)..GCC; TGN126..SAP..5F;GUN125,135..LHD..SAP;GUN136..(SAP,THP)..H;GUN122..GEN,PH,SA,TH;GUN125..RHD..L..(GEN,SA);GUN126..H..(ARL,SA)..CBU;GUN126,TGN121..MTM..(L,S)..SA;GGN125,GUN120,121,LAN125..SAP,THP;GUN125,TGN136..LHD..THP..L..(GEN,LA,PH);GUN125..(KENP,MAP,THP)..(H,S)..(GEN,KEN,LA,MA,TH,VN);GUN126,135,TGN126..(CAMP,INDP,KENP,MAP,MMRP,THP)..(GEN,IND,KEN,LA,MA,MMR,PH,TH,TWN,VN)202412
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; REAR DECK-A DECK,WITH(ROPE HOOK); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(8INCH) &*BT; TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET); TIRE & DISC WHEEL-265/60R18, ALUMINUM&WHEEL ARCH-WIDE TYPE(MLM)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
DECK GUARD FRAME-WITH(STOPPER)
65492CRETAINER, FRONT GUARD CUSHION
main65492-0K010×10iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6F..S..LA;GUN126..AGTP..6FC..H..LA;GUN125,135,TGN136..AGTP..MTM..LA202411
CHILE SPEC
90105T0197
main90105-T0197
9010906390
main90109-06390
9017806024
main90178-06024
9026906017
main90269-06017
9 parts on this diagram · 3 diagrams in section
