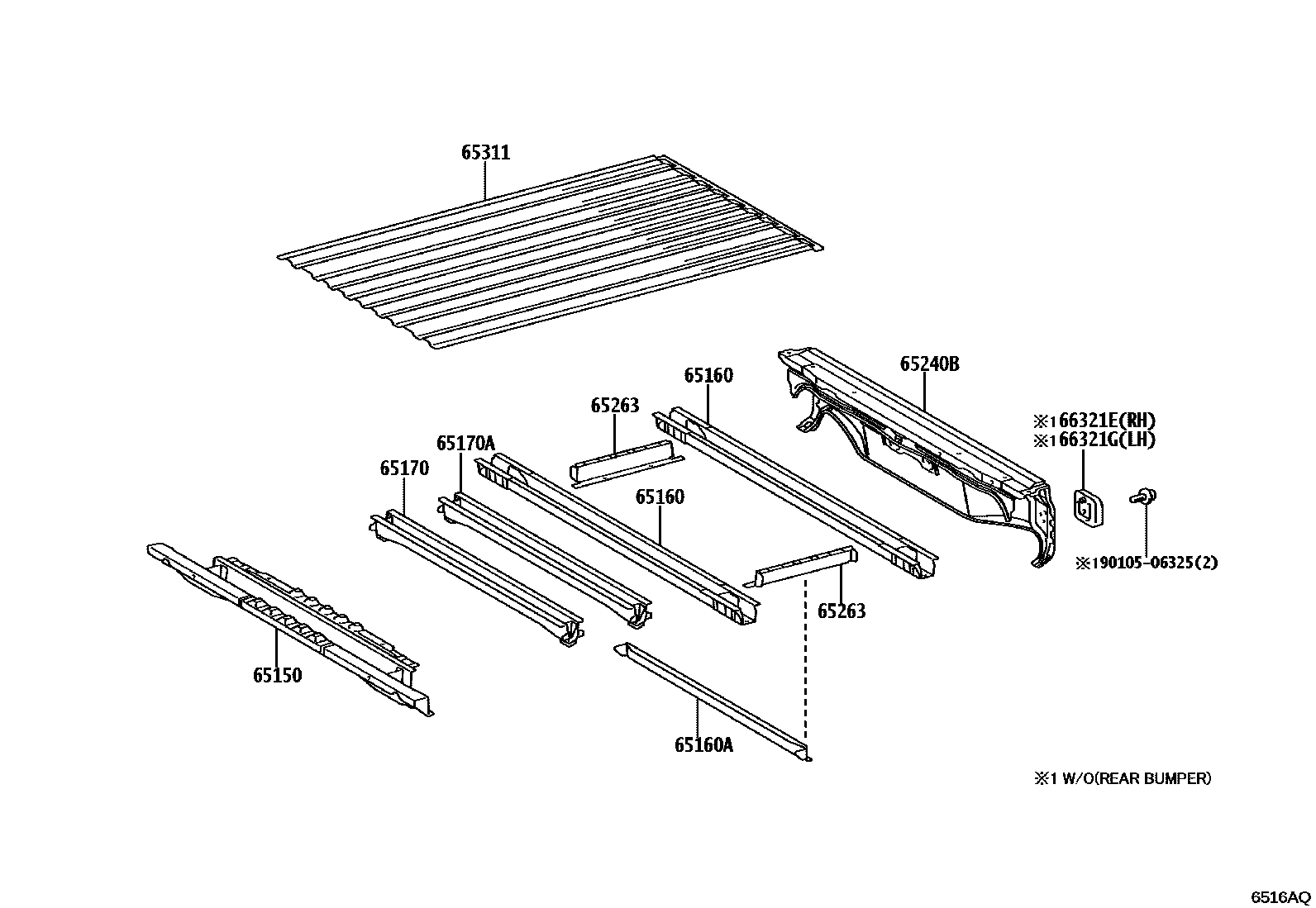

REAR BODY FLOOR & FENDER
65150SILL ASSY, CROSS, NO.1
65160SILL ASSY, CROSS, NO.2
65160ASILL ASSY, CROSS, NO.2
main65261-0K011iTGN121..LHD;GUN136..6F..H;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN12#,135,LAN125,TGN120,126,136..CBU202408
65170SILL ASSY, CROSS, NO.2
65170ASILL ASSY, CROSS, NO.3
65240BSILL ASSY, CROSS, NO.9
EXCEPT PLANT TSAM
main65240-KK020iGUN125..L..GCC;TGN121..5F..GCC;TGN126..(L,S)..GCC;GGN125,GUN122,126,TGN120..GCC..CBU; GUN125..L..IDN202408-202508
REAR BUMPER-STEP TYPE(PAINTED)
main65240-KK030iGUN121..6FC; GUN122..L..GCC; GUN125..6F..L..GCC; GUN126..6FC..H..ARL..CBU; GUN135..L..TH;GUN122..S..GEN;GUN120,121,122..RHD202408-202508
EXCEPT PLANT TSAM; GR SPORT,EXCEPT PLANT TSAM; REAR BUMPER-WITHOUT&HIGH MOUNT STOP LAMP-WITH,EXCEPT PLANT TSAM; RUGGED X PACKAGE&REAR BUMPER-WITHOUT,EXCEPT PLANT TSAM; SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT&HIGH MOUNT STOP LAMP-WITH,EXCEPT PLANT TSAM
REAR BUMPER-WITHOUT; SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
main65240-KK050supersedes 65240-KK110iGUN125..L..(GHA,KEN);GUN126,TGN126..SAP..6FC..S;GUN125,135,TGN136..RHD..S..SA; GUN125..RHD..L..SA; GUN126,TGN126..SAP..MTM..(L,S);GUN122,125,135,LAN125,TGN121..LHD..SAP..(L,S)202411-202507
REAR DECK-WITH(SIDE PANEL TOP RAIL); REAR DECK-WITH(SIDE PANEL TOP RAIL)&REAR BUMPER-STEP TYPE(PAINTED)
main65240-KK090iGUN125..L..KEN;GUN126,TGN126..SAP..6FC..S;GUN125,135,TGN136..RHD..S..SA; GUN125..RHD..L..SA; GUN125..S..(GHA,KEN);GUN126..H..(GHA,KEN,SA);GUN125,135,TGN136..LHD..SAP;GUN126,TGN126..SAP..MTM..(L,S);GGN125,GUN122,136,LAN125,TGN121..SAP202411-202508
PLANT TSAM; REAR BUMPER-STEP TYPE(PAINTED),PLANT TSAM; REAR DECK-A DECK,WITH(ROPE HOOK),PLANT TSAM
REAR DECK-WITH(SIDE PANEL TOP RAIL)&REAR BUMPER-WITHOUT
PLANT TSAM; REAR BUMPER-WITHOUT,PLANT TSAM
GR SPORT
65263REINFORCEMENT, FLOOR SIDE FRAME
65311PANEL, FLOOR, CENTER
66321EBUMPER, GATE RUBBER
main66321-0K010iGUN121..6FC; GUN122,125..MTM..L..GCC; GUN122..S..GEN;GUN122..RHD..GEN;GUN125,135..L..(IDN,TH); GUN126..6FC..H..ARL..CBU; GUN135..L..TH;GUN122..S..GEN; GUN135..L..TH;GUN122..S..GEN;GUN120,121,122..RHD;GUN122,125..L..(IDN,PH)202408
GR SPORT; REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
66321GBUMPER, GATE RUBBER
main66322-0K010iGUN121..6FC; GUN122,125..MTM..L..GCC; GUN122..S..GEN;GUN122..RHD..GEN;GUN125,135..L..(IDN,TH); GUN126..6FC..H..ARL..CBU; GUN135..L..TH;GUN122..S..GEN; GUN135..L..TH;GUN122..S..GEN;GUN120,121,122..RHD;GUN122,125..L..(IDN,PH)202408
GR SPORT; REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
9010506325
main90105-06325
11 parts on this diagram · 1 diagram in section
