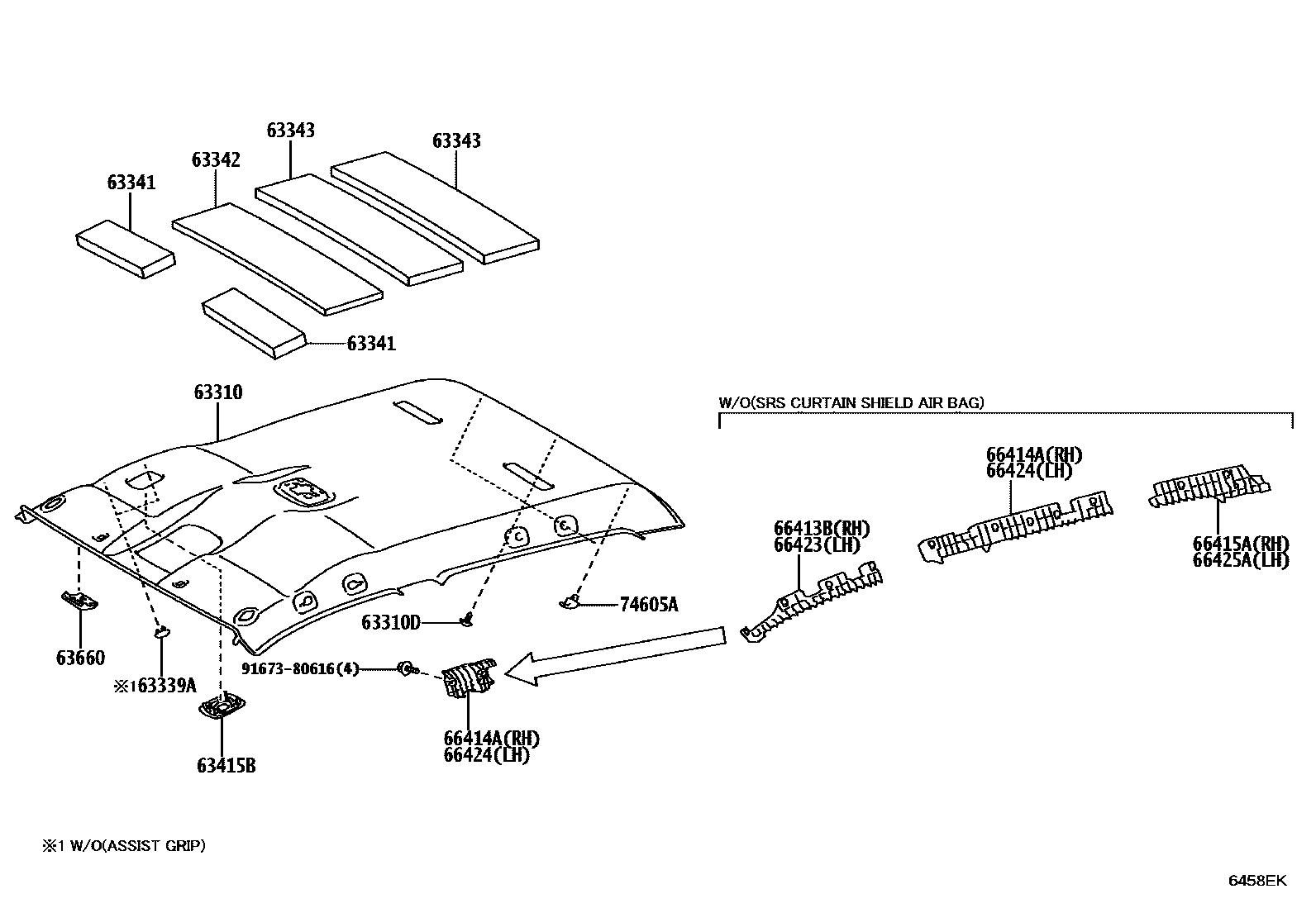

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
main63310-0KB11-B0supersedes 63310-0KQ71-B0iGUN126..AGTP..(L,S);GGN125,GUN125,135,TGN126,136..AGTP; GUN126..AGTP..6FC..H; GUN136..AGTP;GUN126..AGTP..6F..H202411
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM20; LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM20; LT. GRAY,TRIM2#
main63310-F0160-B0supersedes 63310-F0170-B0iGUN125,126..GHA,KEN;GUN125..LHD..SAP..S;GUN125,135,TGN136..SAP..(H,L);GUN122,126,LAN125,TGN121,126..SAP..(L,S); GUN125,135,TGN136..RHD..S..SA; GUN125,135..RHD..S..SA; GUN126..LHD..SA; GUN126..RHD..H..DCRL..SA202411
AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM2#; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#; EXPORT FROM SA,LT. GRAY,TRIM20; LT. GRAY,TRIM2#; LT. GRAY,TRIM20
main63310-F0160-C0supersedes 63310-F0170-C0iGUN126..6F..H..SA; GUN126..LHD..SA; GUN126..RHD..6FC..H..DCRL..SA202411
BLACK,TRIM21,25; EXPORT FROM SA,BLACK,TRIM21; EXPORT FROM SA,BLACK,TRIM21,25
LT. GRAY,TRIM2#; LT. GRAY,TRIM20
main63310-F0170-C0iGUN126..MHV..SA;GUN126..6F..H..SA;GGN125,GUN136..SA; GUN126..RHD..6FC..H..DCRL..SA202411
BLACK,TRIM21; BLACK,TRIM21,25
LT. GRAY,TRIM2#
main63310-F0450-C0iGGN125..GCC;GUN126..6FC..(PH,TH,VN); GUN121..6FC; GUN126..6F..GCC; GUN126..6F..PH;GUN135..6FC..H;GUN125,135..6F..H..(GCC,GEN,PH);GUN126..(CAMP,THP)..H..(GEN,LA,TWN); GUN126..6FC..DCRL..GCC202408
AUDIO-*DA(8INCH) & *BT,BLACK,TRIM21; AUDIO-*DA(8INCH) & *BT,BLACK,TRIM21,25; AUDIO-*DA(FOR EMERGING MARKET),BLACK,TRIM21; AUDIO-*DA(FOR EMERGING MARKET),BLACK,TRIM21,25; AUDIO-AVN(8INCH) & *BT,BLACK,TRIM21,25; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),BLACK,TRIM21; BLACK,TRIM21; BLACK,TRIM21,25; GR SPORT,BLACK,TRIM2#
LT. GRAY,TRIM2#
main63310-F0470-B0supersedes 63310-F0450-B0iGGN125..GCC; GGN125..GCC;GUN125..6F..H..GCC; GUN125..6FC..S..GCC; GUN126,136..H..ARL..CBU; GUN126..6F..GCC;GUN126..MHV..GCC; GUN126..6FC..DCRL..GCC; GUN126..H..MHV..IV3; GUN136..6FC..S;GUN126..S..MHV..IV3; TGN126..5F..H..GCC; TGN126..GCC;TGN121..5F..H;TGN121..(L,S)..GCC;GUN125..6FC..H..GCC;GUN122,125..MTM..L..GCC202408
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,3#; AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM20,3#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,3#; AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM20,3#; AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT. GRAY,TRIM2#; AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM20,3#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,3#; LT. GRAY,TRIM20; LT. GRAY,TRIM20,3#; UAE SPEC,LT. GRAY,TRIM2#,3#
main63310-F0470-C0iGGN125..GCC; GUN125..6F..H..GCC; GUN126..6FC..H..DCRL..(ARL,GCC)..CBU; GUN136..H..ARL;GUN126..6F..H..ARL;GUN126..H..MHV..ARL..CBU202408
AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21,25; AUDIO-*DA(FOR EMERGING MARKET) & DAB,BLACK,TRIM21; AUDIO-*DA(FOR EMERGING MARKET) & DAB,BLACK,TRIM21,25; AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM21,25; BLACK,TRIM21; BLACK,TRIM21,25
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM23
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM21
main63310-0KQ71-B0iGUN125..AGTP..LA;GUN126,135..AGTP..S;GUN135..AGTP..L..LA;GUN125,135..6FC..L..BZAG; GUN126..AGTP..6FC..H; GUN136..AGTP;GUN126..AGTP..6F..H202411
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#; LT. GRAY,TRIM20
GR SPORT&ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM20; GR SPORT,LT. GRAY,TRIM20; LT. GRAY,TRIM20
BLACK,TRIM21; GR SPORT&ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM21; GR SPORT,BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM20
main63310-F0240-C0supersedes 63310-F0170-C0iGUN126..RHD..6FC..H..DCRL..SA; GUN136..SA;GUN126..MHV..SA;GUN126..6F..H..SA202411
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM21; ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM21,25
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM20
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM21
GR SPORT,BLACK,TRIM2#
63310DCLIP, ROOF HEADLINING
main90467-T0004-B0iGUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN135..6FC..H;GUN136..RHD..H;GGN125,GUN121..RHD..6FC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..(BZAG,TH);GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,SAP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,SA,TWN,VN)..CBU; GUN136..6FC..S;TGN126..GEN,LA,SA;GUN125..(L,S)..GEN;GUN126..H..MHV..IV3;GUN126..6FC..(GHA,KEN);GUN126..AGTP..6F..H..LA;GGN125,GUN120,136..BZAG,LA,TH;GUN126,135..6F..H..(BZAG,KEN,TH);GUN126,135..(AGTP,SAP,THP)..(L,S);GUN121,122,LAN125,TGN121,136..MTM..(BZAG,GEN,LA,PH,SA,TH);GUN125,TGN121..(6F,6FC)..(ARL,BZAG,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN)202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20; LT.GRAY,TRIM20,3#
BLACK,TRIM21,23
63339ACOVER, ROOF HEADLINING SERVICE HOLE
main63339-0K030-B0×2iGUN121..6FC;GUN126..RHD..6F..H..GEN; GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN125..S..MA;GUN135..(L,S)..TH;GUN125..L..(GEN,IDN);GUN121,122..RHD..MTM;GUN120,TGN126..GEN,TH;GUN122,125..MTM..S..GEN;GUN126..RHD..6FC..S..GEN; GUN126..LHD..S..GEN202408
ASSIST GRIP-ROOF:3 & PILLAR(REAR):2,LT.GRAY,TRIM2#; LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20; LT.GRAY,TRIM20,3#
main63339-0K030-C0×2iGGN125,GUN126..6FC..(DCRL,HTWC)..GCC; GUN121..6FC; GUN125,126..6F..H..GCC;GUN126..RHD..6F..H..GEN202408
BLACK,TRIM21; BLACK,TRIM21,25; BLACK,TRIM23
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
main63342-0K460×2iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..ARL;GUN136,TGN121..LHD..THP;GUN126..(CAMP,MMRP,THP)..CBU;GGN125,GUN120,121,122,125,135,TGN120,126,136..THP202408
63415BGRILLE, ROOF SPEAKER, RH
LT.GRAY,TRIM2#
63660COVER ASSY, ROOF HEADLINING TRIM, NO.1
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT.GRAY,TRIM2#; LT.GRAY,TRIM2#
main63359-0K040-C0iGGN125..GCC; GUN125..6F..H..GCC; GUN126..6FC..H..DCRL..(ARL,GCC)..CBU; GUN136..H..ARL;GUN126..6F..H..ARL;GUN126..H..MHV..ARL..CBU202408
AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21,25; AUDIO-*DA(FOR EMERGING MARKET) & DAB,BLACK,TRIM21; AUDIO-*DA(FOR EMERGING MARKET) & DAB,BLACK,TRIM21,25; AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM21,25; BLACK,TRIM21; BLACK,TRIM21,25
LT.GRAY,TRIM2#; LT.GRAY,TRIM20
main63359-KK010-C0iGUN126..MHV..SA;GUN126..6F..H..SA;GGN125,GUN136..SA; GUN126..RHD..6FC..H..DCRL..SA202411
BLACK,TRIM21; BLACK,TRIM21,25
66413BSPACER, SIDE RAIL, FRONT RH
main66413-0K080iGUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN; GUN135..L..VN;GUN122..S..GEN;GUN125..RHD..H..GEN;GUN122,126..RHD..GEN;GUN125,126..H..DCRL..GCC;TGN126..THP..(GCC,GEN,SA);GGN125,GUN120,121,122,TGN120,121..THP..(GCC,PH,SA,TH);GUN125,135..(MAP,THP)..(L,S)..(GCC,GEN,IDN,MA,PH,SA,TH); GUN135..L..VN;GUN125..S..IDN;TGN126..H..GEN;GUN125..LHD..(L,S)..GEN;GUN122,125,126..RHD..GEN202408
SRS AIR BAG-WITH(*DRP); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66413-KK020iGUN125..LHD..6FC..SA;GUN125..(GHAP,KENP,SAP)..6F..(L,S);GUN122,135,LAN125,TGN121,126,136..SAP; GUN135..S..SA;GUN125,TGN136..RHD..MTM..S..SA202411
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
66414ASPACER, SIDE RAIL, REAR RH
main66414-0K100iGUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN; GUN135..L..VN;GUN122..S..GEN;GUN125..RHD..H..GEN;GUN122,126..RHD..GEN;GUN125,126..H..DCRL..GCC;TGN126..THP..(GCC,GEN,SA);GGN125,GUN120,121,122,TGN120,121..THP..(GCC,PH,SA,TH);GUN125,135..(MAP,THP)..(L,S)..(GCC,GEN,IDN,MA,PH,SA,TH); GUN135..L..VN;GUN125..S..IDN;TGN126..H..GEN;GUN125..LHD..(L,S)..GEN;GUN122,125,126..RHD..GEN202408
SRS AIR BAG-WITH(*DRP); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66414-KK020iGUN125..LHD..6FC..SA;GUN125..(GHAP,KENP,SAP)..6F..(L,S);GUN122,135,LAN125,TGN121,126,136..SAP; GUN135..S..SA;GUN125,TGN136..RHD..MTM..S..SA202411
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
66415ASPACER, SIDE RAIL, REAR NO.2 RH
main66415-0K160iGUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN; GUN135..L..VN;GUN122..S..GEN;GUN125..RHD..H..GEN;GUN122,126..RHD..GEN;GUN125,126..H..DCRL..GCC;TGN126..THP..(GCC,GEN,SA);GGN125,GUN120,121,122,TGN120,121..THP..(GCC,PH,SA,TH);GUN125,135..(MAP,THP)..(L,S)..(GCC,GEN,IDN,MA,PH,SA,TH); GUN135..L..VN;GUN125..S..IDN;TGN126..H..GEN;GUN125..LHD..(L,S)..GEN;GUN122,125,126..RHD..GEN202408
SRS AIR BAG-WITH(*DRP); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66415-KK020iGUN125..LHD..6FC..SA;GUN125..(GHAP,KENP,SAP)..6F..(L,S);GUN122,135,LAN125,TGN121,126,136..SAP; GUN135..S..SA;GUN125,TGN136..RHD..MTM..S..SA202411
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
66423SPACER, SIDE RAIL, FRONT LH
main66423-0K080iGUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN; GUN135..L..VN;GUN122..S..GEN;GUN125..RHD..H..GEN;GUN122,126..RHD..GEN;GUN125,126..H..DCRL..GCC;TGN126..THP..(GCC,GEN,SA);GGN125,GUN120,121,122,TGN120,121..THP..(GCC,PH,SA,TH);GUN125,135..(MAP,THP)..(L,S)..(GCC,GEN,IDN,MA,PH,SA,TH); GUN135..L..VN;GUN125..S..IDN;TGN126..H..GEN;GUN125..LHD..(L,S)..GEN;GUN122,125,126..RHD..GEN202408
SRS AIR BAG-WITH(*DRP); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66423-KK020iGUN125..LHD..6FC..SA;GUN125..(GHAP,KENP,SAP)..6F..(L,S);GUN122,135,LAN125,TGN121,126,136..SAP; GUN135..S..SA;GUN125,TGN136..RHD..MTM..S..SA202411
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
66424SPACER, SIDE RAIL, REAR LH
main66424-0K100iGUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN; GUN135..L..VN;GUN122..S..GEN;GUN125..RHD..H..GEN;GUN122,126..RHD..GEN;GUN125,126..H..DCRL..GCC;TGN126..THP..(GCC,GEN,SA);GGN125,GUN120,121,122,TGN120,121..THP..(GCC,PH,SA,TH);GUN125,135..(MAP,THP)..(L,S)..(GCC,GEN,IDN,MA,PH,SA,TH); GUN135..L..VN;GUN125..S..IDN;TGN126..H..GEN;GUN125..LHD..(L,S)..GEN;GUN122,125,126..RHD..GEN202408
SRS AIR BAG-WITH(*DRP); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66424-KK020iGUN125..LHD..6FC..SA;GUN125..(GHAP,KENP,SAP)..6F..(L,S);GUN122,135,LAN125,TGN121,126,136..SAP; GUN135..S..SA;GUN125,TGN136..RHD..MTM..S..SA202411
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
66425ASPACER, SIDE RAIL, REAR NO.2 LH
main66425-0K160iGUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN; GUN135..L..VN;GUN122..S..GEN;GUN125..RHD..H..GEN;GUN122,126..RHD..GEN;GUN125,126..H..DCRL..GCC;TGN126..THP..(GCC,GEN,SA);GGN125,GUN120,121,122,TGN120,121..THP..(GCC,PH,SA,TH);GUN125,135..(MAP,THP)..(L,S)..(GCC,GEN,IDN,MA,PH,SA,TH); GUN135..L..VN;GUN125..S..IDN;TGN126..H..GEN;GUN125..LHD..(L,S)..GEN;GUN122,125,126..RHD..GEN202408
SRS AIR BAG-WITH(*DRP); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66425-KK020iGUN125..LHD..6FC..SA;GUN125..(GHAP,KENP,SAP)..6F..(L,S);GUN122,135,LAN125,TGN121,126,136..SAP; GUN135..S..SA;GUN125,TGN136..RHD..MTM..S..SA202411
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
74605AHOOK SUB-ASSY, COAT
main74631-0K040-B0×2iGUN121..6F;GUN136..6FC..S;GUN125..(L,S)..GEN;GUN126..H..MHV..IV3;GUN126..AGTP..6F..H..LA;GUN126,135..6F..H..(BZAG,TH);GUN126,135..(AGTP,THP)..(L,S);GGN125,GUN120,122,136,TGN121,126,136..(AGTP,THP)..(BZAG,GEN,LA,PH,SA,TH);GUN125,TGN121..(AGTP,MAP,THP)..(6F,6FC)..(ARL,BZAG,IDN,LA,MA,PH,SA,TH,VN); GUN121..6FC;GUN13#..THP..6FC..H;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..(BZAG,TH);GUN125,135..6F..H..(GEN,PH);GUN126..(CAMP,MAP,MMRP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,TWN,VN)..CBU; GUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20; LT.GRAY,TRIM20,3#
main74631-0K040-C0×2iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,TH,VN)..CBU; GUN121..6FC;GUN126..AGTP..6FC..H; GUN13#..THP..6FC..H;GUN126..H..MHV..(ARL,LA)..CBU;GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH);GUN126..(CAMP,MMRP,THP)..6FC..H..DCRL..(GEN,LA,MMR,TWN)202408
BLACK,TRIM21; BLACK,TRIM21,25; BLACK,TRIM23
main74631-KK020-B0×2iGGN125,GUN126,136..H..SA; GUN126..S..SA;GUN126..GHA,KEN;GUN122,125,135,LAN125,TGN121,126,136..GHAP,KENP,SAP202411
LT.GRAY,TRIM2#; LT.GRAY,TRIM20
main74631-KK020-C0×2iGUN126..6FC..H..DCRL..SA; GUN126..MHV..SA;GUN126..6F..H..SA;GGN125,GUN136..SA202411
BLACK,TRIM21; BLACK,TRIM21,25
9167380616
main91673-80616
16 parts on this diagram · 1 diagram in section
