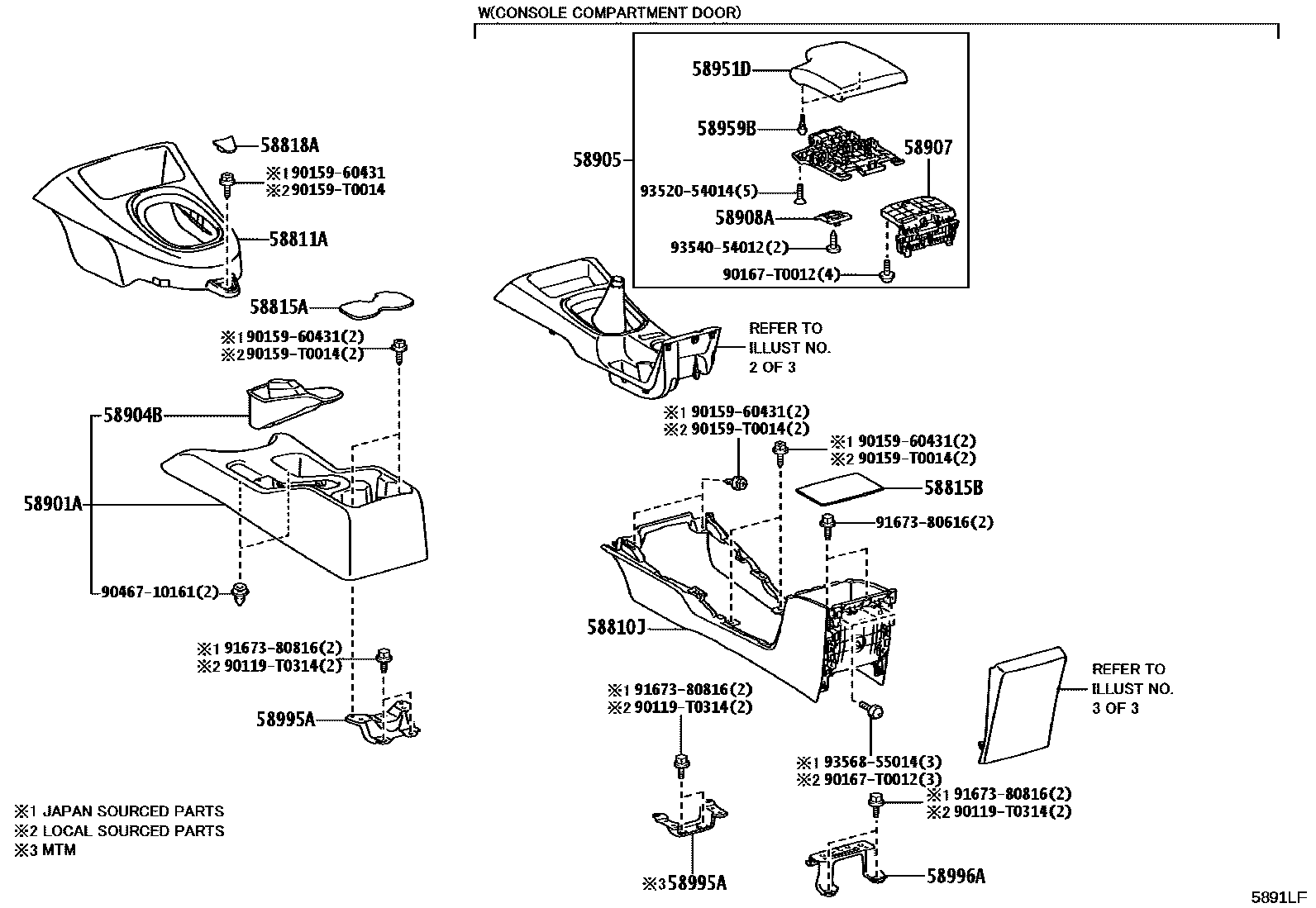

CONSOLE BOX & BRACKET
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
BLACK,TRIM2#,3#
MOROCCO SPEC,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
main58810-KK180-C0iGUN126,13#..RHD..6FC..(L,S);GUN120,121,125,TGN121..RHD..6FC;GUN126..RHD..6FC..H..(GEN,KEN,MA)202408
BLACK,TRIM2#
OCEANIA(EURO 5 REGULATION),BLACK,TRIM2#
BLACK,TRIM2#
OCEANIA GENERAL SPEC,BLACK,TRIM2#
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
OCEANIA GENERAL SPEC,BLACK,TRIM2#
BLACK,TRIM2#
58811ABOX, CONSOLE, FRONT
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
MOROCCO SPEC,BLACK,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
58815ACARPET, CONSOLE BOX
main58815-KK020iTGN126..L..LA;GUN122,126..LHD..L..(GEN,LA,PH,SA);GUN125,135,TGN121,136..MTM..L..(BZAG,GEN,GHA,IDN,LA)202408
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
MOROCCO SPEC
ASIA COLD COUNTRY SPEC
58815BCARPET, CONSOLE BOX
main58815-KK010iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN125..6F..(ARL,PH);GUN135..6FC..L..BZAG;GUN125,TGN126..6FC..L;GUN135..L..(ARL,TH,VN);GUN122,136,TGN121..MTM..H;GUN126,TGN126..L202408
ASIA COLD COUNTRY SPEC
MOROCCO SPEC
58818ACOVER, CONSOLE BOX, FR
BLACK,TRIM2#,3#
BLACK,TRIM2#
58901ABOX SUB-ASSY, CONSOLE, REAR
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#
MOROCCO SPEC,BLACK,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
BLACK,TRIM2#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
BLACK,TRIM2#
main58904-KK060-C0iGUN126..S..IV3;GUN136..6F..SA;GUN125..6F..ARL;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN125,TGN121..RHD..6FC..L;GUN125,126..RHD..(H,S)..CBU;GGN125,GUN120,121,122,135,202408
GR SPORT&STEERING WHEEL-GR SPORT(LEATHER)&DOOR TRIM-LEATHER(GR SPORT)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM20
main58904-KK070-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202408
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
main58904-KK070-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202408
BLACK,TRIM2#,3#
main58904-KK070-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202408
BLACK,TRIM2#
main58904-KK070-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202408
MOROCCO SPEC,BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main58904-KK090-C0iTGN126..L..LA;GUN122,126..LHD..L..(GEN,LA,PH,SA);GUN125,135,TGN121,136..LHD..MTM..L..(BZAG,GEN,GHA,LA)202408
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
BLACK,TRIM2#
MOROCCO SPEC,BLACK,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/BLACK,TRIM2#
main58905-KK020-C4iGUN125..PH;GUN135..VN;TGN126..S..(GCC,GEN,SA);GUN135,TGN126..(5F,6FC)..L..(BZAG,GEN);GUN126,TGN126..(6F,6FC)..L..(BZAG,GCC);GUN125,LAN125..LHD..MTM..S..(GCC,GHA,SA,202408
ASIA COLD COUNTRY SPEC,BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
BLACK/RED,TRIM3#
DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/GR RED,TRIM23
sub58905-KK140
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM23
sub58905-KK140
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
sub58905-KK140
DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/BLACK,TRIM20
sub58905-KK140
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM20
sub58905-KK140
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
sub58905-KK140
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
sub58905-KK140
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/BLACK,TRIM2#
sub58905-KK140
main58905-KK070-C8iGUN126..S..SA;GUN135..(L,S)..TH;GUN126..RHD..6F..S..GEN;GUN120,121,122,125..RHD..THP..S202408
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#
FRONT AIR CONDITIONER-AUTO,BLACK/BLACK,TRIM2#
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
main58905-KK080-C8iGUN125..H..SA;TGN126..H..GEN;GUN125..LHD..S..(GEN,LA);GUN126..LHD..S..(BZAG,GEN);GUN135,TGN126..(H,S)..(BZAG,LA,PH);GUN122,136,TGN136..(H,S)..(GEN,LA);GUN126..LHD..202408
HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,BLACK/BLACK,TRIM2#
main58905-KK080-C8iGUN125..H..SA;TGN126..H..GEN;GUN125..LHD..S..(GEN,LA);GUN126..LHD..S..(BZAG,GEN);GUN135,TGN126..(H,S)..(BZAG,LA,PH);GUN122,136,TGN136..(H,S)..(GEN,LA);GUN126..LHD..202408
MOROCCO SPEC,BLACK/BLACK,TRIM2#
main58905-KK080-C8iGUN125..H..SA;TGN126..H..GEN;GUN125..LHD..S..(GEN,LA);GUN126..LHD..S..(BZAG,GEN);GUN135,TGN126..(H,S)..(BZAG,LA,PH);GUN122,136,TGN136..(H,S)..(GEN,LA);GUN126..LHD..202408
BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&FRONT AIR CONDITIONER-AUTO&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER&ACCESSORY CONNECTOR(NO.1)-12V:2 & USB SOCKET(REAR),BLACK/BLACK
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/BLACK,TRIM2#
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER&ACCESSORY CONNECTOR(NO.1)-12V:2 & USB SOCKET(REAR),BLACK/BLACK,TRIM2#
ACCESSORY CONNECTOR(NO.1)-12V:2 & USB SOCKET(REAR),BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
BLACK/MAROON,TRIM3#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
BLACK,TRIM2#
main58907-KK010-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202408
BLACK,TRIM2#,3#
main58907-KK010-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202408
MOROCCO SPEC,BLACK,TRIM2#
main58907-KK010-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202408
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-KK010iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN125..6F..(ARL,PH);GUN135..6FC..L..BZAG;GUN125,TGN126..6FC..L;GUN135..L..(ARL,TH,VN);GUN122,136,TGN121..MTM..H;GUN126,TGN126..L202408
MOROCCO SPEC
main58908-KK010iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN125..6F..(ARL,PH);GUN135..6FC..L..BZAG;GUN125,TGN126..6FC..L;GUN135..L..(ARL,TH,VN);GUN122,136,TGN121..MTM..H;GUN126,TGN126..L202408
ASIA COLD COUNTRY SPEC
58951DDOOR, CONSOLE COMPARTMENT, OUTER
BLACK,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
FRONT AIR CONDITIONER-AUTO,BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
sub58951-KK140
main58951-KK070-C1iGUN125..PH;GUN135..VN;TGN126..S..(GCC,GEN,SA);GUN135,TGN126..(5F,6FC)..L..(BZAG,GEN);GUN126,TGN126..(6F,6FC)..L..(BZAG,GCC);GUN125,LAN125..LHD..MTM..S..(GCC,GHA,SA,202408
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
main58951-KK070-C1iGUN125..PH;GUN135..VN;TGN126..S..(GCC,GEN,SA);GUN135,TGN126..(5F,6FC)..L..(BZAG,GEN);GUN126,TGN126..(6F,6FC)..L..(BZAG,GCC);GUN125,LAN125..LHD..MTM..S..(GCC,GHA,SA,202408
BLACK,TRIM2#
RED,TRIM3#
MOROCCO SPEC,BLACK/GRAY,TRIM2#
HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
sub58951-KK150
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
sub58951-KK150
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
sub58951-KK150
DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/GRAY,TRIM20
sub58951-KK150
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM20
sub58951-KK150
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
sub58951-KK150
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM23
sub58951-KK150
DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/GR RED,TRIM23
sub58951-KK150
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER&ACCESSORY CONNECTOR(NO.1)-12V:2 & USB SOCKET(REAR),BLACK,TRIM2#
ACCESSORY CONNECTOR(NO.1)-12V:2 & USB SOCKET(REAR),BLACK,TRIM2#
BLACK,TRIM2#
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&FRONT AIR CONDITIONER-AUTO&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER&ACCESSORY CONNECTOR(NO.1)-12V:2 & USB SOCKET(REAR),BLACK,TRIM2
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
MAROON,TRIM3#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main90541-T0008iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN125..6F..(ARL,PH);GUN135..6FC..L..BZAG;GUN125,TGN126..6FC..L;GUN135..L..(ARL,TH,VN);GUN122,136,TGN121..MTM..H;GUN126,TGN126..L202408
MOROCCO SPEC
main90541-T0008iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN125..6F..(ARL,PH);GUN135..6FC..L..BZAG;GUN125,TGN126..6FC..L;GUN135..L..(ARL,TH,VN);GUN122,136,TGN121..MTM..H;GUN126,TGN126..L202408
ASIA COLD COUNTRY SPEC
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-KK020iGUN122,135..RHD..6F;GUN122,136,TGN121..MTM..H;GUN125,135..6F..L..(ARL,PH,VN);GUN126,TGN126..MTM..L..(BZAG,GEN);GUN122,135..MTM..(H,S)..(BZAG,GEN,LA,PH);GUN121,125,1202408
MOROCCO SPEC
main58995-KK020iGUN122,135..RHD..6F;GUN122,136,TGN121..MTM..H;GUN125,135..6F..L..(ARL,PH,VN);GUN126,TGN126..MTM..L..(BZAG,GEN);GUN122,135..MTM..(H,S)..(BZAG,GEN,LA,PH);GUN121,125,1202408
ASIA COLD COUNTRY SPEC
main58995-KK030iTGN121..LHD..5F..(L,S);GUN122,126..L..(GEN,LA);GUN122..(L,S)..(GCC,PH,SA);TGN126..5F..L..(GCC,LA,SA);GUN125,135,LAN125,TGN120,136..MTM..L..(BZAG,GCC,GEN,GHA,IDN,KEN202408
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-KK020iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN122,TGN121..5F..H;GUN125,TGN126..6FC..L;GUN135..(AGTP,THP)..L;GUN125,135,LAN125,TGN126..H,S;GUN122,136..MTM..(BZAG,LA,PH,SA,TH202408
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
90119T0314
main90119-T0314
9015960431
main90159-60431
90159T0014
main90159-T0014
90167T0012
main90167-T0012
9046710161
main90467-10161
9167380616
main91673-80616
9167380816
main91673-80816
9352054014
main93520-54014
9354054012
main93540-54012
9356855014
main93568-55014
24 parts on this diagram · 4 diagrams in section
