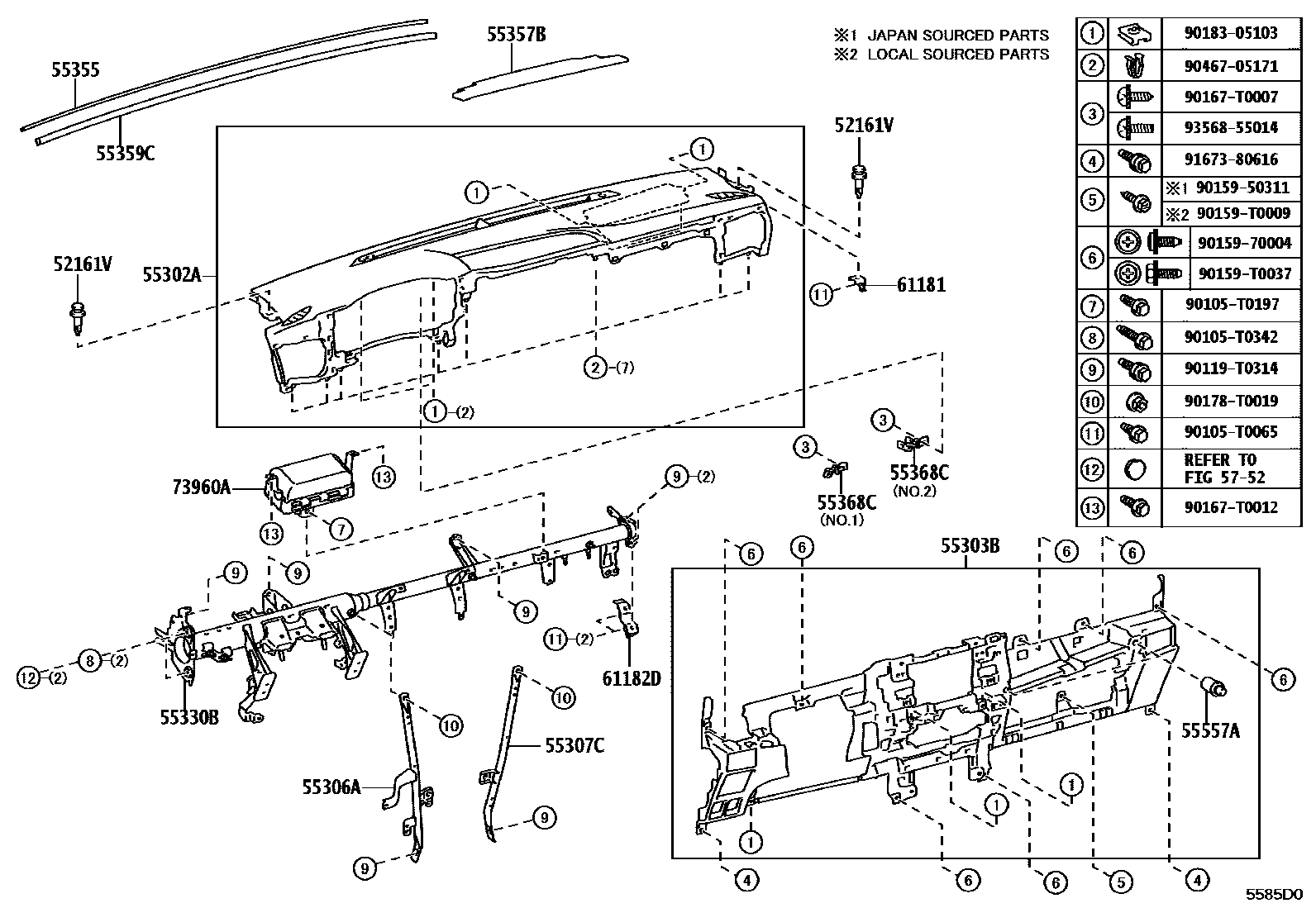

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

(L)

main52161-16010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

(J)

sub52161-0K040

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-KK041-C0iGUN126..S..IV3;GUN136..6F..SA;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN126,TGN121..RHD..(6F,6FC)..CBU;GGN125,GUN120,121,122,125,135,TGN136..RHD202408-202411

BLACK,TRIM2#

main55302-KK111-C0iGGN125,GUN122,125,126,TGN12#..GCC202408

BLACK,TRIM2#

main55302-KK111-C0iGGN125,GUN122,125,126,TGN12#..GCC202408

BLACK,TRIM2#,3#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-KK030-C0iGUN126..IND202412

BLACK,TRIM2#

sub55303-KK050

main55303-KK040-C0iGGN125,GUN122,125,126,TGN12#..GCC202408

BLACK,TRIM2#,3#

main55303-KK040-C0iGGN125,GUN122,125,126,TGN12#..GCC202408

BLACK,TRIM2#

main55303-KK050-C0iGUN126..S..IV3;GUN136..6F..SA;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN126,TGN121..RHD..(KENP,SAP,THP)..(6F,6FC)..CBU;GGN125,GUN120,121,122,125,135,TGN136..RHD..(KEN202408-202411

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-KK030iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

EXCEPT MADE IN TH

main55306-KK050iGUN125..6F..L..GCC202408

SRS AIR BAG-WITH(*DRP),EXCEPT MADE IN TH

main55306-KK050iTGN126..GEN,LA,SA;TGN126..(H,S)..GCC;GUN135..LHD..(AGTP,THP);GUN122,125,TGN121..LHD..(H,S);GGN125,GUN126,136,LAN125,TGN136..LHD;GUN122,125,TGN121..LHD..L..(BZAG,GEN202408

EXCEPT MADE IN TH

main55306-KK060iGUN135..L..SA;GUN122,125,TGN12#..L..GCC202408

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG),EXCEPT MADE IN TH

main55306-KK060iGUN135..L..SA;GUN122,125,TGN12#..L..GCC202408

EXCEPT MADE IN TH

main55306-KK080iGUN126..S..IV3;GUN136..6F..SA;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN126,TGN121..RHD..(6F,6FC)..CBU;GGN125,GUN120,121,122,125,135,TGN136..RHD202408-202411

MADE IN THAILAND

main55306-KK090iGUN125..6F..L..GCC202408

SRS AIR BAG-WITH(*DRP),MADE IN THAILAND

main55306-KK090iTGN126..GEN,LA,SA;TGN126..(H,S)..GCC;GUN135..LHD..(AGTP,THP);GUN122,125,TGN121..LHD..(H,S);GGN125,GUN126,136,LAN125,TGN136..LHD;GUN122,125,TGN121..LHD..L..(BZAG,GEN202408

MADE IN THAILAND

main55306-KK100iTGN121..5F..S;GUN125,LAN125..LHD..L..SA202408

MADE IN THAILAND

main55306-KK100iGUN135..L..SA;GUN122,125,TGN12#..L..GCC202408

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG),MADE IN THAILAND

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-KK030iGUN126..S..IV3;GUN136..6F..SA;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN126,TGN121..RHD..(6F,6FC)..CBU;GGN125,GUN120,121,122,125,135,TGN136..RHD202408-202411

EXCEPT MADE IN TH

main55307-KK040iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD202408

EXCEPT MADE IN TH

main55307-KK070iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

MADE IN THAILAND

main55307-KK080iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD202408

MADE IN THAILAND

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-KK330iTGN121..5F..S;GUN125,LAN125..LHD..L..SA202408

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

main55330-KK370iGUN125,TGN126..6FC..L..GCC202408

main55330-KK450iGUN136,TGN121..MTM..ARL202408-202411

main55330-KK460iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..RHD..6FC..(ARL,GEN,IND,KEN,MA,SA)..CBU;GGN125,GUN125,13#,TGN121..RHD..6FC..(ARL,GEN,IDN,KEN,MA,SA)202408-202411

main55330-KK470iGUN120,121,126,135..6FC..TH202408

main55330-KK480iGUN121,122,125,126,135..6F..TH202408

main55330-KK490iGUN126..AGTP;GUN135..BZAG,LA;GUN126..LHD..THP..6F;GUN135..6F..(GEN,PH,VN);GUN122,TGN121..5F..(H,S);GUN125,TGN126..AGTP..6FC;GUN122..LHD..L..(GEN,PH,SA);GUN125,TGN12202408

SRS AIR BAG-WITH(*DRP)

main55330-KK500iGGN125,GUN125,126,135,TGN121,126..LHD..(CAMP,GHAP,MMRP,SAP,THP)..6FC..(H,S)202408

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-KK020iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main55355-KK030iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD202408

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-KK030iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-KK030iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main55359-KK040iGUN126..LHD..(H,S);GUN125,135..L..(PH,VN);GGN125,GUN125,13#,LAN125,TGN126,136..LHD..(H,S)..(BZAG,GCC,GEN,GHA,LA,PH,SA)202408

55368CBRACKET, METER MOUNTING

main55368-KK010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAM202408-202411

NO.1:REFER ILLUST.

main55368-KK020iGUN126..S..IV3;GUN136..6F..SA;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN126,TGN121..RHD..(6F,6FC)..CBU;GGN125,GUN120,121,122,125,135,TGN136..RHD202408-202411

NO.2:REFER ILLUST.

main55368-KK030iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD202408

NO.2:REFER ILLUST.

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-0K030iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAM202408-202411

5752

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-KK030iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

61182DBRACKET, INSTRUMENT PANEL SIDE

main61125-KK010iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD202408

main61126-KK010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0K010iGUN12#,135..RHD..(GEN,IDN,IND,MA,TH)202408

main73960-0K060iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)202411

main73960-0K070iGGN125,GUN122,125,126,13#,TGN12#,136..LHD..(CAMP,MMRP,THP)..(GCC,GEN,LA,MMR,PH,SA,VN)202408

main73960-0K080iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHAP,SAP)202411

main73960-0K130iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main73960-0K150iGUN126..S..IV3;GUN126..ARL..CBU;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN125,135,TGN121..(6F,6FC)..ARL202408-202411

main73960-0K160iGUN126..TWN202408

90105T0065

main90105-T0065

90105T0197

main90105-T0197

90105T0342

main90105-T0342

90119T0314

main90119-T0314

9015950311

main90159-50311

9015970004

main90159-70004

90159T0009

main90159-T0009

90159T0037

main90159-T0037

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9018305103

main90183-05103

9046705171

main90467-05171

9167380616

main91673-80616

9356855014

main93568-55014

30 parts on this diagram · 8 diagrams in section
