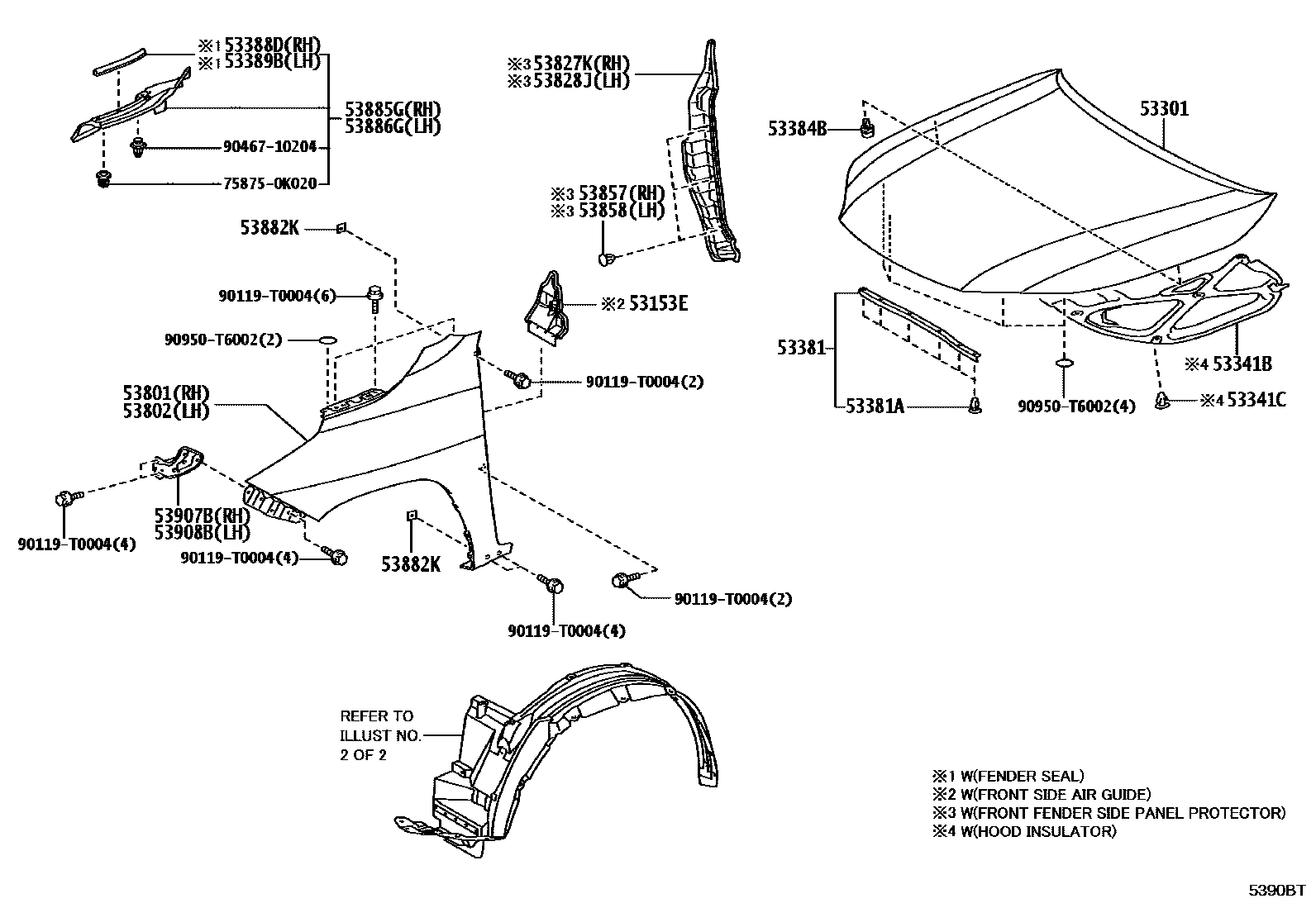

HOOD & FRONT FENDER
53153EGUIDE, FRONT SIDE AIR
main53153-0K020iGUN125,135..SAP..6F..S; GUN125..H..SA;GUN125..S..GHA;GUN126,136..GHA,KEN,SA;GUN125,135..6FC..(KEN,SA)202411
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
main53153-0K090iGUN126..THP..L;GUN120,121,122..THP;GUN125..RHD..6F..L..GEN;GUN125,135..LHD..L..(GCC,GEN,LA,PH)202408
53301HOOD SUB-ASSY
main53301-KK050iGUN120,122..TH; GUN121..6FC; GUN125,135..RHD..6F..S..SA;GUN125,TGN126..LHD..L..GEN; GUN125..LHD..L..GEN; GUN125..LHD..L..GEN;GUN125,135..RHD..6F..S..SA; GUN125..RHD..6F..L..GEN; GUN135..6FC;GUN135..S..LA;GUN126..S..IV3;GUN126..AGTP..L;GUN126..(H,S)..CBU;GUN126..H..MHV..IV3;GUN125..6FC..L..(ARL,BZAG,GEN);GUN135..6F..(BZAG,GEN,PH,TH,VN);GUN125,136..6F..H..(BZAG,LA,SA);GUN125..(AGTP,GHAP,MAP,THP)..6F..(H,S);GGN125,GUN125,136,TGN126,136..(5F,6FC)..(H,S);GUN125,TGN126..(AGTP,THP)..MTM..L..(ARL,BZAG,IDN,SA); GUN135..L..LA;GUN125..AGTP..L..LA;GUN125..RHD..6F..L..GEN;GUN125,LAN125..LHD..SAP..MTM..S; GUN135..L..LA;GUN126..THP..L;GUN125..AGTP..L..LA;GUN125..RHD..6F..L..GEN;GUN125,LAN125..LHD..SAP..MTM..S; TGN136..GEN202408
FRONT BUMPER-PAINTED(MLM); GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/60R18 ALUMINUM; TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE; TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE
main53301-KK031iGUN120,122..TH; GUN121..6F; GUN125,TGN126..LHD..L..GEN; GUN125..LHD..L..GEN; GUN126..S..IV3;GUN126..ARL..CBU;GUN126..H..MHV..IV3;GUN126..LHD..S..GEN;GUN125..6F..(ARL,IDN,VN);GUN125..RHD..6FC..(ARL,IDN,SA);GUN125,TGN126..LHD..(H,S)..GEN;GUN13#..6FC..(L,S)..(ARL,SA,VN);GUN126,136..RHD..6FC..H..(GEN,SA); GUN136..H..ARL; TGN136..GEN202408
MLM Z-PLUS PACKAGE; MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE; MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE; TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
53341BINSULATOR, HOOD
main53341-0K270iTGN121..SAP; TGN126..SAP..L; TGN136..S..SA;GGN125,GUN122,125,126,13#,LAN125,TGN121..GHAP,KENP,SAP202411
ALGERIA SPEC (EURO 3 REGULATION); NIGERIA SPEC
53341CCLIP(FOR HOOD INSULATOR)
(L)
(J)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384BCUSHION, HOOD, CENTER
main53384-0K040×2iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
main53388-0K010iGUN126..S..IND;GUN126..LHD..S..GEN;GUN126..H..MHV..IV3;GGN125,GUN125,126,13#,TGN126..(CAMP,INDP,MAP,MMRP,THP)..H..CBU202408
53801FENDER SUB-ASSY, FRONT RH
main53811-KK020iGUN120,122..S..TH;GUN125,135..L..LA; GUN122..TH;GUN120,121..6FC;GUN125,135..L..LA;GUN125,LAN125..LHD..SAP..MTM..S; GUN125,135..L..LA;GUN135..6F..S..SA; TGN126..L..GCC;GUN122,125,TGN121..MTM..L..GCC; TGN126..L..LA;GUN125..6FC..L..GCC;TGN120,136..BZAG,GCC;GUN125..RHD..6F..L..GEN;GUN122,TGN121..LHD..(H,S);GUN126,TGN121..THP..L..(GEN,LA)202408
OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL) & W(LOGO LAMP); OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main53811-KK030iGGN125,GUN126..LHD..6FC..(DCRL,HTWC)..(GCC,SA,VN); GGN125..GCC;GUN135..6F..H..PH;GUN126,136..6FC..H..DCRL..(GCC,SA,VN); GUN120,122..S..TH; GUN120,122..TH; GUN121..6F; GUN121..6FC; GUN125,TGN126,136..LHD..L..GEN; GUN125,TGN136..LHD..L..GEN; GUN125..LHD..L..GEN; GUN125..RHD..6F..L..GEN; GUN126..6F..H..ARL; GUN126..6F..PH;GUN135..6FC..H..PH;GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..ARL..CBU; GUN126..6FC..PH; GUN126..6FC..TH; GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG)..CBU; GUN126..THP..L;GUN125..RHD..6F..L..GEN; GUN135..6FC;GUN135..S..LA;GUN126..S..IV3;GUN126..AGTP..L;GUN126..(H,S)..CBU;GUN126..H..MHV..IV3;GUN125..6FC..L..(ARL,BZAG,GEN);GUN135..6F..(BZAG,GEN,PH,TH,VN);GUN125,136..6F..H..(BZAG,LA,SA);GUN125..(AGTP,GHAP,MAP,THP)..6F..(H,S);GGN125,GUN125,136,TGN126,136..(5F,6FC)..(H,S);GUN125,TGN126..(AGTP,THP)..MTM..L..(ARL,BZAG,IDN,SA); GUN135..H..TH;GUN125,126..TH;GUN135..(L,S)..(PH,TH); GUN135..L..LA;GUN135..6F..S..SA;GUN125..AGTP..L..LA; GUN135..L..LA;GUN135..6F..S..SA;GUN125..AGTP..L..LA;GUN125,LAN125..LHD..SAP..MTM..S; GUN136..6F..SA;GUN125..THP..6F..H;GUN126,136..MHV..SA;GGN125,GUN135..H..(GEN,SA);GUN126..(SAP,THP)..6F..H..(ARL,GCC,GEN,LA,SA);GUN126..(CAMP,MAP,MMRP,THP)..6FC..H..(GEN,LA,MA,MMR,TWN); GUN136..H..ARL; GUN136..H..ARL;GUN126..6FC..PH202408
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT); GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL); MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD; MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); RUGGED X PACKAGE; TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/60R18 ALUMINUM; TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDEREAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)
main53811-YP010iGGN125..GCC;GUN126..6FC..H..DCRL..(GCC,SA,VN); GGN125..GCC;GUN135..6F..H..PH;GUN126..6FC..H..DCRL..(GCC,SA,VN); GUN126..6F..H..ARL; GUN126..6F..PH;GUN135..6FC..H..PH;GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..ARL..CBU; GUN126..6FC..PH; GUN126..6FC..TH; GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG)..CBU; GUN126..MHV..SA;GUN125..THP..6F..H;GGN125,GUN13#..H..(GEN,SA);GUN126..(SAP,THP)..6F..H..(ARL,GCC,GEN,LA,SA);GUN126..(CAMP,MAP,MMRP,THP)..6FC..H..(GEN,LA,MA,MMR,TWN); GUN135..H..TH;GUN125,126..TH;GUN135..(L,S)..(PH,TH); GUN136..H..ARL; GUN136..H..ARL;GUN126..6FC..PH202408
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT); MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD; RUGGED X PACKAGE; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)
53802FENDER SUB-ASSY, FRONT LH
main53812-KK020iGUN120,122..S..TH;GUN125,135..L..LA; GUN122..TH;GUN120,121..6FC;GUN125,135..L..LA;GUN125,LAN125..LHD..SAP..MTM..S; GUN125,135..L..LA;GUN135..6F..S..SA; TGN126..L..GCC;GUN122,125,TGN121..MTM..L..GCC; TGN126..L..LA;GUN125..6FC..L..GCC;TGN120,136..BZAG,GCC;GUN125..RHD..6F..L..GEN;GUN122,TGN121..LHD..(H,S);GUN126,TGN121..THP..L..(GEN,LA)202408
OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL) & W(LOGO LAMP); OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
main53812-KK030iGUN125..H..SA;GUN125,135..6F..BZAG;TGN126,136..(AGTP,SAP)..(H,S);GUN125,135..(AGTP,KENP,MAP,SAP)..6FC;GGN125,GUN126,136..AGTP,GHAP,KENP,MAP,SAP;GUN125,135..(AGTP,GHAP,MAP)..6F..S..(GHA,LA,MA); GUN126..MA; GUN126..MA;GUN126,136..6F..H..SA;GGN125,GUN126,136..(HTWC,MHV)..SA202409
TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
main53812-YP010iGGN125,GUN126..6FC..(DCRL,HTWC)..(GCC,VN); GUN126..6F..H..ARL; GUN126..6F..PH;GUN135..6FC..H..PH;GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..DCRL..ARL..CBU; GUN126..6FC..PH; GUN126..6FC..TH; GUN135..6F..H..PH;GGN125,GUN126..6FC..(DCRL,HTWC)..(GCC,VN); GUN135..GEN;GUN125,126..THP..6F..H..(ARL,GCC,GEN,LA);GUN126..(CAMP,MAP,MMRP,THP)..6FC..H..(GEN,LA,MA,MMR,TWN); GUN135..H..TH;GUN125,126..TH;GUN135..(L,S)..(PH,TH); GUN136..H..ARL; GUN136..H..ARL;GUN126..6FC..PH202408
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT); MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD; RUGGED X PACKAGE; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM); TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)
main53812-YP020iGUN126,136..AGTP..6FC..H; GUN126..6FC..H..DCRL..SA; GUN126..AGTP..6FC..H; GUN126..MHV..SA;GUN126..6F..H..SA;GGN125,GUN136..SA; GUN126..RHD..6FC..H..DCRL..SA202411
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM; WIDE TREAD
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
main53857-0K010×3iGUN126..H..MHV..IV3;GUN126..LHD..S..GEN;GGN125,GUN125,126,13#,TGN126..(CAMP,MAP,MMRP,THP)..H..CBU202408
(L)
main53857-47011×3iGUN126..H..MHV..IV3;GUN126..LHD..S..GEN;GGN125,GUN125,126,13#,TGN126..(CAMP,MAP,MMRP,THP)..H..CBU202408
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
main53857-0K010×3iGUN126..H..MHV..IV3;GUN126..LHD..S..GEN;GGN125,GUN125,126,13#,TGN126..(CAMP,MAP,MMRP,THP)..H..CBU202408
(L)
main53857-47011×3iGUN126..H..MHV..IV3;GUN126..LHD..S..GEN;GGN125,GUN125,126,13#,TGN126..(CAMP,MAP,MMRP,THP)..H..CBU202408
(J)
53882KSEAL, FRONT FENDER
53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
main53807-0K110iGUN136..6FC..S;GUN126..THP..(L,S)..LA;GUN125,135,TGN126..(MAP,THP)..(L,S);GUN126,TGN121..RHD..THP..(6F,6FC)..(L,S);GUN120,121,122,TGN120,121,136..THP..(GCC,GEN,PH,SA,TH)202408
53886GSEAL, FENDER APRON MUDGUARD, LH
main53808-0K110iGUN136..6FC..S;GUN126..THP..(L,S)..LA;GUN125,135,TGN126..(MAP,THP)..(L,S);GUN126,TGN121..RHD..THP..(6F,6FC)..(L,S);GUN120,121,122,TGN120,121,136..THP..(GCC,GEN,PH,SA,TH)202408
53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH
main53907-KK010iTGN136..L;TGN126..SAP..L;GUN125..RHD..6F..L..GEN;GUN126,TGN121..THP..(6F,6FC)..L;GUN125,135..(KENP,SAP)..6F..(L,S);GUN125,135,TGN126..LHD..L..(GCC,GEN,GHA,LA,PH);GUN120,121,122,LAN125,TGN120,121..GCC,GEN,PH,SA,TH202408
53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH
main53908-KK010iTGN136..L;TGN126..SAP..L;GUN125..RHD..6F..L..GEN;GUN126,TGN121..THP..(6F,6FC)..L;GUN125,135..(KENP,SAP)..6F..(L,S);GUN125,135,TGN126..LHD..L..(GCC,GEN,GHA,LA,PH);GUN120,121,122,LAN125,TGN120,121..GCC,GEN,PH,SA,TH202408
main53908-KK020iGUN120,122..S..TH; GUN120,122..TH; GUN121..6F; GUN121..6FC; GUN125,TGN126,136..LHD..L..GEN; GUN125,TGN136..LHD..L..GEN; GUN125..LHD..L..GEN; GUN125..RHD..6F..L..GEN; GUN126..THP..L;GUN125..RHD..6F..L..GEN; GUN135..6FC;GUN135..S..LA;GUN126..S..IV3;GUN126..AGTP..L;GUN126..(H,S)..CBU;GUN126..H..MHV..IV3;GUN125..6FC..L..(ARL,BZAG,GEN);GUN135..6F..(BZAG,GEN,PH,TH,VN);GUN125,136..6F..H..(BZAG,LA,SA);GUN125..(AGTP,GHAP,MAP,THP)..6F..(H,S);GGN125,GUN125,136,TGN126,136..(5F,6FC)..(H,S);GUN125,TGN126..(AGTP,THP)..MTM..L..(ARL,BZAG,IDN,SA); GUN135..L..LA;GUN135..6F..S..SA;GUN125..AGTP..L..LA; GUN135..L..LA;GUN135..6F..S..SA;GUN125..AGTP..L..LA;GUN125,LAN125..LHD..SAP..MTM..S202408
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(BLACK MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); MLM Z-PLUS PACKAGE&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/60R18 ALUMINUM; TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDEREAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
758750K020MOULDING, BACK DOOR OUTSIDE, UPPER
main75875-0K020
90119T0004
main90119-T0004
9046710204
main90467-10204
90950T6002
main90950-T6002
24 parts on this diagram · 5 diagrams in section
