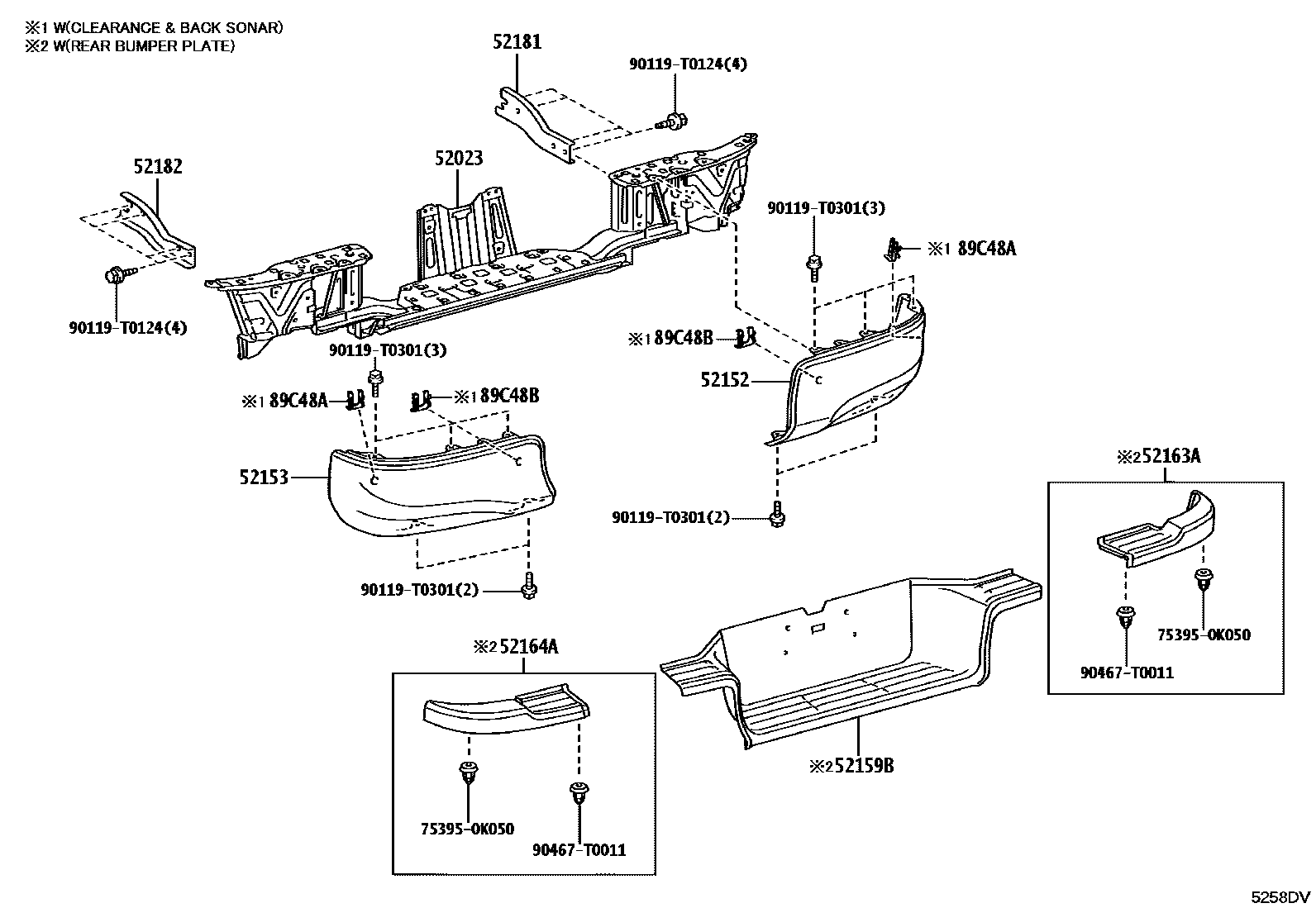

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
main52023-0K031iGGN125..GCC;GUN126..6FC..PH; GUN122..L..GCC; GUN122..S..GEN;GUN125..L..IDN;GUN122..RHD..GEN; GUN125..6F..L..GCC; GUN125..6FC..L..GEN; GUN125..L..IDN; GUN125..LHD..L..GEN; GUN125..LHD..S..GEN; GUN126..6FC..DCRL..GCC; GUN126..6FC..H..ARL..CBU; GUN135..L..TH; GUN135..L..TH;GUN122..S..GEN; TGN126..H..GEN; TGN126..L..GEN;TGN121..LHD..THP;GUN135..THP..(H,S);GUN125..LHD..H..GEN;GUN125..RHD..(H,S)..(GEN,TH);GUN122,136..LHD..THP..(H,L)..(GEN,LA);GUN125..THP..6F..L..(ARL,GCC,GEN,LA,SA);GUN125..THP..6F..(H,S)..(GCC,IDN,LA,SA,VN);GUN135,TGN121..THP..(6F,6FC)..L..(ARL,LA,VN);GGN125,GUN126,TGN120,136..(CAMP,INDP,MMRP,THP)..CBU;GUN122,125,136,TGN126..THP..(5F,6FC)..(ARL,GCC,IDN,LA,SA)..CBU202408
ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED); ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED); ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACKSONAR-WITH; AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PAINTED); AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PLATED); AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED); CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED); CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; MOROCCO SPEC&MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&REAR BUMPER-STEP TYPE(PAINTED); NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&REAR BUMPER-STEP TYPE(PLATED); OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE &BACK SONAR-WITH; OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED); OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED); OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITHOUT; REAR BUMPER-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
main52023-0K041iGUN125,126..MA;TGN126..(H,S)..GEN;GUN125..LHD..S..GEN;GUN125..6FC..L..GEN; GUN125..6F..(H,L)..GCC; GUN125..6F..H..GCC; GUN125..LHD..L..GEN; GUN125..LHD..S..GEN; TGN126..H..GCC; TGN126..H..GEN202408
ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACKSONAR-WITH; CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; EGYPT SPEC; EGYPT SPEC&REAR BUMPER-WITH(*RUPD(PAINTED)); EGYPT SPEC&REAR BUMPER-WITH(*RUPD(PLATED)); MLM Z-PLUS PACKAGE; MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT; MOROCCO SPEC; MOROCCO SPEC&MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE &BACK SONAR-WITH
main52023-0K051iGUN122,125,135,LAN125,TGN121,126..LHD..SAP..L; GUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA; GUN125,135..RHD..S..SA;GUN126..RHD..H..DCRL..SA; GUN125..RHD..L..SA; GUN126..RHD..H..DCRL..SA; GUN126..S..SA;GUN125,126..GHA,KEN;GUN122,125,126,135,LAN125,TGN121,126,136..LHD..SAP202411
EXPORT FROM SA&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED); EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; EXPORT FROM SA&REAR BUMPER-STEP TYPE(PLATED); EXPORT FROM SA&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITHOUT; REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
main52023-0K061iGUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA; GUN125,135..RHD..6FC..SA;GUN126..RHD..6FC..H..DCRL..SA; GUN126..RHD..6FC..H..DCRL..SA; GUN126..RHD..H..SA;GGN125,GUN125,13#,TGN136..RHD..(H,S)..SA202411
GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT))); MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&REAR BUMPER-WITH(*RUPD(PAINTED)); MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH; MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH; MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)
GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52152BAR, REAR BUMPER, RH
main52151-0K040supersedes 52151-0K240iGGN125..GCC;GUN125..RHD..H..GEN;GUN126..6FC..H..ARL..CBU;GUN126..(CAMP,THP)..H..DCRL..(GEN,LA); GGN125..GCC;GUN126..LHD..H..GEN;GUN126..6FC..H..ARL..CBU; GUN125,135..S..TH; GUN125,TGN126..LHD..L..GEN; GUN125..6F..H..GCC; GUN125..6FC..L..GEN; GUN125..LHD..L..GEN; GUN125..LHD..S..GEN; GUN125..RHD..S..GEN;GUN125,TGN126..THP..MTM..L..(GEN,LA);GUN126,135..(L,S)..(ARL,GEN,PH)..CBU;GUN136,TGN126..THP..(5F,6FC)..(L,S)..(ARL,SA);GUN125,TGN121..THP..(6F,6FC)..(ARL,SA,VN)..CBU;GUN122,126,135,TGN121,136..LHD..THP..L..(GEN,LA,SA,VN); GUN126,136..6FC..S..ARL..CBU; GUN126..TWN;GUN122..S..GEN;GUN125..6F..IDN;GUN122..RHD..GEN;GUN125..LHD..THP..6F..H;GUN125..THP..6FC..(IDN,LA); GUN135..L..TH; GUN136..6FC..S;GUN126..LHD..S..GEN;GUN125..(ARL,VN)..CBU;GUN126,135..(L,S)..ARL..CBU; TGN126..H..GEN; TGN136..GEN202408
NO PAINT REQ.; NO PAINT REQ.,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDETYPE; NO PAINT REQ.,MOROCCO SPEC&MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); NO PAINT REQ.,NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(*CR) &W(*SITL)
main52151-0K050iGGN125..GCC;GUN126..LHD..H..GEN;GUN126..6FC..H..ARL..CBU; GUN122..L..GCC; GUN125..(H,S)..IDN;GUN125..LHD..H..GEN; GUN125..6F..L..GCC; GUN125..6FC..L..GEN; GUN125..LHD..S..GEN; GUN126..KEN,TWN;GUN125..6F..L..GCC;TGN126..(H,L)..GCC;GUN125..LHD..THP..6F..H;GUN125..(H,S)..(IDN,TH);GUN122,TGN120,121..GCC..CBU;GUN125..THP..6F..S..(GCC,LA);GUN125..LHD..THP..6FC..(L,S);GUN126,135,TGN126..THP..S..(GCC,LA,TH); GUN126..MHV..GCC;GUN125..6FC..H..GCC; GUN126..MHV..GCC;GUN125..RHD..H..GEN;GUN126..6FC..H..ARL..CBU;GGN125,GUN125..6FC..H..GCC;GUN126..(CAMP,THP)..H..DCRL..(GEN,LA); GUN135..L..TH;GUN122..S..GEN;GUN125..RHD..S..GEN;GUN125..RHD..6F..L..GEN;GUN126,TGN126..THP..L..LA;GUN126,TGN121..(L,S)..GEN; TGN126..H..GEN202408
PLATED; PLATED,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED); PLATED,AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PLATED); PLATED,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED); PLATED,CLEARANCE & BACK SONAR-WITHOUT; PLATED,CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; PLATED,NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&REAR BUMPER-STEP TYPE(PLATED); PLATED,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED); PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&CLEARANCE & BACK SONAR-WITHOUT; PLATED,REAR BUMPER-STEP TYPE(PLATED); PLATED,REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITHOUT; PLATED,REAR BUMPER-WITHOUT; PLATED,SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
main52151-0K060iGUN125..6F..H..GCC; GUN125..LHD..L..GEN; GUN125..LHD..S..GEN; GUN125..S..MA;GUN125..6FC..L..GEN;GUN125..LHD..S..GEN; GUN126..MA;TGN126..S..GEN; TGN126..H..GEN202408
NO PAINT REQ.; NO PAINT REQ.,ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,EGYPT SPEC&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MOROCCO SPEC; NO PAINT REQ.,OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
main52151-0K080iGUN122,125,135,LAN125,TGN121,126..LHD..SAP..L; GUN125,135..RHD..S..SA; GUN125..RHD..L..SA; GUN126..RHD..H..DCRL..SA; GUN126..S..SA;GUN125..6F..(GHA,KEN);GUN122,125,135,LAN125,TGN121,126,136..LHD..SAP..(L,S)202411
NO PAINT REQ.; NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-WITHOUT
main52151-0K110iGUN125,126,135,TGN126,136..AGTP..L; GUN125,TGN126..AGTP..S; GUN126..AGTP..H..LA202411
NO PAINT REQ.; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
PLATED; PLATED,CLEARANCE & BACK SONAR-WITHOUT; PLATED,REAR BUMPER-STEP TYPE(PLATED)
PLATED; PLATED,GR SPORT&REAR BUMPER-WITH(*RUPD(PAINTED))
main52151-0K190iGUN125,135..S..TH; GUN125,136..RHD..H..(ARL,GEN);GGN125,GUN126..(DCRL,HTWC)..GCC;GUN126,135..(CAMP,MMRP,THP)..H..(ARL,GEN,LA,MMR,PH,VN)..CBU; GUN125..(H,S)..IDN;GUN125..LHD..H..GEN; GUN125..LHD..S..GEN; GUN126,135..H..TH; GUN126,135..S..(IND,VN); GUN135..6F..GEN;GUN135..LHD..6FC..H;GUN126,136..H..(ARL,PH,VN)..CBU;GGN125,GUN126..LHD..H..(DCRL,HTWC)..(GCC,GEN); GUN135..S..PH;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN126,136..6FC..S..ARL..CBU; GUN135..S..VN; TGN126..H..GEN202408
NO PAINT REQ.; NO PAINT REQ.,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACKSONAR-WITH; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY))
main52151-0K200iGGN125..GCC;GUN126..6FC..PH; GUN125..LHD..S..GEN; GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN; GUN126,136..H..ARL..CBU; GUN126,136..H..ARL..CBU;GUN126..RHD..6FC..H..GEN; GUN126..6FC..DCRL..GCC; GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..DCRL..(ARL,VN)..CBU; GUN126..6FC..TH; GUN126..LHD..SA;GUN126..6FC..H..DCRL..(ARL,VN)..CBU; GUN126..RHD..6FC..H..(ARL,GEN)..CBU; GUN135..S..TH;GUN125..LHD..H..GEN;GUN125..(H,S)..(IDN,TH); GUN135..S..VN; TGN126..H..GEN; TGN126..THP..H..LA;GUN125..6FC..H..GCC;GUN125..RHD..H..GEN;GUN125,126..LHD..H..SA;GGN125,GUN126,13#..(CAMP,GHAP,INDP,MMRP,THP)..H..(ARL,GCC,GEN,GHA,IND,LA,MMR,PH,TH,VN)..CBU202408
PLATED; PLATED,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; PLATED,AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; PLATED,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; PLATED,CLEARANCE & BACK SONAR-WITH; PLATED,GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); PLATED,GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED); PLATED,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT); PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REARBUMPER-STEP TYPE(PAINTED); PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REARBUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; PLATED,REAR BUMPER-STEP TYPE(PLATED); PLATED,REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; PLATED,RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; PLATED,RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY))
NO PAINT REQ.
main52151-0K310iGGN125,GUN126,136,TGN126..AGTP..H; GUN126..6FC..S..BZAG;GUN125,TGN136..AGTP..(5F,6FC)..LA; GUN126..AGTP..6FC..H202411
PLATED; PLATED,CLEARANCE & BACK SONAR-WITH; PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REARBUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
PLATED; PLATED,CLEARANCE & BACK SONAR-WITHOUT; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))
main52151-0K220iGGN125,GUN126,136..RHD..H..SA; GUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA; GUN126,136..RHD..6FC..H..SA; GUN126..RHD..6FC..H..DCRL..SA; GUN126..RHD..6FC..H..SA202411
PLATED; PLATED,CLEARANCE & BACK SONAR-WITH; PLATED,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; PLATED,GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT))); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
PLATED; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
main52151-0K270iGGN125,GUN126,136..RHD..H..SA; GUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA202411
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
main52151-YP020iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,VN)..CBU; GUN125..(H,S)..IDN;GUN125..LHD..H..GEN; GUN125..LHD..S..GEN; GUN126,136..6FC..S..ARL..CBU; GUN126,136..H..ARL..CBU; GUN126,136..H..ARL..CBU;GUN126..RHD..6FC..H..GEN; GUN126..6FC..TH; GUN135..S..VN; TGN126..H..GEN202408
NO PAINT REQ.,ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT); NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACKSONAR-WITHOUT; NO PAINT REQ.,MOROCCO SPEC&MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)
main52151-YP080iGUN125,TGN126..LHD..L..GEN; GUN125..IDN;GUN125..LHD..H..GEN; GUN125..LHD..S..GEN; GUN126..6FC..H..ARL..CBU; GUN126..RHD..6FC..H..(ARL,GEN)..CBU; GUN136..6FC..S;GUN126..LHD..S..GEN;GUN125..(ARL,VN)..CBU;GUN126,135..(L,S)..ARL..CBU; TGN126..H..GEN; TGN136..GEN202408
NO PAINT REQ.,ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDETYPE; NO PAINT REQ.,OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACKSONAR-WITHOUT
main52151-YP120iGUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA; GUN126,136..RHD..6FC..H..SA202411
NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACKSONAR-WITH
52153BAR, REAR BUMPER, LH
main52152-0K040supersedes 52152-0K240iGGN125..GCC;GUN125..RHD..H..GEN;GUN126..6FC..H..ARL..CBU;GUN126..(CAMP,THP)..H..DCRL..(GEN,LA); GGN125..GCC;GUN126..LHD..H..GEN;GUN126..6FC..H..ARL..CBU; GUN125,135..S..TH; GUN125,TGN126..LHD..L..GEN; GUN125..6F..H..GCC; GUN125..6FC..L..GEN; GUN125..LHD..L..GEN; GUN125..LHD..S..GEN; GUN125..RHD..S..GEN;GUN125,TGN126..THP..MTM..L..(GEN,LA);GUN126,135..(L,S)..(ARL,GEN,PH)..CBU;GUN136,TGN126..THP..(5F,6FC)..(L,S)..(ARL,SA);GUN125,TGN121..THP..(6F,6FC)..(ARL,SA,VN)..CBU;GUN122,126,135,TGN121,136..LHD..THP..L..(GEN,LA,SA,VN); GUN126,136..6FC..S..ARL..CBU; GUN126..TWN;GUN122..S..GEN;GUN125..6F..IDN;GUN122..RHD..GEN;GUN125..LHD..THP..6F..H;GUN125..THP..6FC..(IDN,LA); GUN135..L..TH; GUN136..6FC..S;GUN126..LHD..S..GEN;GUN125..(ARL,VN)..CBU;GUN126,135..(L,S)..ARL..CBU; TGN126..H..GEN; TGN136..GEN202408
NO PAINT REQ.; NO PAINT REQ.,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDETYPE; NO PAINT REQ.,MOROCCO SPEC&MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); NO PAINT REQ.,NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&OUTSIDE REAR VIEW MIRROR-*273(*CR) &W(*SITL)
main52152-0K050iGGN125..GCC;GUN126..LHD..H..GEN;GUN126..6FC..H..ARL..CBU; GUN122..L..GCC; GUN125..(H,S)..IDN;GUN125..LHD..H..GEN; GUN125..6F..L..GCC; GUN125..6FC..L..GEN; GUN125..LHD..S..GEN; GUN126..KEN,TWN;GUN125..6F..L..GCC;TGN126..(H,L)..GCC;GUN125..LHD..THP..6F..H;GUN125..(H,S)..(IDN,TH);GUN122,TGN120,121..GCC..CBU;GUN125..THP..6F..S..(GCC,LA);GUN125..LHD..THP..6FC..(L,S);GUN126,135,TGN126..THP..S..(GCC,LA,TH); GUN126..MHV..GCC;GUN125..6FC..H..GCC; GUN126..MHV..GCC;GUN125..RHD..H..GEN;GUN126..6FC..H..ARL..CBU;GGN125,GUN125..6FC..H..GCC;GUN126..(CAMP,THP)..H..DCRL..(GEN,LA); GUN135..L..TH;GUN122..S..GEN;GUN125..RHD..S..GEN;GUN125..RHD..6F..L..GEN;GUN126,TGN126..THP..L..LA;GUN126,TGN121..(L,S)..GEN; TGN126..H..GEN202408
PLATED; PLATED,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED); PLATED,AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PLATED); PLATED,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED); PLATED,CLEARANCE & BACK SONAR-WITHOUT; PLATED,CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; PLATED,NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&REAR BUMPER-STEP TYPE(PLATED); PLATED,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED); PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&CLEARANCE & BACK SONAR-WITHOUT; PLATED,REAR BUMPER-STEP TYPE(PLATED); PLATED,REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITHOUT; PLATED,REAR BUMPER-WITHOUT; PLATED,SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
main52152-0K060iGUN125..6F..H..GCC; GUN125..LHD..L..GEN; GUN125..LHD..S..GEN; GUN125..S..MA;GUN125..6FC..L..GEN;GUN125..LHD..S..GEN; GUN126..MA;TGN126..S..GEN; TGN126..H..GEN202408
NO PAINT REQ.; NO PAINT REQ.,ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,EGYPT SPEC&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MOROCCO SPEC; NO PAINT REQ.,OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
main52152-0K080iGUN122,125,135,LAN125,TGN121,126..LHD..SAP..L; GUN125,135..RHD..S..SA; GUN125..RHD..L..SA; GUN126..RHD..H..DCRL..SA; GUN126..S..SA;GUN125..6F..(GHA,KEN);GUN122,125,135,LAN125,TGN121,126,136..LHD..SAP..(L,S)202411
NO PAINT REQ.; NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-WITHOUT
main52152-0K110iGUN125,126,135,TGN126,136..AGTP..L; GUN125,TGN126..AGTP..S; GUN126..AGTP..H..LA202411
NO PAINT REQ.; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
PLATED; PLATED,CLEARANCE & BACK SONAR-WITHOUT; PLATED,REAR BUMPER-STEP TYPE(PLATED)
PLATED; PLATED,GR SPORT&REAR BUMPER-WITH(*RUPD(PAINTED))
main52152-0K190iGUN125,135..S..TH; GUN125,136..RHD..H..(ARL,GEN);GGN125,GUN126..(DCRL,HTWC)..GCC;GUN126,135..(CAMP,MMRP,THP)..H..(ARL,GEN,LA,MMR,PH,VN)..CBU; GUN125..(H,S)..IDN;GUN125..LHD..H..GEN; GUN125..LHD..S..GEN; GUN126,135..H..TH; GUN126,135..S..(IND,VN); GUN135..6F..GEN;GUN135..LHD..6FC..H;GUN126,136..H..(ARL,PH,VN)..CBU;GGN125,GUN126..LHD..H..(DCRL,HTWC)..(GCC,GEN); GUN135..S..PH;GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN;GUN126,136..6FC..S..ARL..CBU; GUN135..S..VN; TGN126..H..GEN202408
NO PAINT REQ.; NO PAINT REQ.,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER); NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACKSONAR-WITH; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY))
main52152-0K200iGGN125..GCC;GUN126..6FC..PH; GUN125..LHD..S..GEN; GUN125..RHD..S..GEN;GUN126..RHD..6F..S..GEN; GUN126,136..H..ARL..CBU; GUN126,136..H..ARL..CBU;GUN126..RHD..6FC..H..GEN; GUN126..6FC..DCRL..GCC; GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..DCRL..(ARL,VN)..CBU; GUN126..6FC..TH; GUN126..LHD..SA;GUN126..6FC..H..DCRL..(ARL,VN)..CBU; GUN126..RHD..6FC..H..(ARL,GEN)..CBU; GUN135..S..TH;GUN125..LHD..H..GEN;GUN125..(H,S)..(IDN,TH); GUN135..S..VN; TGN126..H..GEN; TGN126..THP..H..LA;GUN125..6FC..H..GCC;GUN125..RHD..H..GEN;GUN125,126..LHD..H..SA;GGN125,GUN126,13#..(CAMP,GHAP,INDP,MMRP,THP)..H..(ARL,GCC,GEN,GHA,IND,LA,MMR,PH,TH,VN)..CBU202408
PLATED; PLATED,ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; PLATED,AZERBAIJAN SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; PLATED,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; PLATED,CLEARANCE & BACK SONAR-WITH; PLATED,GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); PLATED,GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED); PLATED,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT); PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REARBUMPER-STEP TYPE(PAINTED); PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REARBUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); PLATED,OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; PLATED,REAR BUMPER-STEP TYPE(PLATED); PLATED,REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH; PLATED,RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; PLATED,RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY))
NO PAINT REQ.
main52152-0K310iGGN125,GUN126,136,TGN126..AGTP..H; GUN126..6FC..S..BZAG;GUN125,TGN136..AGTP..(5F,6FC)..LA; GUN126..AGTP..6FC..H202411
PLATED; PLATED,CLEARANCE & BACK SONAR-WITH; PLATED,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REARBUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
PLATED; PLATED,CLEARANCE & BACK SONAR-WITHOUT; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))
main52152-0K220iGGN125,GUN126,136..RHD..H..SA; GUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA; GUN126,136..RHD..6FC..H..SA; GUN126..RHD..6FC..H..DCRL..SA; GUN126..RHD..6FC..H..SA202411
PLATED; PLATED,CLEARANCE & BACK SONAR-WITH; PLATED,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; PLATED,GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT))); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
PLATED; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
main52152-0K270supersedes 52152-0K220iGGN125,GUN126,136..RHD..H..SA; GUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA202411
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
main52152-YP040iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,VN)..CBU; GUN125..(H,S)..IDN;GUN125..LHD..H..GEN; GUN125..LHD..S..GEN; GUN126,136..6FC..S..ARL..CBU; GUN126,136..H..ARL..CBU; GUN126,136..H..ARL..CBU;GUN126..RHD..6FC..H..GEN; GUN126..6FC..TH; GUN135..S..VN; TGN126..H..GEN202408
NO PAINT REQ.,ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT); NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,GR SPORT&REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)
main52152-YP080iGUN125,TGN126..LHD..L..GEN; GUN125..IDN;GUN125..LHD..H..GEN; GUN125..LHD..S..GEN; GUN126..6FC..H..ARL..CBU; GUN126..RHD..6FC..H..(ARL,GEN)..CBU; GUN136..6FC..S;GUN126..LHD..S..GEN;GUN125..(ARL,VN)..CBU;GUN126,135..(L,S)..ARL..CBU; TGN126..H..GEN; TGN136..GEN202408
NO PAINT REQ.,ASEAN GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,AZERBAIJAN SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,CAMBODIA SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE; NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDETYPE; NO PAINT REQ.,OCEANIA GENERAL SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACKSONAR-WITHOUT
main52152-YP120iGUN125,135..RHD..6F..S..SA; GUN125,135..RHD..6FC..SA; GUN126,136..RHD..6FC..H..SA202411
NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACKSONAR-WITH
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52159BPLATE, REAR BUMPER
main52159-0K291iGGN125..GCC;GUN126..6FC..PH; GUN122..L..GCC; GUN122..S..GEN;GUN125..L..IDN;GUN122..RHD..GEN; GUN125..6F..L..GCC; GUN125..L..IDN; GUN126,136..H..ARL..CBU; GUN126..6FC..DCRL..GCC; GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..DCRL..(ARL,VN)..CBU; GUN126..6FC..TH; GUN126..S..IND;TGN121..LHD..THP;GUN135..THP..(H,S);GUN125..(H,S)..IDN;GUN126..(CAMP,MAP,MMRP,THP)..CBU;GUN122,136..(5F,6FC)..(ARL,GCC)..CBU;GUN122,136..LHD..THP..(H,L)..(GEN,LA);GUN135,TGN121..THP..(6F,6FC)..L..(ARL,LA,VN);GGN125,GUN125,TGN120,126,136..(MAP,THP)..(ARL,GCC,GEN,LA,MA,SA,TH,VN)..CBU; GUN135..L..TH; GUN135..L..TH;GUN122..S..GEN202408
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM &*RCTA(ACCESSORY)); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
main52159-0K301iGUN122,125,135,LAN125,TGN121,126..LHD..SAP..L; GUN125..GHA,KEN;GUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP; GUN125..RHD..L..SA202411
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)
52163APLATE, REAR BUMPER, RH
main52163-0K030iGGN125..GCC;GUN126..6FC..PH; GUN122..L..GCC; GUN122..S..GEN;GUN125..L..IDN;GUN122..RHD..GEN; GUN125..6F..L..GCC; GUN125..L..IDN; GUN126,136..H..ARL..CBU; GUN126..6FC..DCRL..GCC; GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..DCRL..(ARL,VN)..CBU; GUN126..6FC..TH; GUN126..S..IND;TGN121..LHD..THP;GUN135..THP..(H,S);GUN125..(H,S)..IDN;GUN126..(CAMP,MAP,MMRP,THP)..CBU;GUN122,136..(5F,6FC)..(ARL,GCC)..CBU;GUN122,136..LHD..THP..(H,L)..(GEN,LA);GUN135,TGN121..THP..(6F,6FC)..L..(ARL,LA,VN);GGN125,GUN125,TGN120,126,136..(MAP,THP)..(ARL,GCC,GEN,LA,MA,SA,TH,VN)..CBU; GUN135..L..TH; GUN135..L..TH;GUN122..S..GEN202408
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM &*RCTA(ACCESSORY)); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
main52163-0K040iGUN122,125,135,LAN125,TGN121,126..LHD..SAP..L; GUN125..GHA,KEN;GUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP; GUN125..RHD..L..SA202411
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)
52164APLATE, REAR BUMPER, LH
main52164-0K030iGGN125..GCC;GUN126..6FC..PH; GUN122..L..GCC; GUN122..S..GEN;GUN125..L..IDN;GUN122..RHD..GEN; GUN125..6F..L..GCC; GUN125..L..IDN; GUN126,136..H..ARL..CBU; GUN126..6FC..DCRL..GCC; GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..DCRL..(ARL,VN)..CBU; GUN126..6FC..TH; GUN126..S..IND;TGN121..LHD..THP;GUN135..THP..(H,S);GUN125..(H,S)..IDN;GUN126..(CAMP,MAP,MMRP,THP)..CBU;GUN122,136..(5F,6FC)..(ARL,GCC)..CBU;GUN122,136..LHD..THP..(H,L)..(GEN,LA);GUN135,TGN121..THP..(6F,6FC)..L..(ARL,LA,VN);GGN125,GUN125,TGN120,126,136..(MAP,THP)..(ARL,GCC,GEN,LA,MA,SA,TH,VN)..CBU; GUN135..L..TH; GUN135..L..TH;GUN122..S..GEN202408
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM &*RCTA(ACCESSORY)); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
main52164-0K040iGUN122,125,135,LAN125,TGN121,126..LHD..SAP..L; GUN125..GHA,KEN;GUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP; GUN125..RHD..L..SA202411
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)
52181ARM, REAR BUMPER, RH
main52181-0K060iGGN125..GCC;GUN126..6FC..PH; GUN122..L..GCC; GUN122..S..GEN;GUN125..L..IDN;GUN122..RHD..GEN; GUN125..6F..L..GCC; GUN125..L..IDN; GUN126..6FC..DCRL..GCC; GUN126..6FC..H..ARL..CBU; GUN135..L..TH; GUN135..L..TH;GUN122..S..GEN; TGN121..LHD..THP;GUN135..THP..(H,S);GUN125..(H,S)..IDN;GUN122,136..(5F,6FC)..(ARL,GCC)..CBU;GUN122,136..LHD..THP..(H,L)..(GEN,LA);GUN126..(CAMP,INDP,MAP,MMRP,THP)..CBU;GUN135,TGN121..THP..(6F,6FC)..L..(ARL,LA,VN);GGN125,GUN125,TGN120,126,136..(MAP,THP)..(ARL,GCC,GEN,LA,MA,SA,TH,VN)..CBU202408
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
main52181-0K070iGUN122,125,135,LAN125,TGN121,126..LHD..SAP..L; GUN125..GHA,KEN;GUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP; GUN125..RHD..L..SA202411
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)
52182ARM, REAR BUMPER, LH
main52182-0K060iGGN125..GCC;GUN126..6FC..PH; GUN122..L..GCC; GUN122..S..GEN;GUN125..L..IDN;GUN122..RHD..GEN; GUN125..6F..L..GCC; GUN125..L..IDN; GUN126..6FC..DCRL..GCC; GUN126..6FC..H..ARL..CBU; GUN135..L..TH; GUN135..L..TH;GUN122..S..GEN; TGN121..LHD..THP;GUN135..THP..(H,S);GUN125..(H,S)..IDN;GUN122,136..(5F,6FC)..(ARL,GCC)..CBU;GUN122,136..LHD..THP..(H,L)..(GEN,LA);GUN126..(CAMP,INDP,MAP,MMRP,THP)..CBU;GUN135,TGN121..THP..(6F,6FC)..L..(ARL,LA,VN);GGN125,GUN125,TGN120,126,136..(MAP,THP)..(ARL,GCC,GEN,LA,MA,SA,TH,VN)..CBU202408
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&FRONT BUMPER-PAINTED(GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED); GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT; RUGGED X PACKAGE&REAR BUMPER-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY)); SAUDI ARABIA SPEC&REAR BUMPER-WITHOUT
main52182-0K070iGUN122,125,135,LAN125,TGN121,126..LHD..SAP..L; GUN125..GHA,KEN;GUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP; GUN125..RHD..L..SA202411
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)&REAR BUMPER-STEP TYPE(PAINTED)
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-71020×2iGGN125..GCC;GUN125,126..RHD..H..GEN;GUN126..THP..6FC..H..DCRL..LA;GUN126..LHD..THP..6F..H..(GEN,LA); GUN125,135..S..(PH,TH); GUN125..(H,S)..IDN;GUN125..LHD..H..GEN; GUN125..6FC..H..GCC; GUN125..LHD..H..GEN; GUN125..LHD..H..GEN;GUN135..6FC..S..(PH,SA,TH);GUN126..RHD..6F..S..(GEN,SA);GUN125..6FC..(H,S)..(GEN,IDN,SA);GUN125,TGN136..AGTP..(5F,6FC)..LA;GUN125,135..6F..S..(GEN,IDN,PH,TH);GUN126,136..6FC..S..(ARL,BZAG,SA)..CBU; GUN125..LHD..S..GEN;GUN126,136..6FC..S..ARL..CBU; GUN125..RHD..H..GEN;GUN125..6FC..H..GCC;TGN126..H..(GEN,LA);GUN135..(H,S)..(GEN,VN);GUN125,126..S..(IND,KEN);GUN125,135..H..(PH,SA,TH);GGN125,GUN126,136..H..(ARL,BZAG,GCC,GEN,GHA,IND,LA,MMR,PH,SA,TH,VN)..CBU; GUN126..6F..H..SA;GUN126..6FC..H..ARL..CBU;GUN126..LHD..6FC..H..GEN; GUN126..6FC..H..ARL..CBU; TGN126..H..GEN;GUN126..MHV..GCC;GUN126..6FC..H..ARL..CBU;GGN125,GUN125..6FC..H..GCC;GUN125,126..RHD..H..(GEN,SA);GUN126..LHD..H..DCRL..(GEN,LA); TGN126..H..GEN;GUN126..RHD..6FC..H..(ARL,GEN)..CBU; TGN126..H..GEN;GUN126..RHD..6FC..H..SA202408
CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITHOUT; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-WITH(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT; MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; MLM ADVENTURE WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-71030×2iGGN125..GCC;GUN125,126..RHD..H..GEN;GUN126..THP..6FC..H..DCRL..LA;GUN126..LHD..THP..6F..H..(GEN,LA); GUN125,135..S..(PH,TH); GUN125..(H,S)..IDN;GUN125..LHD..H..GEN; GUN125..6FC..H..GCC; GUN125..LHD..H..GEN; GUN125..LHD..H..GEN;GUN135..6FC..S..(PH,SA,TH);GUN126..RHD..6F..S..(GEN,SA);GUN125..6FC..(H,S)..(GEN,IDN,SA);GUN125,TGN136..AGTP..(5F,6FC)..LA;GUN125,135..6F..S..(GEN,IDN,PH,TH);GUN126,136..6FC..S..(ARL,BZAG,SA)..CBU; GUN125..LHD..S..GEN;GUN126,136..6FC..S..ARL..CBU; GUN125..RHD..H..GEN;GUN125..6FC..H..GCC;TGN126..H..(GEN,LA);GUN135..(H,S)..(GEN,VN);GUN125,126..S..(IND,KEN);GUN125,135..H..(PH,SA,TH);GGN125,GUN126,136..H..(ARL,BZAG,GCC,GEN,GHA,IND,LA,MMR,PH,SA,TH,VN)..CBU; GUN126..6F..H..SA;GUN126..6FC..H..ARL..CBU;GUN126..LHD..6FC..H..GEN; GUN126..6FC..H..ARL..CBU; TGN126..H..GEN;GUN126..MHV..GCC;GUN126..6FC..H..ARL..CBU;GGN125,GUN125..6FC..H..GCC;GUN125,126..RHD..H..(GEN,SA);GUN126..LHD..H..DCRL..(GEN,LA); TGN126..H..GEN;GUN126..RHD..6FC..H..(ARL,GEN)..CBU; TGN126..H..GEN;GUN126..RHD..6FC..H..SA202408
CLEARANCE & BACK SONAR-WITH; CLEARANCE & BACK SONAR-WITHOUT; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-WITH(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT; MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; MLM ADVENTURE WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH; MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
753950K050CLIP, BACK DOOR MOULDING, NO.1
main75395-0K050
90119T0124
main90119-T0124
90119T0301
main90119-T0301
90467T0011
main90467-T0011
14 parts on this diagram · 1 diagram in section
