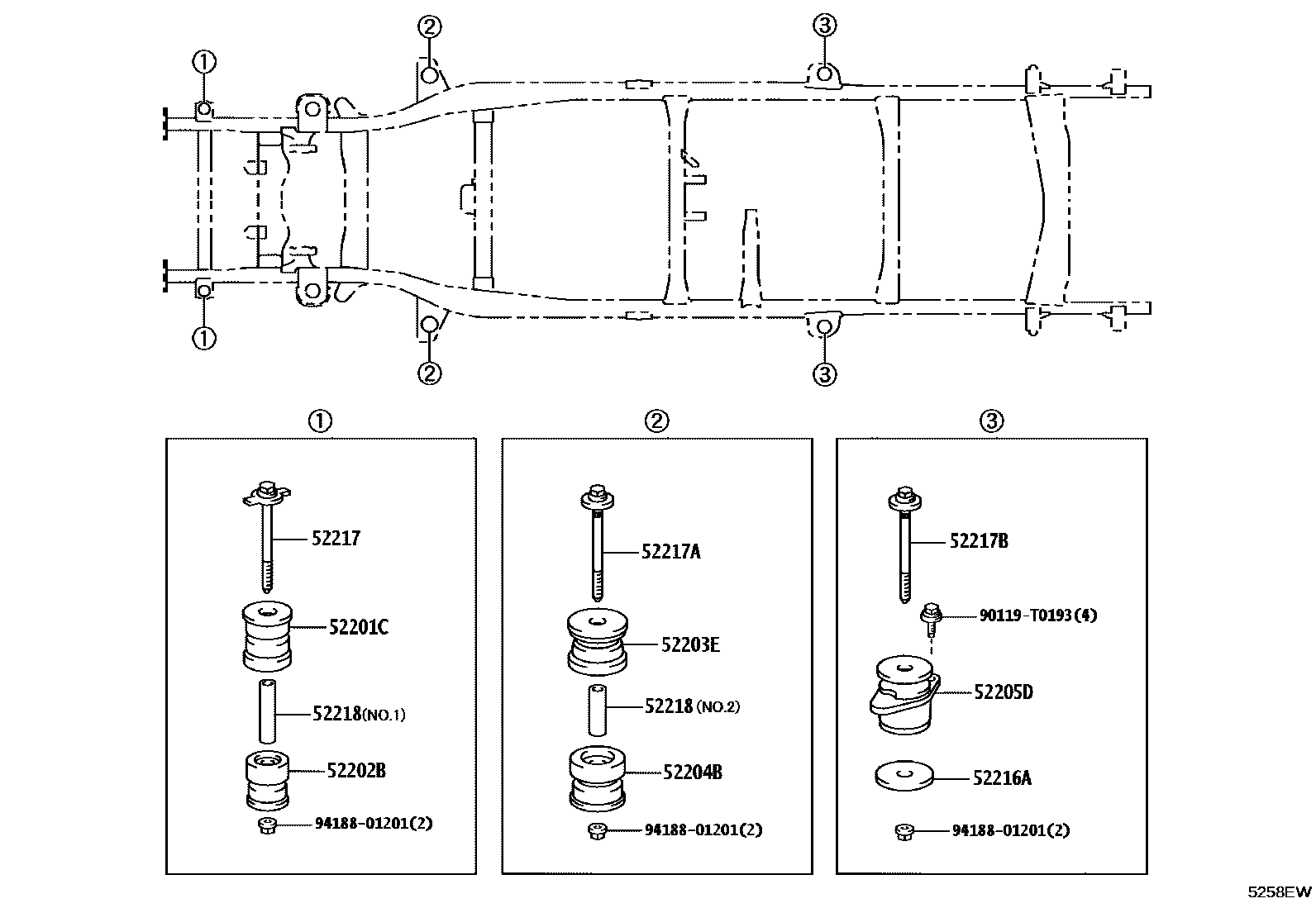

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K070×2iGUN126..IND202412

main52201-0K100×2iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K070×2iGUN126..IND202412

main52202-0K100×2iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K120×2iTGN121..5F..ARL202408-202411

main52203-0K150×2iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K120×2iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K161iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408

RH

main52206-0K101iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

LH

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010×2iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main52216-KK030×2iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD

52217BOLT, BODY MOUNTING

main52217-0K010×2iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408

52217ABOLT, BODY MOUNTING

main52217-0K020×2iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

52217BBOLT, BODY MOUNTING

main52217-0K020×2iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010×2iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

NO.1

main52219-0K010×2iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

NO.2

90119T0193

main90119-T0193

9418801201

main94188-01201

12 parts on this diagram · 1 diagram in section
