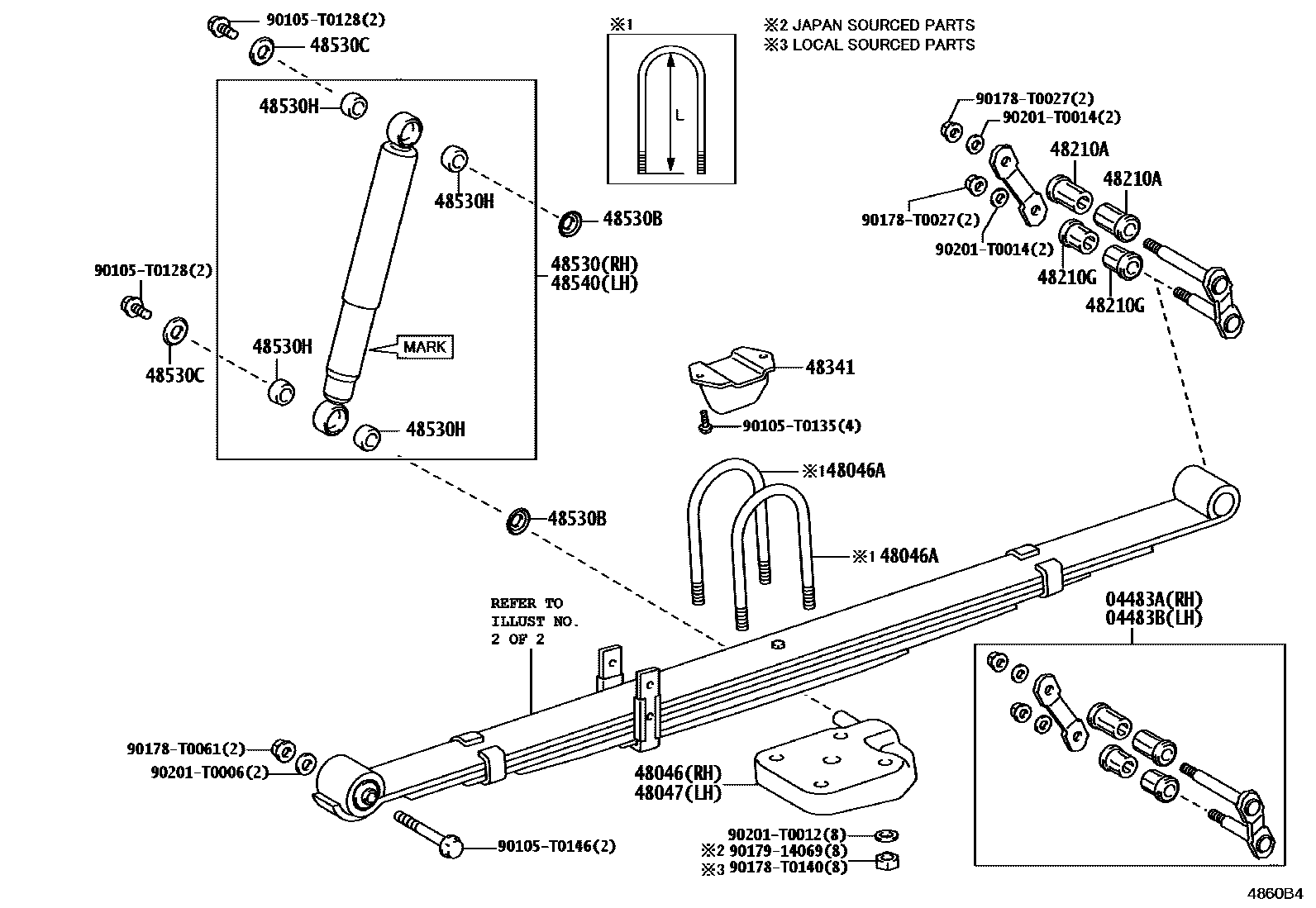

REAR SPRING & SHOCK ABSORBER
04483ASHACKLE KIT, REAR SPRING, RH
04483BSHACKLE KIT, REAR SPRING, LH
48046SEAT SUB-ASSY, SPRING U BOLT, RH
main48046-KK010iGUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408-202411
48046ABOLT, U(FOR REAR SPRING)
L=180
L=180
L=175
L=180
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210SPRING ASSY, REAR RH
5-LEAF
5-LEAF
5-LEAF,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&HEADLAMP-4-BULB HALOGEN MULTI
5-LEAF,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&HEADLAMP- LED(MLM)
5-LEAF,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
5-LEAF,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&HEADLAMP-LED
5-LEAF,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&HEADLAMP-LED
5-LEAF
5-LEAF,HEADLAMP-LED(MLM)
5-LEAF
main48210-0KC20iGUN126..LHD..S..GEN;GUN126..H..MHV..IV3;TGN126..THP..H..(GCC,LA);GGN125,GUN125,126,13#..(CAMP,MMRP,THP)..H..(ARL,GCC,GEN,IDN,LA,MMR,PH,TWN,VN)..CBU202408
5-LEAF,GR SPORT WIDE TREAD
main48210-0KC20iGUN126..LHD..S..GEN;GUN126..H..MHV..IV3;TGN126..THP..H..(GCC,LA);GGN125,GUN125,126,13#..(CAMP,MMRP,THP)..H..(ARL,GCC,GEN,IDN,LA,MMR,PH,TWN,VN)..CBU202408
5-LEAF,HEADLAMP-LED
main48210-0KC20iGUN126..LHD..S..GEN;GUN126..H..MHV..IV3;TGN126..THP..H..(GCC,LA);GGN125,GUN125,126,13#..(CAMP,MMRP,THP)..H..(ARL,GCC,GEN,IDN,LA,MMR,PH,TWN,VN)..CBU202408
5-LEAF,HEADLAMP LEVELING DEVICE-WITH(AUTO)
5-LEAF,GR SPORT WIDE TREAD
5-LEAF
5-LEAF,HEADLAMP-LED(MLM)
5-LEAF,HEADLAMP LEVELING DEVICE-WITH(AUTO)
5-LEAF,HEADLAMP-LED
5-LEAF
5-LEAF,GR SPORT WIDE TREAD
5-LEAF,GR SPORT WIDE TREAD&HEADLAMP-LED(MLM)
5-LEAF
5-LEAF,HEADLAMP-LED(MLM)
5-LEAF
5-LEAF,ASIA COLD COUNTRY SPEC
5-LEAF,AZERBAIJAN SPEC&HEADLAMP LEVELING DEVICE-WITH(AUTO)
5-LEAF
5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI
5-LEAF
5-LEAF
5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI
5-LEAF
5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI
5-LEAF
5-LEAF,AZERBAIJAN SPEC
5-LEAF,ASIA COLD COUNTRY SPEC
5-LEAF,ASIA COLD COUNTRY SPEC&HEADLAMP-4-BULB HALOGEN MULTI
3-LEAF,GR SPORT WIDE TREAD
3-LEAF
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48341BUMPER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-0K510
MARK 48531-0K530
MARK 48531-0K530,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48531-0K530,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48531-0K550
MARK 48531-0K580
MARK 48531-0K580,GR SPORT WIDE TREAD
MARK 48531-0K590
MARK 48531-0K590,GR SPORT WIDE TREAD
MARK 48531-0K860
MARK 48531-0KA40
MARK 48531-0KC30
MARK 48531-0K570
MARK 48531-0K570,GR SPORT
MARK 48531-0K780
MARK 48531-0K780,GR SPORT WIDE TREAD
main48531-8Z032iGUN136..THP..LA;GUN136..6FC..ARL;GUN135,TGN136..THP..(ARL,GEN,LA,PH,VN)202408-202411
MARK 48531-0KA50
MARK 48531-0KA60
MARK 48531-0KA60,GR SPORT WIDE TREAD
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
MADE IN SOUTH AFRICA
GR SPORT WIDE TREAD,MADE IN SOUTH AFRICA
main90948-T3001iGUN126..AGTP..6FC..H..LA;GGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,BZAG,GCC,PH,TH,VN)..CBU202408
GR SPORT WIDE TREAD
MADE IN THAILAND
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
GR SPORT WIDE TREAD,MADE IN SOUTH AFRICA
MADE IN SOUTH AFRICA
main90948-T3002iGUN126..S..IV3;GUN136..LHD..6F;TGN121..LHD..THP;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG);GUN126..(AGTP,CAMP,INDP,MAP,MMRP,THP)..CBU;GGN125,GUN120,121,122,202408
GR SPORT WIDE TREAD
MADE IN THAILAND
48530HBUSH, REAR SHOCK ABSORBER
main90385-T0019iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAM202408
GR SPORT WIDE TREAD
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-0K510
MARK 48531-0K530,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48531-0K530
MARK 48531-0K530,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48531-0K550
MARK 48541-0K330,GR SPORT WIDE TREAD
MARK 48541-0K330
MARK 48541-0K390,GR SPORT WIDE TREAD
MARK 48541-0K390
MARK 48541-0K450
MARK 48541-0K460
MARK 48541-0K490
MARK 48541-0K320
MARK 48541-0K320,GR SPORT
MARK 48541-0K430
main48541-09500iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,TGN126..THP..(ARL,GCC,GEN,IDN,LA,PH,SA,VN);GUN126..(CAMP,INDP,MMRP,THP)..(ARL,GCC,GEN,IND,LA,MMR,PH,VN)..CBU202408
MARK 48541-0K430,GR SPORT WIDE TREAD
MARK 48541-0K470
MARK 48541-0K480,GR SPORT WIDE TREAD
MARK 48541-0K480
90105T0128
main90105-T0128
90105T0135
main90105-T0135
90105T0146
main90105-T0146
90178T0027
main90178-T0027
90178T0061
main90178-T0061
90178T0140
main90178-T0140
9017914069
main90179-14069
90201T0006
main90201-T0006
90201T0012
main90201-T0012
90201T0014
main90201-T0014
24 parts on this diagram · 11 diagrams in section
