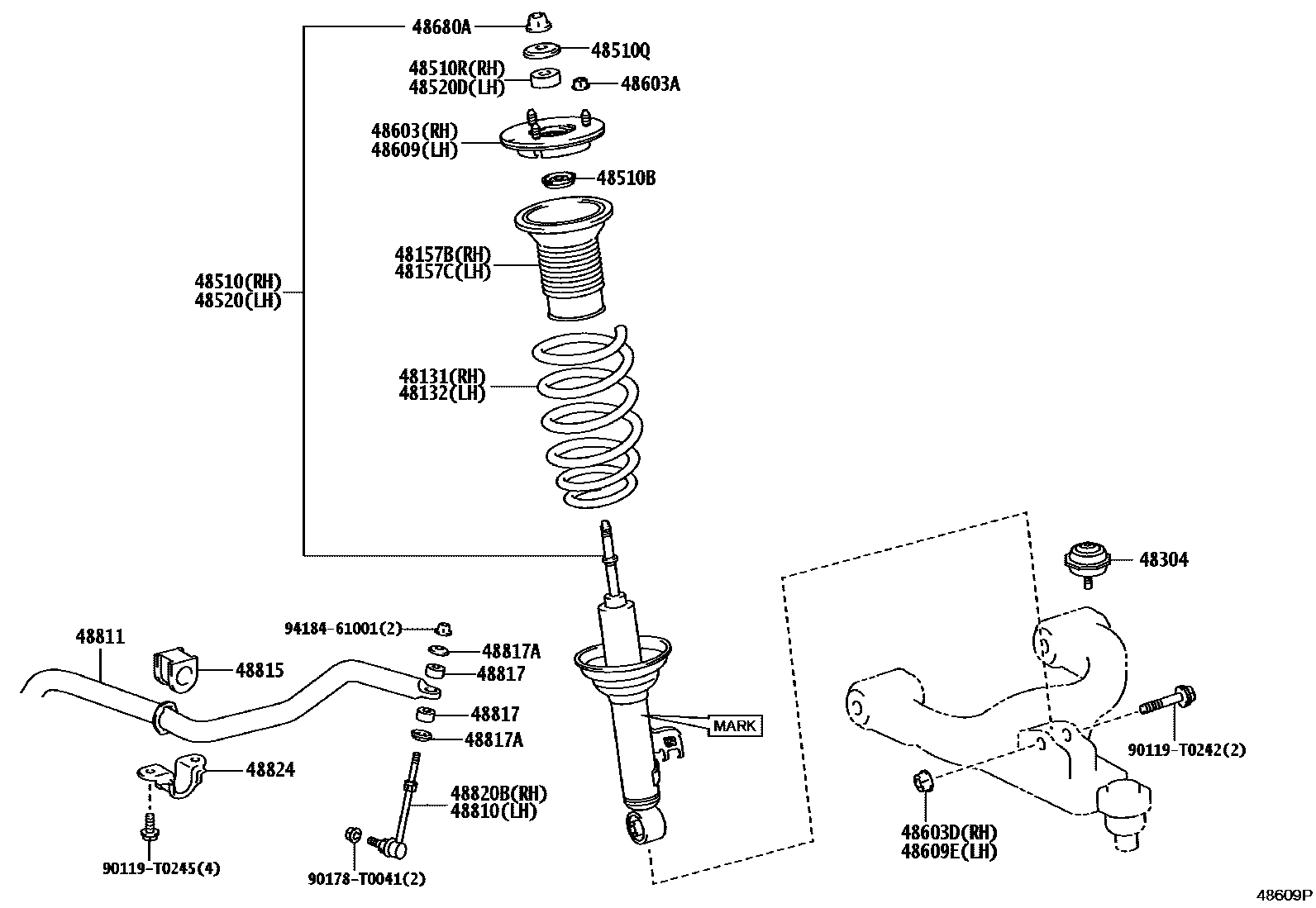

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
GR SPORT WIDE TREAD
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
main48131-0KL41iGUN126..6FC..DCRL..(GCC,PH,VN); GUN135..ARL;GUN125,126..(CAMP,INDP,MMRP,THP)..(GCC,GEN,IDN,IND,LA,MMR,PH,TWN,VN)202408
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
MLM ADVENTURE WIDE TREAD
MLM ADVENTURE WIDE TREAD
WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
GR SPORT
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
48132SPRING, FRONT COIL, LH
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT
main48131-0KS71iGUN125..ARL;GUN126..S..IV3;GUN126..ARL..CBU;GUN126..H..MHV..IV3; GUN126..6FC..H..ARL..CBU; GUN126..6FC..H..DCRL..ARL..CBU202408
GR SPORT WIDE TREAD; RUGGED X PACKAGE
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
MLM ADVENTURE WIDE TREAD
MLM ADVENTURE WIDE TREAD
WIDE TREAD
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT); TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
GR SPORT
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
main48304-0K041×2iGUN126..S..IV3;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN136..(SAP,THP)..6F..H;GUN126..(CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN125,135,LAN125,TGN126,136..GHAP,KENP,MAP,SAP,THP202408
main48304-0K080×2iGGN125..GCC;GUN126..6FC..H..DCRL..(ARL,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408
GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD
GR SPORT WIDE TREAD; WIDE TREAD
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0KF20; MARK 48510-0KF20,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT); MARK 48510-0KF20,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48510-0K740
MARK 48510-0K780
MARK 48510-0K810; MARK 48510-0K810,GR SPORT WIDE TREAD
MARK 48510-0K800
MARK 48510-0KC50
MARK 48510-0K820; MARK 48510-0K820,GR SPORT
main48510-8Z456iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,VN)..CBU; GUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GGN125,GUN125,135,TGN126,136..THP..(ARL,GCC,GEN,IDN,LA,PH,SA,VN);GUN126..(CAMP,INDP,MMRP,THP)..(ARL,GCC,GEN,IND,LA,MMR,PH,VN)..CBU202408
MARK 48510-0K760; MARK 48510-0K760,GR SPORT WIDE TREAD
MARK 48510-0KA70; MARK 48510-0KA70,GR SPORT WIDE TREAD
MARK 48510-0K631; MARK 48510-0K631,GR SPORT WIDE TREAD
MARK 48510-0KC40,1 TON PAY LOAD PACKAGE
MARK 48510-0KE00,MLM ADVENTURE WIDE TREAD
MARK 48510-0KC71,LIGHT DUTY PACKAGE
MARK 48510-0KE50,WIDE TREAD
MARK 48510-YY140,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT); MARK 48510-YY140,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48511-YY040,GR SPORT
main48510-YY200iGGN125..GCC;GUN126..6FC..(PH,VN); GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,SA)..CBU202408
MARK 48511-YY070,GR SPORT WIDE TREAD; MARK 48511-YY070,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48511-YY080,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
main90948-T2004×2iGUN126..S..IV3;GUN136..LHD..6F;TGN121..LHD..THP;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG);GUN126..(AGTP,CAMP,MAP,MMRP,THP)..CBU;GGN125,GUN120,121,122,125,135,TGN120,126,136..AGTP,MAP,THP202408
48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH
PNC 48603=TYPE A
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-0K810; MARK 48510-0K810,GR SPORT WIDE TREAD
MARK 48510-0K800
MARK 48510-0KC50
MARK 48510-0K820; MARK 48510-0K820,GR SPORT
MARK 48510-0K760
MARK 48510-0KA70; MARK 48510-0KA70,GR SPORT WIDE TREAD
MARK 48510-0K631; MARK 48510-0K631,GR SPORT WIDE TREAD
MARK 48520-0K660; MARK 48520-0K660,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT); MARK 48520-0K660,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48520-0K590
MARK 48520-0K630
MARK 48510-0KC40,1 TON PAY LOAD PACKAGE
MARK 48510-0KE00,MLM ADVENTURE WIDE TREAD
MARK 48510-0KC71,LIGHT DUTY PACKAGE
MARK 48510-0KE50,WIDE TREAD
MARK 48511-YY040,GR SPORT
main48510-YY200iGGN125..GCC;GUN126..6FC..(PH,VN); GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,SA)..CBU202408
MARK 48511-YY070,GR SPORT WIDE TREAD; MARK 48511-YY070,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48511-YY080,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48520-YY070,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT); MARK 48520-YY070,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH
PNC 48603=TYPE A
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
MADE IN THAILAND
TYPE A:REFER ILLUST.
MADE IN INDIA
TYPE B:REFER ILLUST.
main48609-0K100iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408
GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90178-T0048iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
MADE IN THAILAND
TYPE A:REFER ILLUST.
MADE IN INDIA
TYPE B:REFER ILLUST.
WIDE TREAD
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main90177-T0015×2iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
48810LINK ASSY, FRONT STABILIZER, LH
main48810-0K010iGUN126..S..IV3;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN136..(SAP,THP)..6F..H;GUN126..(CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN125,135,LAN125,TGN126,136..GHAP,KENP,MAP,SAP,THP202408-202506
48811BAR, STABILIZER, FRONT
GR SPORT WIDE TREAD; WIDE TREAD
main48811-0K270iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408
GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD
GR SPORT WIDE TREAD
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-0K090×2iGUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-0K030iGUN126..S..IV3;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN136..(SAP,THP)..6F..H;GUN126..(CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN125,135,LAN125,TGN126,136..GHAP,KENP,MAP,SAP,THP202408-202506
48824BRACKET, STABILIZER, FRONT
90119T0242
main90119-T0242
90119T0245
main90119-T0245
90178T0041
main90178-T0041
9418461001
main94184-61001
28 parts on this diagram · 3 diagrams in section
