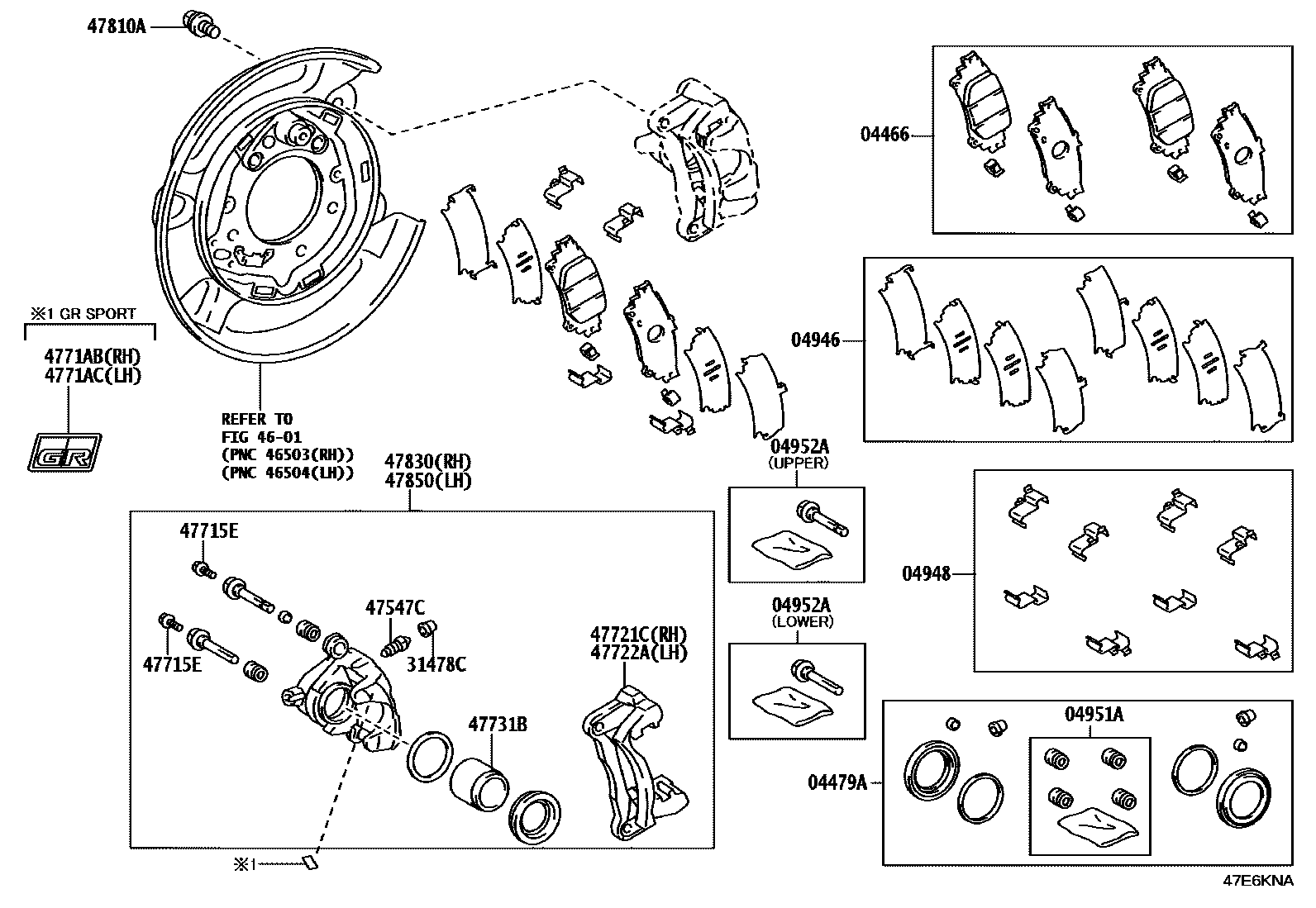

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04466PAD KIT, DISC BRAKE, REAR

main04466-0K010iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

MARK AK NS542,GR SPORT WIDE TREAD; MARK AK NS542,MLM ADVENTURE WIDE TREAD

main04466-60140iGUN126,136..AGTP..6FC..H202411

MARK AK PA561,WIDE TREAD

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0K020iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD

main04479-60030iGUN126,136..AGTP..6FC..H202411

WIDE TREAD

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0K010iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD

main04946-60141iGUN126,136..AGTP..6FC..H202411

WIDE TREAD

04948FITTING KIT, DISC BRAKE, REAR

main04947-22050iGUN126,136..AGTP..6FC..H202411

WIDE TREAD

main04948-0D010iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD

04951ABUSH KIT, DISC BRAKE, REAR

main04951-0K040iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-0K080×2iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD,LOWER SIDE; MLM ADVENTURE WIDE TREAD,LOWER SIDE

main04952-0K090×2iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD,UPPER SIDE; MLM ADVENTURE WIDE TREAD,UPPER SIDE

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0D040×2iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD

main31478-30010×2iGUN126,136..AGTP..6FC..H202411

WIDE TREAD

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010×2iGUN126,136..AGTP..6FC..H202411

WIDE TREAD

main47547-27030×2iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD

47715EBOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)

main90016-AA603×4iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD

4771ABORNAMENT, BRAKE CALIPER MARK, RH

main4771A-0K070iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU202408

GR SPORT WIDE TREAD

4771ACORNAMENT, BRAKE CALIPER MARK, LH

main4771A-0K080iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU202408

GR SPORT WIDE TREAD

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-60020iGUN126,136..AGTP..6FC..H202411

WIDE TREAD

main47821-0K010iGUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

MLM ADVENTURE WIDE TREAD

main47821-0K040iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU202408

GR SPORT WIDE TREAD

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-60020iGUN126,136..AGTP..6FC..H202411

WIDE TREAD

main47822-0K010iGUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

MLM ADVENTURE WIDE TREAD

main47822-0K040iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU202408

GR SPORT WIDE TREAD

47731BPISTON, REAR DISC BRAKE

main47731-60020×2iGUN126,136..AGTP..6FC..H202411

WIDE TREAD

main47831-0K010×2iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-T0495×4iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47730-34030iGUN126,136..AGTP..6FC..H202411

WIDE TREAD

main47830-0K040iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU202408

GR SPORT WIDE TREAD

main47830-0K050iGUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

MLM ADVENTURE WIDE TREAD

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47750-34030iGUN126,136..AGTP..6FC..H202411

WIDE TREAD

main47850-0K040iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU202408

GR SPORT WIDE TREAD

main47850-0K050iGUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408

MLM ADVENTURE WIDE TREAD

18 parts on this diagram · 2 diagrams in section
