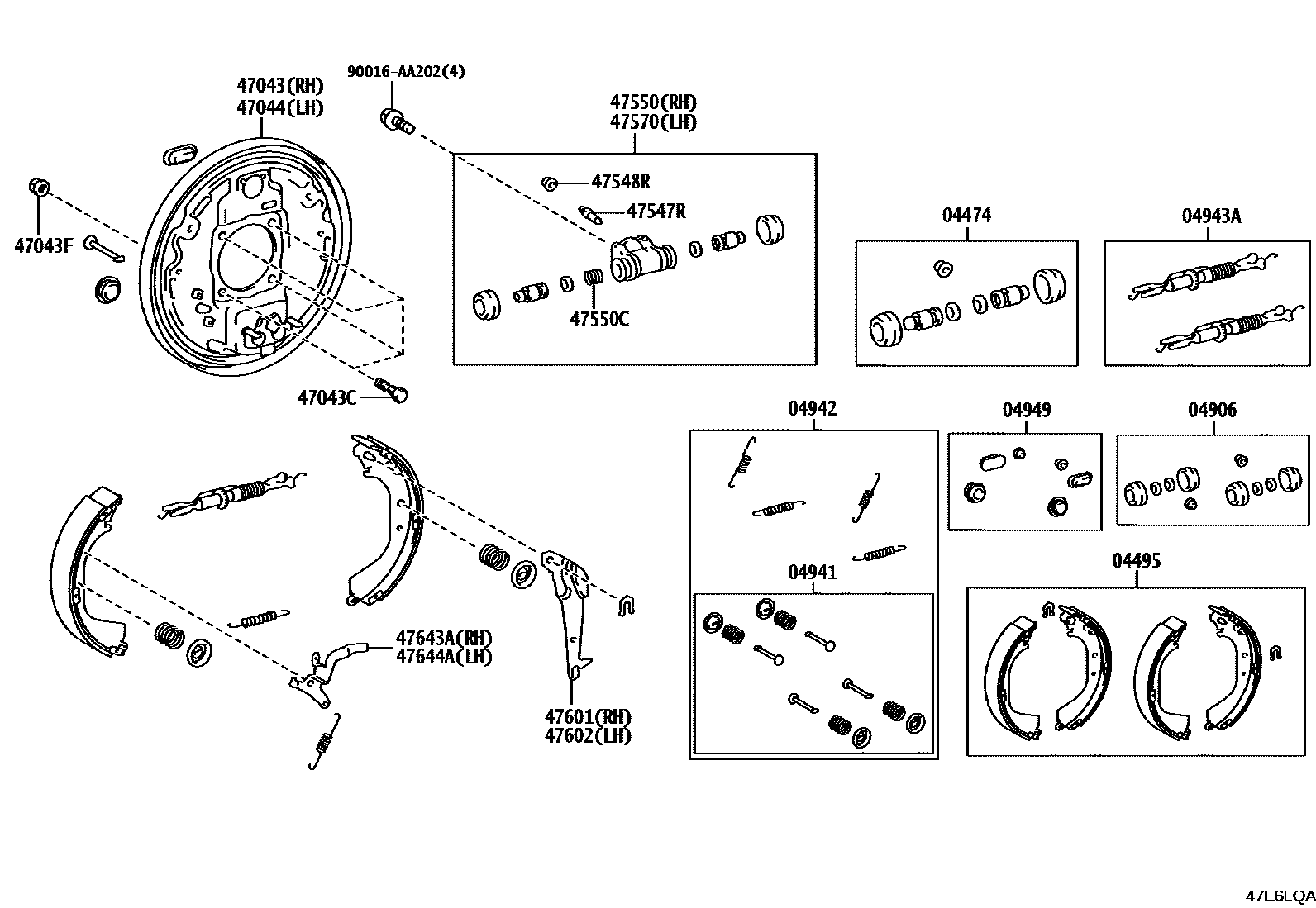

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1W/O(VSC) 0003 1 0004 1 0005 1

04474CYLINDER KIT, REAR WHEEL

main04474-0K010×2iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main04474-0K050×2iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

04495SHOE KIT, REAR BRAKE

main04495-0K050iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

MARK NSA LN508; MARK NSA LN508,GR SPORT WIDE TREAD

main04495-0K120iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

MARK NSA LN508

main04495-0K130iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

MARK NSA D9033

main04495-0K160iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

MARK NBK LN508; MARK NBK LN508,GR SPORT WIDE TREAD

main04495-0K060iGUN122,TGN121..SAP202411

MARK NSA LN512,VSC-WITHOUT

04906CUP KIT, REAR WHEEL CYLINDER

main04906-0K060iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main04906-0K090iTGN121..5F..ARL202408-202411

main04906-43040iGUN122,TGN121..SAP202411

VSC-WITHOUT

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0K030iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main04941-0K060iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main04941-0K070iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

main04941-0K100iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main04941-0K110iGUN122,TGN121..SAP202411

VSC-WITHOUT

04942SPRING KIT, REAR BRAKE

main04942-0K130iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main04942-0K160iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main04942-0K180iTGN121..5F..ARL202408-202411

main04942-0K210iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main04942-0K220iGUN122,TGN121..SAP202411

VSC-WITHOUT

04943ASTRUT KIT, REAR BRAKE

main04943-0K030iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main04943-0K040iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main04943-0K080iTGN121..5F..ARL202408-202411

main04943-0K110iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main04943-0K050iGUN122,TGN121..SAP202411

VSC-WITHOUT

04949PLUG KIT, REAR BRAKE

main04949-0D010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

main04949-0K070iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main04949-0K130×2iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main04949-0K150iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN122,TGN121..SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD; VSC-WITHOUT

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0K091iTGN121..5F..ARL202408-202411

main47043-0K120iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main47043-0K130iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,TH,VN)..CBU; GUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GGN125,GUN125,135,TGN126,136..MAP,THP;GUN126..(CAMP,INDP,MAP,MMRP,THP)..CBU202408

GR SPORT WIDE TREAD

main47043-0K140iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main47043-0K020iGUN122,TGN121..SAP202411

VSC-WITHOUT

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-T0011×8iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

*10-1.25PX54.5-30

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90178-T0077×8iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0K091iTGN121..5F..ARL202408-202411

main47044-0K120iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main47044-0K130iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main47044-0K140iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main47044-0K020iGUN122,TGN121..SAP202411

VSC-WITHOUT

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iTGN121..5F..ARL202408-202411

main90069-0K072×2iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0K030×2iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main31478-30010×2iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09070iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,TH,VN)..CBU; GUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GGN125,GUN125,135,TGN126,136..MAP,THP;GUN126..(CAMP,INDP,MAP,MMRP,THP)..CBU202408

GR SPORT WIDE TREAD

main47550-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

main47550-71030iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main47550-71010iGUN122,TGN121..SAP202411

VSC-WITHOUT

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90016-AY002iTGN121..5F..ARL202408-202411

main90069-51002×2iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main90029-60009iGUN122,TGN121..SAP202411

VSC-WITHOUT

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09070iGUN136..6F..ARL;GUN126..H..DCRL..IV3202408-202411

main47550-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

main47550-71030iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main47550-71010iGUN122,TGN121..SAP202411

VSC-WITHOUT

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

main47611-0K070iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main47611-0K120iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main47611-0K020iGUN122,TGN121..SAP202411

VSC-WITHOUT

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-0K010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

main47612-0K070iGGN125,GUN125,126,13#,TGN126,136..AGTP; GUN126..AGTP..6FC..H202411

GR SPORT WIDE TREAD

main47612-0K120iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main47612-0K020iGUN122,TGN121..SAP202411

VSC-WITHOUT

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0K050iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,TH,VN)..CBU; GUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GGN125,GUN125,135,TGN126,136..MAP,THP;GUN126..(CAMP,INDP,MAP,MMRP,THP)..CBU202408

GR SPORT WIDE TREAD

main47643-45010iTGN121..5F..ARL202408-202411

main47644-35040iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main47643-0K020iGUN122,TGN121..SAP202411

VSC-WITHOUT

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-35040iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN126..6FC..H..DCRL..SA202411

GR SPORT WIDE TREAD

main47644-0K050iGGN125,GUN126..6FC..H..(DCRL,HTWC)..(ARL,GCC,PH,TH,VN)..CBU; GUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GGN125,GUN125,135,TGN126,136..MAP,THP;GUN126..(CAMP,INDP,MAP,MMRP,THP)..CBU202408

GR SPORT WIDE TREAD

main47644-45010iTGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408

main47644-0K020iGUN122,TGN121..SAP202411

VSC-WITHOUT

90016AA202

main90016-AA202
