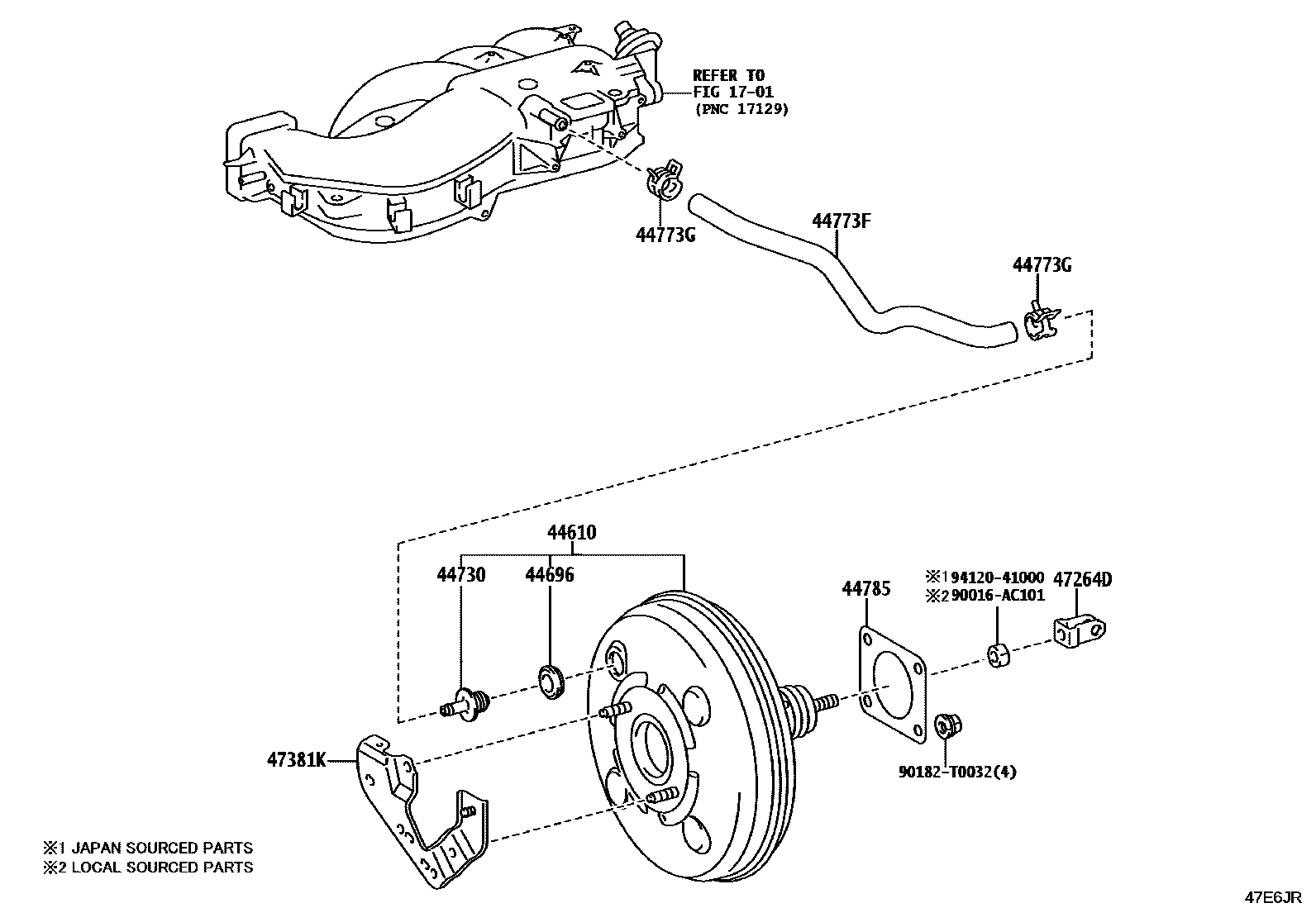

BRAKE BOOSTER & VACUUM TUBE
1701MANIFOLD
44610BOOSTER ASSY, BRAKE
VSC-WITHOUT
main44610-0K880iGUN125,135..6F..(H,S)..TH; GUN126..6FC..TH;GUN126,136..RHD..MHV; GUN135..6F..L..TH202408
TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)
TOYOTA STOP & START SYSTEM-WITH
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TOYOTA STOP & START SYSTEM-WITHOUT
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD&TOYOTA STOP & START SYSTEM-WITH
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
44696GROMMET, CHECK VALVE
main90016-AT003×2iGUN126..S..IV3;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN136..(SAP,THP)..6F..H;GUN126..(CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125..GHAP,KENP,MAP,SAP,THP; TGN121..6FC..ARL;TGN12#,136..(SAP,THP)..(GCC,GEN,LA,SA)202408
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44773FHOSE, UNION TO CHECK VALVE
main44773-KK030iGUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN120,121,122,125,135;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408
44773GCLIP(FOR UNION TO CHECK VALVE HOSE)
main90466-T0019iGGN125..LHD; GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN120,121,122,125,135;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47381KBRACKET, BRAKE BOOSTER TUBE CLAMP
main47381-0K071iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
90016AC101
main90016-AC101
90182T0032
main90182-T0032
9412041000
main94120-41000
12 parts on this diagram · 7 diagrams in section
