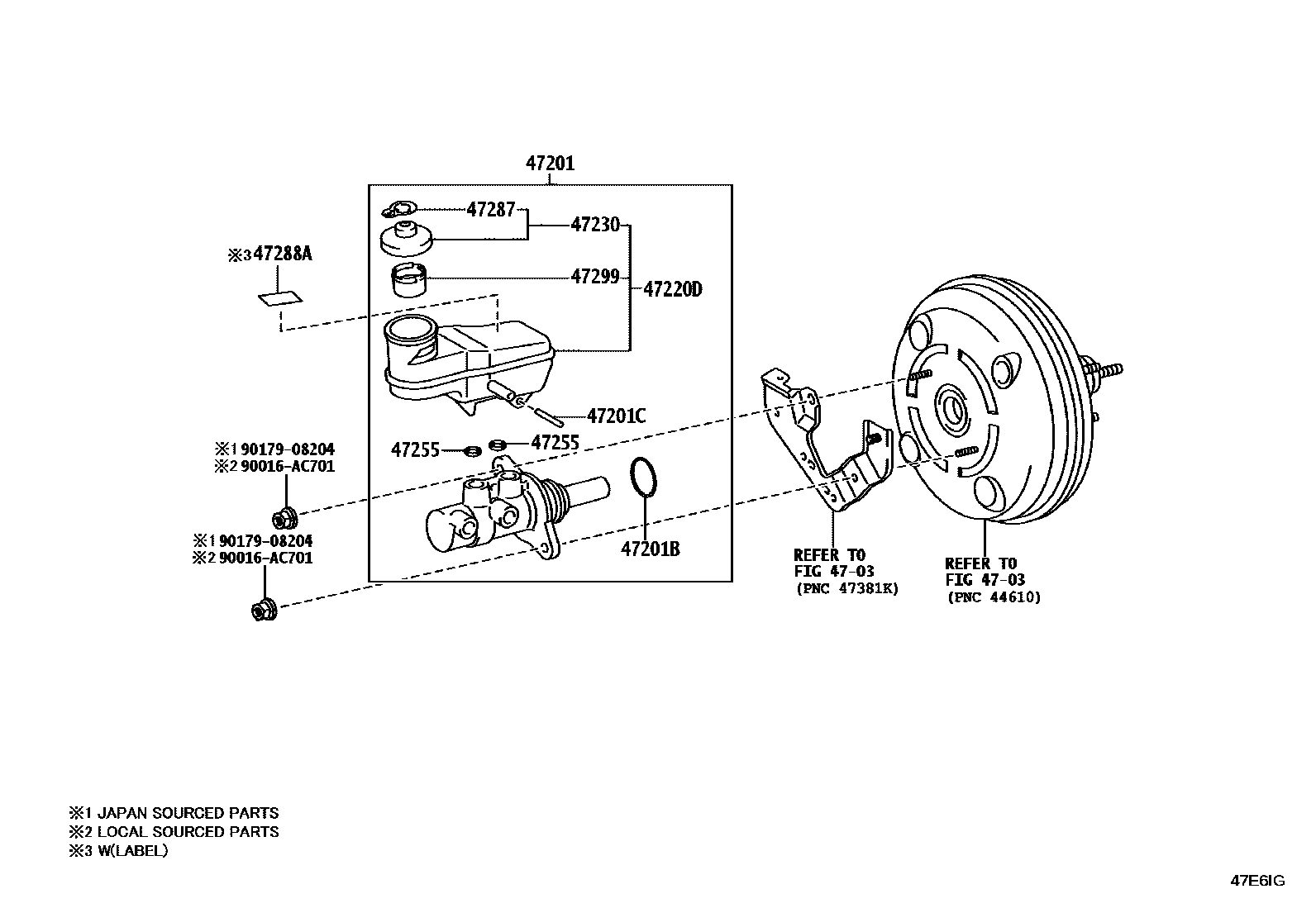

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0K380iGUN120,121..6FC;GUN135..6FC..L..TH; GUN125..6FC..L..GEN202408

VSC-WITHOUT

main47201-0K390iGUN125,135..6F..L..(IDN,TH);GUN121,122,TGN136..RHD..MTM..(SA,TH); GUN125..S..IDN;GUN122,125..RHD..MTM..L..(GEN,KEN,SA)202408

VSC-WITHOUT

main47201-0K400iTGN126..6FC..SA202411

main47201-0K410iGUN122,125..PH;TGN126..L..GEN;TGN136..L..(GEN,SA);GUN135,LAN125,TGN126..LHD..MTM..SA; GUN122..S..GEN;GUN122,TGN121..SAP;GUN125..LHD..L..(GEN,GHA,SA)202408

VSC-WITHOUT

main47201-0K441iGGN125,GUN125,126,13#,TGN126..AGTP..6FC202411

main47201-0K451iGUN125,126,13#,TGN126,136..AGTP..MTM202411

main47201-0K580iTGN126..6FC..(GCC,GEN);GGN125,GUN125,126,135,TGN121..LHD..(CAMP,GHAP,MMRP,SAP,THP)..6FC202408

main47201-0K590iGUN126,135..LHD..THP..6F;TGN126..THP..5F..L..(GCC,LA);TGN126..THP..5F..(H,S)..(GCC,GEN,LA);GUN122,125,136,TGN120,121..LHD..(GHAP,SAP,THP)..MTM..(GCC,GEN,GHA,LA,SA,VN); TGN136..GEN;TGN126..THP..L..SA202408

VSC-WITH(*HSAC & *TSC)

main47201-0K600iGUN126..H..DCRL..IV3202408-202411

main47201-0K610iGUN136,TGN121..MTM..ARL202408-202411

main47201-0K660iGUN126..6FC..IND202412

main47201-0K670iGUN126..6F..IND202412

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

main90016-AH903iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGUN126..IND202412

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0K100iGUN126..H..DCRL..IV3202408-202411

main47220-0K110iGUN136,TGN121..MTM..ARL202408-202411

main47220-0K120iGGN125,GUN125,126,135,TGN121,126..LHD..(CAMP,GHAP,MMRP,SAP,THP)..6FC202408

main47220-0K130iGUN122,125,126,13#,LAN125,TGN12#,136..LHD..(GHAP,SAP,THP)..MTM202408

main47220-0K201iGGN125,GUN125,126,13#,TGN126..AGTP..6FC202411

main47220-0K211iGUN125,126,13#,TGN126,136..AGTP..MTM202411

main47220-0K220iGUN126..6FC..IND202412

main47220-0K230iGUN126..6F..IND202412

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main47230-20140iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001×2iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main90029-48001×2iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

47288ALABEL, BRAKE FLUID NOTICE

main47288-30010iTGN126..(H,S)..GEN202408

main47288-71010iGGN125,GUN122,125,126,TGN12#..GCC202408

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

main47299-0K200iGGN125,GUN125,126,13#,TGN126,136..AGTP202411

90016AC701

main90016-AC701

9017908204

main90179-08204

12 parts on this diagram · 2 diagrams in section
