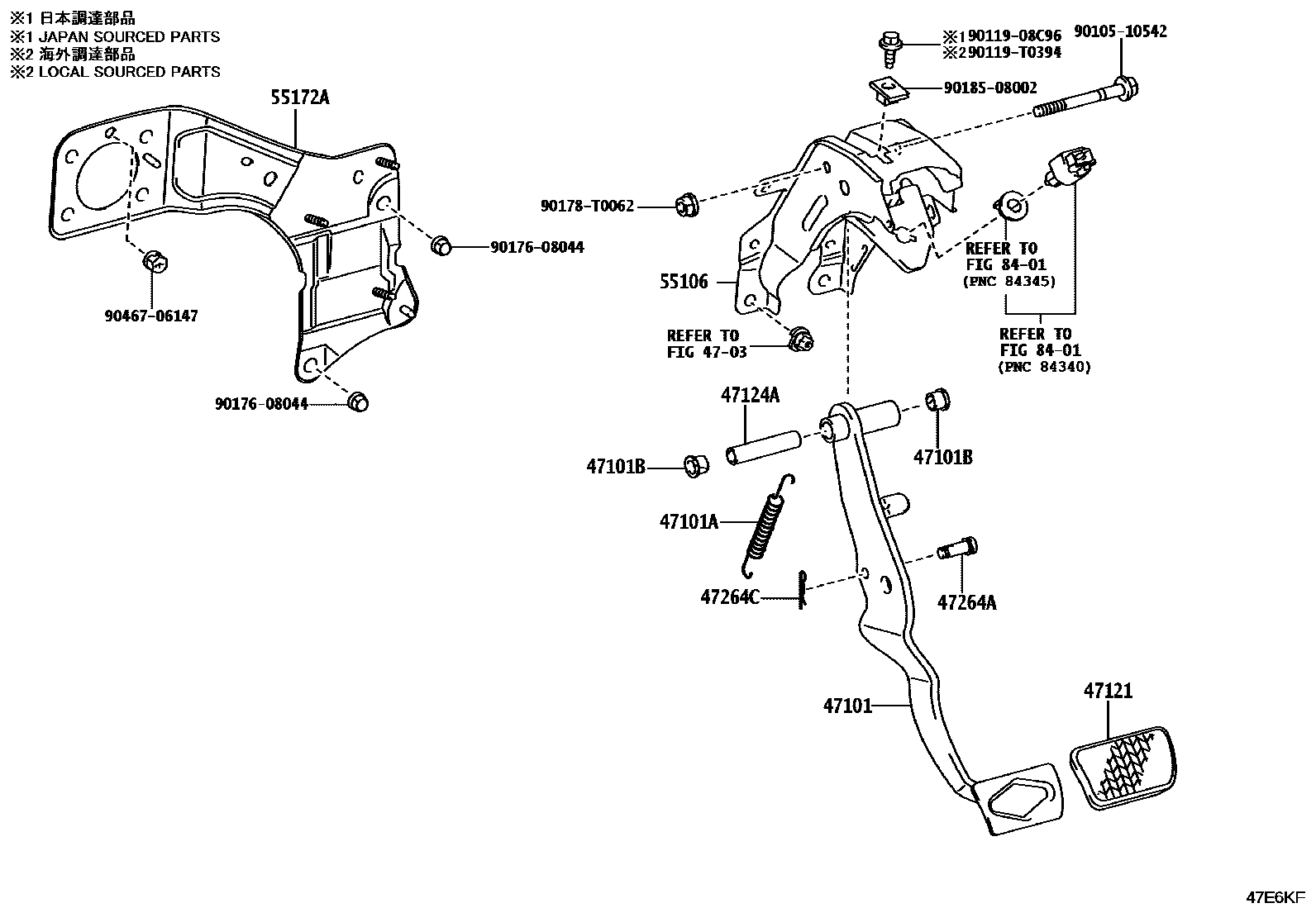

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47101-KK010iGUN126..6F..IND202412

main47101-KK020iGUN122,125,126,13#,LAN125,TGN12#,136..LHD..MTM202408

main47101-KK030iGUN126..6FC..IND202412

main47101-KK040iGGN125,GUN125,126,13#,TGN121,126..LHD..6FC202408

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408

main90507-T0003iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..MA;GUN121..6FC202408

GR SPORT; GR SPORT WIDE TREAD

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

47121PAD, BRAKE PEDAL

main31321-02020iGUN126..6F..IND202412

main47121-02030iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN120,121,125,13#,TGN121,126..6FC;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..6FC..CBU202408

main47121-78010iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..MA;GUN121..6FC202408

GR SPORT; GR SPORT WIDE TREAD

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10121iGUN126..IND202412

main90387-F0002iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

47264APIN(FOR PUSH ROD)

main47148-35010iGUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL202408-202411

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGUN126..IND202412

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136..AGTP,GHAP,KENP,SAP,THP202408

main55106-KK030iGUN125,126..MA202409

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK040iGUN126..IND202412

main55172-KK050iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD202408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510542

main90105-10542

9011908C96

main90119-08C96

90119T0394

main90119-T0394

9017608044

main90176-08044

90178T0062

main90178-T0062

9018508002

main90185-08002

9046706147

main90467-06147

18 parts on this diagram · 2 diagrams in section
