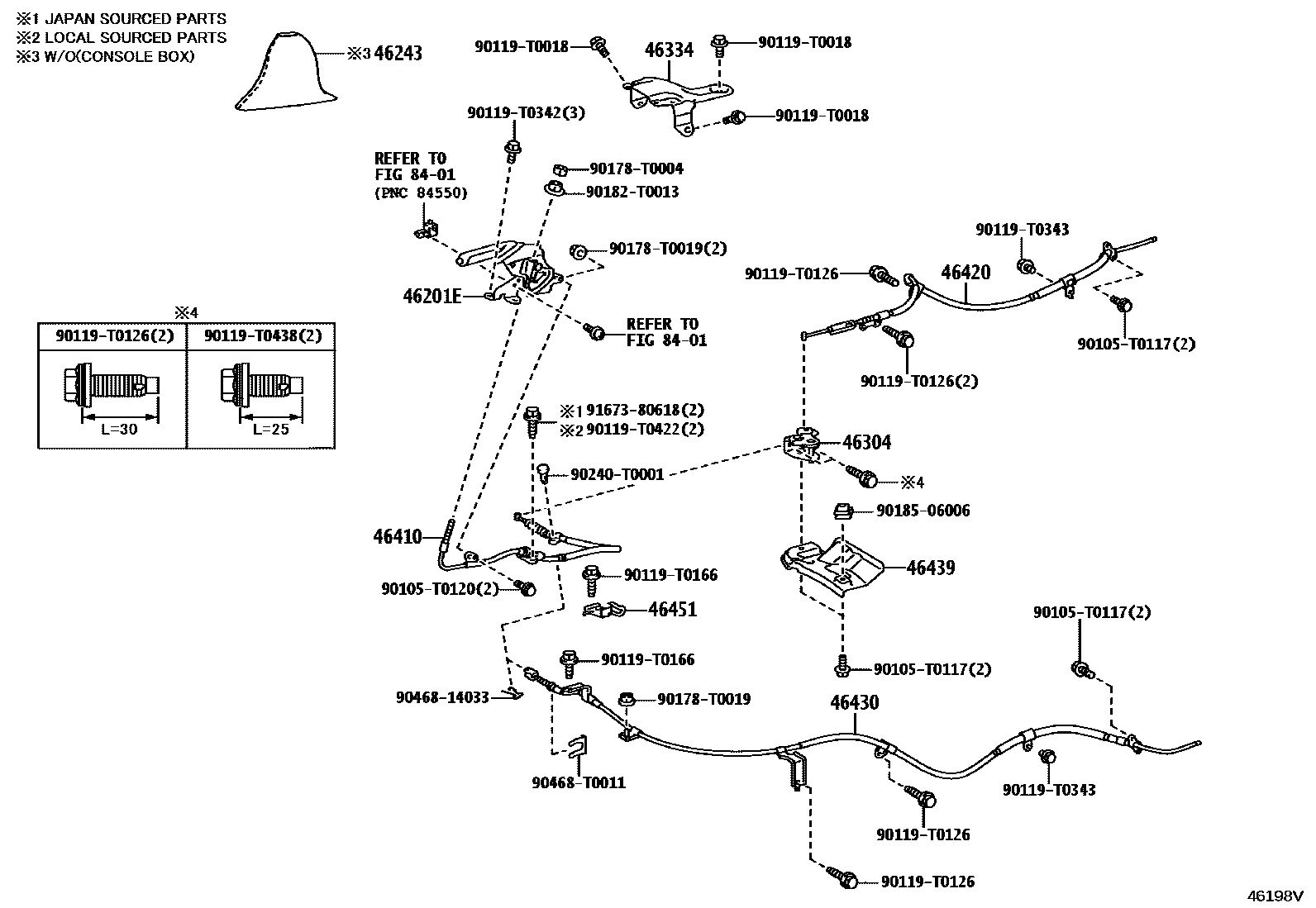

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
BLACK,TRIM2#
BLACK,TRIM2#,TYPE A:REFER ILLUST.
BLACK,TRIM2#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main46201-0K230-C0iGUN135..GEN,PH,TH;GUN126..H..MHV..IV3;GUN125..THP..6FC..(IDN,LA);GUN125..THP..6F..S..(LA,TH);GUN126,135..LHD..THP..S..(GEN,LA);GUN120,121,122,TGN126..THP..(H,S)..(LA,TH);GUN125,136,TGN126..THP..(6F,6FC)..H..(ARL,GEN,LA);GUN126..(CAMP,MAP,MMRP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,TH,TWN,VN)..CBU202408
BLACK,TRIM2#
main46201-0K250-C0iGGN125,GUN122,125,126,TGN12#..GCC; GUN126..RHD..THP..S;GUN125..(L,S)..(GEN,IDN);GUN125,135,TGN126..THP..L..LA;GUN122,136..(5F,6FC)..S..(ARL,GEN);GUN135,TGN126..THP..(L,S)..(ARL,GEN,SA,VN);GUN120,122,126,TGN121,136..THP..L..(GEN,LA,PH,SA,TH);GUN125,TGN121..(MAP,THP)..(6F,6FC)..(ARL,MA,PH,SA,VN)202408
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
GR SPORT WIDE TREAD,BLACK/GR RED,TRIM2#
46243COVER, PARKING BRAKE LEVER
main46243-0K020-C0iGUN122..RHD..GEN;GUN125,TGN121,126..THP..L..SA; GUN122..RHD..GEN;GUN125..THP..L..SA; GUN125..6F..L..GCC;GUN122,TGN12#..5F..(L,S)..GCC; TGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202408
BLACK,TRIM2#; BLACK,TRIM2#,3#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
main46243-0K030-C0iGUN122..SA;GUN125..L..GHA; GUN125,135,LAN125,TGN121,126,136..(KENP,SAP)..L; GUN125,LAN125,TGN121,126..(KENP,SAP)..L202411
BLACK,TRIM2#; FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46334PROTECTOR, INTERMEDIATE LEVER
main46334-KK010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136..AGTP,GHAP,KENP,SAP,THP202408
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
ASIA COLD COUNTRY SPEC; AZERBAIJAN SPEC
main46420-0K370iGUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU; GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU202408
GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD
GR SPORT WIDE TREAD
46430CABLE ASSY, PARKING BRAKE, NO.3
ASIA COLD COUNTRY SPEC; AZERBAIJAN SPEC
main46430-0K210iGUN126..S..IV3;GUN136..LHD..6F;GUN126..H..MHV..IV3;GUN126..(AGTP,CAMP,MAP,MMRP,THP)..CBU;GGN125,GUN125,135,TGN136..AGTP,MAP,THP;GUN136,TGN126..(AGTP,THP)..(5F,6FC)..(ARL,BZAG,GCC,LA,SA)202408
main46430-0K280iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408
GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD
46439INSULATOR, PARKING BRAKE CABLE HEAT
main46439-0K060iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
main46439-0K090iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU202408
GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD
46451BRACKET, CABLE SUPPORT
8401SWITCH & RELAY & COMPUTER
90105T0117
main90105-T0117
90105T0120
main90105-T0120
90119T0018
main90119-T0018
90119T0126
main90119-T0126
90119T0166
main90119-T0166
90119T0342
main90119-T0342
90119T0343
main90119-T0343
90119T0422
main90119-T0422
90119T0438
main90119-T0438
90178T0004
main90178-T0004
90178T0019
main90178-T0019
90182T0013
main90182-T0013
9018506006
main90185-06006
90240T0001
main90240-T0001
9046814033
main90468-14033
90468T0011
main90468-T0011
9167380618
main91673-80618
27 parts on this diagram · 3 diagrams in section
