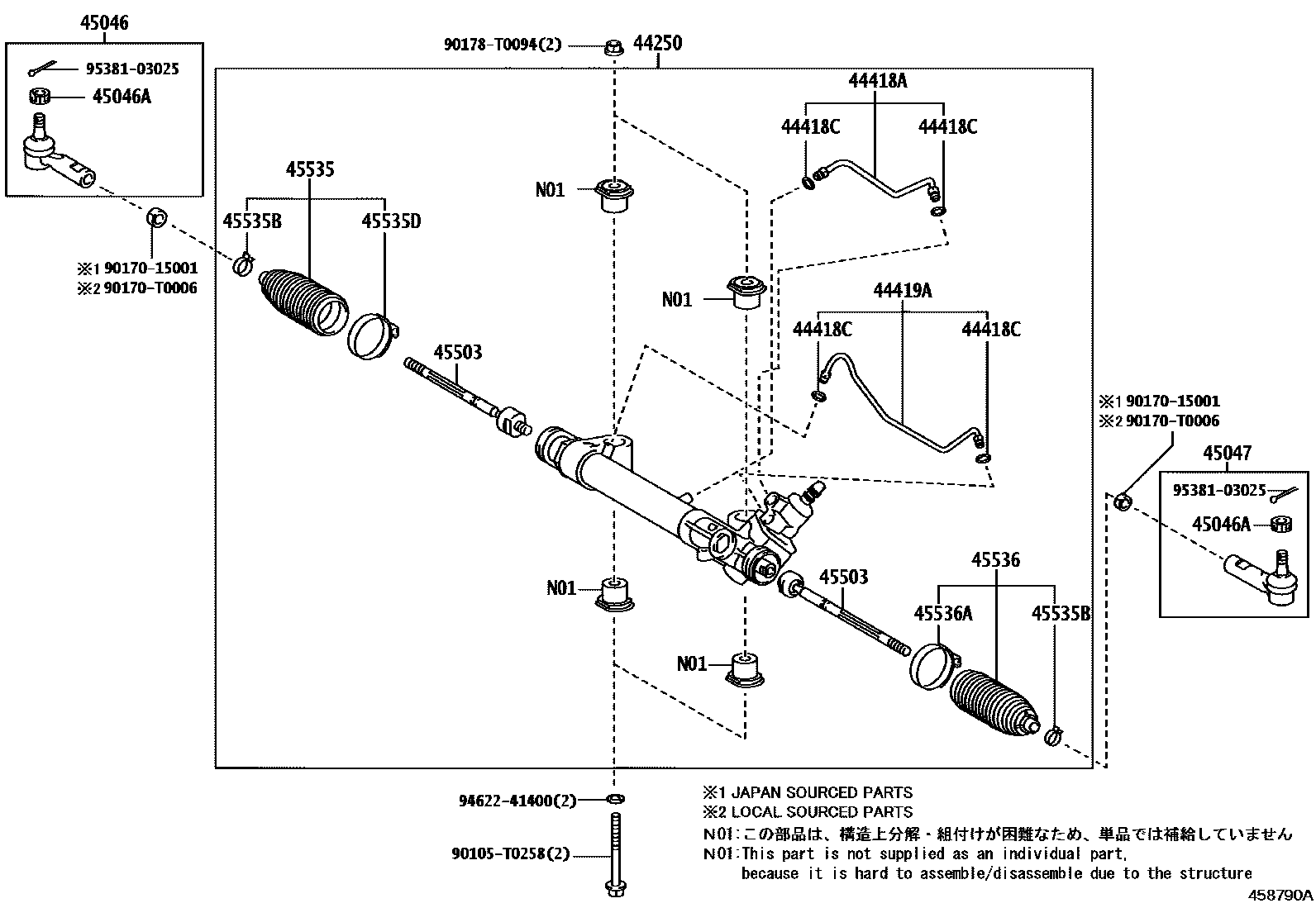

FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
TIRE & DISC WHEEL-205R16C STEEL
main44250-0K713iGUN126..S..IV3;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN125,135..RHD..THP;GUN126..RHD..THP..CBU202408
TIRE & DISC WHEEL-225/70R17C STEEL; TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-205R16C STEEL
TIRE & DISC WHEEL-205R16C STEEL
main44250-0KA21iGUN126,136..6FC..H..ARL..CBU; GUN126..RHD..6FC..H..DCRL..(ARL,SA)..CBU; GUN126..RHD..6FC..H..DCRL..(ARL,SA,TH)..CBU202408
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM
main44250-0KA31iGGN125..GCC;GUN126..6FC..(PH,VN); GUN126..6F..PH;GUN135..6FC..H..PH; GUN126..6FC..PH; GUN126..LHD..6FC..DCRL..(GCC,SA)202408
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); WIDE TREAD
44418ATUBE, STEERING RIGHT TURN PRESSURE
main44418-0K250iGUN126..S..IV3;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN125,135..RHD..THP;GUN126..RHD..THP..CBU202408
44418CRING, O(FOR STEERING TURN PRESSURE TUBE)
44419ATUBE, STEERING LEFT TURN PRESSURE
45046END SUB-ASSY, TIE ROD, RH
main45046-09A30iGGN125..GCC;GUN126..6FC..(PH,VN); GUN126,136..6FC..H..ARL..CBU; GUN126..6F..PH;GUN135..6FC..H..PH; GUN126..6FC..H..DCRL..(ARL,TH)..CBU; GUN126..6FC..PH; GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC)..CBU202408
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
main45046-09A30iGGN125..GCC;GUN126..6FC..(PH,VN); GUN126,136..6FC..H..ARL..CBU; GUN126..6F..PH;GUN135..6FC..H..PH; GUN126..6FC..H..DCRL..(ARL,TH)..CBU; GUN126..6FC..PH; GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC)..CBU202408
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)
45503END SUB-ASSY, STEERING RACK
main45503-0K130×2iGUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408
main45503-0K090×2iGGN125..GCC;GUN126..6FC..(PH,VN); GUN126,136..6FC..H..ARL..CBU; GUN126..6F..PH;GUN135..6FC..H..PH; GUN126..6FC..PH; GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,SA)..CBU; GUN126..RHD..6FC..H..DCRL..(ARL,SA,TH)..CBU202408
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
main90466-T0004×2iGUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..ARL;GUN136,TGN121..LHD..THP;GUN126..(CAMP,MMRP,THP)..CBU;GGN125,GUN120,121,122,125,135,TGN120,126,136..THP202408
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
main45535-09390iGUN126..S..IV3;GUN136..THP..LA;GUN136..6FC..ARL;GUN126..THP..CBU;GUN126..H..MHV..IV3;GGN125,GUN125,135,TGN126,136..THP202408
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
90105T0258
main90105-T0258
9017015001
main90170-15001
90170T0006
main90170-T0006
90178T0094
main90178-T0094
9462241400
main94622-41400
9538103025
main95381-03025
19 parts on this diagram · 4 diagrams in section
