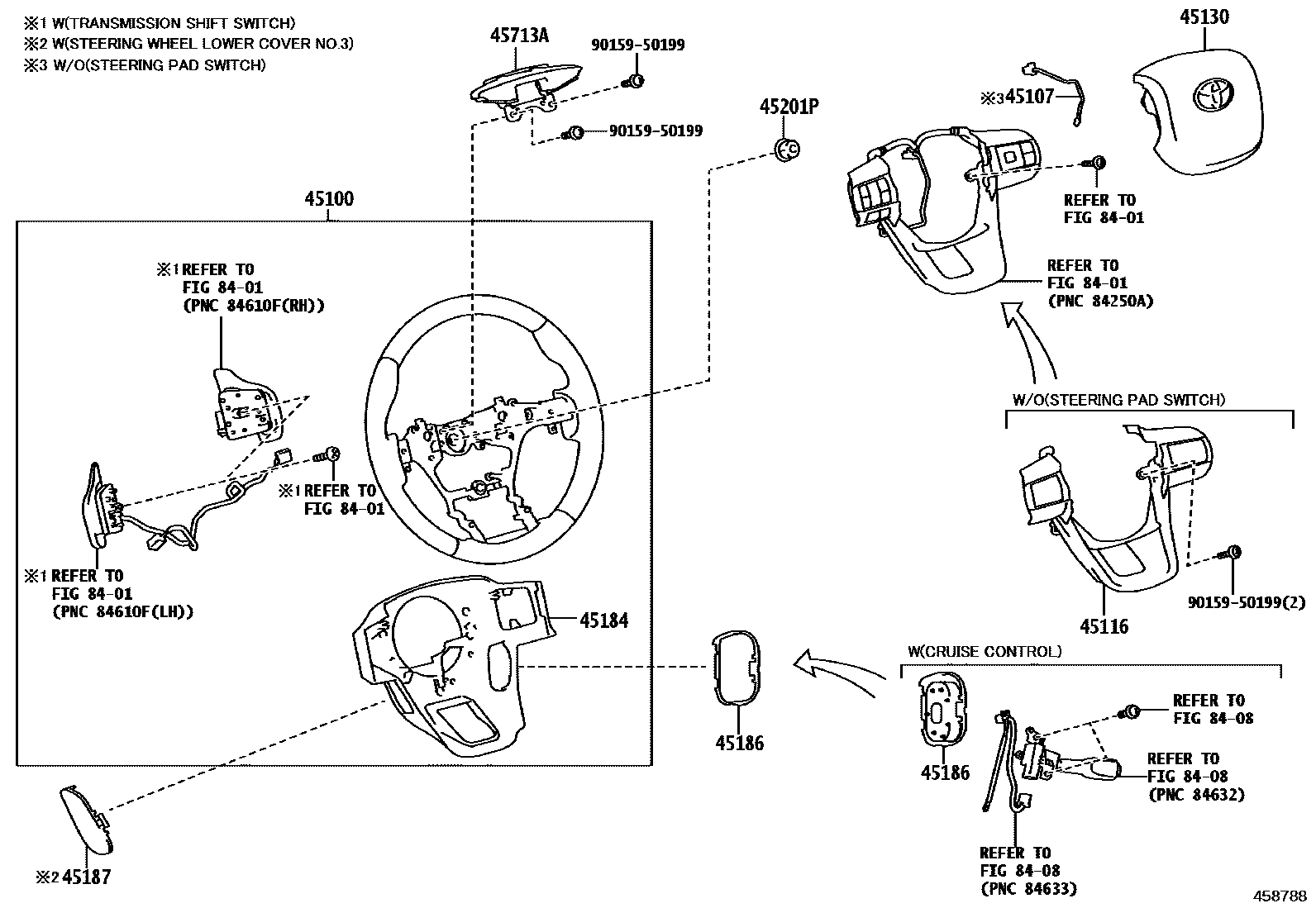

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY NO.205,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#; 3-SPOKE,LEATHER,SEAT COVER MATERIAL-FABLIC(HI),BLACK & GRAY,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
main45100-0KF10-C0iGUN125,TGN136..AGTP..(5F,6FC)..LA; GUN126,135..S..BZAG;GGN125,GUN126,136,TGN126..AGTP..H; GUN126..AGTP..6FC..H202411
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#; 3-SPOKE,LEATHER,GR SPORT WIDE TREAD,BLACK & GRAY,TRIM2#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK & GRAY,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#
3-SPOKE,LEATHER,MLM ADVENTURE PACKAGE&STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#; 3-SPOKE,LEATHER,MLM Z-PLUS PACKAGE&STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#
3-SPOKE,LEATHER,GR SPORT&STEERING WHEEL-GR SPORT(LEATHER)&DOOR TRIM-LEATHER(GR SPORT),BLACK,TRIM2#
3-SPOKE,LEATHER,GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT(LEATHER),BLACK,TRIM2#
3-SPOKE,LEATHER,GR SPORT&STEERING WHEEL-GR SPORT(LEATHER)&DOOR TRIM-LEATHER(GR SPORT),BLACK/GR RED,TRIM2#; 3-SPOKE,LEATHER,GR SPORT&STEERING WHEEL-GR SPORT(LEATHER),BLACK/GR RED,TRIM2#
3-SPOKE,LEATHER,GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT(LEATHER),BLACK/GRAY,TRIM2#
3-SPOKE,LEATHER,GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT(LEATHER),BLACK,TRIM2#
3-SPOKE,LEATHER,GR SPORT WIDE TREAD,BLACK/GR RED GOSEN Y55,TRIM2#
45107WIRE SUB-ASSY, HORN BUTTON
main45107-0K030iGUN122..L..(GCC,GEN);GUN125,TGN121,126..L..GEN; GUN122..THP..L;GUN125,135..6F..VN;GUN125..AGTP..L..LA;TGN126..L..(GEN,LA);GUN120,125,TGN121..L..(GEN,IDN,PH,TH); GUN125,135..THP..L..LA; GUN125,TGN126..LHD..L..GEN; GUN125..VN; GUN125..VN;GUN125..AGTP..L..LA;GUN125..RHD..L..GEN; GUN126..L..LA;GUN125..RHD..L..SA;GUN135..AGTP..L..LA202408
ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITHOUT; MLM Z-PLUS PACKAGE&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); MLM Z-PLUS PACKAGE&STEERING SWITCH-WITH(AUDIO & TELEPHONE); STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER); STEERING SWITCH-WITH(AUDIO & TELEPHONE); STEERING SWITCH-WITHOUT
45116ORNAMENT, STEERING WHEEL, NO.1
main45116-0K030-C0iGUN122..L..GCC; GUN125,135..THP..L..LA; GUN125..VN;TGN126..THP..L..(GEN,LA);GUN125,TGN121..LHD..SAP..L;GUN120,122..L..(GEN,PH,SA,TH);GUN125,135,TGN121..L..(GEN,IDN,PH,VN); GUN126..THP..L202408
ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITHOUT&SPEED METER-KM/H,BLACK,TRIM2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; STEERING SWITCH-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#; CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&STEERING SWITCH-WITHOUT&SPEED METER-KM/H,BLACK,TRIM2#; EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITHOUT&SPEED METER-KM/H,BLACK,TRIM2#; STEERING SWITCH-WITHOUT,BLACK,TRIM2#; URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITHOUT&SPEED METER-KM/H,BLACK,TRIM2#
45130BUTTON ASSY, HORN
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main45130-0K270-C0iGGN125,GUN122,125,126,TGN12#..GCC; GUN12#,13#,TGN121,126,136..(CAMP,MAP,MMRP,THP)..(GEN,IDN,LA,MA,MMR,PH,SA,TH,VN)202408
BLACK,TRIM2#; BLACK,TRIM2#,3#
main45130-0K350-C0iGUN126..S..IV3;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN126..(ARL,TWN)..CBU;GUN125,135,TGN121..(6F,6FC)..ARL202408
BLACK,TRIM2#
45184COVER, STEERING WHEEL BOSS, LOWER
main45184-0K010-C0iGGN125,GUN122,125,126,TGN12#..GCC; GUN126..S..IV3;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN136,TGN121..THP..(GEN,LA,SA);GUN120,121,122,125,135,TGN126,136..(MAP,THP)..(ARL,GEN,IDN,LA,MA,PH,SA,TH,VN);GUN126,TGN121..(CAMP,MAP,MMRP,THP)..(6F,6FC)..(ARL,GEN,LA,MA,MMR,PH,TH,TWN,VN)..CBU202408
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; GR SPORT WIDE TREAD,BLACK,TRIM2#
GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT(LEATHER),BLACK,TRIM2#
MLM ADVENTURE PACKAGE&STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#; MLM Z-PLUS PACKAGE&STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#; STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#
main45186-0K120-C0iGGN125,GUN122,125,126,TGN121,126..H..GCC; GUN125..6F..S..GEN;TGN126..THP..L..SA;GUN125..LHD..L..GEN;GUN126..RHD..6FC..S..GEN; GUN125..LHD..(L,S)..GEN; GUN126..CAMP;GUN125..6FC..L..GEN; GUN126..H..MHV..IV3;GUN126..THP..S..(ARL,LA);GUN125,TGN121..THP..L..SA;GUN13#..6FC..(ARL,GEN,VN);GUN135..THP..6F..(GEN,LA);GUN13#..THP..H..(LA,PH,TH);GUN125,TGN121..THP..(6F,6FC)..(ARL,LA);GUN125,126,TGN126..(MAP,MMRP,THP)..H..(ARL,GEN,LA,MA,MMR,PH,TH,TWN,VN)..CBU202408
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; CRUISE CONTROL-WITH,BLACK,TRIM2#; MLM Z-PLUS PACKAGE&CRUISE CONTROL-WITH,BLACK,TRIM2#
main45186-0K130-C0iGUN122,125,TGN12#..(L,S)..GCC; GUN125..THP..6F..H;GUN126..THP..H..GEN;GUN126..6FC..DCRL..GCC;GUN126..THP..6F..H..LA; GUN125..THP..L..SA;GUN126..THP..6F..H..LA;GUN125,126,TGN126..THP..H..GEN; GUN126..6FC..DCRL..GCC; GUN126..6FC..DCRL..GCC;GUN125,TGN121,126..H..GCC; GUN126..CAMP;GUN135..L..VN;GUN126..THP..L;GUN125..H..IDN;GUN125..THP..S..SA;GUN135..(L,S)..(PH,TH);TGN126..THP..(L,S)..(GEN,LA,SA);GUN12#,TGN121,136..(L,S)..(GEN,IDN,MA,PH,TH,VN); GUN126..RHD..6FC..H..GEN;GUN125,TGN126..LHD..H..GEN; GUN126..THP..S..LA;GUN125,135..THP..LA202408
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; CRUISE CONTROL-WITHOUT,BLACK,TRIM2#; CRUISE CONTROL-WITHOUT,BLACK,TRIM2#,3#; GR SPORT WIDE TREAD&CRUISE CONTROL-WITHOUT,BLACK,TRIM2#; MLM ADVENTURE PACKAGE&CRUISE CONTROL-WITHOUT,BLACK,TRIM2#; MLM Z-PLUS PACKAGE&CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
main45186-0K140-C0iGUN125,135..RHD..S..SA; GUN125..LHD..SAP..(H,L);GGN125,GUN122,126,13#,TGN121..(GHAP,KENP,SAP)..(H,L); TGN126..SAP..5F;GUN125,135,TGN136..RHD..S..SA202411
BLACK,TRIM2#; CRUISE CONTROL-WITH,BLACK,TRIM2#; MLM Z-PLUS PACKAGE&CRUISE CONTROL-WITH,BLACK,TRIM2#
main45186-0K150-C0iGUN125,135..LHD..SAP..L; GUN125..L..GHA;GUN125,135..RHD..(KEN,SA);GUN125..LHD..(GHAP,SAP)..S;GUN126,LAN125,TGN126,136..SAP..(L,S); TGN121..SAP202411
BLACK,TRIM2#; CRUISE CONTROL-WITHOUT,BLACK,TRIM2#; NIGERIA SPEC,BLACK,TRIM2#
main45186-0K160-C0iGUN125,135..6F..L..BZAG;GGN125,GUN126,136,TGN126..AGTP..(6F,6FC)..H; GUN126..AGTP..6FC..S..LA; GUN126..S..BZAG;GUN135..AGTP..S;GUN125..AGTP..LA;GUN135..AGTP..L..LA;GUN126..AGTP..6F..S..LA;GUN125,135..6FC..L..BZAG; GUN126..S..BZAG;GUN135..AGTP..S;GUN135..AGTP..L..LA;TGN126..AGTP..5F..H;GUN126..AGTP..6F..S..LA;GUN125,TGN136..AGTP..LA;GUN125,135..6FC..L..BZAG202411
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM2#; BLACK,TRIM2#; CRUISE CONTROL-WITH (HIGH SPEED *ACC),BLACK,TRIM2#; CRUISE CONTROL-WITH,BLACK,TRIM2#
main45186-0K170-C0iGUN135..AGTP..S;GUN125..AGTP..LA;TGN126..AGTP..5F;GUN135..AGTP..L..LA;GUN125,135..6FC..L..BZAG;GUN126,TGN136..AGTP..(L,S); TGN126..6FC..LA;GUN126..AGTP..6F..H..LA202411
BLACK,TRIM2#; CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
45187COVER, STEERING WHEEL, LOWER NO.3
main45187-0K050-C0iGGN125,GUN122,125,126,TGN12#..GCC; GUN126..S..IV3;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN136,TGN121..THP..(GEN,LA,SA);GUN120,121,122,125,135,TGN126,136..(MAP,THP)..(ARL,GEN,IDN,LA,MA,PH,SA,TH,VN);GUN126,TGN121..(CAMP,MAP,MMRP,THP)..(6F,6FC)..(ARL,GEN,LA,MA,MMR,PH,TH,TWN,VN)..CBU202408
BLACK,TRIM2#; BLACK,TRIM2#,3#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
9015950199
main90159-50199
12 parts on this diagram · 1 diagram in section
