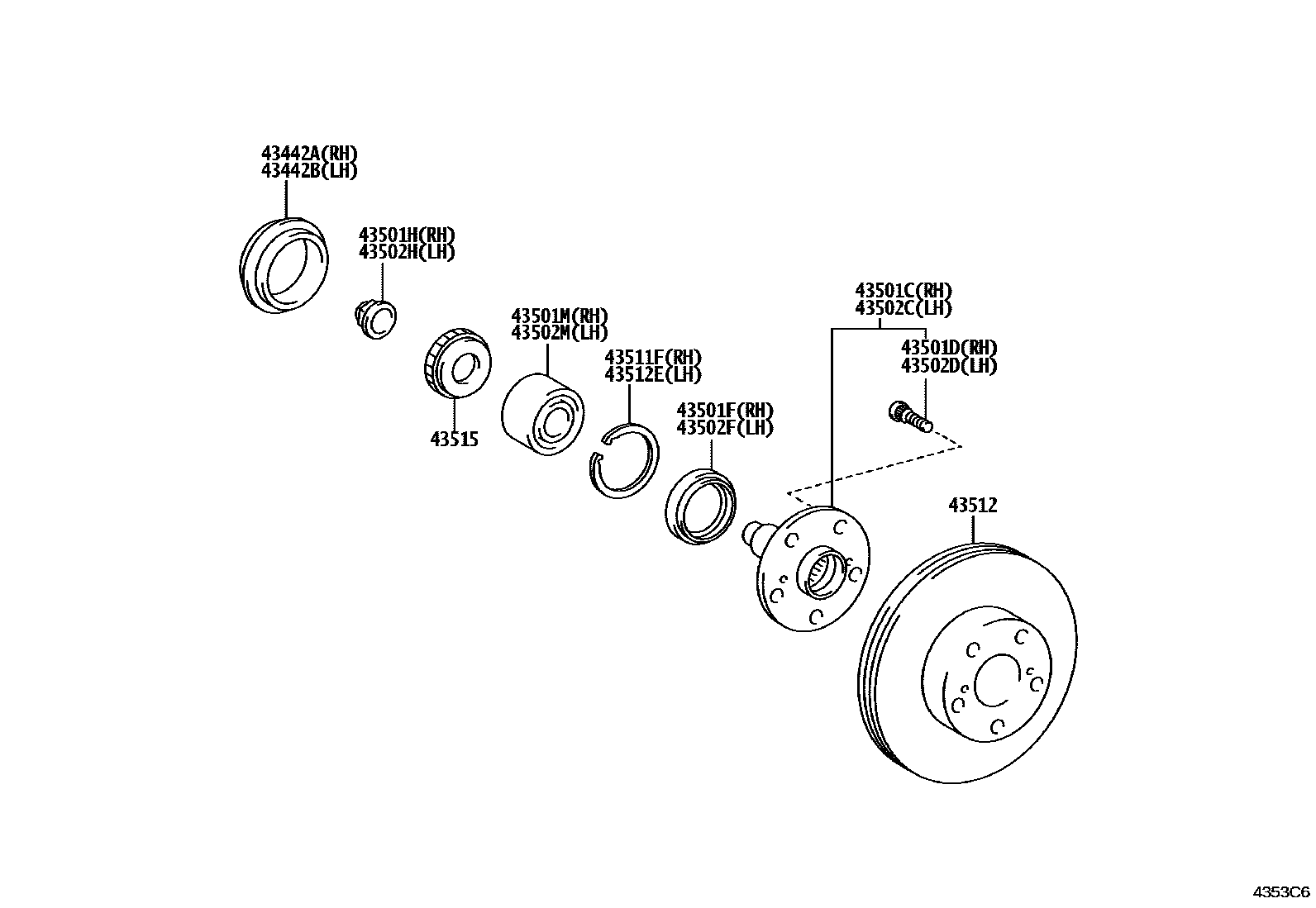

FRONT AXLE HUB
43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH
43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02081×6iGUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136; TGN121..6FC..ARL;GUN120,121,122,TGN120,121..THP..(GCC,GEN,PH,SA,TH)202408
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
main90312-T0001iGUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136202408
43501HNUT (FOR FRONT AXLE SHAFT RH)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
main90366-T0061iGUN126..S..IV3;GUN136..LHD..6F;GUN126..H..MHV..IV3;GUN136..6FC..(ARL,BZAG);GGN125,GUN125,135,TGN126,136..AGTP,MAP,THP;GUN126..(AGTP,CAMP,INDP,MAP,MMRP,THP)..CBU202408
43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43512DISC, FRONT
VSC-WITHOUT
main43512-0K230×2iGUN126..S..IV3;GUN136..6F..SA;TGN126..SAP..S;GUN136..RHD..6FC;GUN126..H..MHV..IV3;TGN126..THP..(GCC,GEN,SA);GGN125,GUN125,135..ARL,GCC,GEN,GHA,IDN,KEN,MA,PH,SA,TH,VN;GUN126,TGN136..(H,S)..(ARL,GCC,GEN,GHA,KEN,MA,MMR,PH,SA,TH,TWN,VN)..CBU202408
main43512-0K270×2iGUN125,126,136,TGN126..THP..LA;GUN135,TGN136..THP..(L,S)..(GEN,LA); GUN125,126..RHD..S..GEN;GUN125..RHD..6F..L..GEN;GUN126..RHD..6FC..H..GEN202408
CENTRAL AND SOUTH AMERICA SPEC
main43512-0K210×2iGUN126..6F..PH;GUN13#..6FC..H..(ARL,PH); GUN126..6FC..H..(ARL,PH)..CBU; GUN126..6FC..H..DCRL..(ARL,GCC,PH,TH)..CBU; GUN126..VN;GGN125..GCC; GUN136..H..ARL202408
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); WIDE TREAD
VSC-WITHOUT
GR SPORT WIDE TREAD
43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43515ROTOR, SKID CONTROL, FRONT
16 parts on this diagram · 3 diagrams in section
