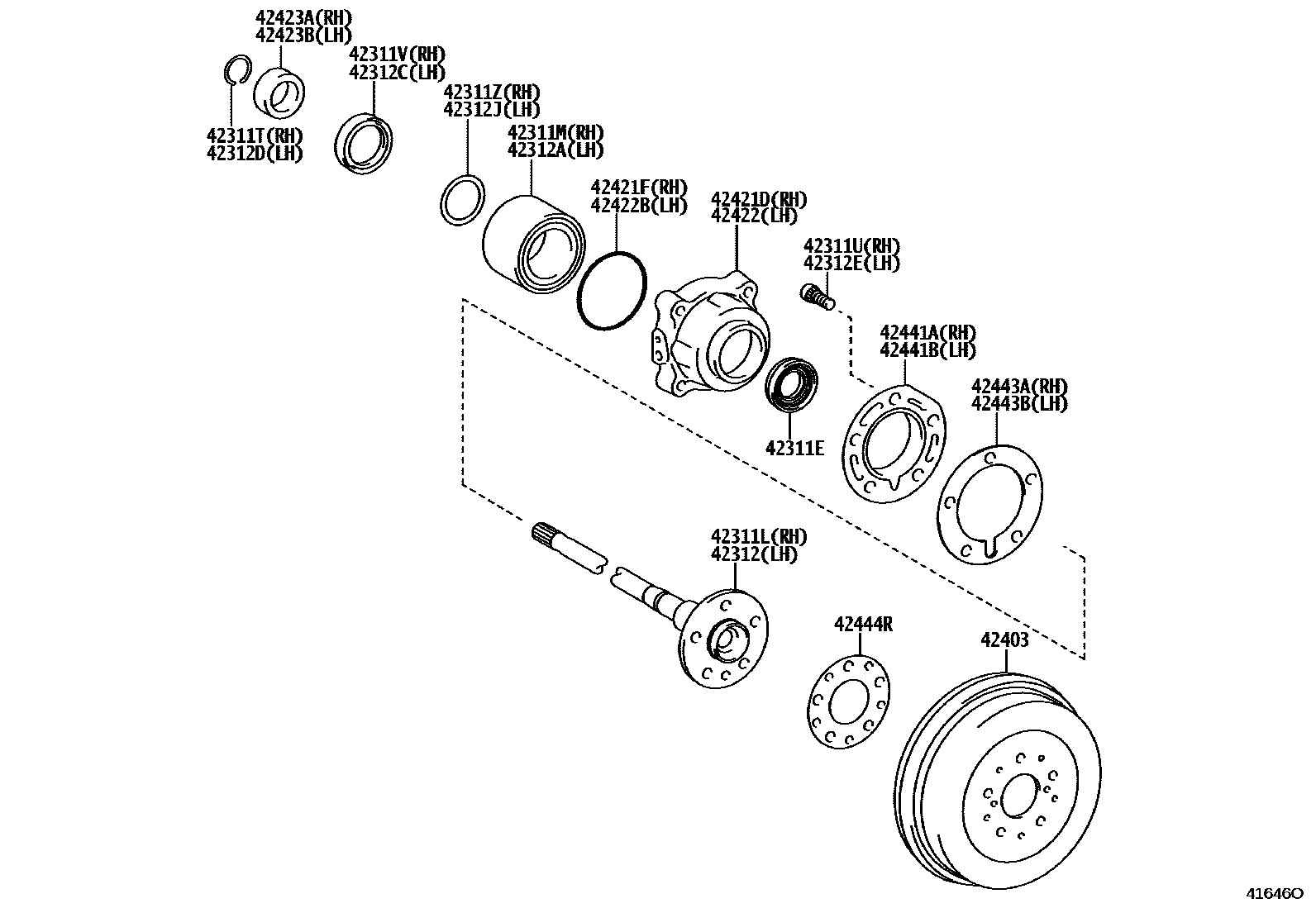

REAR AXLE SHAFT & HUB
42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)
42311LSHAFT, REAR AXLE, RH
SAUDI ARABIA SPEC
main42311-KK070iGGN125,GUN126..6FC..(DCRL,HTWC)..GCC; GGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU; GUN136..H..ARL202408
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT; MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT
42311MBEARING(FOR REAR AXLE SHAFT RH)
VSC-WITHOUT
42311TRING, SNAP(FOR REAR AXLE SHAFT RH)
42311UBOLT, HUB(FOR REAR AXLE RH)
main90942-02081×5iGUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136; TGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408
42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)
42311ZWASHER(FOR REAR AXLE SHAFT RH)
main90208-T0001iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
42312SHAFT, REAR AXLE, LH
SAUDI ARABIA SPEC
main42311-KK070iGGN125,GUN126..6FC..(DCRL,HTWC)..GCC; GGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU; GUN136..H..ARL202408
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT; MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT
42312ABEARING(FOR REAR AXLE SHAFT LH)
VSC-WITHOUT
main90366-T0060iGUN126..S..IV3;GUN136..LHD..6F;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG);GUN122,TGN121..GCC,GEN,PH,SA,TH;GUN126..(AGTP,CAMP,INDP,MAP,MMRP,THP)..CBU;GGN125,GUN120,121,125,135,TGN120,126,136..AGTP,MAP,THP202408
42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)
main90310-T0008iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
42312DRING, SNAP(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
main90942-02081×6iGUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136; TGN121..6FC..ARL;GUN120,121,122,TGN120,121..GCC,GEN,PH,SA,TH202408
42312JWASHER(FOR REAR AXLE SHAFT LH)
main90208-T0001iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
42403DRUM SUB-ASSY, REAR BRAKE
VSC-WITHOUT
42421DCASE, REAR AXLE BEARING, RH
main42421-KK050iGGN125,GUN126..6FC..(DCRL,HTWC)..GCC; GGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU; GUN136..H..ARL202408
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT; MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT
42421FRING, O (FOR REAR AXLE BEARING CASE RH)
42422CASE, REAR AXLE BEARING, LH
main42422-KK050iGGN125,GUN126..6FC..(DCRL,HTWC)..GCC; GGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU; GUN136..H..ARL202408
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT; MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT
42422BRING, O (FOR REAR AXLE BEARING CASE LH)
main90301-T0043iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
42423ARETAINER, REAR AXLE BEARING, INNER RH
main42423-KK010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
42423BRETAINER, REAR AXLE BEARING, INNER LH
42441ADEFLECTOR, BRAKE DRUM OIL RH
main42441-KK010iGUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136202408
42441BDEFLECTOR, BRAKE DRUM OIL LH
42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH
42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH
main42443-60010iGUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136202408
42444RGASKET, BRAKE DRUM (FOR REAR AXLE)
main42444-35050×2iGGN125..GCC;GUN126..AGTP..6FC..H..LA;GUN126..6FC..H..DCRL..(ARL,BZAG,GCC,PH,SA,TH,VN)..CBU; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU; GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,135,LAN125,TGN126,136;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408
GR SPORT WIDE TREAD; MLM ADVENTURE WIDE TREAD
25 parts on this diagram · 2 diagrams in section
