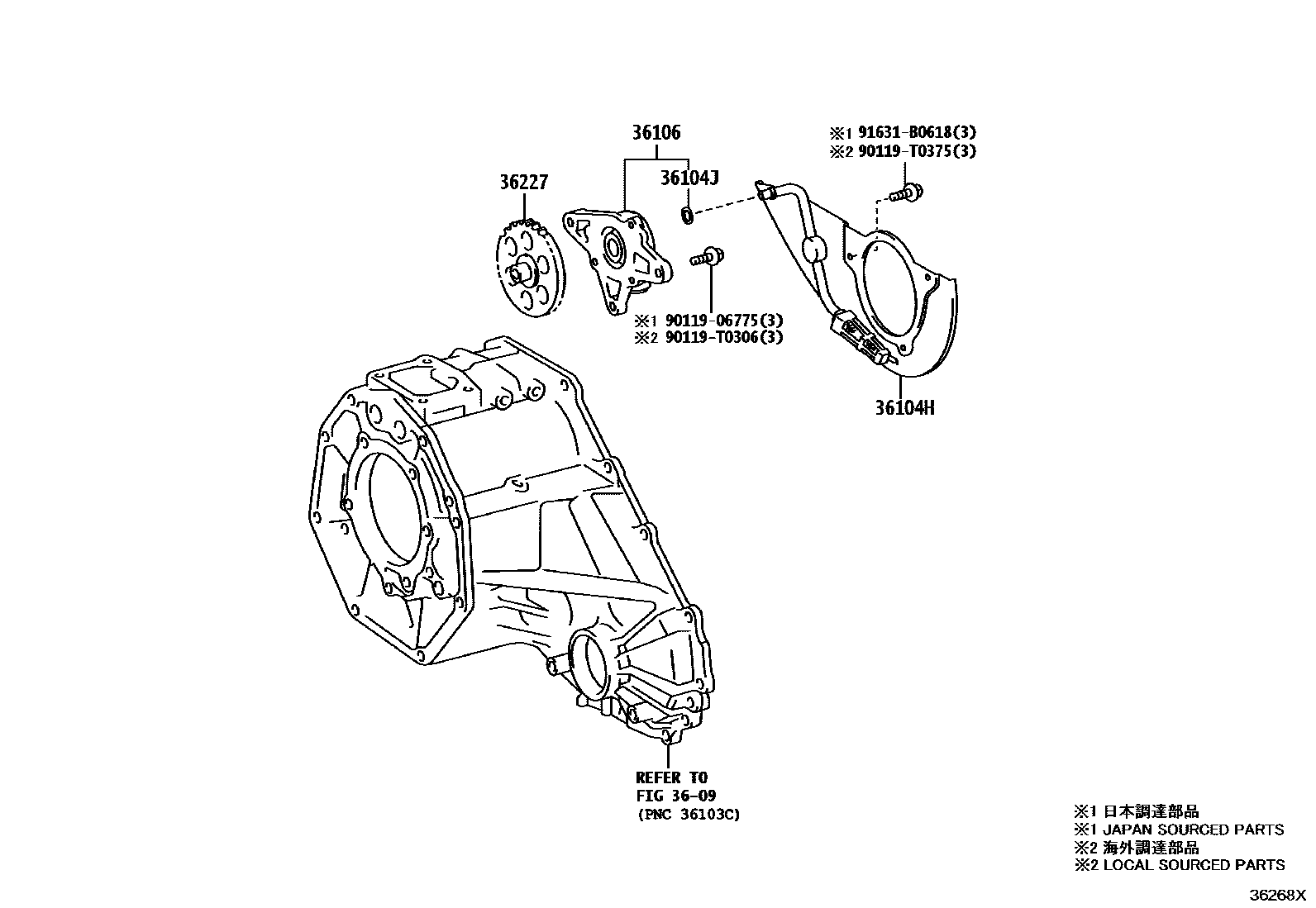

TRANSFER OIL PUMP

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35021iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126; GUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F..(BZAG,GCC,LA,PH);GUN125..ARL,BZAG,GEN,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN202408

*381; *382

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iGUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU202408

*382,*381

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-04010iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36106-35070iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F..(BZAG,GCC,LA,PH);GUN125..ARL,BZAG,GEN,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN202408

*381

36227GEAR, TRANSFER OIL PUMP

main36227-0K011iGUN126..CBU;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GUN125,LAN125,TGN126202408

*382

main36227-35021iGUN126..S..IV3;GUN126..RHD..CBU;GUN126..LHD..6FC;GUN125..6FC..GCC;GUN126..H..MHV..IV3;GGN125,LAN125,TGN126;GUN125..6F..(H,L)..GCC;GUN126..LHD..6F..H..GEN;GUN126..6F..(BZAG,GCC,LA,PH);GUN125..ARL,BZAG,GEN,GHA,IDN,KEN,LA,MA,PH,SA,TH,VN202408

*381

9011906775

main90119-06775

90119T0306

main90119-T0306

90119T0375

main90119-T0375

91631B0618

main91631-B0618

9 parts on this diagram · 1 diagram in section
