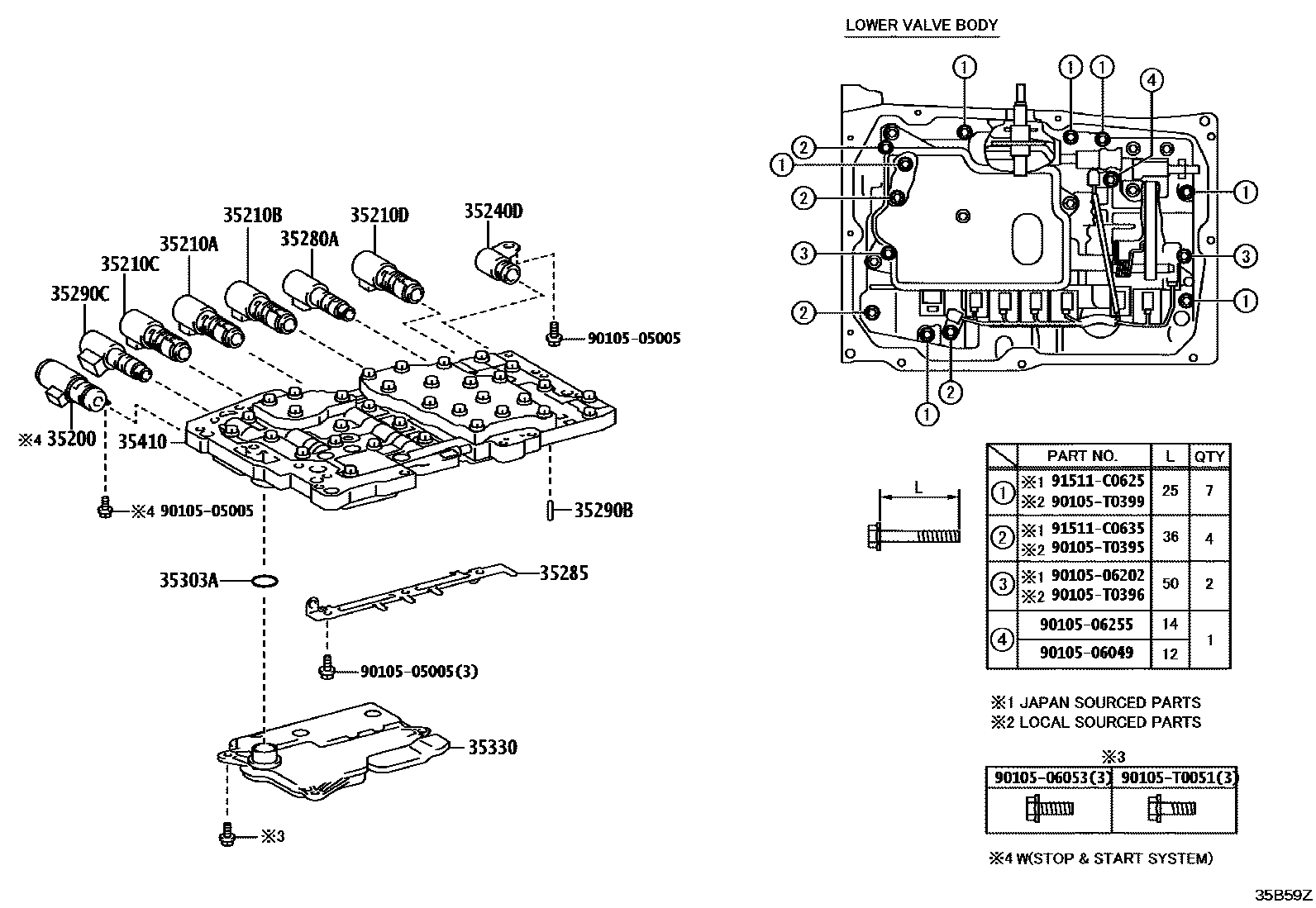

VALVE BODY & OIL STRAINER (ATM)
35200PUMP ASSY, OIL, W/SOLENOID
TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 35-01; TYPE B:REFER 35-01
35210AVALVE, SOLENOID(SL1)
main35210-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35210BVALVE, SOLENOID(SL3)
main35210-71010iGUN125..(AGTP,KENP,SAP)..6FC;GUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GUN136,TGN126..(AGTP,SAP)..6FC..(HTWC,MHV);GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35210CVALVE, SOLENOID(SL2)
TYPE A:REFER 35-01
35210DVALVE, SOLENOID(SL4)
main35210-71010iGUN125..(AGTP,KENP,SAP)..6FC;GUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GUN136,TGN126..(AGTP,SAP)..6FC..(HTWC,MHV);GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35240DVALVE, SOLENOID(SL)
main35240-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35280AVALVE, SOLENOID(SLU)
main35280-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
(L),TYPE B:REF.35-01
main35280-71020iGUN126..6FC..DCRL..GCC; GUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..TH202408
(J),TYPE A:REF.35-01; TOYOTA STOP & START SYSTEM-WITH,(J),TYPE A:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,(J),TYPE A:REF.35-01
35285PLATE, SOLENOID LOCK
main35285-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
TYPE B:REFER 35-01
main35285-71010iGUN126..6FC..DCRL..GCC; GUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)
main90250-03045×6iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35290CVALVE, SOLENOID(SLT)
main35290-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
(L),TYPE B:REF.35-01
main35290-71030iGUN126..6FC..DCRL..GCC; GUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..TH202408
(J),TYPE A:REF.35-01; TOYOTA STOP & START SYSTEM-WITH,(J),TYPE A:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,(J),TYPE A:REF.35-01
35303ARING, O (FOR OIL STRAINER)
main90301-27010iGUN126..6FC..DCRL..GCC; GUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
main90301-T0071iGUN125..6FC..H..GCC; GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
TOYOTA STOP & START SYSTEM-WITH; TYPE B:REFER 35-01
35330STRAINER ASSY, VALVE BODY OIL
main35330-0K010iGUN125..6FC..H..GCC; GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
TOYOTA STOP & START SYSTEM-WITH; TYPE B:REFER 35-01
TYPE A:REFER 35-01
35410BODY ASSY, TRANSMISSION VALVE
main35410-0K031iGUN126..6FC..S..DCRL..IV3;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC;GUN126..(CAMP,MAP,MMRP,THP)..6FC..DCRL..(ARL,GCC,GEN,LA,MA,MMR,PH,TWN,VN)..CBU; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE B:REFER 35-01; TYPE B:REFER 35-01
TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 35-01; TYPE B:REFER 35-01
main35410-71103iGUN126..6FC..DCRL..GCC; GUN126..6FC..S..DCRL..IV3;GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC..(DCRL,HTWC);GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..DCRL..(ARL,BZAG,GCC,GEN,GHA,KEN,LA,PH,SA,TWN,VN)..CBU; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
TYPE A:REFER 35-01
9010505005
main90105-05005
9010506049
main90105-06049
9010506053
main90105-06053
9010506202
main90105-06202
9010506255
main90105-06255
90105T0051
main90105-T0051
90105T0395
main90105-T0395
90105T0396
main90105-T0396
90105T0399
main90105-T0399
91511C0625
main91511-C0625
91511C0635
main91511-C0635
24 parts on this diagram · 2 diagrams in section
