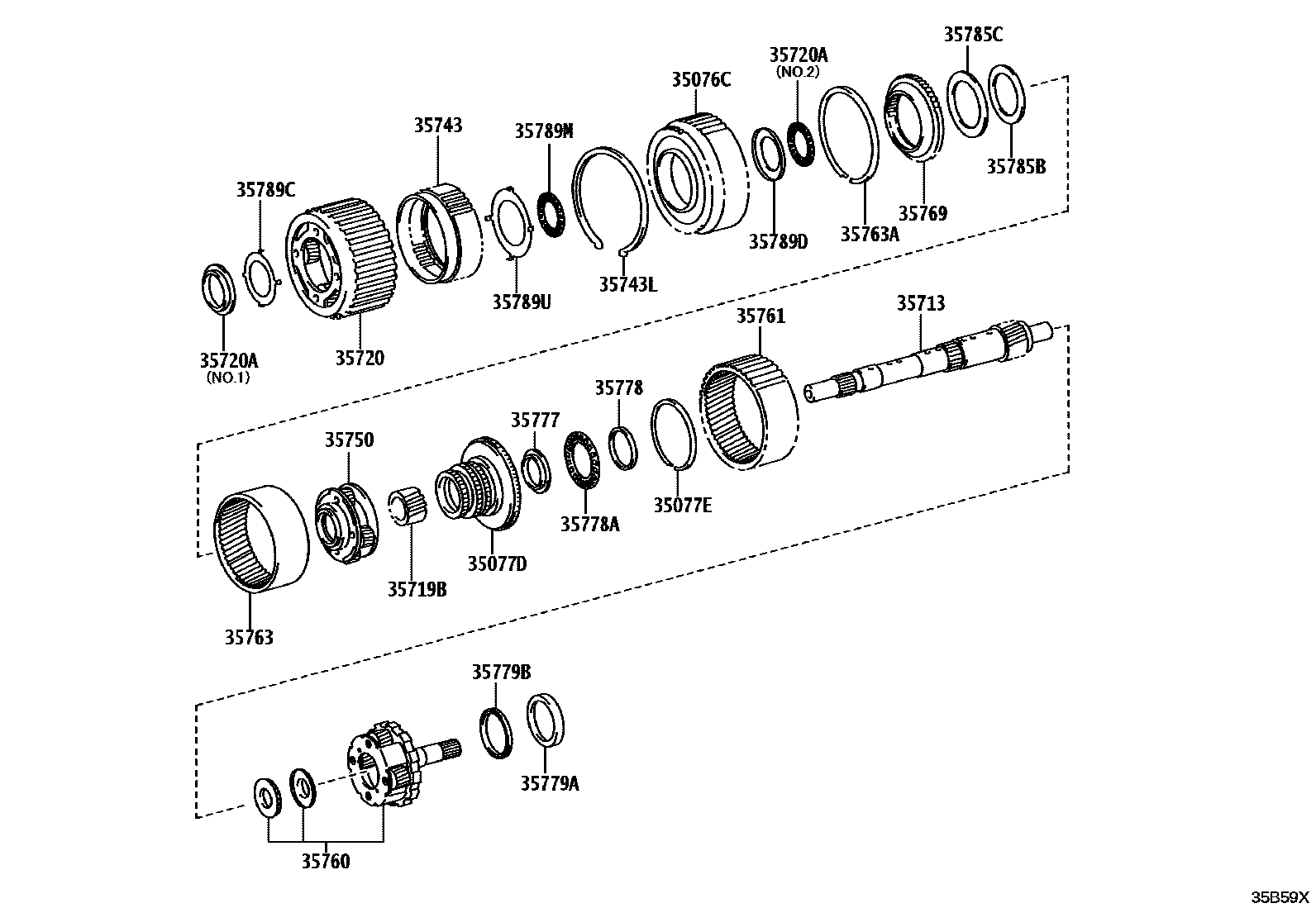

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
main35076-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
main35077-0K010iGUN126..6FC..DCRL..GCC; GUN126..6FC..S..DCRL..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..DCRL..(ARL,GCC,GEN,LA,MA,MMR,PH,TWN,VN)..CBU; GUN126..6FC..TH; GUN126..6FC..TH;GUN126..THP..MHV;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
(J),TYPE B:REF.35-01; (L),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITH,(L),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,(J),TYPE B:REF.35-01
TYPE A:REFER 35-01
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
main90520-99073iGUN126..6FC..DCRL..GCC; GUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
main90520-T0293iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121..(MAP,THP)..6FC; TGN126..THP..6FC202408
TYPE B:REFER 35-01
35713SHAFT, INTERMEDIATE
(L),TYPE B:REF.35-01
main35713-0K020iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN121,126,136..(CAMP,MAP,MMRP,THP)..6FC..CBU202408
(L),TYPE B:REF.35-01
main35713-60100iGUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GUN126,136..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN121,126,136..(CAMP,MAP,MMRP,THP)..6FC..CBU; GUN126..6FC..TH202408
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
main35713-71010iGGN125,GUN120,125,135,TGN121,126..(MAP,THP)..6FC; GUN125,TGN126..(AGTP,KENP,SAP)..6FC;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)202408
(J),TYPE B:REF.35-01; TYPE A:REFER 35-01
35719BGEAR, PLANETARY SUN
main35719-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35720GEAR ASSY, FRONT PLANETARY
main35720-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
main90374-37009iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
T/P A:REF.35-01,NO.1; T/P B:REF.35-01,NO.1; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.1
T/P A:REF.35-01,NO.2
35743GEAR, FRONT PLANETARY RING
main35743-71010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH; TGN126..(AGTP,SAP)..6FC;GUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126,136..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN)202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35743LRING, SNAP (FOR PLANETARY RING GEAR)
main90520-99160iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35750GEAR ASSY, CENTER PLANETARY
main35750-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126,136..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
TYPE A:REFER 35-01
35760GEAR ASSY, REAR PLANETARY
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
main35760-71100iGUN126..6FC..DCRL..GCC; GUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35761GEAR, REAR PLANETARY RING
main35761-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35763GEAR, CENTER PLANETARY RING
main35763-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
main90520-99161iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35769FLANGE, PLANETARY RING GEAR, CTR
main35769-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35777RACE, THRUST BEARING, NO.7
main35777-60010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121..(MAP,THP)..6FC; GUN126..6FC..TH; TGN126..THP..6FC202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35778RACE, THRUST BEARING, NO.8
main35778-60010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121..(MAP,THP)..6FC; GUN126..6FC..TH; TGN126..THP..6FC202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35778ABEARING, THRUST NEEDLE ROLLER
main90374-32010iGGN125,GUN120,125,135,TGN121..(MAP,THP)..6FC; GUN125,TGN126..(AGTP,KENP,SAP)..6FC;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN); TGN126..THP..6FC202408
TYPE A:REFER 35-01; TYPE B:REFER 35-01
main90374-32012iGUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GUN126,136..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN121,126,136..(CAMP,MAP,MMRP,THP)..6FC..CBU; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35779ARACE, THRUST BEARING, NO.9
main35779-60011iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121..(MAP,THP)..6FC; GUN126..6FC..TH; TGN126..THP..6FC202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35779BBEARING, THRUST NEEDLE ROLLER
main90374-43007iGUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC..(DCRL,HTWC);GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121..(MAP,THP)..6FC; GUN126..6FC..TH; GUN136..MHV;TGN126..THP..6FC202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35785BRACE, THRUST BEARING, NO.4
main35785-60010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35785CBEARING, THRUST NEEDLE ROLLER
main90374-55004iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
main35789-71030iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
main35789-71050iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35789MBEARING, THRUST NEEDLE ROLLER
main90374-63002iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35789URACE, THRUST BEARING
main35789-71040iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
26 parts on this diagram · 2 diagrams in section
