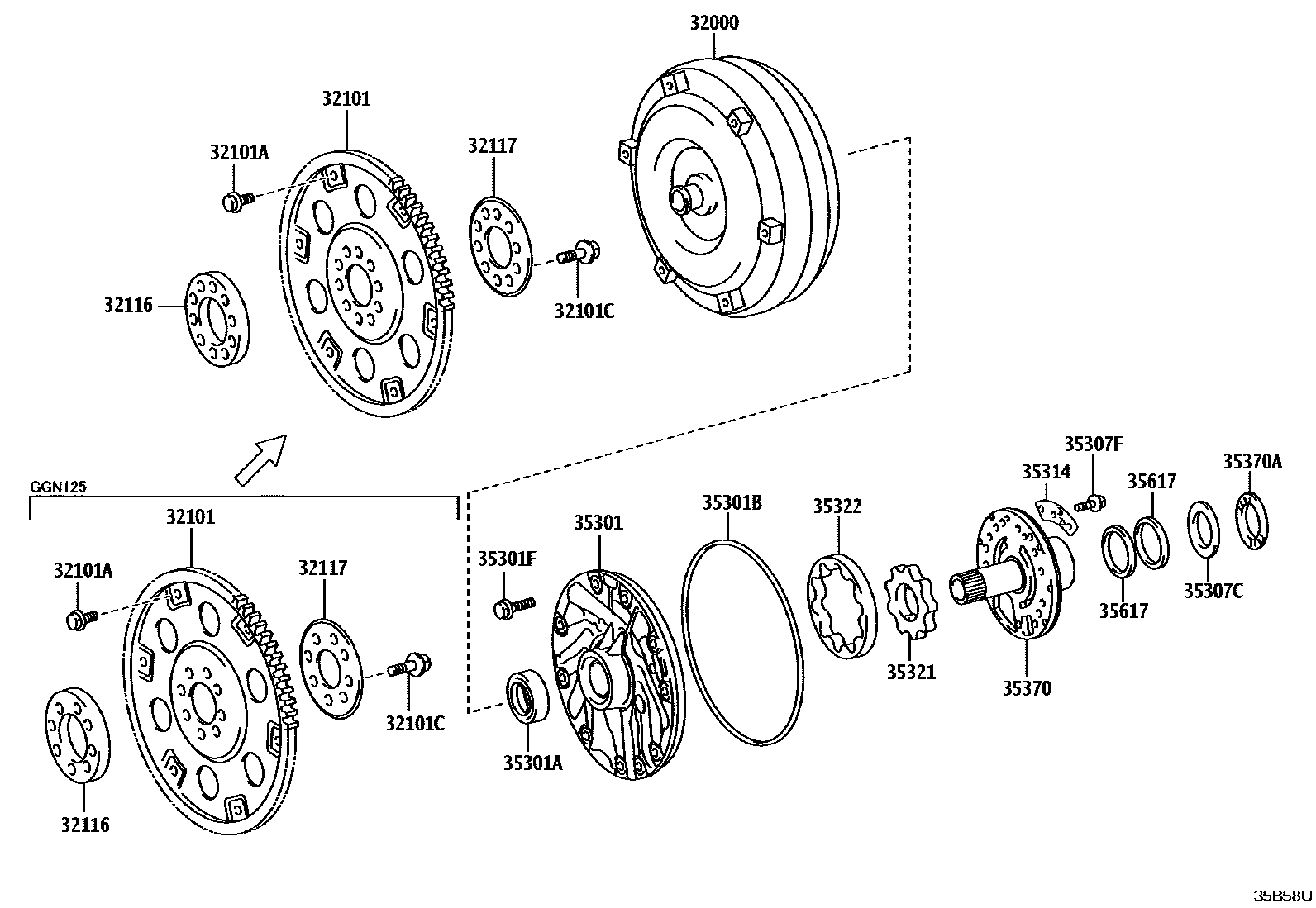

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
(L)
(L)
(L)
main32000-0K060iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN121,126,136..(CAMP,MAP,MMRP,THP)..6FC..CBU202408
(L)
(J)
(J)
(J)
main32000-71100iGUN126..6FC..DCRL..GCC; GUN126..6FC..S..DCRL..(ARL,LA);GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GUN126,136..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN121,126,136..(CAMP,MAP,MMRP,THP)..6FC..CBU; GUN126..6FC..TH202408
(J); TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*10-1.5PX11-8,(J),SILVER WHITE
*10-1.5PX11-8,BLACK
main90105-T0237×5iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN120,121,125,13#..6FC;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..6FC..CBU202408
*10-1.5PX11-8,(L),SILVER WHITE
*9-1.25PX12.8-9,BLACK
*9-1.25PX12.8-8.8,SILVER WHITE
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.8,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX30-17.5
*10-1.25PX22-15
main90105-13015×8iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN120,121,125,13#..6FC;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..6FC..CBU; GUN126..RHD..6FC..H..GEN; GUN136..6FC..ARL;GUN126..6FC..S..DCRL..ARL;GUN126..6FC..H..DCRL..ARL..CBU202408
*13-1.5PX43.5-23.5; *13-1.5PX43.5-23.5,(J); *13-1.5PX43.5-23.5,OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main90105-T0203×8iGUN125,135..6FC..L..(ARL,GEN); GUN125..6FC..S..GEN; GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN120,121,125,13#..6FC;GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..6FC..CBU202408
*13-1.5PX43.5-23.5; *13-1.5PX43.5-23.5,(L); *13-1.5PX43.5-23.5,OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
32117SPACER, DRIVE PLATE, REAR
main32117-60050iGUN125,135..6FC..(GCC,PH); GUN125..6FC..GCC; GUN125..6FC..H..GCC; GUN125..6FC..L..GEN; GUN125..6FC..S..GCC202408
(J); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT; JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS); SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; UAE SPEC
35301BODY SUB-ASSY, FRONT OIL PUMP
main35301-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
(L),TYPE B:REF.35-01
main35301-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38101iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35697-60010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08091×10iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
*8-1.25PX35-35,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; *8-1.25PX35-35,TYPE A:REFER 35-01; *8-1.25PX35-35,TYPE B:REFER 35-01
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
main35789-71070iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35307FBOLT (FOR STATOR SHAFT)
main90148-60079×10iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
main90148-T0024×10iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
(L),TYPE B:REF.35-01
35314PLATE, FRONT OIL PUMP
main35314-0K020iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
(L),TYPE B:REF.35-01
main35314-71020iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35321GEAR, FRONT OIL PUMP DRIVE
main35321-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
(L),TYPE B:REF.35-01
main35321-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
T=9.977-9.983,(J),TYPE B:REF.35-01; T=9.977-9.983,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=9.977-9.983,TYPE A:REFER 35-01
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
T=9.977-9.983,(L),TYPE B:REF.35-01
main35322-71010iGUN126..6FC..S..DCRL..IV3;GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..DCRL..(ARL,BZAG,GCC,GEN,GHA,KEN,LA,PH,SA,TWN,VN)..CBU; GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH; GUN126..MHV..SA;GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)202408
T=9.977-9.983; T=9.977-9.983,(J),TYPE B:REF.35-01; T=9.977-9.983,TOYOTA STOP & START SYSTEM-WITHOUT; T=9.977-9.983,TYPE A:REFER 35-01
35370SHAFT ASSY, STATOR
main35370-0K010iGUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC202408
(L),TYPE B:REF.35-01
main35370-71010iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)
main90374-71002iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35617RING, CLUTCH DRUM OIL SEAL
main35617-50030×2iGUN126..6FC..S..DCRL..(ARL,LA);GUN125,136,TGN126..(AGTP,KENP,SAP)..6FC;GUN126..6FC..H..DCRL..(ARL,GCC,LA)..CBU;GGN125,GUN120,135..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN);GUN126..(AGTP,GHAP,KENP,SAP,THP)..6FC..(BZAG,GEN,GHA,KEN,PH,SA,TWN,VN); GUN126..6FC..S..IV3;GUN126..H..MHV..IV3;GUN126..(CAMP,MAP,MMRP,THP)..6FC..CBU;GGN125,GUN120,121,125,13#,TGN121,126..(MAP,THP)..6FC; GUN126..6FC..TH202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
18 parts on this diagram · 2 diagrams in section
