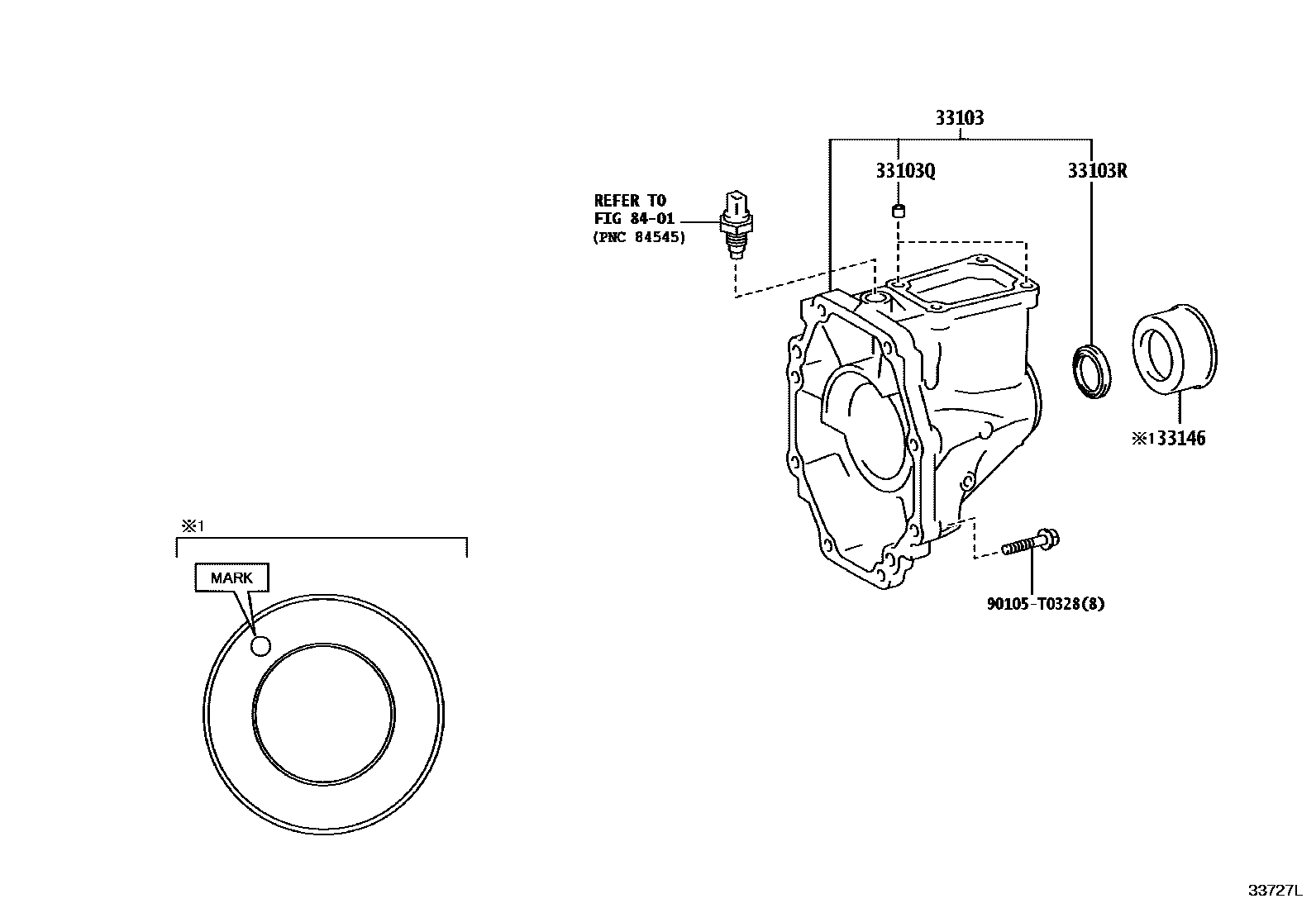

EXTENSION HOUSING (MTM)
33103HOUSING SUB-ASSY, EXTENSION(MTM)
TYPE B:REFER 33-01
main33103-0K090supersedes 33103-0K110iGUN135..THP..LA;GUN136..LHD..6F; GUN136..6F..SA;GUN135..AGTP..LA;GUN121,122,135..6F..(BZAG,GEN,PH,SA,TH,VN)202408
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE A:REFER 33-01; TYPE A:REFER 33-01
main33103-0K100iGUN135..6F..(H,S)..TH; GUN135..6F..H..(PH,TH); GUN135..6F..H..TH; GUN135..6F..L..TH; GUN135..AGTP..LA;GUN121,122,135..6F..(BZAG,GEN,PH,SA,TH,VN); GUN136..LA;GUN135..THP..LA202408
ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01; ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC),TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 33-01; TYPE B:REFER 33-01
TYPE A:REFER 33-01
33103QPIN, RING(FOR EXTENSION HOUSING)
main90253-11021×2iGUN121,122,13#..6F..(BZAG,GEN,LA,PH,SA,TH,VN); GUN135..AGTP..LA;GUN121,122,135..6F..(BZAG,GEN,PH,SA,TH,VN); GUN136..LA;GUN135..THP..LA202408
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TYPE A:REFER 33-01; TYPE B:REFER 33-01
33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
TYPE B:REFER 33-01
33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)
(L)
(L),MARK 3; ACTIVE SAFETY PACKAGE-WITHOUT,(L),MARK 3
(L)
(J)
(J)
8401SWITCH & RELAY & COMPUTER
90105T0328
main90105-T0328
6 parts on this diagram · 2 diagrams in section
