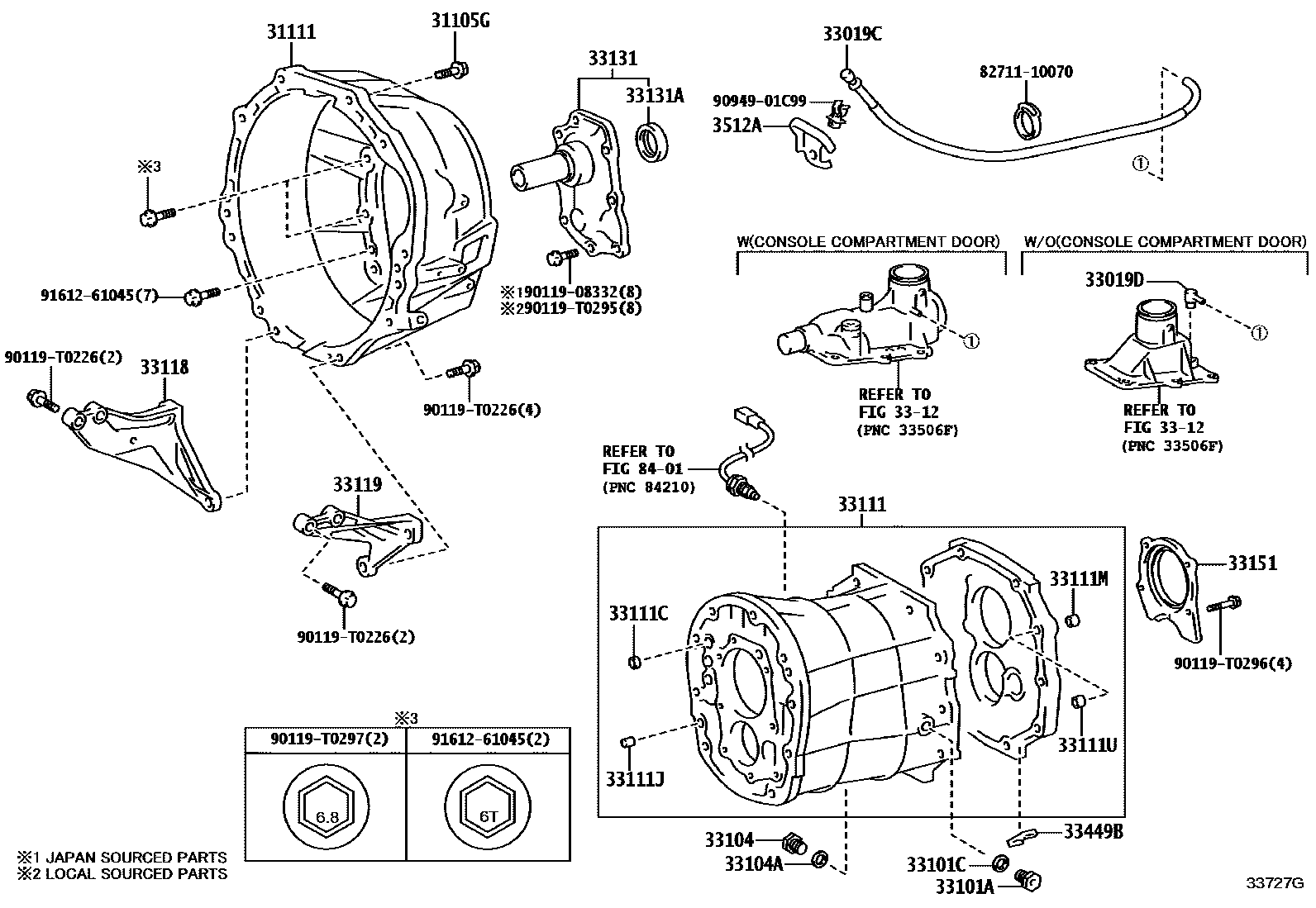

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*12-1.25PX55-30,NO.1:REFER ILLUST.
*12-1.25PX60-30,NO.1:REFER ILLUST.
main90119-T0227×5iGUN136..6F..H;GUN121,122,125,126,135,LAN125..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..MTM202408
*12-1.25PX50-30
31111HOUSING, CLUTCH
TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
main31111-0K150iGUN13#..6F..H..(PH,SA,TH); GUN135..6F..(H,S)..TH; GUN135..6F..H..TH; GUN135..6F..L..TH; GUN135..THP..LA;GUN136..LHD..6F; GUN136..6F..SA;GUN135..AGTP..LA;GUN135..6F..(BZAG,GEN,PH,SA,TH,VN);GUN121,122,125,126..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F202408
ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01; ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC),TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 33-01; TYPE B:REFER 33-01
TYPE B:REFER 33-01
33019CBREATHER SUB-ASSY, TRANSMISSION
33019D2 WAY(FOR TRANSMISSION BREATHER HOSE)
main33191-0K020iGUN122..L..GEN;LAN125,TGN120,136..L;TGN121..LHD..5F..(L,S);GUN122..(L,S)..(GCC,PH,SA);TGN126..5F..L..(GCC,LA,SA)202408
TYPE B:SEE 33-01,(L)
main33191-71010iGUN122..L..GEN;LAN125,TGN120,136..L;TGN121..LHD..5F..(L,S);GUN122..(L,S)..(GCC,PH,SA);TGN126..5F..L..(GCC,LA,SA)202408
TYPE B:SEE 33-01,(J)
33101CASE SUB-ASSY, MANUAL TRANSMISSION
main33101-0K071iGUN121,122,125,135..6F;GUN126,136..6F..H..(LA,PH);GUN126..(AGTP,SAP,THP)..6F..(L,S); GUN126..6F..H..GEN202408
TYPE A:REFER 33-01; VSC-WITH(*HSAC & *TSC),TYPE A:REFER 33-01
main33101-0K081iGUN126..6F..H..GEN; GUN135..6F..(H,S)..TH; GUN135..6F..H..(PH,TH); GUN135..6F..H..TH; GUN135..6F..L..TH; GUN135..AGTP..LA;GUN121,122,125..6F;GUN126..6F..H..(LA,PH);GUN126..(AGTP,SAP,THP)..6F..(L,S);GUN135..6F..(BZAG,GEN,PH,SA,TH,VN); GUN136..LA;GUN135..THP..LA202408
ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01; ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC),TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 33-01; TYPE B:REFER 33-01; VSC-WITH(*HSAC & *TSC),TYPE B:REFER 33-01
main33101-0K091iGUN126..6F..PH; GUN126..6F..PH;GUN126..6F..S..ARL; GUN126..S..IND;GUN126,136..6F..H..(ARL,BZAG,GCC,GEN,IND,KEN,SA,TH)202408
ACTIVE SAFETY PACKAGE-WITH&VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE A:REFER 33-01; TYPE A:REFER 33-01; VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE A:REFER 33-01
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
TYPE B:REFER 33-01
T/P A:SEE 33-01,NO.2
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
TYPE B:REFER 33-01
33104PLUG SUB-ASSY, DRAIN(MTM)
TYPE A:REFER 33-01; TYPE B:REFER 33-01
main90341-18034iGUN126..6F..PH; GUN135..6F..(H,S)..TH; GUN135..6F..H..(PH,TH); GUN135..6F..H..TH; GUN135..6F..L..TH; GUN135..AGTP..LA;GUN121,122,125..6F;GUN135..6F..(BZAG,GEN,PH,SA,TH,VN);GUN126..(INDP,THP)..6F..S..(ARL,IND,LA);GUN126..6F..H..(ARL,BZAG,GCC,GEN,IND,KEN,LA,SA,TH); GUN136..LA;GUN135..THP..LA202408
ACTIVE SAFETY PACKAGE-WITH&VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE B:REFER 33-01; ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01; ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITH,TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC),TYPE B:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 33-01; TYPE B:REFER 33-01; VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE B:REFER 33-01
33104AGASKET, DRAIN PLUG(MTM)
TYPE B:REFER 33-01
33111CASE, MANUAL TRANSMISSION
TYPE B:REFER 33-01
33111CPLUG(FOR TRANSMISSION CASE)
TYPE B:REFER 33-01,TYPE A:REFER 33-01
OD=18,TYPE B:REFER 33-01
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=11,OD=11,T/PA:SEE33-01NO.2(J)
L=16,OD=12,TYPE A:REFER 33-01; L=16,OD=12,TYPE B:REFER 33-01
main90250-T0020×2iGUN126..6F..H..GEN; GUN135..6F..(H,S)..TH; GUN135..6F..H..(PH,TH); GUN135..6F..H..TH; GUN135..6F..L..TH; GUN135..AGTP..LA;GUN121,122,125..6F;GUN126..6F..H..(LA,PH);GUN126..(AGTP,SAP,THP)..6F..(L,S);GUN135..6F..(BZAG,GEN,PH,SA,TH,VN); GUN136..LA;GUN135..THP..LA202408
L=16,OD=12,ACTIVE SAFETY PACKAGE-WITH,T/P B:SEE 33-01,NO.1; L=16,OD=12,ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.1; L=16,OD=12,T/P B:SEE 33-01,NO.1; L=16,OD=12,TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITH,T/P B:SEE 33-01,NO.1; L=16,OD=12,TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC),T/P B:SEE 33-01,NO.1; L=16,OD=12,TOYOTA STOP & START SYSTEM-WITH,T/P B:SEE 33-01,NO.1; L=16,OD=12,VSC-WITH(*HSAC & *TSC),T/P B:SEE 33-01,NO.1
L=11,OD=11,T/PA:SEE33-01NO.2(L)
33111MPIN, RING(FOR TRANSMISSION CASE)
TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE B:SEE 33-01,(J)
TYPE B:SEE 33-01,(L)
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
main90253-15001×4iGUN122,LAN125,TGN12#,136..5F..(BZAG,GCC,GEN,LA,PH,SA); GUN135..THP..LA;GUN136..LHD..6F; GUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F; GUN136..6F..SA;GUN135..AGTP..LA;GUN135..6F..(BZAG,GEN,PH,SA,TH,VN);GUN121,122,125,126..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F202408
L=14,OD=15,ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; L=14,OD=15,TYPE A:SEE 33-01,(J); L=14,OD=15,TYPE B:REFER 33-01; L=14,OD=15,TYPE B:SEE 33-01,(J)
main90253-T0011×2iGUN122,LAN125,TGN12#,136..5F..(BZAG,GCC,GEN,LA,PH,SA); GUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F202408
L=14,OD=15,TYPE A:SEE 33-01,(L); L=14,OD=15,TYPE B:SEE 33-01,(L)
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
3312SHIFT LEVER & RETAINER
33131RETAINER, BEARING, FRONT(MTM)
TYPE B:REFER 33-01
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
main90311-T0066iGUN135..THP..LA;GUN136..LHD..6F; GUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F; GUN136..6F..SA;GUN135..AGTP..LA;GUN135..6F..(BZAG,GEN,PH,SA,TH,VN);GUN121,122,125,126..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F202408
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TYPE A:REFER 33-01; TYPE B:REFER 33-01
TYPE B:REFER 33-01
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
TYPE B:REFER 33-01
33449BMAGNET, TRANSMISSION
main33449-35030iGUN122..H;GUN122..S..GEN; GUN122..L..GEN;GUN122..(L,S)..(GCC,PH,SA);LAN125,TGN12#,136..5F..(BZAG,GCC,GEN,LA,SA)202408
TYPE B:REFER 33-01
main33449-60010iGUN135..THP..LA;GUN136..LHD..6F; GUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F; GUN136..6F..SA;GUN135..AGTP..LA;GUN135..6F..(BZAG,GEN,PH,SA,TH,VN);GUN121,122,125,126..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F202408
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TYPE A:REFER 33-01; TYPE B:REFER 33-01
3512ABRACKET, TRANSMISSION BREATHER, NO.1
IDN SOURCED PARTS
IND SOURCED PARTS
8401SWITCH & RELAY & COMPUTER
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10070
9011908332
main90119-08332
90119T0226
main90119-T0226
90119T0295
main90119-T0295
90119T0296
main90119-T0296
90119T0297
main90119-T0297
9094901C99
main90949-01C99
9161261045
main91612-61045
31 parts on this diagram · 6 diagrams in section
