CLUTCH MASTER CYLINDER

0001 1 0002 1

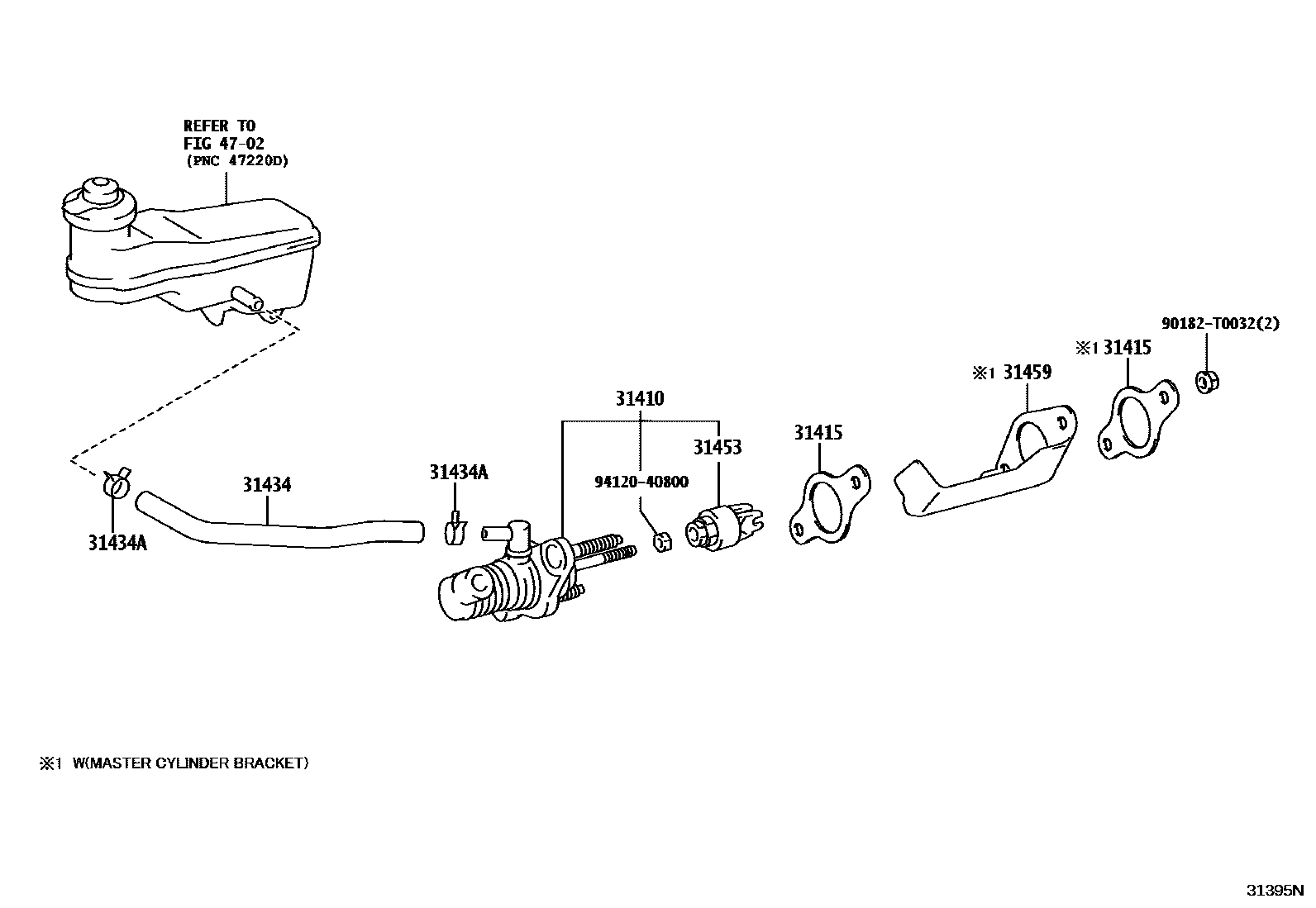

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K014iLAN125,TGN121,126,136..5F..(BZAG,GEN,LA,SA)202408

main31420-0K061iGUN126..6F..PH;GUN126..6F..S..ARL; GUN126..S..IND;GUN126,136..6F..H..(ARL,BZAG,GCC,GEN,IND,KEN,SA,TH)202408

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

main31420-0K071iGUN121,122,125,135..MTM;GUN126,136..6F..H..(LA,PH);GUN126..(AGTP,SAP,THP)..6F..(L,S); GUN126..6F..H..GEN202408

VSC-WITH(*HSAC & *TSC)

main31420-0K100iTGN12#..5F..GCC202408

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iGUN136..6F..ARL; TGN121..5F..ARL202408-202411

31434TUBE, CLUTCH RESERVOIR

main31434-0K041iGUN126,136..RHD..(KENP,SAP,THP)..6F..H; GUN126..6F..S..ARL202408

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

main31434-0K050iGUN126,136..6F..H..BZAG202411

main31434-0K051iGUN126..6F..PH; GUN126..LHD..6F..H..(GCC,GEN)202408

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

main31434-0K061iGUN125..6F..MA202409

main31434-0K081iGUN126..6F..IND202412

main31434-0K091iGUN126..RHD..(SAP,THP)..6F..S;GUN121,122,125,135,TGN136..RHD..(KENP,SAP,THP)..MTM; GUN126..RHD..6F..H..GEN202408

VSC-WITH(*HSAC & *TSC)

main31434-0K110iGUN126..6F..(L,S)..BZAG;GUN126,136..AGTP..6F..LA;GUN125,135,TGN126,136..AGTP..MTM202411

main31434-0K111iGUN126..LHD..6F..H..GEN; GUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,PH);GUN122,125,13#,LAN125,TGN12#,136..LHD..(GHAP,SAP,THP)..MTM202408

VSC-WITH(*HSAC & *TSC)

main31434-0K101iGUN126..S..IND202412

VSC-WITH(*HSAC & *TSC & LSD)

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015×2iGUN136,TGN121..(SAP,THP)..MTM..(GCC,GEN,LA,SA);GUN121,122,125,126,135,LAN125,TGN120,126,136..(GHAP,INDP,KENP,MAP,SAP,THP)..MTM202408

main90466-T0052×2iGUN125,126,13#,TGN126,136..AGTP..MTM202411

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-0K010iLAN125,TGN121,126,136..5F..(BZAG,GEN,LA,SA)202408

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-0K010iGUN126..6F..IND202412

main31459-71010iGUN136..6F..ARL202408-202411

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90182T0032

main90182-T0032

9412040800

main94120-40800

9 parts on this diagram · 2 diagrams in section
