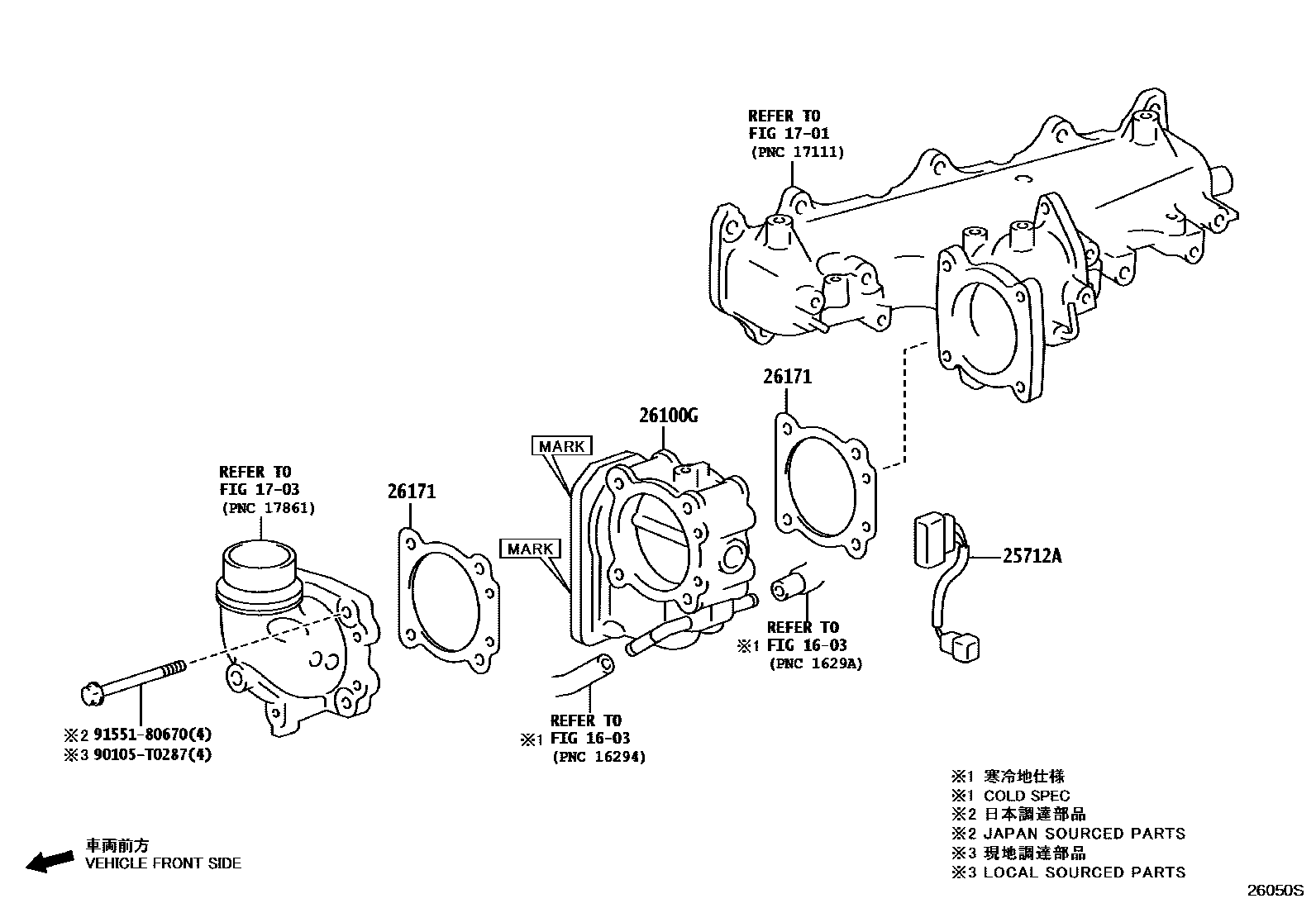

VENTURI
1603RADIATOR & WATER OUTLET
1701MANIFOLD
1703AIR CLEANER
25712AWIRE, EMISSION CONTROL VALVE
main25712-0E010i1GDFTV..GUN136..6F..H;1GDFTV..GUN136..6FC..DCRL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135;1GDFTV..GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..DCRL..CBU202408
main25712-0E020i2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,IND)..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN); 2GDFTV..GUN125..6FC..L..GEN; 2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN; 2GDFTV..GUN125..LHD..(H,L)..GEN; 2GDFTV..GUN125..LHD..S..GEN202408
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main25712-11010i2GDFTV..GUN125,135..GCC,PH;2GDFTV..GUN125..LHD..S..GEN; 2GDFTV..GUN125..6F..(H,L)..GCC; 2GDFTV..GUN125..6F..H..GCC; 2GDFTV..GUN125..6F..L..GCC;2GDFTV..GUN125..6FC..S..GCC; 2GDFTV..GUN125..GCC; 2GDFTV..GUN125..H..GCC; 2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..6F..L..GCC; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN202408
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT; ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT; AZERBAIJAN SPEC; CAMBODIA SPEC; EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT; JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS); SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT; UAE SPEC
26100VENTURI ASSY
26100GBODY ASSY, DIESEL THROTTLE
main26100-0E040i1GDFTV..GUN126..TWN; 2GDFTV..GUN125..6FC..L..GEN; 2GDFTV..GUN125..LHD..(H,L)..GEN; 2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202408-202410
ASIA COLD COUNTRY SPEC; ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK=26100-0E050
MARK=26100-0E060
main26100-11040i2GDFTV..GUN125,135..GCC,PH;2GDFTV..GUN125..LHD..S..GEN; 2GDFTV..GUN125..6F..(H,L)..GCC; 2GDFTV..GUN125..6F..H..GCC; 2GDFTV..GUN125..6F..L..GCC;2GDFTV..GUN125..6FC..S..GCC; 2GDFTV..GUN125..GCC; 2GDFTV..GUN125..H..GCC; 2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..6F..L..GCC; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN202408
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT; ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT; AZERBAIJAN SPEC; CAMBODIA SPEC; EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT; JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS); SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT; UAE SPEC
26171GASKET, VENTURI
main26171-0E030×2i1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135;1GDFTV..GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU; 2GDFTV..GUN125..6F..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,IND)..CBU;2GDFTV..GUN125,135..6FC..L..(ARL,GEN); 2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN; 2GDFTV..GUN125..LHD..(H,L)..GEN; 2GDFTV..GUN125..LHD..S..GEN202408
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS
IND SOURCED PARTS
main26171-11020×2i2GDFTV..GUN125,135..GCC,PH;2GDFTV..GUN125..LHD..S..GEN; 2GDFTV..GUN125..6F..(H,L)..GCC; 2GDFTV..GUN125..6F..H..GCC; 2GDFTV..GUN125..6F..L..GCC;2GDFTV..GUN125..6FC..S..GCC; 2GDFTV..GUN125..GCC; 2GDFTV..GUN125..H..GCC; 2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..6F..L..GCC; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN202408
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT; ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT; AZERBAIJAN SPEC; CAMBODIA SPEC; EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT; JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS); SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT; UAE SPEC
90105T0287
main90105-T0287
9155180670
main91551-80670
9 parts on this diagram · 2 diagrams in section
