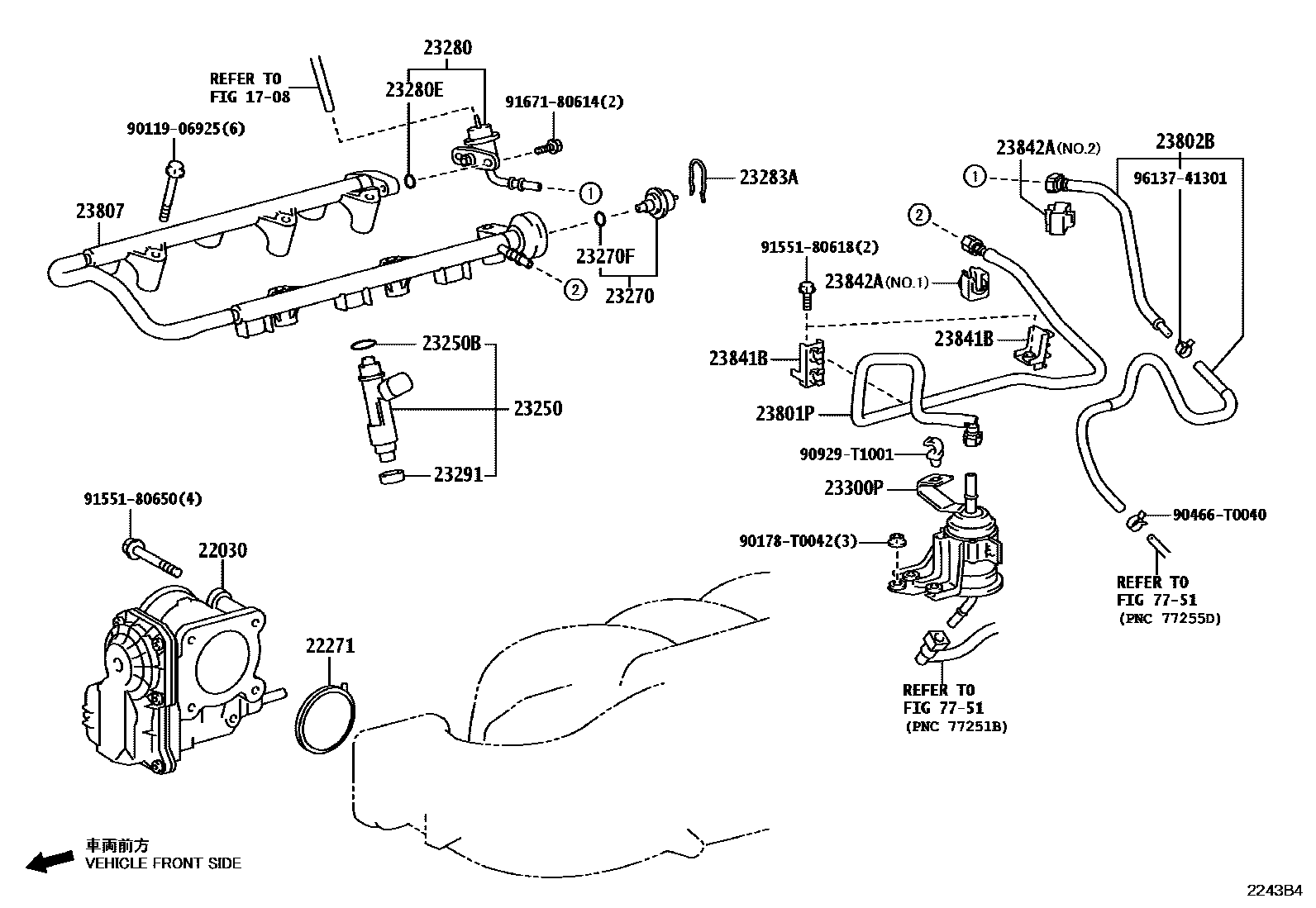

FUEL INJECTION SYSTEM
1708VACUUM PIPING
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
main22030-0C030i2TRFE..TGN121,126..5F..GCC; 2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC; 2TRFE..TGN121..5F..S;2TRFE..TGN126..5F..H..GCC; 2TRFE..TGN121..6FC..ARL;2TRFE..TGN121,126,136..BZAG,GCC,GEN,LA,SA; 2TRFE..TGN126..5F..GCC;2TRFE..TGN121..5F..(H,S); 2TRFE..TGN126..5F..H..GCC202408
(L); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
(J)
(L); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
22271GASKET, THROTTLE BODY
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
23250INJECTOR ASSY, FUEL
(L)
(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDNSOURCED PARTS; IDN SOURCED PARTS
23250BRING, O(FOR FUEL INJECTOR)
main90301-07037×4i2TRFE..TGN121,126..5F..GCC; 2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC; 2TRFE..TGN121..5F..S;2TRFE..TGN126..5F..H..GCC; 2TRFE..TGN121..6FC..ARL;2TRFE..TGN121,136..GCC,GEN;2TRFE..TGN126..THP..(GCC,LA); 2TRFE..TGN126..5F..GCC;2TRFE..TGN121..5F..(H,S); 2TRFE..TGN126..5F..H..GCC; 2TRFE..TGN136..AGTP,SAP;2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,LA,SA)202408
(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main90301-T0051×4i2TRFE..TGN121..6FC..ARL;2TRFE..TGN121,136..GCC,GEN;2TRFE..TGN126..THP..(GCC,LA)202408
(L)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
main23270-75050i1TRFE,2TRFE..TGN12#..5F..GCC; 2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC; 2TRFE..TGN121..5F..S;2TRFE..TGN126..5F..H..GCC; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..BZAG,GCC,GEN,LA,SA; 2TRFE..TGN126..5F..GCC;2TRFE..TGN121..5F..(H,S); 2TRFE..TGN126..5F..H..GCC202408
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
23270FRING, O(FOR PULSATION DAMPER)
23280REGULATOR ASSY, FUEL PRESSURE
main23280-75100i1TRFE,2TRFE..TGN12#..5F..GCC; 2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC; 2TRFE..TGN121..5F..S;2TRFE..TGN126..5F..H..GCC; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..BZAG,GCC,GEN,LA,SA; 2TRFE..TGN126..5F..GCC;2TRFE..TGN121..5F..(H,S); 2TRFE..TGN126..5F..H..GCC202408
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
main90301-07037i1TRFE,2TRFE..TGN12#..5F..GCC; 2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC; 2TRFE..TGN121..5F..S;2TRFE..TGN126..5F..H..GCC; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..BZAG,GCC,GEN,LA,SA; 2TRFE..TGN126..5F..GCC;2TRFE..TGN121..5F..(H,S); 2TRFE..TGN126..5F..H..GCC202408
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
23283AHOLDER, FUEL PRESSURE REGULATOR
23291INSULATOR, INJECTOR VIBRATION
main23291-0C010×4i1TRFE,2TRFE..TGN12#..5F..GCC; 2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,LA,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA; 2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC; 2TRFE..TGN121..5F..S;2TRFE..TGN126..5F..H..GCC; 2TRFE..TGN121..6FC..ARL;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..GCC,GEN; 2TRFE..TGN126..5F..GCC;2TRFE..TGN121..5F..(H,S); 2TRFE..TGN126..5F..H..GCC202408
(L); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS; IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS
main23291-0C020×4i2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,LA,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA202408
IDN SOURCED PARTS
main23291-73010×4i2TRFE..TGN121..6FC..ARL;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..GCC,GEN202408
(J)
23300PFILTER, FUEL(FOR EFI)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
NO.1
NO.2
7751FUEL TANK & TUBE
9011906925
main90119-06925
90178T0042
main90178-T0042
90466T0040
main90466-T0040
90929T1001
main90929-T1001
9155180618
main91551-80618
9155180650
main91551-80650
9167180614
main91671-80614
9613741301
main96137-41301
26 parts on this diagram · 2 diagrams in section
