ALTERNATOR
27020ALTERNATOR ASSY
main27060-0C080i2TRFE..TGN126..5F..(H,L)..LA;2TRFE..TGN121,126..6FC..H..GCC;2TRFE..TGN126,136..S..(GCC,LA)202408
12V 100A
12V 80A
12V 90A
12V 90A
main27060-0E020i2GDFTV..GUN125,135..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,TWN)..CBU202408-202411
12V 100A
main27060-0L150i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
12V 90A,SEG
main27060-0L160i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
12V 100A,DENSO
main27060-0L160i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
12V 100A
12V 90A
12V 80A,TOYOTA STOP & START SYSTEM-WITHOUT
12V 80A
main27060-0L290i2GDFTV..GUN125..6FC..S..GEN;1GDFTV,2GDFTV..GUN122,125,126,13#..THP..DCRL..(GCC,LA)202408
12V 100A
12V 100A
12V 115A
12V 130A
12V 130A,TOYOTA STOP & START SYSTEM-WITH
12V 130A,TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
12V 130A,TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
12V 90A
27039COVER, ALTERNATOR REAR END
main27039-0L180i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
SEG
TOYOTA STOP & START SYSTEM-WITHOUT
main27039-0T300i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
27039BBOLT(FOR ALTERNATOR REAR END COVER)
main90068-04046i2TRFE..TGN126..S..(GCC,LA);2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..S..DCRL..IV3;2TRFE..TGN126..5F..(H,L)..LA;2GDFTV..GUN125,135..THP..(ARL,GCC,LA);1GDFTV..GUN12202408-202411
main90068-04047i2TRFE..TGN121..5F..H;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..TH;2GDFTV..GUN125..6F..S..GEN;2GDFTV..GUN125..(H,L)..GEN;2TRFE..TGN126..THP..5F..(GCC,GEN,SA);2TRFE..202408
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-0C080i2TRFE..TGN126..5F..(H,L)..LA;2TRFE..TGN121,126..6FC..H..GCC;2TRFE..TGN126,136..S..(GCC,LA)202408
main27310-0L190i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
DENSO
main27310-0L310i1GDFTV..GUN126..6F..TH;2GDFTV..GUN125..6F..S..GEN;2GDFTV..GUN125..(H,L)..GEN;2GDFTV..GUN125..GHA,IDN,KEN,MA,PH,SA,TH,VN;1GDFTV..GUN126..DCRL..(GEN,GHA,KEN,MA,MMR,PH202408
TOYOTA STOP & START SYSTEM-WITHOUT
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90068-10029i2TRFE..TGN121..5F..H;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..TH;2GDFTV..GUN125..6F..S..GEN;2GDFTV..GUN125..(H,L)..GEN;2TRFE..TGN126..THP..5F..(GCC,GEN,SA);2TRFE..202408
TOYOTA STOP & START SYSTEM-WITHOUT
main90068-10033i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)
main90068-00022i2TRFE..TGN126..THP;1GDFTV..GUN126..6F..TH;2TRFE..TGN126..AGTP..5F;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN136..(SAP,THP)..6F..H;2GDFTV..GUN122,125,135..GHAP,KENP,MA202408
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
27312PLATE, RETAINER
main27312-0C020i2TRFE..TGN126..THP;1GDFTV..GUN126..6F..TH;2TRFE..TGN126..AGTP..5F;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN136..(SAP,THP)..6F..H;2GDFTV..GUN122,125,135..GHAP,KENP,MA202408
TOYOTA STOP & START SYSTEM-WITHOUT
SEG
main27312-0T300i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
DENSO
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
27330ROTOR ASSY, ALTERNATOR
main27330-0L140i2TRFE..TGN126..S..(GCC,LA);2GDFTV..GUN125..6FC..S..GEN;2TRFE..TGN126..5F..(H,L)..LA;2TRFE..TGN121,126..6FC..H..GCC;1GRFE,2GDFTV,2TRFE..GGN125,GUN122,TGN136..GCC,LA;202408
main27330-0L180i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
SEG
main27330-0M100i2TRFE..TGN121..5F..H;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..TH;2GDFTV..GUN125..6F..S..GEN;2GDFTV..GUN125..(H,L)..GEN;2TRFE..TGN126..THP..5F..(GCC,GEN,SA);2TRFE..202408
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
main27330-0V220i2GDFTV..GUN125,135..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,TWN)..CBU202408-202411
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
27360COIL ASSY, ALTERNATOR
main27360-0C080i2TRFE..TGN126..5F..(H,L)..LA;2TRFE..TGN121,126..6FC..H..GCC;2TRFE..TGN126,136..S..(GCC,LA)202408
main27360-0C110i2TRFE..TGN121..5F..H;2TRFE..TGN126..6FC..L;2TRFE..TGN126..THP..5F..(GCC,GEN,SA);2TRFE..TGN121,126..THP..6FC..(ARL,GEN,SA);1TRFE,2TRFE..TGN120,121,136..LHD..THP..(L,202408-202411
main27360-0E030i2GDFTV..GUN125,135..ARL;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN126..DCRL..(ARL,TWN)..CBU202408-202411
main27360-0L140i2GDFTV..GUN125..6FC..S..GEN;1GDFTV,2GDFTV..GUN122,125,126,13#..THP..DCRL..(GCC,LA)202408
DENSO
TOYOTA STOP & START SYSTEM-WITHOUT
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
27360ABOLT(FOR ALTERNATOR COIL)
main90068-04048i2TRFE..TGN126..THP;1GDFTV..GUN126..6F..TH;2TRFE..TGN126..AGTP..5F;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN136..(SAP,THP)..6F..H;2GDFTV..GUN122,125,135..GHAP,KENP,MA202408
TOYOTA STOP & START SYSTEM-WITHOUT
main90068-04050i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-0C020i2TRFE..TGN126..THP;2TRFE..TGN121..6FC..ARL;2TRFE..TGN126..AGTP..5F;1TRFE,2TRFE..TGN120,121,136..(AGTP,THP)..(GCC,GEN,LA,SA)202408-202411
main27370-0M040i1GDFTV..GUN126..6F..TH;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN136..RHD..6FC..DCRL;1GDFTV..GUN136..(SAP,THP)..6F..H;1G#,2GDFTV..GGN125,GUN120,121..AGTP,THP;2GDFTV..202408
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
TOYOTA STOP & START SYSTEM-WITH
27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)
main90068-00023i2TRFE..TGN126..THP;1GDFTV..GUN126..6F..TH;2TRFE..TGN126..AGTP..5F;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN136..(SAP,THP)..6F..H;2GDFTV..GUN122,125,135..GHAP,KENP,MA202408
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
27387INSULATOR, TERMINAL
main27387-0C020i2TRFE..TGN126..THP;1GDFTV..GUN126..6F..TH;2TRFE..TGN126..AGTP..5F;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN136..(SAP,THP)..6F..H;2GDFTV..GUN122,125,135..GHAP,KENP,MA202408
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
27415PULLEY, ALTERNATOR W/CLUTCH
main27415-0C010i2TRFE..TGN126..(AGTP,SAP)..6FC;2TRFE..TGN121,126,136..(AGTP,SAP)..5F..(BZAG,SA)202411
main27415-0L030i2GDFTV..GUN125..(H,L)..GEN;2GDFTV..GUN125..6F..S..GEN;1GDFTV..GUN126..6F..(GEN,PH,TH);1GDFTV..GUN126..6FC..(GEN,MA,MMR,PH,VN);1GDFTV,2GDFTV..GUN120,121,122,135..GEN202408
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
main27415-0L040i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
SEG
main27415-0L040i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
PNC 27020=SEG
main27415-0L050i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
PNC 27020=DENSO
main27415-0W063i2TRFE..TGN126..5F..(H,L)..LA;2TRFE..TGN121,126..6FC..H..GCC;2TRFE..TGN126,136..S..(GCC,LA)202408
TOYOTA STOP & START SYSTEM-WITH
27416CAP, ALTERNATOR PULLEY
main27416-0L050i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
(L)
main27416-0L050i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
DENSO
(J)
SEG
27444PACKING, ALTERNATOR BEARING COVER
main27444-0T300i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202411
DENSO
main27444-0Y180i2TRFE..TGN126..THP;1GDFTV..GUN126..6F..TH;2TRFE..TGN126..AGTP..5F;1GDFTV..GUN126..S..DCRL..IV3;1GDFTV..GUN136..(SAP,THP)..6F..H;2GDFTV..GUN122,125,135..GHAP,KENP,MA202408
TOYOTA STOP & START SYSTEM-WITHOUT
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO
90105T0111
main90105-T0111
90119T0465
main90119-T0465
90178T0018
main90178-T0018
9167281045
main91672-81045

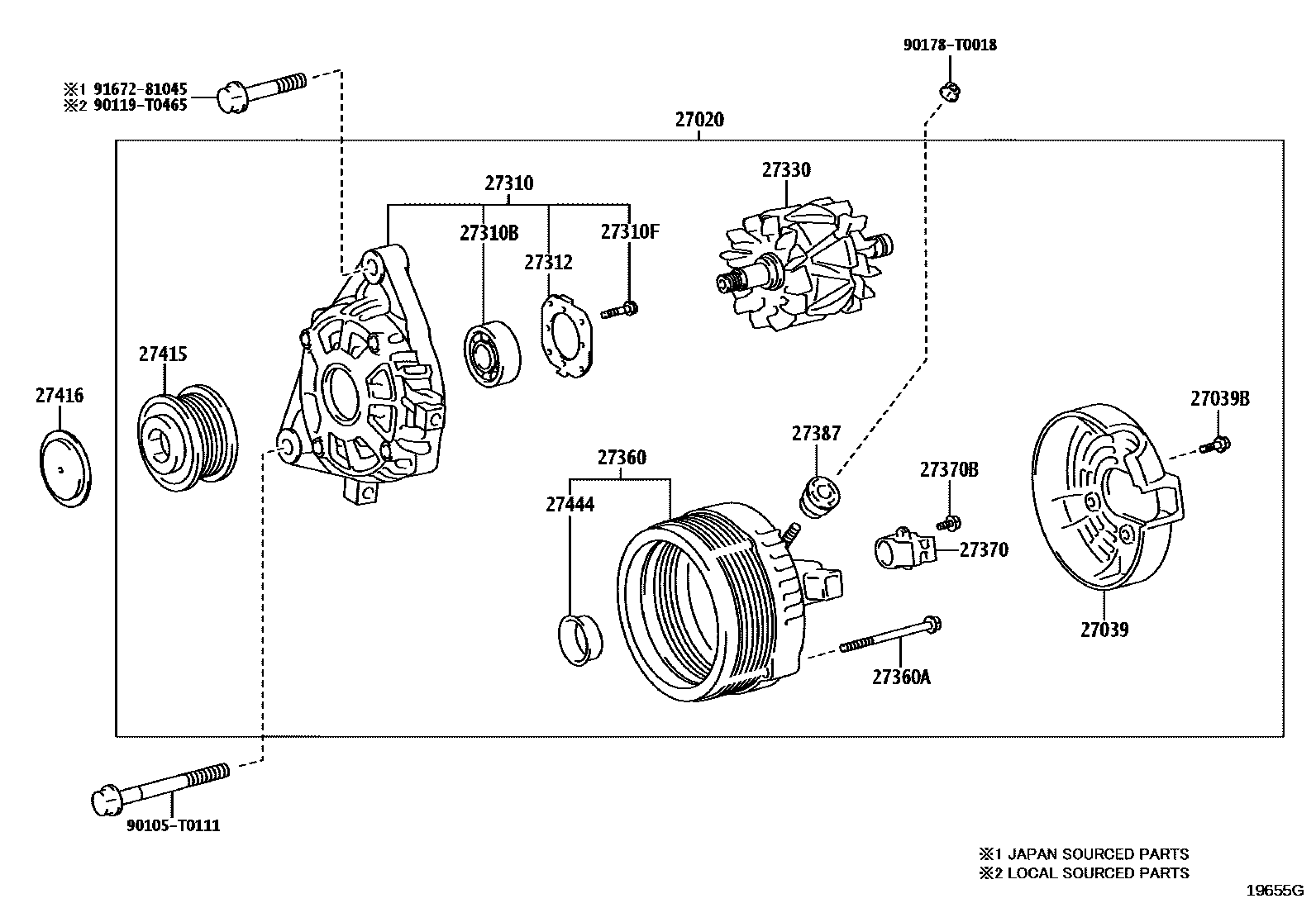

20 parts on this diagram · 10 diagrams in section
