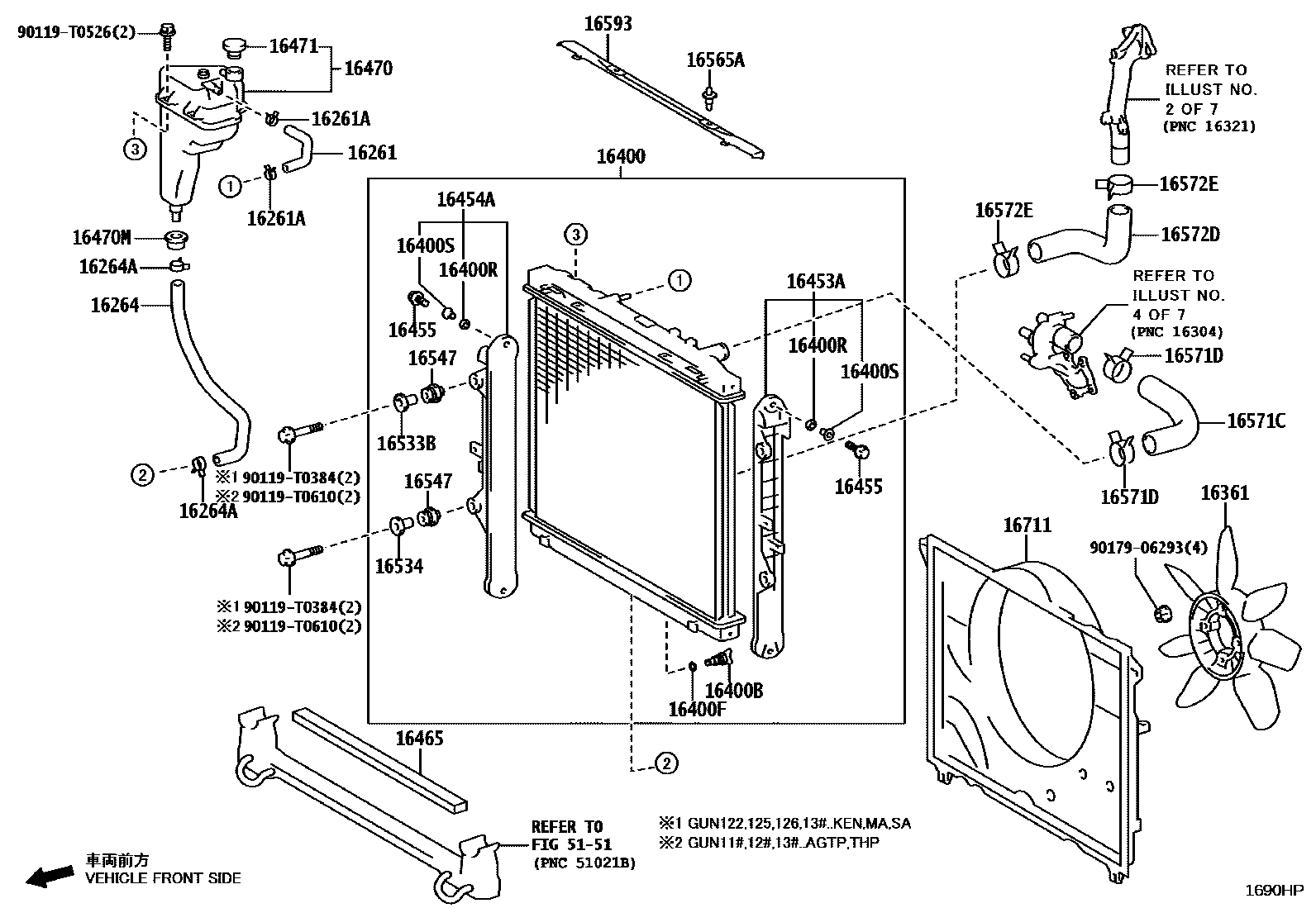

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1W(INTERCOOLER (WATER COOLED T0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

16261HOSE, WATER BY-PASS

main16261-0L070i1GDFTV,2GDFTV..GUN125,126..MA202409

main16261-0L110i1GDFTV..GUN126..IND202412

main16261-0L121i1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV..GUN126..(AGTP,CAMP,GHAP,KENP,MMRP,SAP,THP)..CBU;1GDFTV,2GDFTV..GUN120,121,122,125,135..AGTP,GHAP,KENP,SAP,THP202408

main16261-31020i1GRFE..GGN125202408

W/O(PROTECTOR)

main16261-31100i1GRFE..GGN125202408

W/(PROTECTOR)

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90466-T0069×2i1GDFTV..GUN136..6F..ARL;1GDFTV..GUN126..H..DCRL..IV3202408-202411

16264HOSE, WATER BY-PASS, NO.2

main16264-0C071i2TRFE..TGN121..5F..ARL202408-202411

IDN SOURCED PARTS

main16264-0C081i2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..BZAG,GCC,GEN,LA,SA202408

THA SOURCED PARTS

main16264-0L100i1GDFTV..GUN126..IND202410

main16264-0L110i1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV..GUN126..(AGTP,CAMP,GHAP,KENP,MMRP,SAP,THP)..CBU;1GDFTV,2GDFTV..GUN120,121,122,125,135..AGTP,GHAP,KENP,SAP,THP202408

main16264-0L150i1GDFTV,2GDFTV..GUN125,126..MA202409

main16264-31010i1GRFE..GGN125202408

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90466-T0031×2i1GDFTV..GUN136..6F..ARL;1GDFTV..GUN126..H..DCRL..IV3202408-202411

main96137-41301×4i1GRFE..GGN125202408

16361FAN

main16361-0C011i2TRFE..TGN121..5F..ARL202408-202411

main16361-0E010i1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN121,126..CBU;1GDFTV..GUN126..H..MHV..IV3202408

main16361-0L020i2GDFTV..GUN120,122,125,135202408

main16361-31060i1GRFE..GGN125202408

main16361-54131i5LE..LAN125202411

16400RADIATOR ASSY

main16400-05182i5LE..LAN125202411

main16400-0C283i2TRFE..TGN126..H..GEN202408

main16400-0C372i2TRFE..TGN126..SAP..6FC202411

main16400-0C383i2TRFE..TGN126..5F..GEN202408

main16400-0C412i2TRFE..TGN126,136..AGTP..5F202411

main16400-0C422i2TRFE..TGN121,126,136..SAP..5F202411

main16400-0C442i2TRFE..TGN126..6FC..LA202411

main16400-0C530i2TRFE..TGN121,126..THP..6FC..(ARL,GCC,SA)202408

main16400-0C540i2TRFE..TGN121..5F..ARL202408-202411

main16400-0E011i1GDFTV,2GDFTV..GUN120,121,135..6FC..(GEN,TH,VN)202408

main16400-0E050i1GDFTV..GUN126..THP..6FC..S;1GDFTV..GUN126..THP..H..MHV;2GDFTV..GUN135..6FC..(ARL,PH);1GDFTV,2GDFTV..GUN125,136..THP..6FC;1GDFTV..GUN126..THP..6FC..H..DCRL..CBU202408

main16400-0E060i1GDFTV..GUN136..6F..ARL202408-202411

main16400-0L363i1GDFTV..GUN126..CAMP,MMRP202409

main16400-0L381i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6FC202411

main16400-0L392i1GDFTV,2GDFTV..GUN125,126,13#..6FC..(GHA,KEN,SA)202411

main16400-0L401i1GDFTV..GUN126..6FC..IND202410

main16400-0L451i1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6F202411

main16400-0L462i1GDFTV,2GDFTV..GUN122,125,126,13#..(GHAP,KENP,SAP)..MTM202411

main16400-0L521i1GDFTV..GUN126..6F..IND202410

main16400-0L571i1GDFTV,2GDFTV..GUN125,126..6FC..MA202409

main16400-0L581i2GDFTV..GUN125..6F..MA202409

main16400-0P390i1GRFE..GGN125..GCC202408

main16400-0P452i1GRFE..GGN125..SA202411

main16400-0P532i1GRFE..GGN125..LA202411

main16400-0L433i2GDFTV..GUN125..LHD..(H,L)..GEN; 2GDFTV..GUN125..LHD..S..GEN202408

ASIA COLD COUNTRY SPEC; AZERBAIJAN SPEC

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i2TRFE..TGN121..5F..ARL202408-202411

main16417-21280i1GDFTV,2GDFTV..GUN125,126,13#..AGTP; 2TRFE..TGN126,136..AGTP202411

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0L060i2TRFE..TGN121..5F..ARL202408-202411

main16492-21050i1GDFTV,2GDFTV..GUN125,126,13#..AGTP; 2TRFE..TGN126,136..AGTP202411

16400RBUSHING(FOR RADIATOR)

main16444-0L060×2i2GDFTV..GUN125..LHD..(H,L)..GEN; 2GDFTV..GUN125..LHD..S..GEN; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..LHD..THP202408

ASIA COLD COUNTRY SPEC; AZERBAIJAN SPEC

main16444-0L400×2i1GDFTV..GUN126..IND202410

main16444-75180×2i1GDFTV,2GDFTV..GUN125,126,13#..AGTP; 2TRFE..TGN126,136..AGTP202411

16400SCOLLAR(FOR RADIATOR)

main16445-0C180×2i2GDFTV..GUN125..LHD..(H,L)..GEN; 2GDFTV..GUN125..LHD..S..GEN; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..LHD..(AGTP,THP)202408

ASIA COLD COUNTRY SPEC; AZERBAIJAN SPEC

16453APLATE, RADIATOR SIDE SUPPORT, RH

main16453-0L361i2TRFE..TGN121..5F..ARL202408-202411

main16453-0L380i2TRFE..TGN126,136..AGTP202411

main16453-0L400i1GDFTV..GUN126..IND202410

main16453-0L430i1GDFTV..GUN126..CAMP,MMRP202409

main16453-0L451i1GDFTV,2GDFTV..GUN125,126,13#..AGTP202411

main16453-0L570i1GDFTV,2GDFTV..GUN125,126..MA202409

16454APLATE, RADIATOR SIDE SUPPORT, LH

main16454-0L361i2GDFTV..GUN125..LHD..(H,L)..GEN; 2GDFTV..GUN125..LHD..S..GEN; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..LHD..THP202408

ASIA COLD COUNTRY SPEC; AZERBAIJAN SPEC

main16454-0L380i1GDFTV,2GDFTV..GUN125,126,13#..AGTP; 2TRFE..TGN126,136..AGTP202411

main16454-0L400i1GDFTV..GUN126..IND202410

main16454-0L570i1GDFTV,2GDFTV..GUN125,126..MA202409

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main91651-B0820×4i2GDFTV..GUN125..LHD..(H,L)..GEN; 2GDFTV..GUN125..LHD..S..GEN; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..LHD..(AGTP,THP)202408

ASIA COLD COUNTRY SPEC; AZERBAIJAN SPEC

16465PACKING, RADIATOR

main88619-0K010i1GDFTV..GUN126..S..IV3;1GDFTV..GUN136..THP..LA;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..H..MHV..IV3;1GDFTV..GUN126..(CAMP,MMRP,THP)..CBU;1G#,2GDFTV..GGN125,GUN120,121,122,125,135..THP; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..LHD..THP202408

main88619-0K020i1G#,2GDFTV..GGN125,GUN125,126,13#..AGTP; 2TRFE..TGN126,136..AGTP202411

main88619-0K030i1G#,2GDFTV..GGN125,GUN122,125,126,13#..GHAP,KENP,SAP; 2TRFE..TGN121,126,136..SAP202411

main88619-0K050i1GDFTV..GUN126..IND202410

main88619-0K060i1GDFTV,2GDFTV..GUN125,126..MA202409

16470TANK ASSY, RADIATOR RESERVE

main16470-05080i5LE..LAN125202411

main16470-0C110i1GRFE..GGN125..GCC; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..LHD..THP202408

main16470-0C130i1GRFE..GGN125..LA; 2TRFE..TGN126,136..AGTP202411

main16470-0C140i1GRFE..GGN125..SA; 2TRFE..TGN121,126,136..SAP202411

main16470-0L083i1GDFTV..GUN126..S..IV3;1GDFTV..GUN136..THP..LA;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..H..MHV..IV3;1GDFTV..GUN126..(CAMP,MAP,MMRP,THP)..CBU;1GDFTV,2GDFTV..GUN120,121,122,125,135..MAP,THP202408

main16470-0L101i1GDFTV..GUN126..IND202410

main16470-0L112i1GDFTV,2GDFTV..GUN125,126,13#..AGTP202411

main16470-0L122i1GDFTV,2GDFTV..GUN122,125,126,13#..GHAP,KENP,SAP202411

16470MGROMMET

main90480-T0003i5LE..LAN125202411

main90480-T0004i1GDFTV..GUN136..6F..ARL;1GDFTV..GUN126..H..DCRL..IV3202408-202411

16471CAP SUB-ASSY, RESERVE TANK

main16405-05050i5LE..LAN125202411

main16405-0C090i1GRFE..GGN125..GCC; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..LHD..THP202408

main16405-0C110i1GRFE..GGN125..LA; 2TRFE..TGN126,136..AGTP202411

main16405-0C120i1GRFE..GGN125..SA; 2TRFE..TGN121,126,136..SAP202411

16533BSUPPORT, RADIATOR, NO.1

main16533-0L010×2i1GDFTV..GUN136..6F..ARL;1GDFTV..GUN126..H..DCRL..IV3; 2TRFE..TGN121..5F..ARL202408-202411

main16533-0L020×2i1G#,2GDFTV..GGN125,GUN122,125,126,13#..GHAP,KENP,SAP; 2TRFE..TGN121,126,136..SAP; 5LE..LAN125202411

main16533-0L030×2i1GDFTV..GUN126..IND202410

16534SUPPORT, RADIATOR, NO.2

main16534-0L010×2i1GDFTV..GUN126..S..IV3;1GDFTV..GUN136..LHD..6F;1GDFTV..GUN126..H..MHV..IV3;1GDFTV..GUN136..6FC..(ARL,BZAG);1GDFTV..GUN126..(AGTP,CAMP,MAP,MMRP,THP)..CBU;1G#,2GDFTV..GGN125,GUN120,121,122,125,135..AGTP,MAP,THP; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..LHD..(AGTP,THP)202408

main16534-0L020×2i1G#,2GDFTV..GGN125,GUN122,125,126,13#..GHAP,KENP,SAP; 2TRFE..TGN121,126,136..SAP; 5LE..LAN125202411

main16534-0L030×2i1GDFTV..GUN126..IND202410

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-0L010×4i1GDFTV..GUN126..S..IV3;1GDFTV..GUN136..LHD..6F;1GDFTV..GUN126..H..MHV..IV3;1GDFTV..GUN136..6FC..(ARL,BZAG);1GDFTV..GUN126..(AGTP,CAMP,MAP,MMRP,THP)..CBU;1G#,2GDFTV..GGN125,GUN120,121,122,125,135..AGTP,MAP,THP; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..LHD..(AGTP,THP)202408

main16547-0L020×4i1G#,2GDFTV..GGN125,GUN122,125,126,13#..GHAP,KENP,SAP; 2TRFE..TGN121,126,136..SAP; 5LE..LAN125202411

main16547-0L030×4i1GDFTV..GUN126..IND202410

16565ACLIP

main90467-07076-C0×4i1GDFTV..GUN126..IND202410

BLACK,JAPAN SOURCED PARTS

main90467-T0022×4i1GDFTV..GUN126..IND202410

IDN SOURCED PARTS

main90467-T0027-C0×4i1GDFTV..GUN136..6F..ARL;1GDFTV..GUN126..H..DCRL..IV3; 2TRFE..TGN121..5F..ARL202408-202411

BLACK

16571CHOSE, RADIATOR, NO.1

main16571-05090i5LE..LAN125202411

main16571-0C160i2TRFE..TGN121..5F..ARL202408-202411

main16571-0L120i1GDFTV..GUN126..IND202410

main16571-0L150i1GDFTV..GUN136..6F..ARL;1GDFTV..GUN126..H..DCRL..IV3202408-202411

main16571-0L170i1GDFTV,2GDFTV..GUN125,126..MA202409

main16571-0P290i1GRFE..GGN125202408

16571DCLIP, RADIATOR HOSE, NO.1

main90466-T0024×99i1GDFTV,2GDFTV..GUN12#,13#..ARL,BZAG,GCC,GEN,IDN,IND,LA,MA,MMR,PH,TH,TWN,VN202408

main90466-T0028×2i2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..BZAG,GCC,GEN,LA,SA202408

16572DHOSE, RADIATOR, NO.2

main16572-05080i5LE..LAN125202411

main16572-0C160i2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..BZAG,GCC,GEN,LA,SA202408

main16572-0L120i1GDFTV..GUN126..IND202410

main16572-0L150i1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV..GUN126..(AGTP,CAMP,GHAP,KENP,MMRP,SAP,THP)..CBU;1GDFTV,2GDFTV..GUN120,121,122,125,135..AGTP,GHAP,KENP,SAP,THP202408

main16572-0L200i1GDFTV,2GDFTV..GUN125,126..MA202409

main16572-0P290i1GRFE..GGN125202408

16572ECLIP, RADIATOR HOSE, NO.2

main90466-T0024×4i1GDFTV..GUN136..6F..ARL;1GDFTV..GUN126..H..DCRL..IV3202408-202411

main90466-T0028×2i1GRFE..GGN125; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..BZAG,GCC,GEN,LA,SA202408

16593GUIDE, RADIATOR AIR, NO.1

main16593-0L020i1G#,2GDFTV..GGN125,GUN125,126,13#..AGTP; 2TRFE..TGN126,136..AGTP202411

main16593-0L030i1G#,2GDFTV..GGN125,GUN122,125,126,13#..GHAP,KENP,SAP; 2TRFE..TGN121,126,136..SAP202411

main16593-0L040i1GDFTV..GUN126..S..IV3;1GDFTV..GUN136..THP..LA;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..H..MHV..IV3;1GDFTV..GUN126..(CAMP,MAP,MMRP,THP)..CBU;1G#,2GDFTV..GGN125,GUN120,121,122,125,135..MAP,THP; 2TRFE..TGN121..6FC..ARL;1TRFE,2TRFE..TGN12#,136..LHD..THP202408

main16593-0L050i1GDFTV..GUN126..IND202410

16711SHROUD, FAN

main16711-05080i5LE..LAN125202411

main16711-0C180i2TRFE..TGN121..5F..ARL202408-202411

main16711-0C200i2TRFE..TGN126,136..AGTP202411

main16711-0C210i2TRFE..TGN121,126,136..SAP202411

main16711-0E010i1GDFTV..GUN126..TWN; 2GDFTV..GUN125..AGTP..S;2GDFTV..GUN125..RHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN;1GDFTV..GUN126..AGTP..6FC..H..LA202408

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main16711-0L140i1GDFTV..GUN126..S..IV3;1GDFTV..GUN136..THP..LA;1GDFTV..GUN136..6FC..ARL;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135..THP;1GDFTV..GUN126..(CAMP,MMRP,THP)..(ARL,GCC,GEN,LA,MMR,PH,TH,VN)..CBU202408

main16711-0L160i1GDFTV..GUN126..IND202410

main16711-0L170i1GDFTV,2GDFTV..GUN125,126,13#..AGTP202411

main16711-0L180i1GDFTV,2GDFTV..GUN122,125,126,13#..GHAP,KENP,SAP202411

main16711-0L200i1GDFTV,2GDFTV..GUN125,126..MA202409

main16711-0P261i1GRFE..GGN125..GCC202408

main16711-0P281i1GRFE..GGN125..LA202411

main16711-0P290i1GRFE..GGN125..SA202411

5151FRAME

→ Go to FIG 51-51

90119T0384

main90119-T0384

90119T0526

main90119-T0526

90119T0610

main90119-T0610

9017906293

main90179-06293

32 parts on this diagram · 14 diagrams in section
