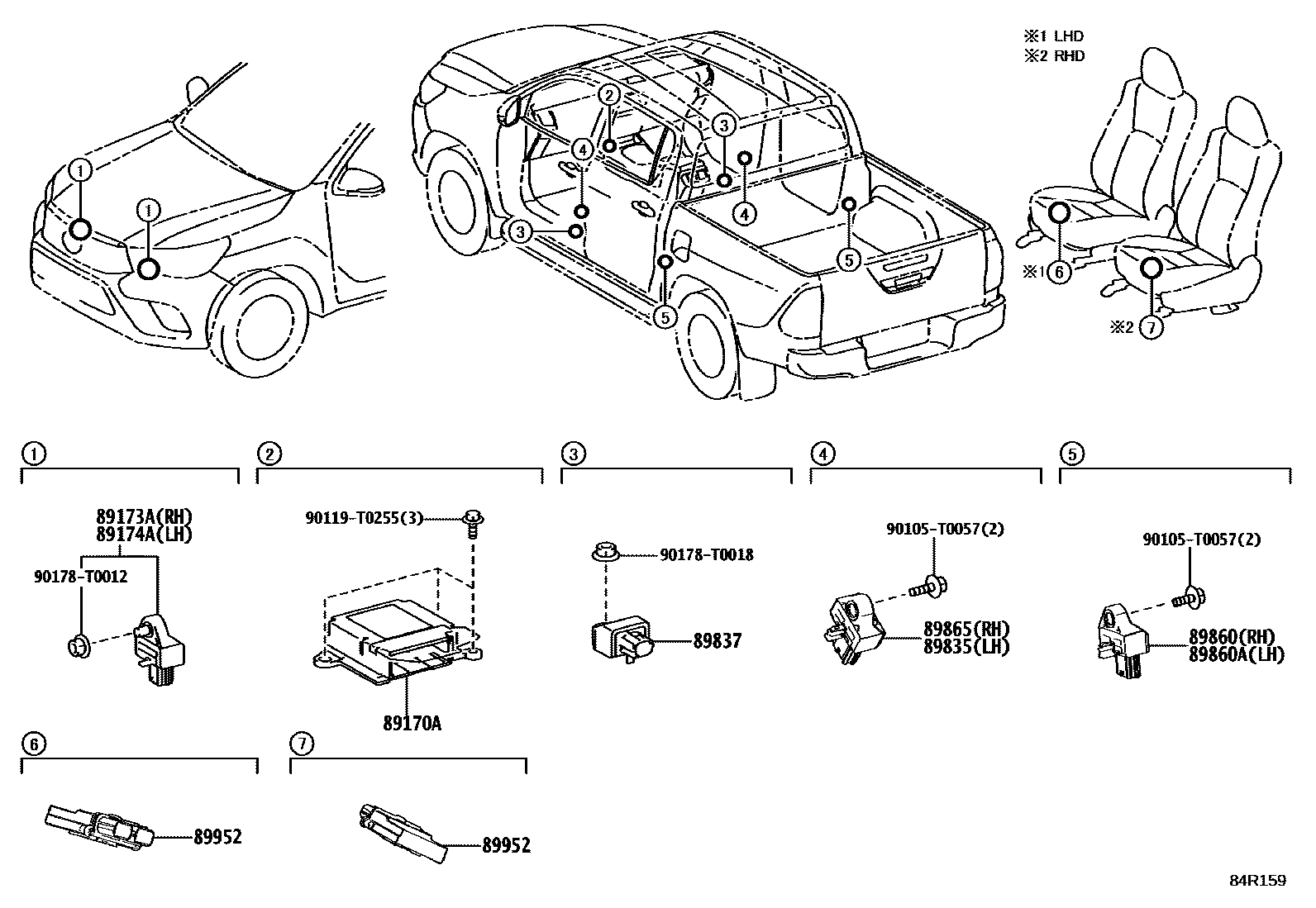

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-0K400supersedes 89170-0KG30iGUN125..6FC..L..GEN; GUN125..THP..6F..L..(GEN,SA); TGN126..L..GEN202308-202407
ASIA COLD COUNTRY SPEC&VSC-WITHOUT; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT; VSC-WITHOUT
ASEAN GENERAL SPEC&VSC-WITHOUT; VSC-WITHOUT
main89170-0KB80supersedes 89170-0KB60iGUN125..6FC..S..GEN;GUN126..RHD..6FC..H..DCRL..GEN; GUN125..LHD..S..GEN; GUN125..LHD..S..GEN;GUN125..RHD..6F..L..GEN;GUN126..RHD..6FC..H..DCRL..GEN; GUN125..RHD..S..GEN;GUN125..RHD..6F..L..GEN;GUN126..RHD..6FC..DCRL..GEN; GUN135..H..(PH,TH);GUN135..THP..L..LA;GUN126..LHD..THP..H..GEN;GUN125,136..THP..6F..(LA,VN);GUN135..THP..(H,S)..(GEN,LA,VN);GUN126..THP..DCRL..(LA,PH,TH,VN);GUN125,TGN126..THP..(5F,6FC)..(IDN,LA); GUN135..L..VN;GUN125..S..IDN;GUN125..6FC..L..GEN;GUN126..RHD..6F..S..GEN; TGN136..GEN202308-202407
ASEAN GENERAL SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); BRUNEI SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CAMBODIA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KF60iGUN125..6F..H..GCC;GUN125..RHD..6F..GEN;GUN126..RHD..6FC..S..GEN;GUN126..RHD..H..DCRL..GEN;GUN125..LHD..THP..L..(GEN,SA);GGN125,GUN125..6FC..(H,S)..(GCC,GEN);GUN125..LHD..THP..6F..S..(GCC,GEN,SA);GUN126,TGN126..(H,S)..(DCRL,HTWC)..GCC; GUN125..6F..L..GCC;GUN126..LHD..S..GEN; GUN125..6FC..L..GEN202308-202407
ASIA COLD COUNTRY SPEC; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION); SRS AIR BAG-WITH(*DRP)
main89170-0KF70iGUN125..6F..L..GEN;GUN125..LHD..S..GEN;GUN125..RHD..(H,S)..GEN;GUN126..RHD..6FC..S..GEN;GUN126..RHD..H..DCRL..GEN; GUN125..6FC..L..GEN; GUN125..LHD..H..GEN;GUN126..LHD..S..GEN; GUN126..LHD..THP..H..GEN202308-202407
ASIA COLD COUNTRY SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); OCEANIA GENERAL SPEC; SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
EXPORT FROM SA&VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG); SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
VSC-WITH(*HSAC & *TSC)
ASIA COLD COUNTRY SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB); NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB); VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
ASIA COLD COUNTRY SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); ASIA COLD COUNTRY SPEC&VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE &CURTAIN); VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KB30iGUN125..6FC..L..GEN; GUN125..RHD..6F..L..GEN; GUN125..S..IDN; GUN135..L..TH202308-202407
ASEAN GENERAL SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB); VSC-WITHOUT; VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main89170-0KB60iGUN125..6FC..L..GEN; GUN125..RHD..6F..L..GEN; GUN125..S..IDN;GUN125..6FC..L..GEN; TGN136..GEN202308-202407
ASEAN GENERAL SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); ASEAN GENERAL SPEC&VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED))& WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED))& WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89173ASENSOR, AIRBAG, FRONT RH
TYPE A:REFER ILLUST.
89174ASENSOR, AIRBAG, FRONT LH
main89173-09B20iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
TYPE A:REFER ILLUST.
89835SENSOR, DOOR SIDE AIRBAG, LH
main89831-0K040iGUN126..MHV..GCC;GUN135..H..(PH,TH);GUN122..LHD..L..GEN;GUN125..LHD..H..GEN;GUN126..LHD..THP..GEN;GUN135..6FC..(ARL,GEN,VN);GUN135..THP..6F..(GEN,LA);GUN125..THP..6F..(ARL,LA,VN);GUN126..THP..(ARL,LA,PH,TH,TWN,VN);GUN136,TGN121,136..THP..(ARL,GEN,LA);GUN125,TGN126..THP..(5F,6FC)..(ARL,IDN,LA); GUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN; GUN135..L..VN;GUN125..S..IDN;TGN126..H..GEN;GUN125..LHD..(L,S)..GEN;GUN122,125,126..RHD..DCRL..GEN202308-202407
SRS AIR BAG-WITH(*DRP); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89837SENSOR, FRONT FLOOR SIDE AIRBAG
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89865SENSOR, DOOR SIDE AIRBAG, RH
main89831-0K040iGUN125..H..SA;GUN125..RHD..6FC..SA;GGN125,GUN126,136..AGTP,SAP;GUN125,135,TGN126,136..AGTP; GUN135..S..SA;GUN125,TGN136..RHD..MTM..S..SA202308-202410
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89952COMPUTER, OCCUPANT DETECTION
90105T0057
main90105-T0057
90119T0255
main90119-T0255
90178T0012
main90178-T0012
90178T0018
main90178-T0018
13 parts on this diagram · 1 diagram in section
