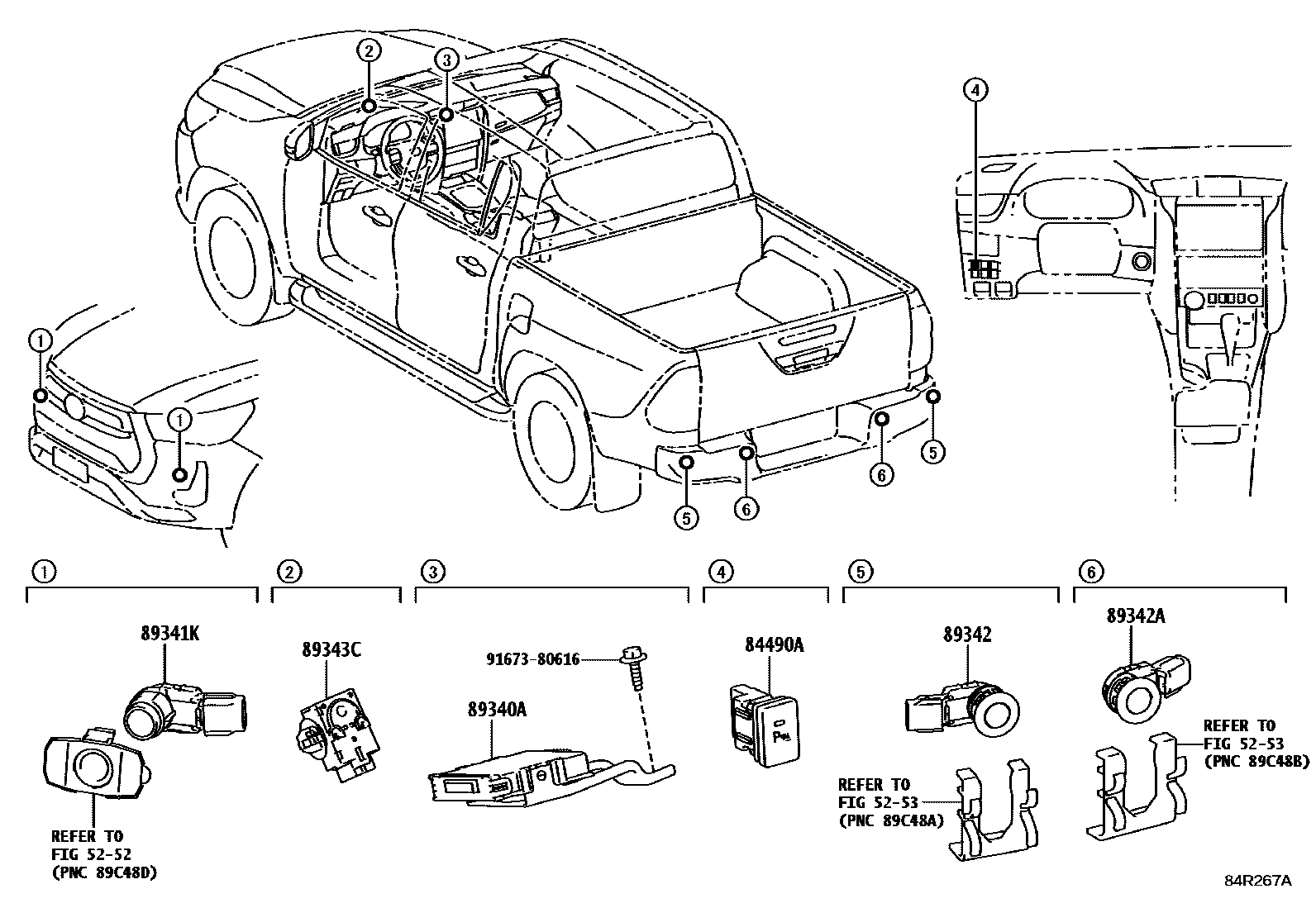

CLEARANCE & BACK SONAR
5252
5253
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
main84490-0K060iGUN126..6FC..S..BZAG;GUN125,126,135..SAP..S;GUN125,TGN136..AGTP..(5F,6FC)..LA202311-202410
CLEARANCE & BACK SONAR-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-0K030iTGN126..H..GEN;GUN126..MHV..GCC;GGN125,GUN125..6FC..H..GCC;GUN126..LHD..H..DCRL..(GEN,LA)202308-202407
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
BRAZIL SPEC&WIDE TREAD
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-06080-A0×2iTGN136..LA;GUN126..S..SA;GUN126..6FC..S..BZAG;GUN125,135..(AGTP,SAP)..6FC..(LA,SA)202308-202410
SUPER WHITE 2,040
main89341-06080-A1×2supersedes 89341-06080-A1iTGN136..LA;GUN126..S..SA;GUN126..6FC..S..BZAG;GUN125,135..(AGTP,SAP)..6FC..(LA,SA)202308-202410
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089
main89341-06080-B2×2iTGN136..LA;GUN126..S..SA;GUN126..6FC..S..BZAG;GUN125,135..(AGTP,SAP)..6FC..(LA,SA)202308-202410
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
SILVER ME.,1D6
main89341-06080-B7×2iGUN135..H..(PH,TH);GUN125..RHD..H..GEN;GUN135..(H,S)..(GEN,VN);TGN126..THP..H..(GEN,LA);GGN125,GUN125..6FC..H..GCC;GUN126..H..MHV..(ARL,GCC,LA)..CBU;GUN126,136..THP202308-202407
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,SILVER ME.,1L0
main89341-06080-C0×2iGUN135..H..(PH,TH);GUN125..RHD..H..GEN;GUN135..(H,S)..(GEN,VN);TGN126..THP..H..(GEN,LA);GGN125,GUN125..6FC..H..GCC;GUN126..H..MHV..(ARL,GCC,LA)..CBU;GUN126,136..THP202308-202407
FRONT BUMPER-WITH(STEEL LOWER COVER) & W(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT,ATTITUDE BLACK MC.,218
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT,CRIMSON SPARK RED ME.,3T6
EMOTIONAL RED 2,3U5
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH,ORANGE ME.,4R8
MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED),OXIDE BRONZE ME.,6X1
CLEARANCE & BACK SONAR-WITHOUT,NEBULA BLUE ME.,8X2
DK. BLUE MC.,8X8
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT) & WITH(WIDE FENDER),BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-71040×2iGUN135..H..(PH,TH);GUN125..RHD..H..GEN;GUN135..(H,S)..(GEN,VN);TGN126..THP..H..(GEN,LA);GGN125,GUN125..6FC..H..GCC;GUN126..H..MHV..(ARL,GCC,LA)..CBU;GUN126,136..THP202308-202407
WHEEL ARCH-WIDE TYPE(MLM)&CLEARANCE & BACK SONAR-WITH
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-71030×2iGUN135..H..(PH,TH);GUN125..RHD..H..GEN;GUN135..(H,S)..(GEN,VN);TGN126..THP..H..(GEN,LA);GGN125,GUN125..6FC..H..GCC;GUN126..H..MHV..(ARL,GCC,LA)..CBU;GUN126,136..THP202308-202407
WHEEL ARCH-WIDE TYPE(MLM)&CLEARANCE & BACK SONAR-WITH
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-48010iGUN125..LHD..H..GEN;GUN13#..S..(ARL,PH,TH);GUN126..RHD..6F..S..GEN;GUN126..6FC..S..ARL..CBU;GUN125..6F..S..(GEN,IDN,TH);GUN125..RHD..THP..6FC..(H,S)202308-202407
CLEARANCE & BACK SONAR-WITH
9167380616
main91673-80616
9 parts on this diagram · 2 diagrams in section
